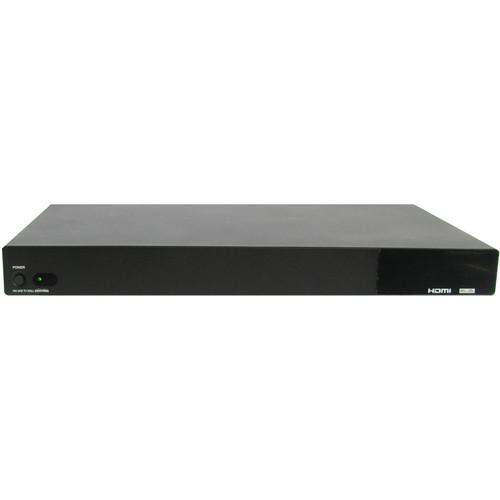

User Manual for A-Neuvideo 1x4 HDMI 4K2K Video Wall Splitter Click to enlarge the picture
Contents of the user manual for the A-Neuvideo 1x4 HDMI 4K2K Video Wall
- Product category: Multiviewer Processors A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Multiviewer Processors
 |
User manual for the A-Neuvideo 1x4 HDMI 4K2K Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description Provided by third party: The ANI-4K-VW 1x4 UHD TV Wall allows a HDMI 4K2K input source to be freely arranged on (4) displays (TVs or monitors) with a bezel correction function. The friendly control application for the TV Wall system has never been easier. This application leads the user through single or total device control. The device supports video output timings up to WUXGA@60RB and 1080p@60 Hz, audio formats up to 7.1CH LPCM at 192 KHz sampling rate based on the input source EDID. All the operation and control can be done through Telnet and RS-232.
- Key Features
-
- HDMI with 4K2K supported, HDCP and DVI compliant
- Output source signal to (4) displays as a full image with adjustable Bezel correction
- Supports Input PC resolutions from VGA-WUXGA and HDTV from 480i-1080p and 4K2K@24/25/30 Hz
- Supports different input and output resolutions selectable from the TV wall application
- Supports AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
- Supports RS-232 and Telnet controls
UPC: 857391003857 Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 1x4 HDMI 4K2K Video Wall Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

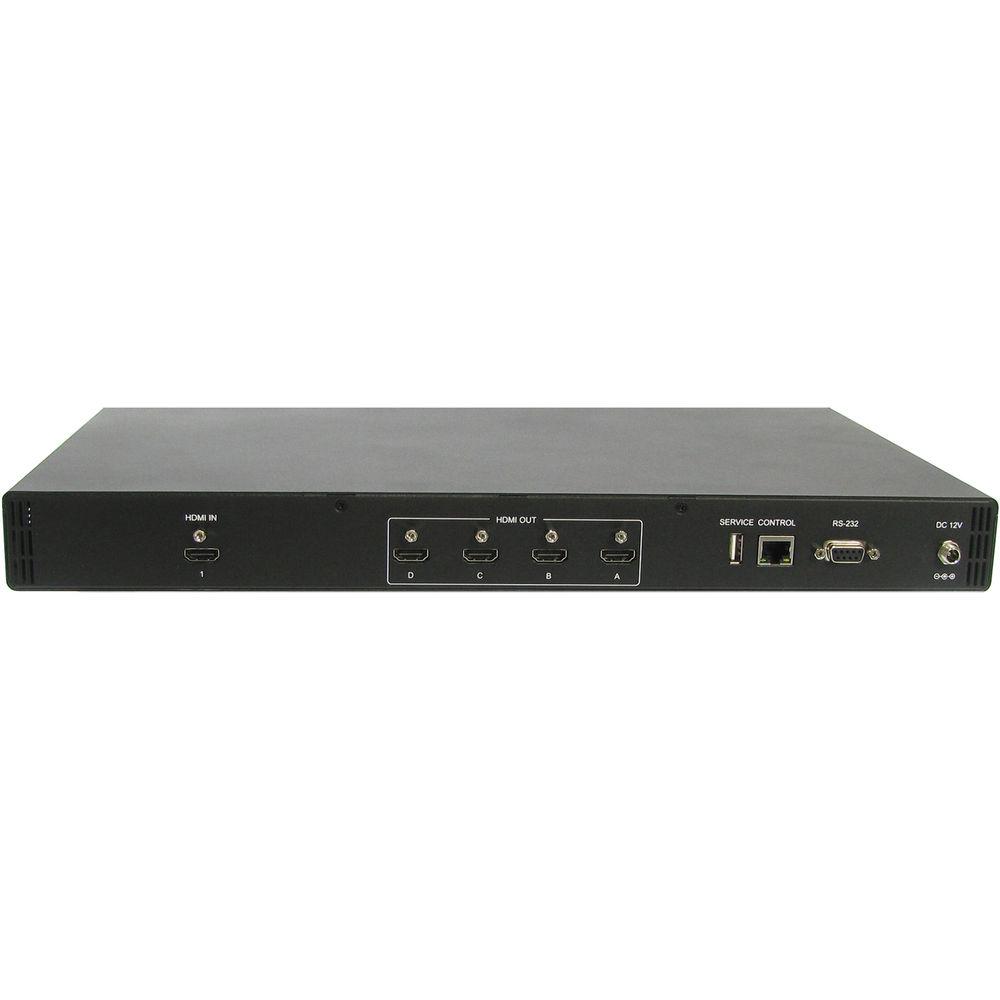

Technical parametersA-Neuvideo ANI-4K-VW Specs | | | Device Type | Video/audio splitter - 4 ports | | Enclosure Type | Rack-mountable | | Subtype | HDMI | | Ports | 4 x HDMI | | Max Resolution | 3840 x 2160 | | Max Video Bandwidth | 300 MHz | | Features | 4K resolution support, Dolby TrueHD support, Dolby Digital Plus support, DTS support, DTS-HD support, AC3 support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge) | | | | Interfaces | 1 x HDMI input Type A
4 x HDMI output Type A
1 x management (LAN) RJ-45
1 x serial (RS-232) DB-9

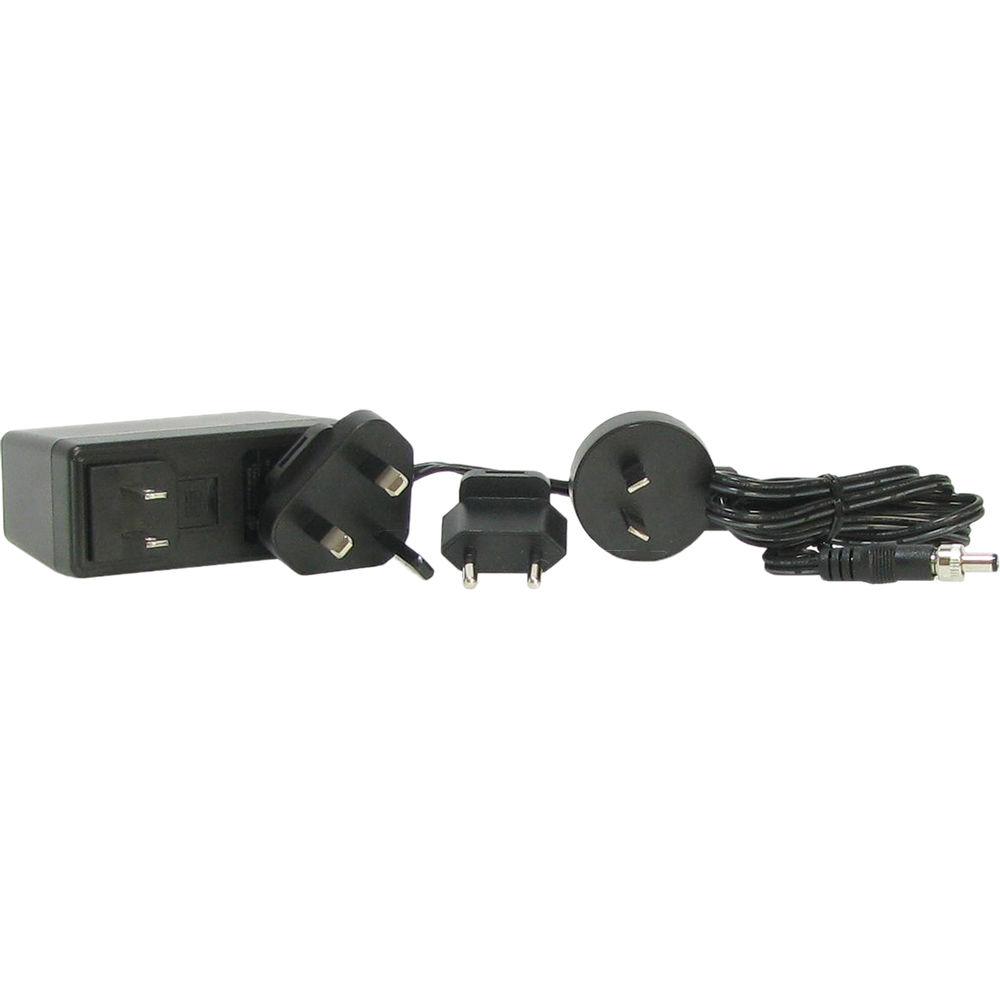

1 x USB | | | | Power Device | External power adapter | | Power Consumption Operational | 12.98 Watt | | | | Width | 17 in | | Depth | 10.5 in | | Height | 1.7 in | | Weight | 6.39 lbs | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
