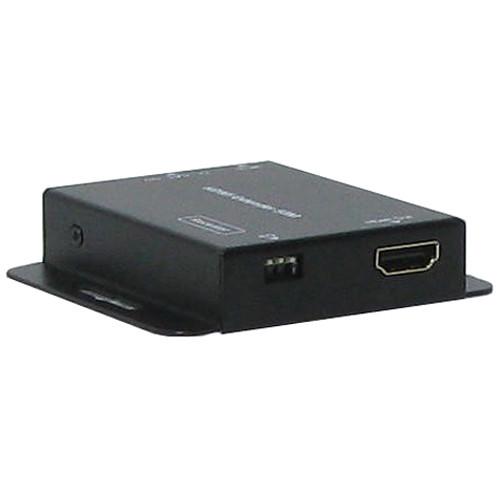

Product description Split and extend an HDMI signal over readily available category cable with this A-Neuvideo 1x4 HDMI Splitter and Extender over Cat5e/6 System. Including a splitter base with four receivers and IR communication cables, this system is ready to go out-of-the box once you supply standard Cat5e/6 cabling. Since the HDMI signals are carried via category cable, transmission distances of up to 164' can be achieved. Video, audio, IR, and power are sent down the same cable, so only a single power supply is required. Video resolutions up to 1080p60 are supported, and multichannel audio is passed through to each receiver. While surface-mount bracketing is included, A/V system integrators can purchase rack ears separately for securing the splitter unit in a standard 19" equipment rack. - HDMI 1.3, HDCP 1.2, and DVI 1.0 compliant
- Supports up to 1920 x 1080p at 60 fps, 8-bit color depth per channel
- Supports multichannel LPCM, Dolby True-HD, and DTS-HD master audio
- Power-over-Ethernet (PoE) allows receivers to be powered directly by the transmitter over a single Ethernet connection

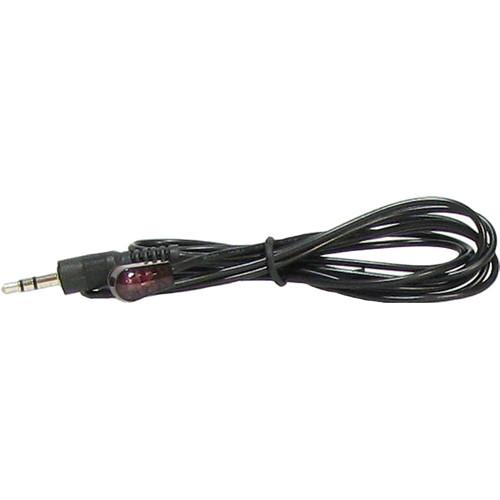

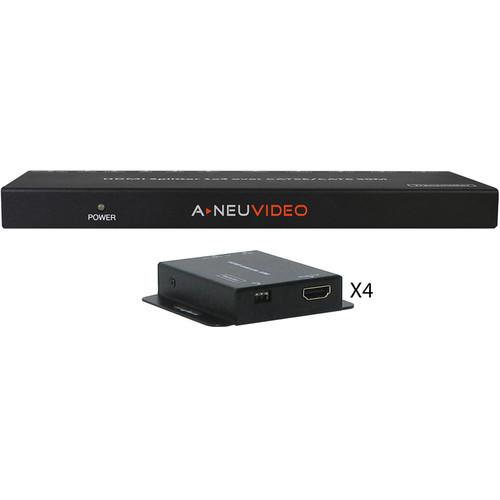

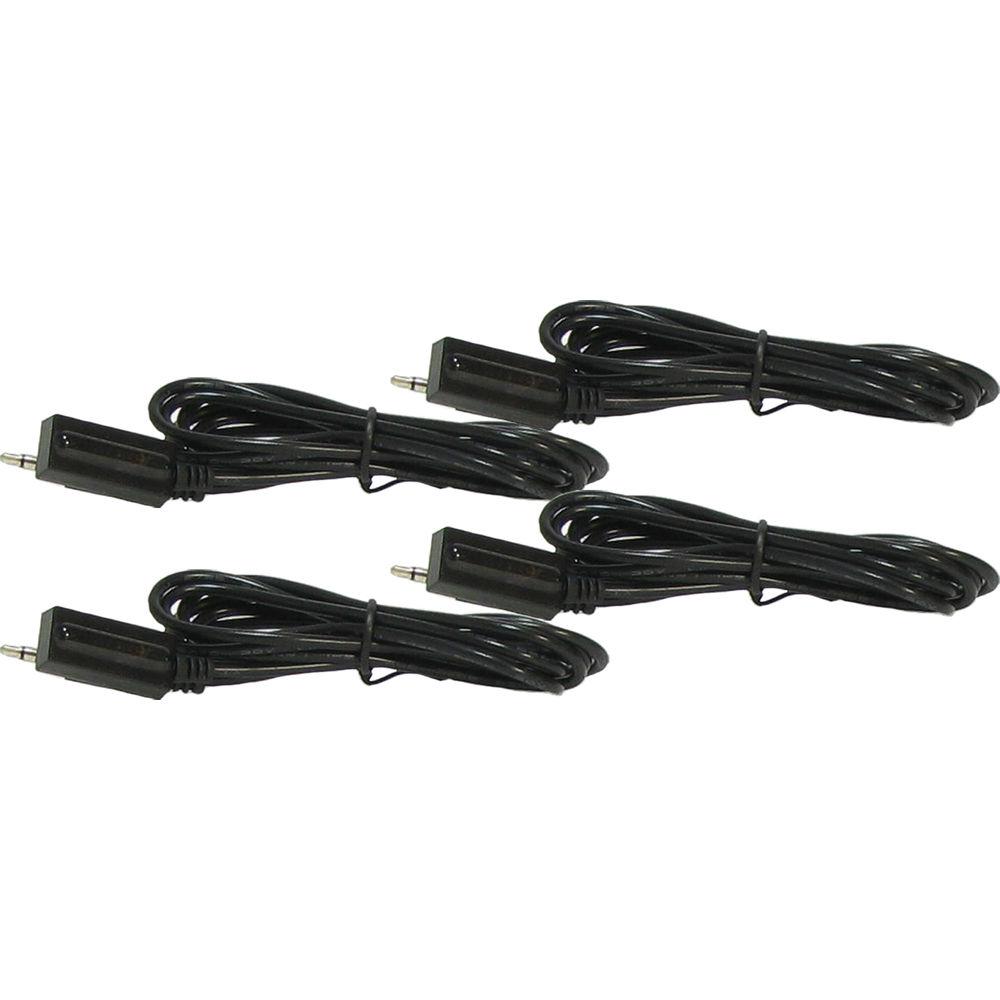

UPC: 857391003871 In the Box A-Neuvideo 1x4 HDMI Splitter and Extender over Cat5e/6 System 4 x Receivers IR Transmitter 4 x IR Receivers Surface Mount Brackets Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 1x4 HDMI Splitter and Extender over Cat5e 6 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-0104POE Specs | I/O | Splitter:

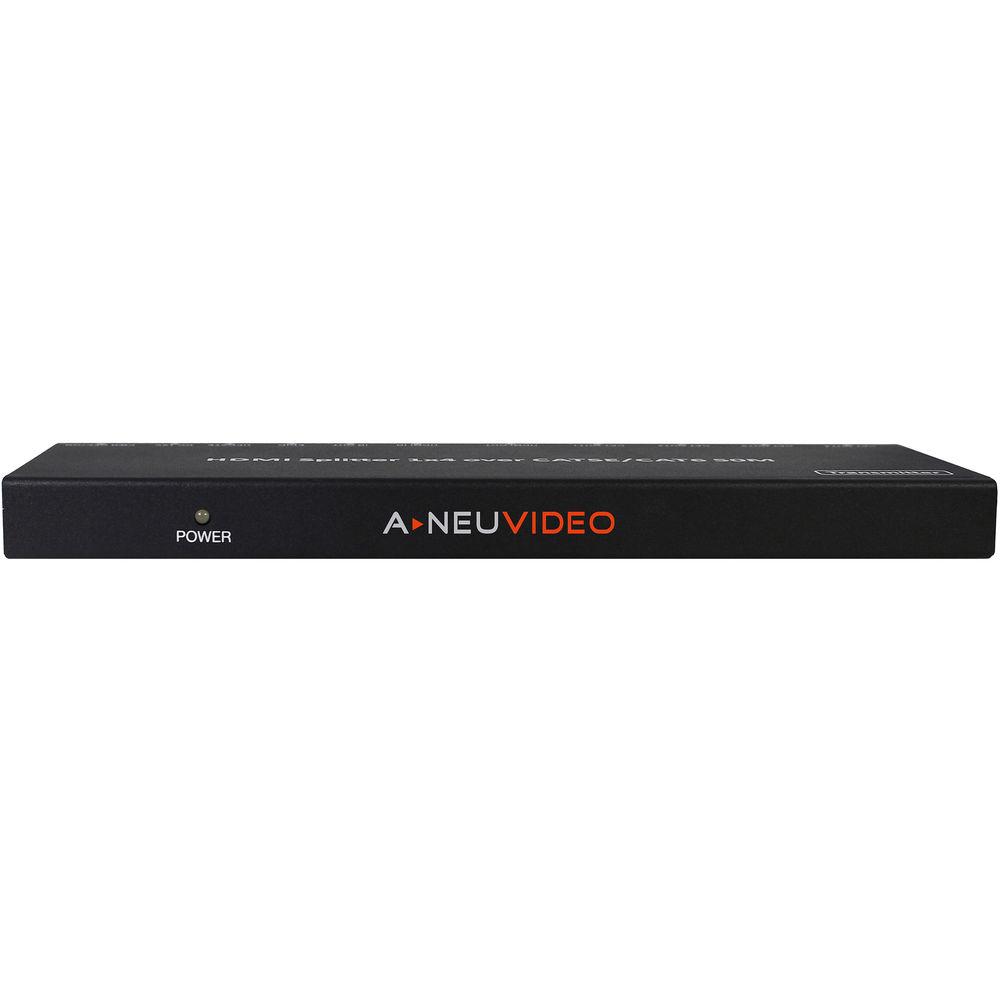

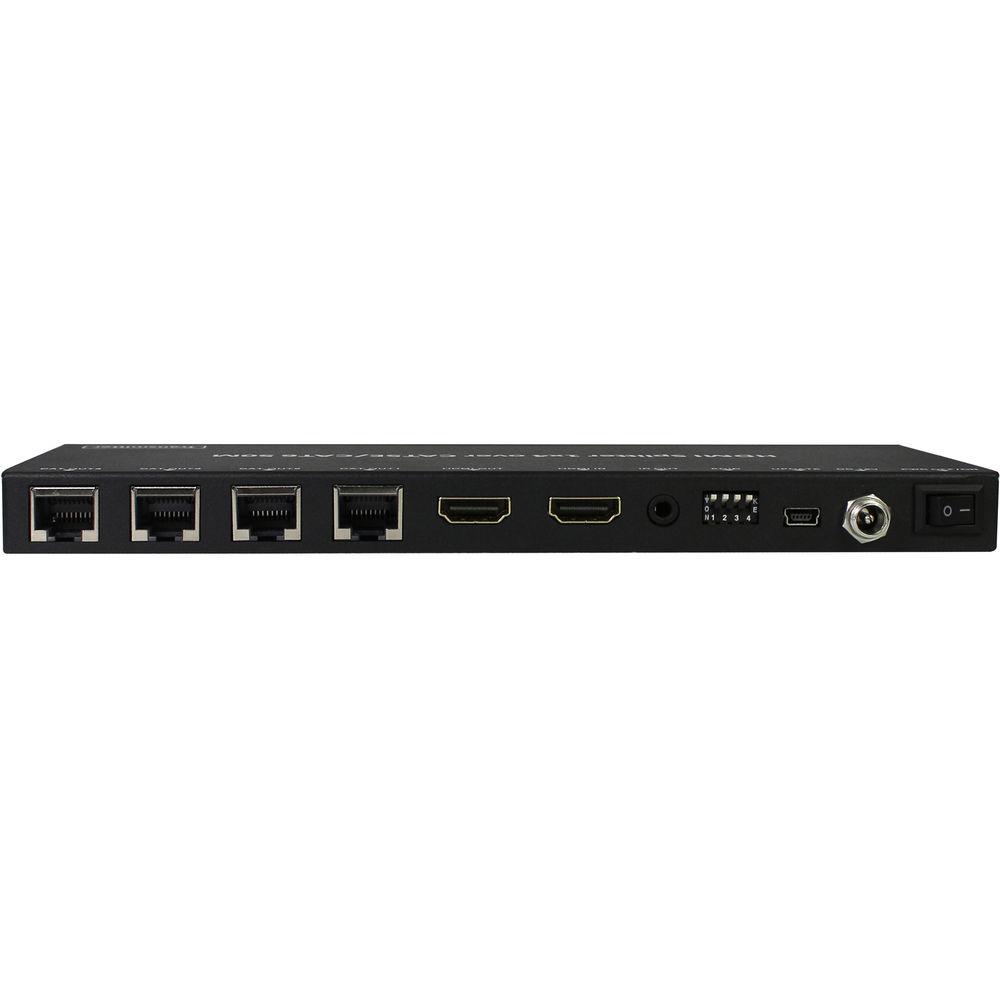

1 x HDMI Type A, v1.3 input
1 x HDMI Type A, v1.3 loop-through output
4 x RJ45 outputs
1 x IR transmitter port
1 x Mini-USB
Each Receiver:

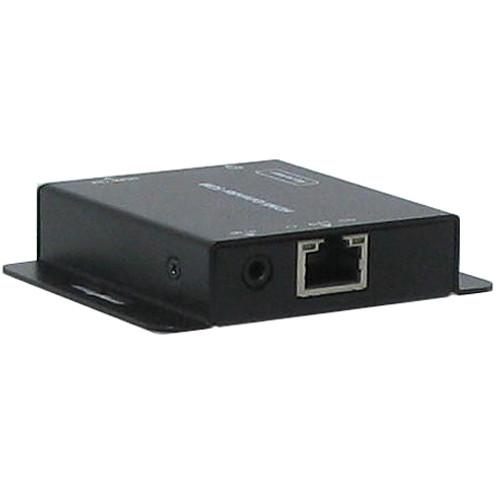

1 x HDMI Type A, v1.3 output
1 x RJ45 input
1 x IR receiver port | | Transmission Distance | To Each Receiver: Up to 164' / 50 m over Cat5e/6 | | Maximum Pixel Clock | 165 MHz | | Maximum Resolution | 1080p60 | | Supported CAT Cables | UTP Cat5e/6 (UTP cable termination follows IEEE-568B standard) | | Power Supply | 12 VDC, 2.5 A | | Power Consumption | 8 W (maximum) | | ESD Protection | ±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20 to 90%, non-condensing | | Dimensions | Splitter: 8.25 x 3.25 x 0.75" / 20.9 x 8.3 x 1.9 cm
Each Receiver: 3.25 x 2.75 x 0.6" / 8.3 x 7 x 1.6 cm | | Weight | Splitter: 1 lb / 450 g
Each Receiver: 3.2 oz / 90 g | | | | Package Weight | 3.28 lb | | Box Dimensions (LxWxH) | 12.25 x 6.6 x 2.9" |
