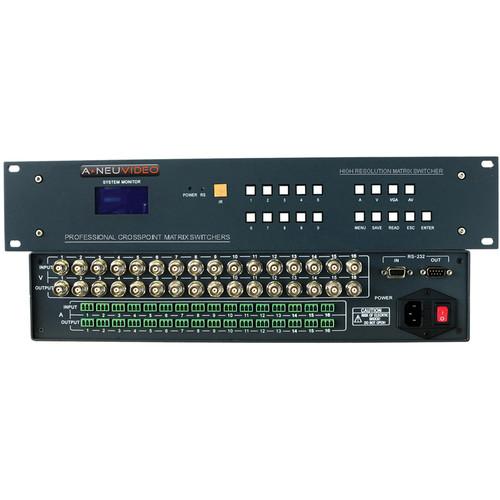

User Manual for A-Neuvideo 24x8 AV Serial Matrix Switcher Click to enlarge the picture
Contents of the user manual for the A-Neuvideo 24x8 AV Serial Matrix Switcher
- Product category: Routers & Switchers A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Routers & Switchers
|
User manual for the A-Neuvideo 24x8 AV Serial Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description This is a professional crosspoint AV Matrix Switcher from A-Neuvideo, offering 24 Composite BNC inputs and 8 outputs. It uses high-performance IC chips and features a 100MHz bandwidth supporting up to 480 resolution.
A monochrome dot-matrix LCD display confirms routing selections, which you can control via front panel push buttons or RS-232 communication interface. Up to 30 user preset matrixes can be stored. A user-friendly GUI compatible with all versions of Windows up to Windows 8 is included. - Key Features
-
- 24 Composite BNC inputs
- 8 Composite BNC outputs
- Supports resolutions up to 480
- 19" rack-mountable
- <100ns switching delay
- Monochrome dot-matrix LCD routing display
- Front panel and RS-232 control
- Supports up to 30 user preset matrixes
- Includes Windows-compatible GUI for manual/auto switching
- Cascadable 255 units deep
In the Box A-Neuvideo 24x8 AV Serial Matrix Switcher RS-232 Cable Power Cable Testing and Application Software CD Certification and Warranty Card User Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 24x8 AV Serial Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-V2408 Specs | Video I/O | Input: 24x Composite BNC
Output: 8x Composite BNC
Bandwidth: 100 MHz (-3 dB)
Input Level: 0.5 Vp-p min, 2.0 Vp-p max
Impedance: 75 Ω
Brightness Color Interference: -68.5 dB @ 5 MHz
Echo Wasting: -85 dB @ 10 MHz
SNR (S/N): 72.8 dB
Switch Speed: Up to 100 ns | | H & V Sync | Input Level: 1 to 5 Vp-p
Input Impedance: 10 K Ω
Output Level: Compatible TTL
Output Impedance: 75 Ω
Synchronous Polarity: Following | | Audio | None | | Control | Front panel push buttons, RS-232, Windows based GUI software | | MTBF | 50,000 hours | | Power Supply | 85 - 265 VAC, 50 Hz / 60 Hz | | Power | 20 - 50 W | | Chassis | Aluminum |
