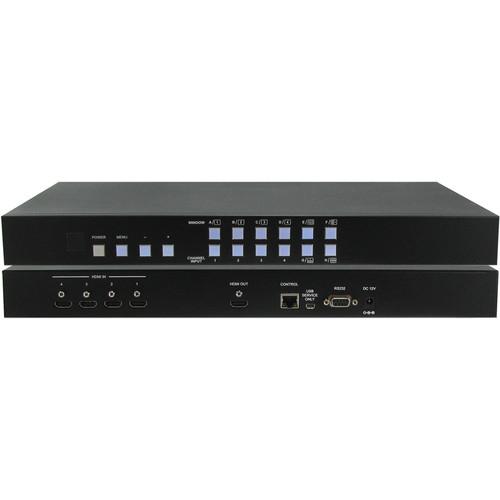

User Manual for A-Neuvideo 4 x 1 HDMI Seamless Quad PiP PoP Scaler Switcher Click to enlarge the picture
Contents of the user manual for the A-Neuvideo 4 x 1 HDMI Seamless
- Product category: Multiviewer Processors A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Multiviewer Processors
|
User manual for the A-Neuvideo 4 x 1 HDMI Seamless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description A picture-in-picture, picture-over-picture, quad-split switcher, the A-Neuvideo ANI-PIP allows you to display four signals in several different configurations on the screen. Have three stacked one on top another on the left and the fourth taking up the entire right part of the screen. Superimpose three over the fourth in full-screen. Assign all four in one row, all four in a 2 x 2 split, or switch between each one in full screen. Furthermore, adjust the size and vertical and horizontal positions of the signals, as well as brightness, contrast, hue, saturation, and chromakey. Use front panel hotkeys, remote control, RS-232, built-in drag-and-drop GUI or Telnet, or full-function OSD for control and setup.
The ANI-PIP supports up to Full HD 1080p/60 and WUXGA/60 resolutions and up to 8-channel audio on both input and output. The output resolution is assignable at up to the maximum supported. Signals with lower resolutions are automatically upscaled. The output audio is selectable from any of the four input sources and switchable independently of the video signals. You can additionally apply fade-in/fade-out transitions to make switching even more seamless. It's an HDCP compliant scaler/switcher offering zero delay when switching between signals.
Up to four units can be cascaded to output a 16 signal split on one display. Each unit in the cascade must be configured and controlled individually. - Output Layouts
-
- 3 signals stacked on the left and 1 on the right
- 3 signals superimposed on the bottom over a 4th one in full-screen
- 4 signals side-by-side one another in a row
- 4 signals in a 2 x 2 quad split
- Switch between four signals in full screen
- Key Features
-
- Supports up to 1080p/60 and WUXGA/60 and 8-Ch audio 192 kHz
- Assignable output resolution (constant); automatic upscaling
- Selectable and independently switchable output audio
- Zero delay
- Fade-in/fade-out functions
- Mirror and rotation functions (90° left/right, 180° up/down)
- Adjustable signal size, positioning, brightness, contrast, hue, saturation, chromakey
- Control via front panel, remote control, RS-232, GUI or Telnet, or OSD
- 8 pre-stored hot keys / 4 customized
- HDCP compliant
- Up to four units cascadable to one output display (16 x 1)
UPC: 857391003383 In the Box A-Neuvideo 4 x 1 HDMI Seamless Quad PiP PoP Scaler Switcher Power Supply Remote Control Rack Mount Brackets User Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 4 x 1 HDMI Seamless Quad PiP PoP Scaler Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-PIP Specs | Video Bandwidth | 225 MHz / 6.75 Gbps | | Input / Output | 4x HDMI inputs type A female (locking HDMI cables supported)
1x HDMI output type A female (locking HDMI cables supported)
1x RJ45
1x RS-232
1x USB mini (for service) | | Supported Resolution | Up to 1080p/60, WUXGA/60 | | Supported Audio | Up to 8-Ch 192 kHz | | HDCP Compliant | Yes | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge) / ±4 kV (contact-gap discharge) | | Chassis Material | Aluminum | | Silkscreen Color | Black | | Power Supply | 12 VDC / 3 A (US/EU standards, CE/FCC/UL certified) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Dimensions | 17 x 6.8 x 1.7" (43 x 17 x 4.4 cm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 10.15 lb | | Box Dimensions (LxWxH) | 22.8 x 16.5 x 5.6" |
