Product description The A-Neuvideo 4K HDMI HDR Transmitter/Receiver over Category Cable with ARC can transmit your HDMI signal up to 328' over a Cat 6+ cable and provide ARC (Audio Return Channel). Simply connect your HDMI signal to the input of the transmitter, connect to the HDBaseT output, and then connect the receiver at the other end. The system supports HDMI 2.0b, HDCP 2.2 protocols as well as DVI over HDMI. With an 18 Gb/s throughput, the system enables transmission of 4K2K signals at either 50 or 60 Hz and supports HDR over HDMI as well as HDMI high bitrate audio.
PoC (Power over Cable) is supported, which allows you to connect the included power supply to either the transmitter or receiver to power them both. Bidirectional IR is also supported using the included IR blasters and receivers; this allows you to remotely control either the source or display while up to 328' away. - Audio Return Channel (ARC) is supported by this transmitter/receiver set, which allows audio from a compatible display to be routed from the receiver unit to the transmitter.
- When ARC is not active, audio input/output are obtained via the optical audio ports and not within the HDMI signal.
- 10-bit HDR (High Dynamic Range) pass-through
- Video resolutions up to 4K2K @ 60 Hz (4:4:4), 4K2K @ 30 Hz, 1080p @ 120 Hz
- Supports HDMI high bitrate (HBR) audio pass-through
- Audio up to 7.1 channels of high-definition audio pass-through
- HDBaseT 2.0 over a single Cat 6+ cable up to 330'
- Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
- When either the TX or RX is powered by a 24V, 1A power supply, the other does not need a power supply from the DC jack.
- Bidirectional RS-232 control signal is transmitted along with the HDMI signal.
- Bidirectional infrared control signal is transmitted along with the HDMI signal.
- Not compatible with EZ-45 connectors

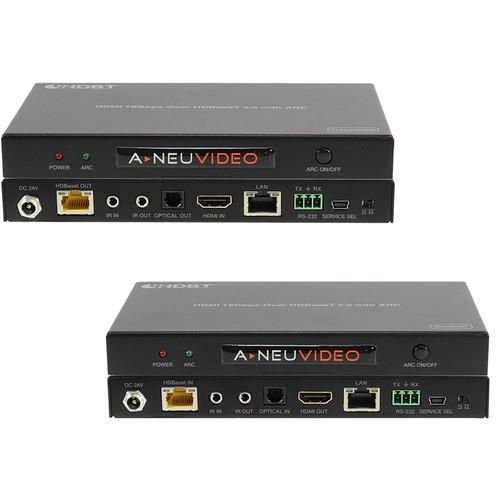

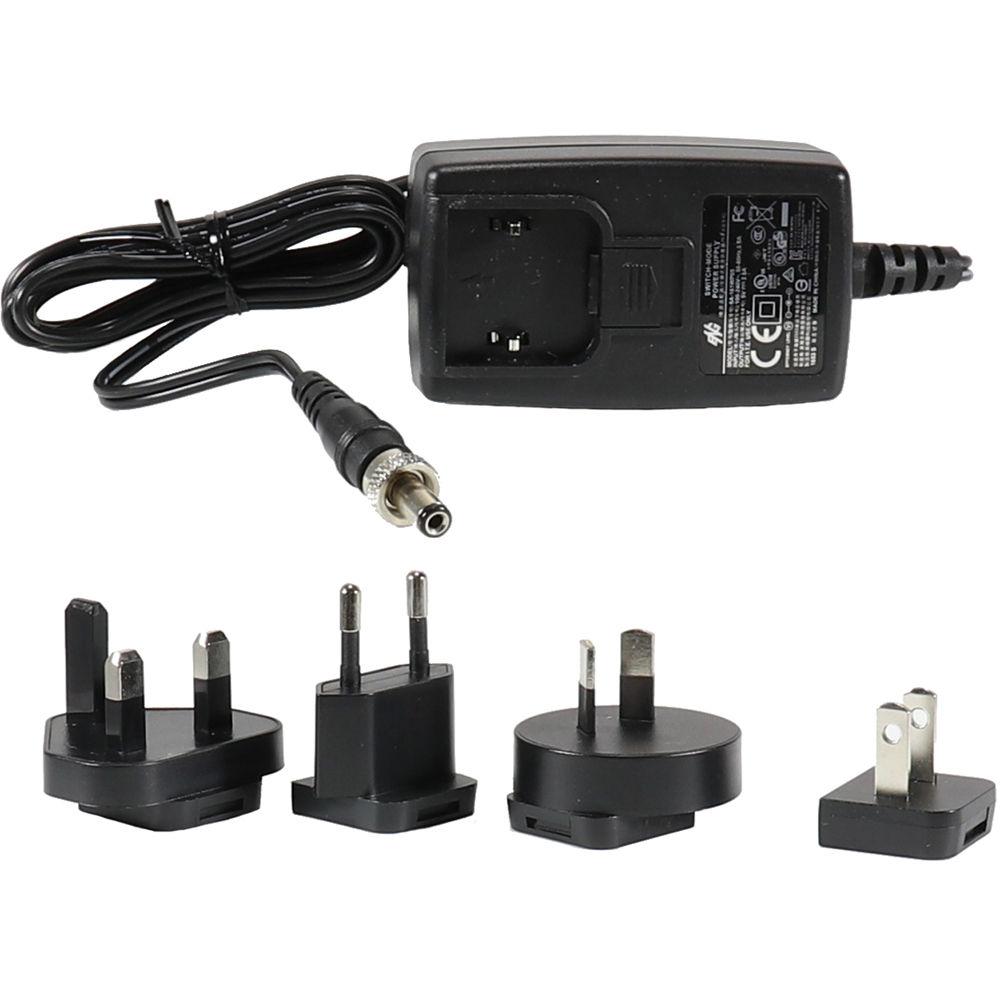

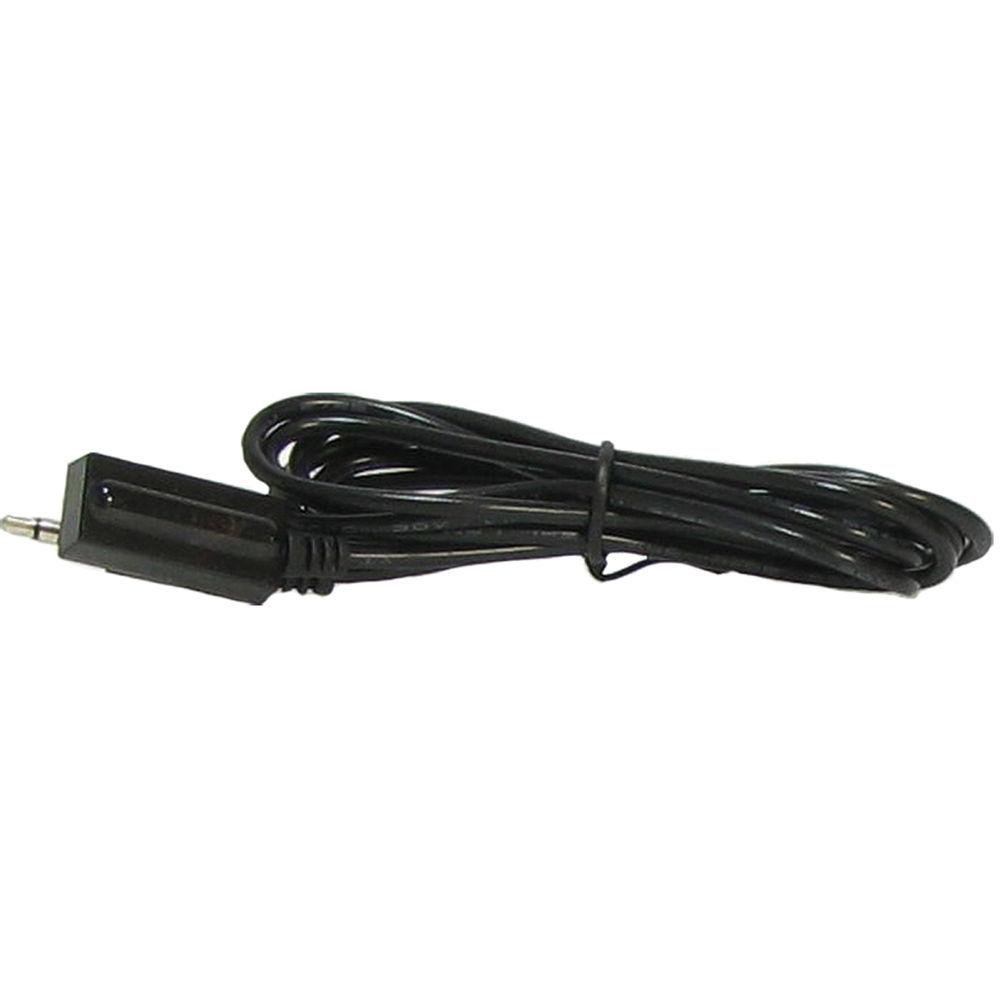

UPC: 859777007046 In the Box A-Neuvideo 4K HDMI HDR Transmitter/Receiver over Category 6+ Cable with ARC (18 Gb/s) 24 VDC, 1A Power Supply 2 x Wideband IR Transmitters 2 x Wideband IR Receivers 4 x Mounting Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 4K HDMI HDR Transmitter Receiver over Category 6 Cable with ARC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-HDR200 Specs | Transmission Distance | Cat 6+ Cable
328' / 100 m: 1080p @ 60 Hz, 36-Bit; 3D1080p @ 30 Hz, 36-Bit
230' / 70 m: 1080p @ 60 Hz, 48-Bit; 1080p @ 120 Hz, 24-Bit; 3D-1080p @ 60 Hz, 36-Bit; 4K2K @ 30 Hz, 24-Bit; 4K2K @ 50/60 Hz (YUV420); 4K2K @ 50/60 Hz (YUV444) | | HDMI Compliance | HDMI 2.0b | | HDCP Compliance | HDCP 2.2
HDCP 1.4 | | Bandwidth | 18 Gb/s | | Video Resolutions | 4K2K @ 50/60 Hz (YUV4:4:4)
4K2K @ 30 Hz
1080p @ 120 Hz
1080p 3D @ 60 Hz | | Color Space | RGB
YCbCr 4:4:4
YCbCr 4:2:2 | | Color Depth | 10-Bit
12-Bit | | Audio | HDMI (Pass-Through)
LPCM 2/5.1/7.1 CH
Dolby Digital
DTS 5.1
Dolby Digital+
Dolby TrueHD
DTS-HD Master Audio
Dolby Atmos
DTS:X
Optical
LPCM 2 CH
LPCM 5.1
Dolby Digital 2/5.1 CH

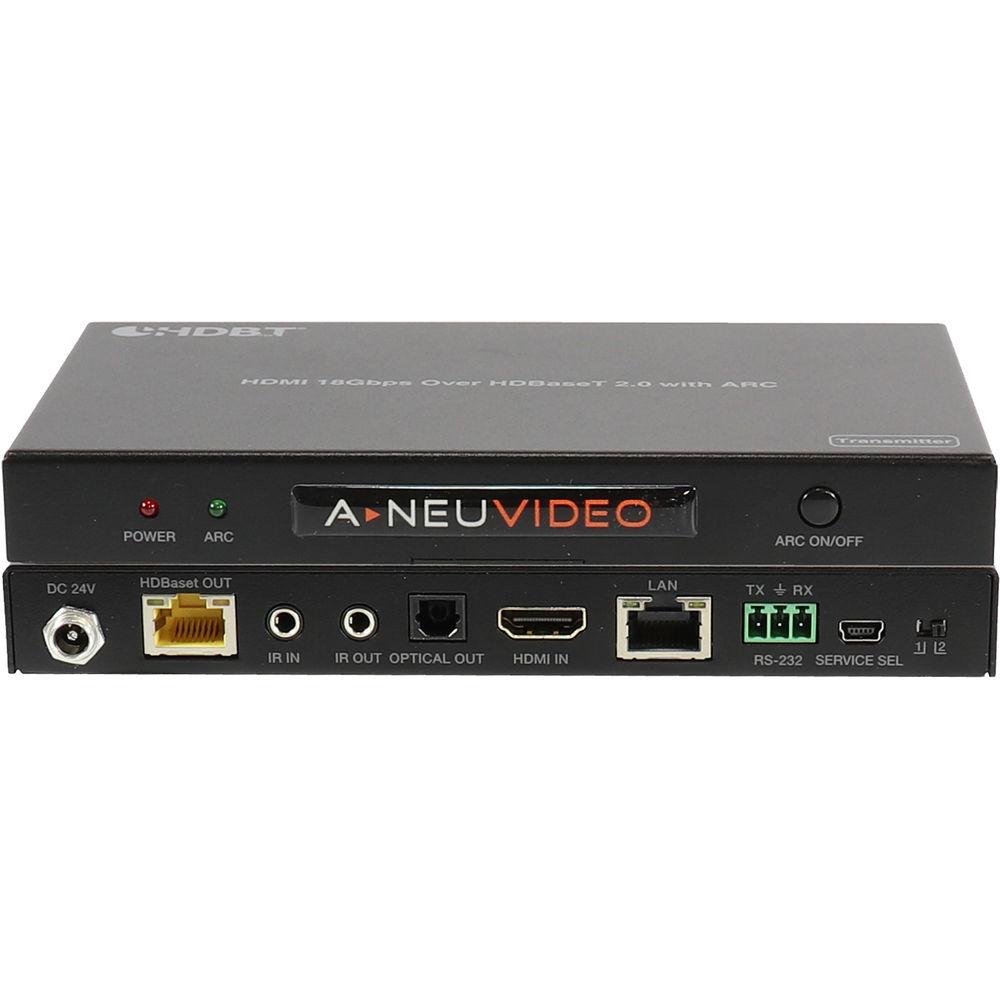

DTS 2/5.1 CH | | Interface | Transmitter
HDMI In: 1 x Type A
Ethernet In/Out: 1 x RJ45
HDBaseT Out: 1 x RJ45
IR Input: 1 x 1/8" / 3.5 mm Stereo Mini Jack
IR Output: 1 x 1/8" / 3.5 mm Stereo Mini Jack
RS-232: 1 x Phoenix
Service: 1 x Mini-USB

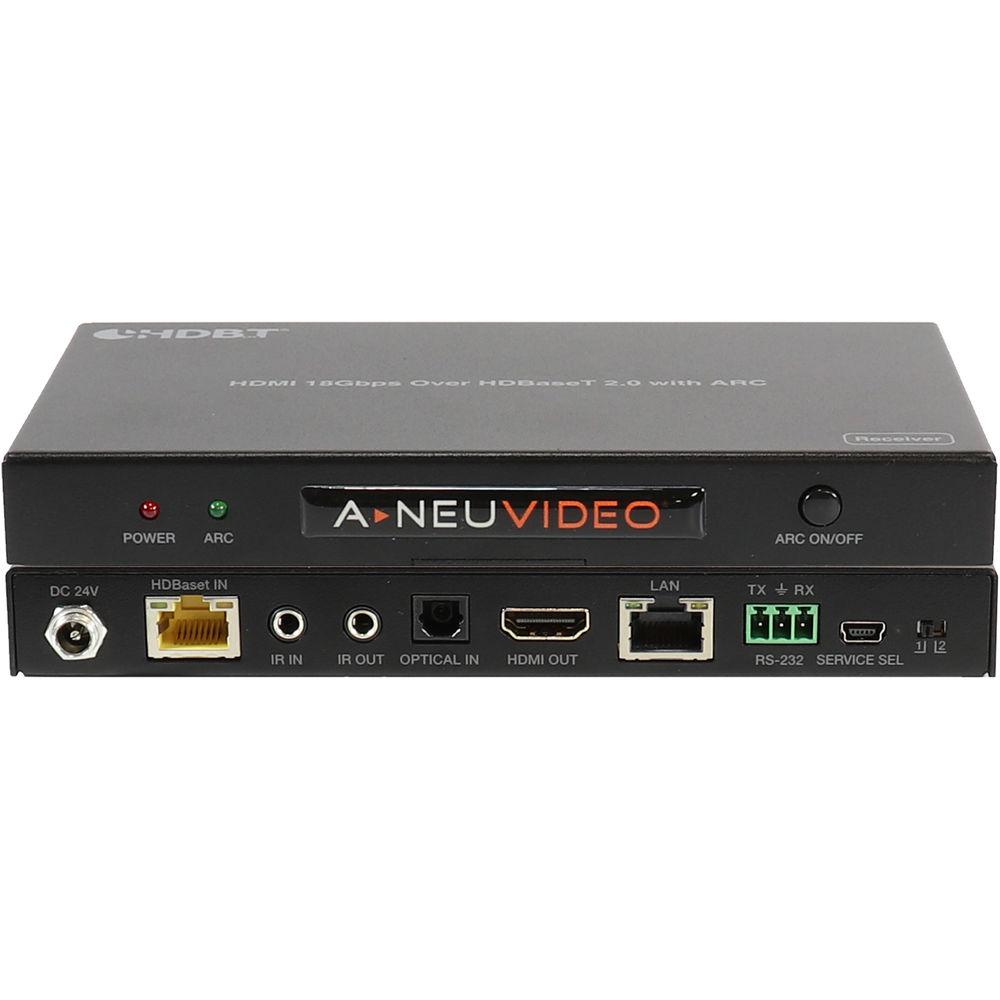

Receiver
HDMI Out: 1 x Type A
Ethernet In/Out: 1 x RJ45
HDBaseT In: 1 x RJ45
IR Input: 1 x 1/8" / 3.5 mm Stereo Mini Jack
IR Output: 1 x 1/8" / 3.5 mm Stereo Mini Jack
RS-232: 1 x Phoenix
Service: 1 x Mini-USB | | ESD Protection | Human Body Model:
±8 kV (Air-Gap Discharge)
±4 kV (Contact Discharge) | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 24 VDC, 1 A (US/EU Standards, CE/FCC/UL Certified) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (Non-Condensing) | | Power Consumption | 20 W (Max) | | Dimensions | 6.8 x 3.8 x 0.8" / 17.27 x 9.65 x 2.03 cm (Each Unit) | | Weight | Transmitter: 14.8 oz / 420 g
Receiver: 15 oz / 425 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.5 x 8.38 x 2.88" |
