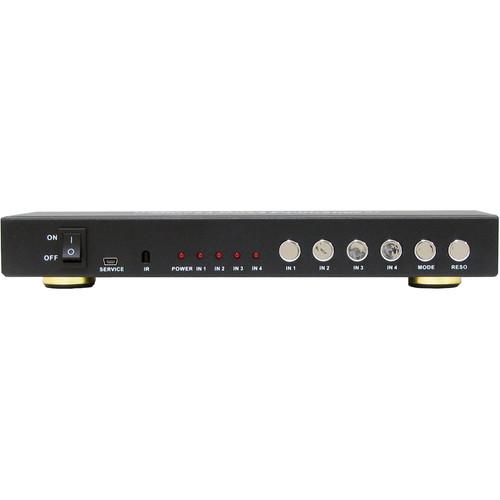

User Manual for A-Neuvideo 4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher Click to enlarge the picture
Contents of the user manual for the A-Neuvideo 4x1 HDMI Quad Screen Multi-Viewer
- Product category: Multiviewer Processors A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Multiviewer Processors
 |
User manual for the A-Neuvideo 4x1 HDMI Quad Screen Multi-Viewer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description Simultaneously view or switch between four HDMI sources with this 4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher from A-Neuvideo. Whether you operate this device as a switcher or as a multiviewer, you can extend the output signal up to 250' by connecting the internal UTP extender and included receiver with a separately available Ethernet cable. Multiview can be operated in quad-view or picture-in-picture modes. Once you have your sources and display set up, use the front panel buttons, included IR remote control, or RS-232 connection to control the device. IR communication between device and display can be carried bi-directionally using the included IR transmitters and receivers. - Compliant with HDMI 1.3a, HDCP 1.2
- Multiplexes four HDMI inputs into one HDMI output
- Supports resolutions up to 1080p HD
- Supports scaler up & scaler down functions, multi-output resolution, and digital audio format LPCM/AC3/DTS
- IR system allows for control of source at display end
- Quad, picture-in-picture, and full-screen display modes
- Enables to switch audio independently of video from connected HDMI sources in quad mode
- Supports simultaneous local and remote HDMI output
- Allows HDMI audio/video and IR signals to be transmitted over a single CAT5e/6 cable
- Supports HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1200
- Fluid real-time video performance with 60 frames per second (fps) in all four quadrants
- Can be controlled through front panel buttons, IR remote, or Graphical User Interface (GUI) via the RS-232 port
- Can be cascaded to display video from any number of video sources on one screen
- Adjustable output video brightness, contrast, color, and sharpness
- Built-in default EDID table
- ARC (Audio Return Channel) support at the receiver unit via coax SPDIF output for speakers

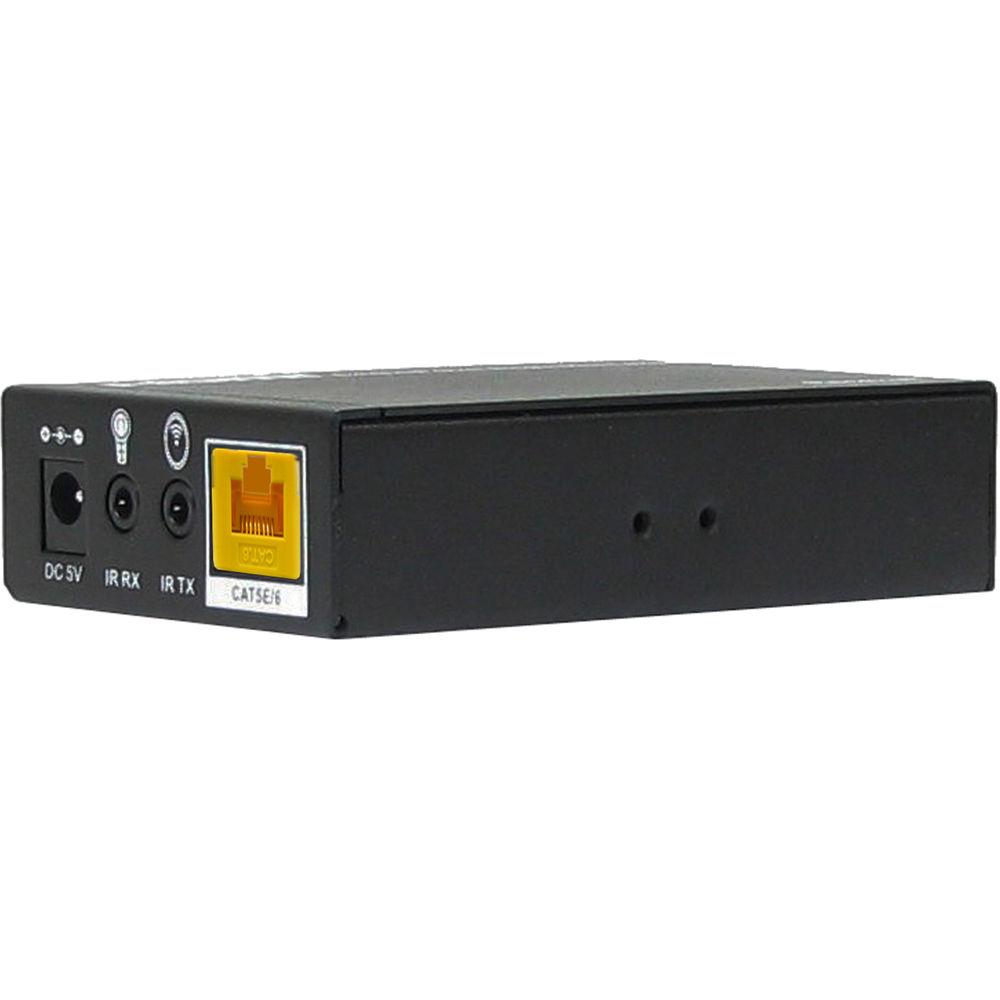

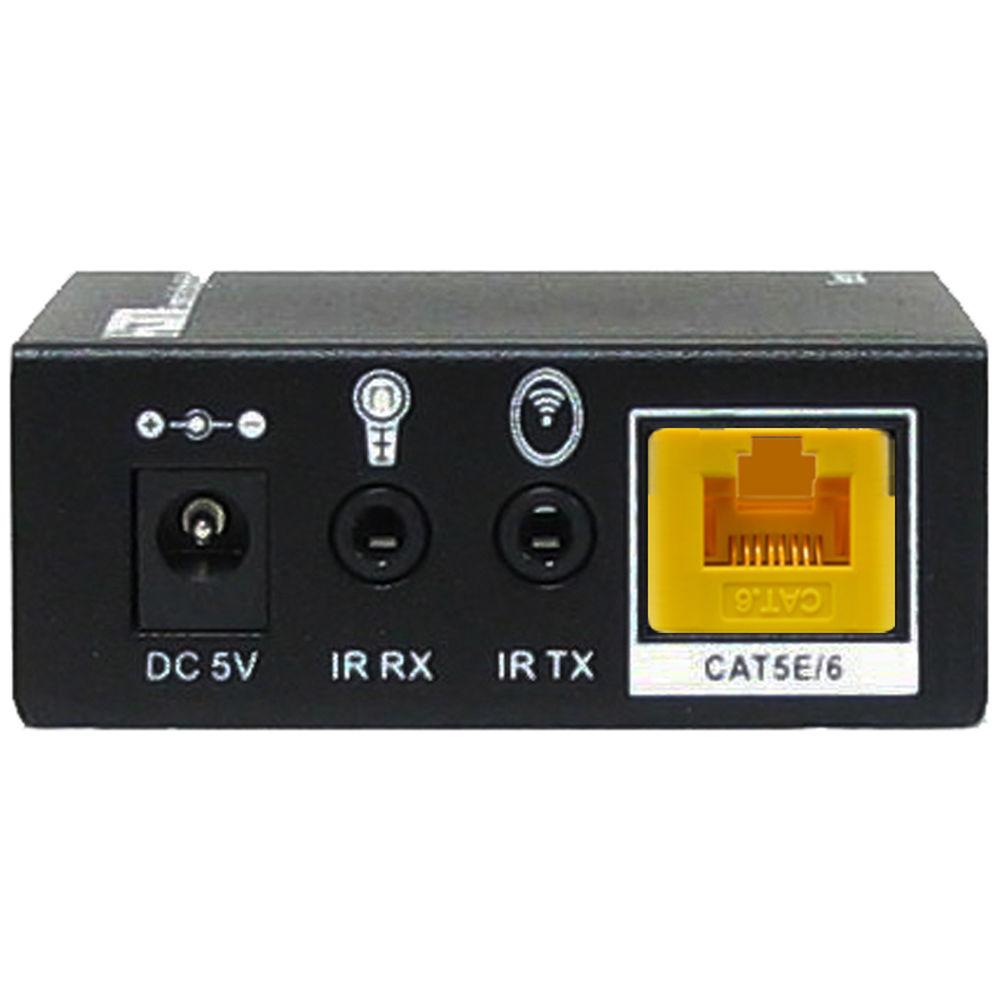

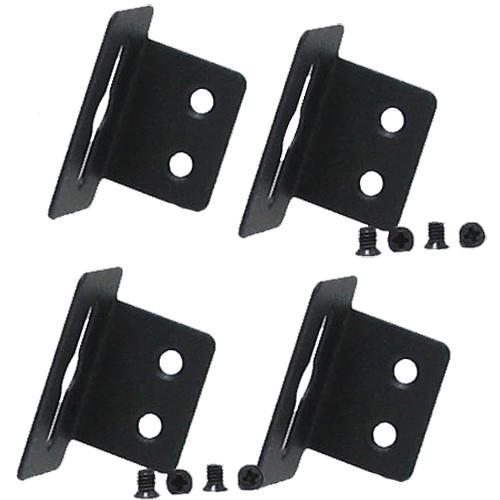

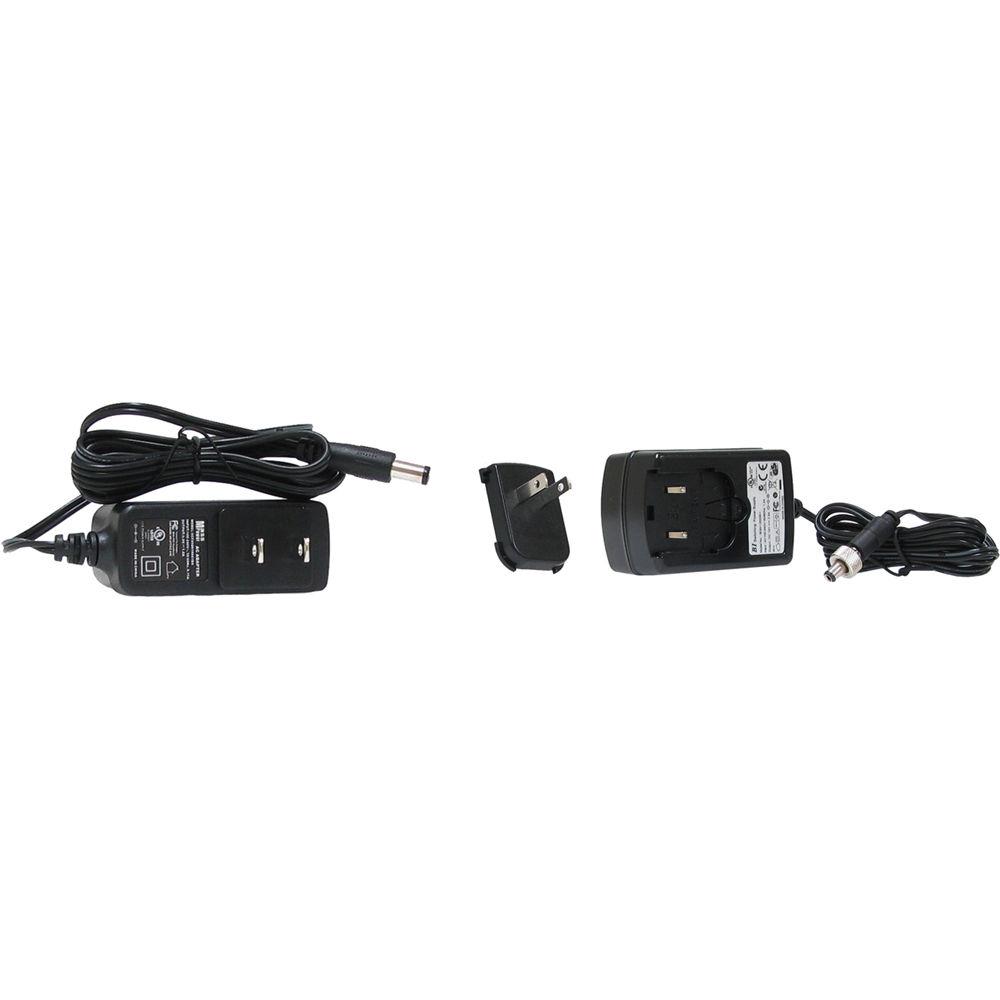

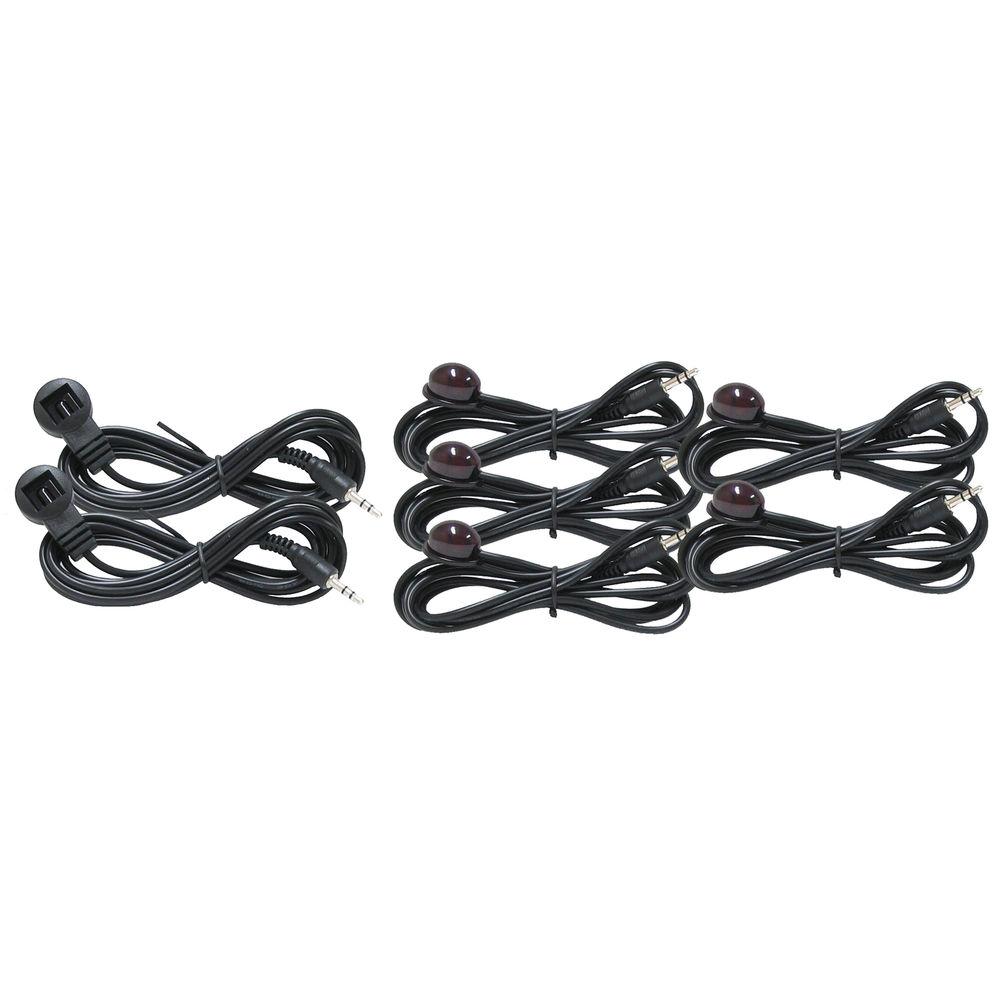

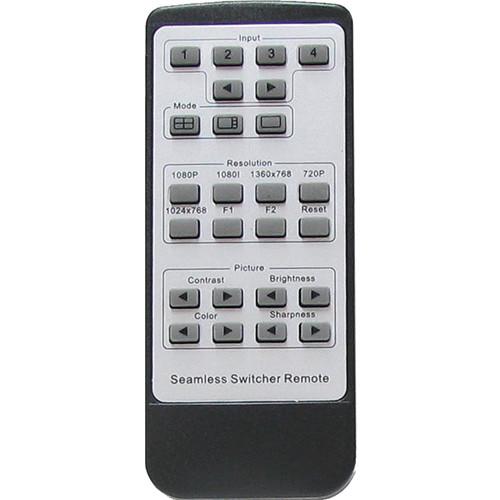

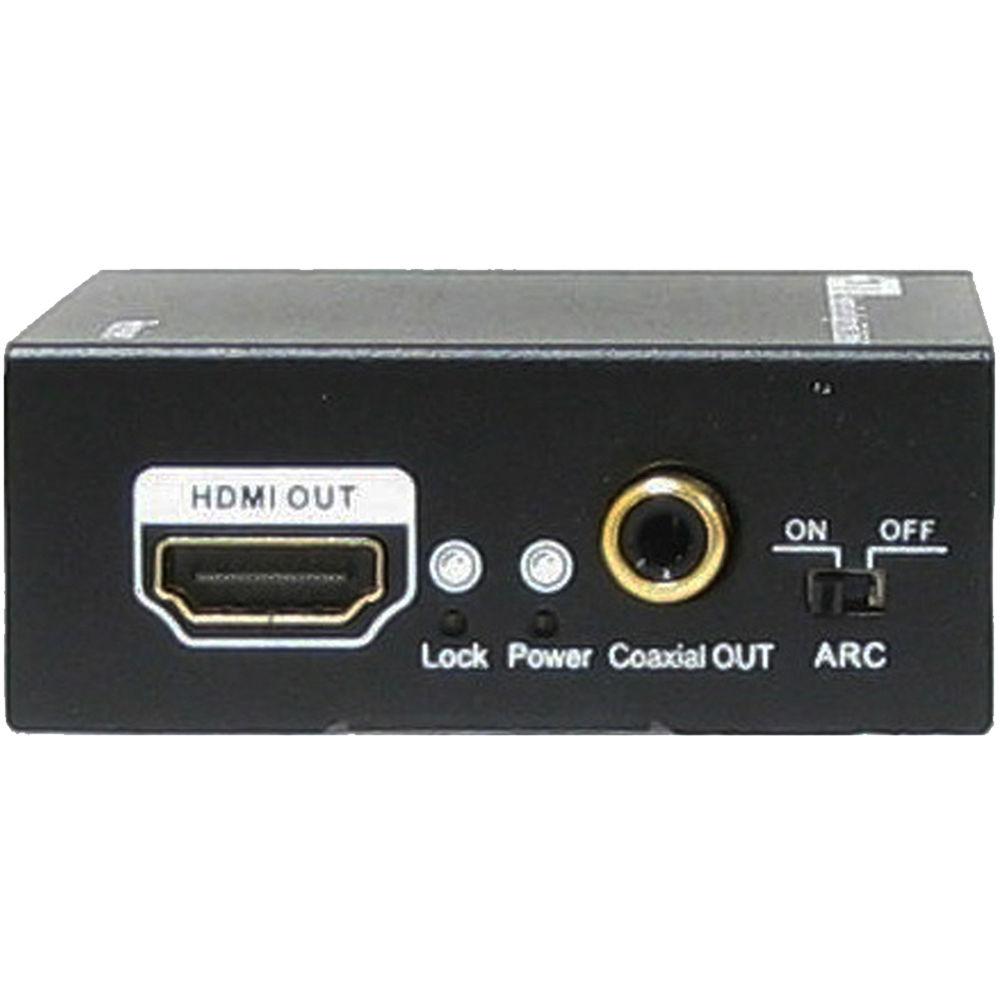

UPC: 857391003697 In the Box A-Neuvideo 4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher CAT5e/6 Receiver 2 x Surface Mount brackets 12 VDC, 2.5A Power Adapter 5 VDC, 1A Power Adapter Remote Control 2 x Wide-Band IR Receivers 5 x Wide-Band IR Transmitters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 4x1 HDMI Quad Screen Multi-Viewer & Seamless Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-QUAD-MINI Specs | Video Bandwidth | 165 MHz maximum
Inputs: 2.25 Gbps

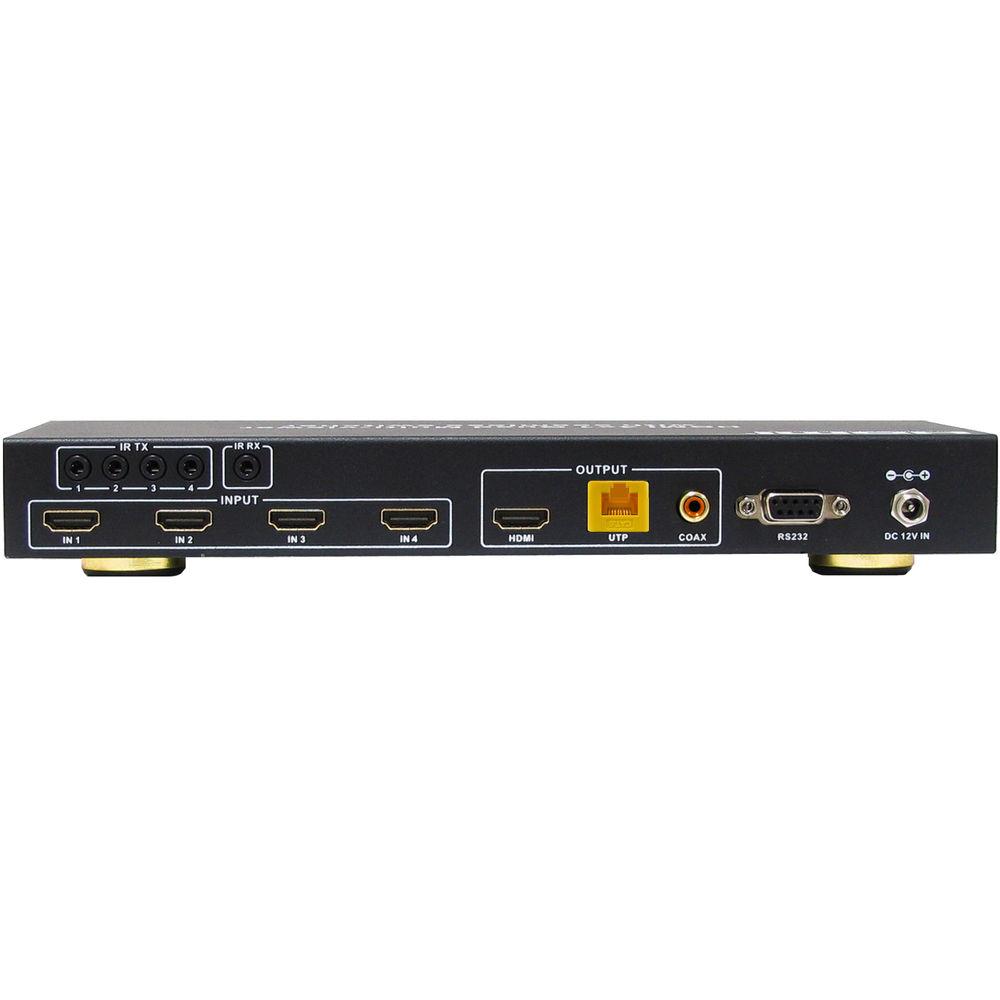

Outputs: 2.0625 Gbps | | Input Ports | 4 x HDMI, female
1 x 3.5 mm port for IR receiver

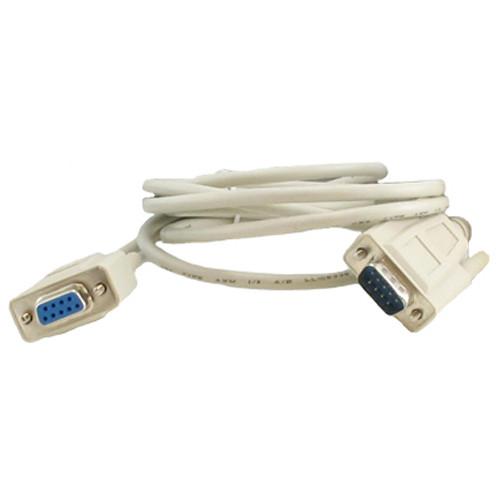

1 x RS-232 control port | | Output Ports | 1 x HDMI, female
1 x RCA
1 x RJ45, CATx cable to remote unit
1 x UTP
1 x Coax connector for local SPDIF audio
4 x 3.5 mm ports for IR emitters | | Supported Audio | PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1 | | Input Resolution | Video:
480i 60 Hz, 480p 60 Hz, 576i 50 Hz, 576p 50 Hz
720p 50/60 Hz, 1080i 50/60 Hz, and 1080p 24/30/50/60 Hz
800 x 600 60 Hz, 1024 x 768 60 Hz, 1280 x 720 60 Hz, and 1920 x 1080 60 Hz | | Output Resolution | Video: 1080p, 1080i, 720p, 1024 x 768, and 1360 x 768 | | Chroma Format | Inputs: xvYCC, sRGB, and YCbCr (24, 30, and 36 bits)
Outputs: sRGB (24 and 30 bits) | | Audio | HDMI: 16, 20, and 24-bit uncompressed PCM audio | | Transmission Range | 90' (27.4 m) @ 1080p 60 Hz over CAT6 standard UTP
125' (38.1 m) @ 1080p 60 Hz over CAT6 solid UTP
250' (76.2 m) @ 1080i 60 Hz or 720p 60 Hz over CAT6 solid UTP
250' (76.2 m) @ 1080p 60 Hz over CAT6a/7 solid UTP/STP | | Controls | Infrared remote control
Front panel interface
RS-232 control | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Material | Chassis: Metal | | Power Consumption | 10 W | | Power Supply | 12 VDC, 2.5 A (US/EU standards, CE/FCC/UL certified) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 - 90% RH (non-condensing) | | Dimensions | 4.6 x 9.8 x 1.3" (11.8 x 25.0 x 32.0 cm) | | Weight | 1.7 lb (750 g) | | | | Package Weight | 4.38 lb | | Box Dimensions (LxWxH) | 12.5 x 12.3 x 3.8" |
