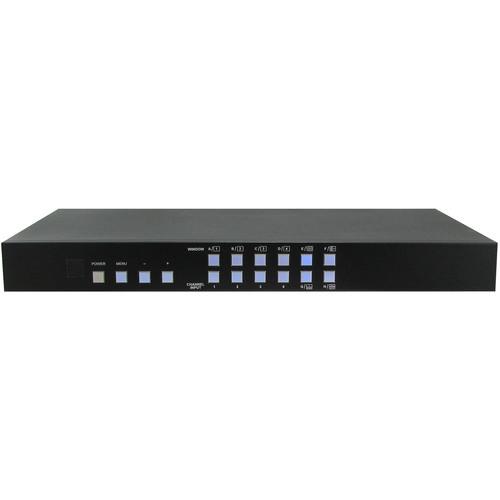

Product description Provided by third party: The ANI-QUAD-GRPHX 4x1 HDMI Seamless Quad PiP Scaler is a high performance, high speed zooming/shrinking system that can be easily configure and controlled for quad or picture-in-picture video processing. Allowing (4) different input sources to be freely selected and arranged on one single display. Supporting output resolutions up to 1080p and audio up to 8CH 192KHz for both inputs and outputs. Screen setting hot keys with IR, RS-232, WebGUI and Telnet allows instant control and switching on the output display. Additionally, this unit features a free logo upload option that will appear on the output display.
- Key Features
-
- Seamless switching between channels and windows
- Zoom and Shrink 4CH input images and/or overlay them
- Supports PiP, PoP and multi-windows display
- Supports OSD, RS-232, Telnet, WebGUI, Remote and On-panel controls
- Fade-In-Out, Chromakey, Mirror and Rotation (90
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 4x1 HDMI Seamless Quad PiP PoP Scaler with Graphic Option in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

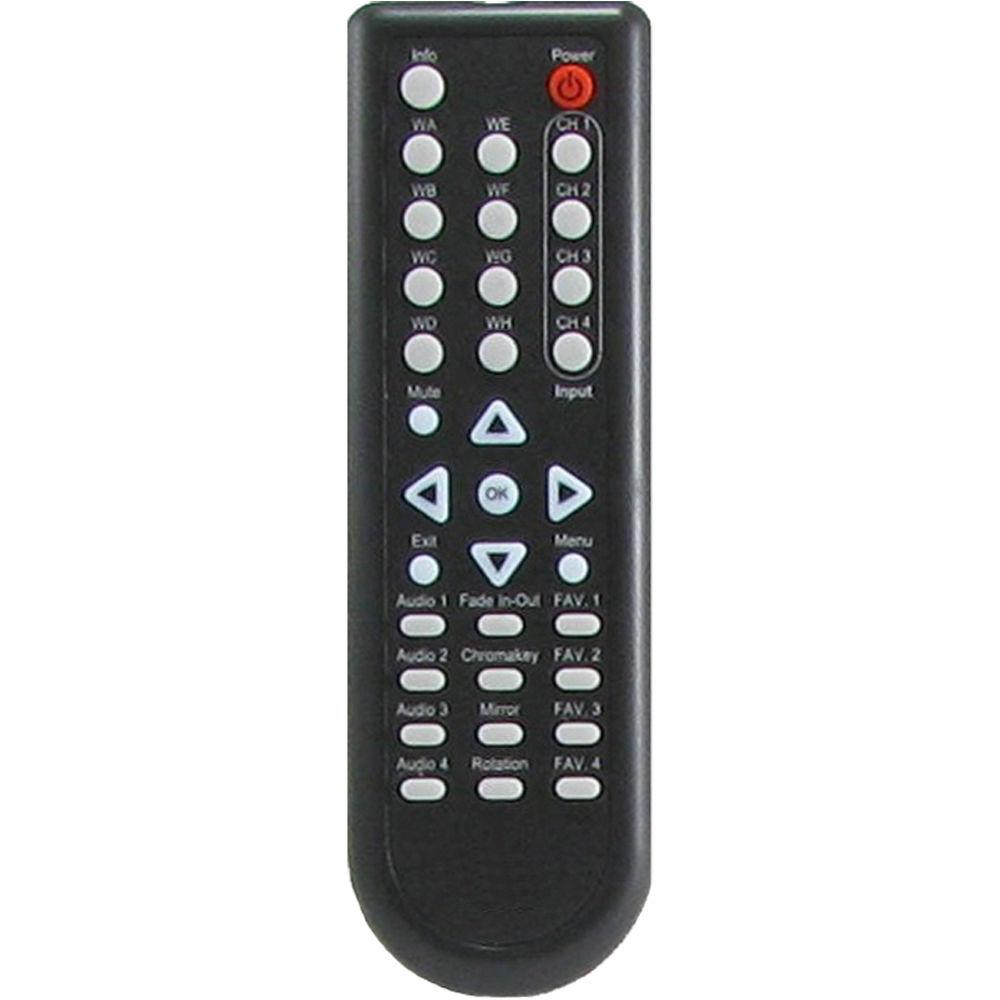

Technical parametersA-Neuvideo ANI-QUAD-GRPHX Specs | | | Type | Switcher / scaler / picture in picture inserter | | Width | 17.2 in | | Depth | 9.7 in | | Height | 1.7 in | | Weight | 5.95 lbs | | | | Features | Picture-in-picture support, picture-and-picture (PAP) | | | | Low Voltage Power | DC 12 V | | | | Kit Content | (1) x IR remote control
(1) x power adapter

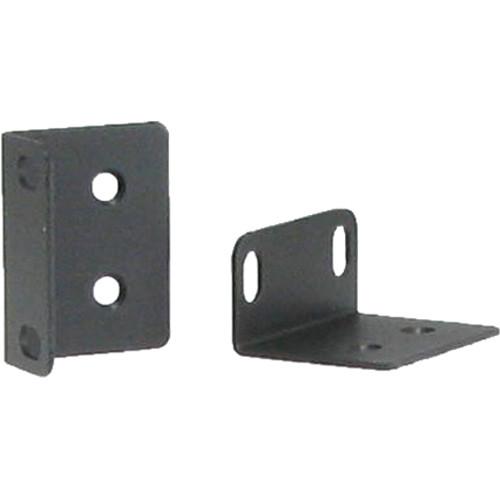

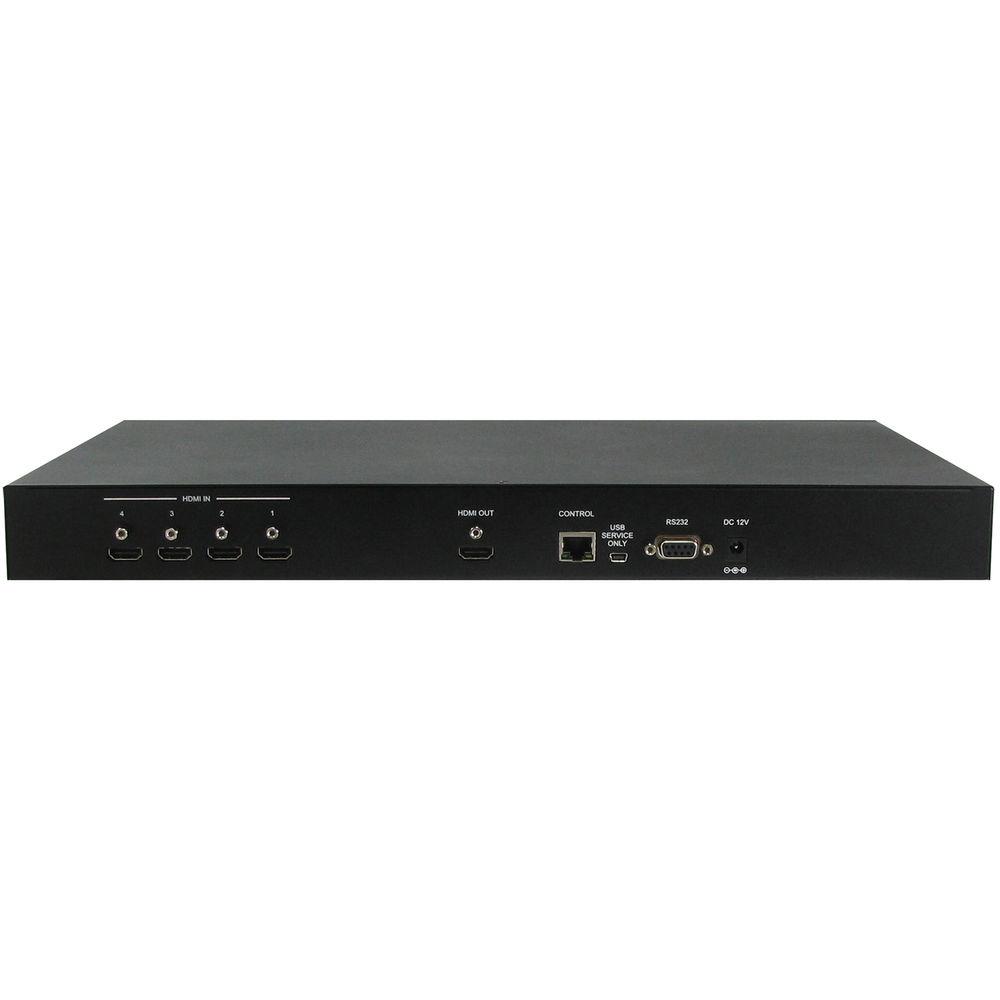

Rack mount brackets | | | | Terminals | (4) x HDMI input - 19 pin HDMI Type A
(1) x HDMI output - 19 pin HDMI Type A
(1) x serial - 9 pin D-Sub (DB-9)
(1) x remote control bus
(1) x DC power input | | | | Min Operating Temperature | 32
