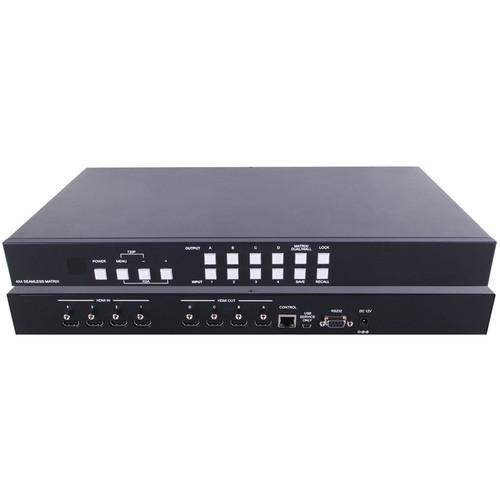

User Manual for A-Neuvideo 4x4 HDMI Video Wall Processor & Seamless Matrix Switcher Click to enlarge the picture
Contents of the user manual for the A-Neuvideo 4x4 HDMI Video Wall Processor
- Product category: Multiviewer Processors A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Multiviewer Processors
|
User manual for the A-Neuvideo 4x4 HDMI Video Wall Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description HDMI on input and output, the A-Neuvideo 4x4 Video Wall Processor & Matrix Switcher offers three modes of operation: video wall, dual, and matrix, with seamless switching in matrix mode. It supports up to 1920 x 1200 and 1080p60 video and up to 7.1-Ch LPCM audio. Selections can be made via the front panel, wireless remote, RS-232, IP Telnet (Ethernet), included GUI (Ethernet or RS-232), or built-in web server. Setup is via OSD.
Video wall mode routes one signal to four displays in a 2x2 setup and offers bezel correction for each display. Dual mode allows you to output two signals in a split screen on one display and to manually switch the signals being displayed. Using all inputs and outputs, you can have two sets of two signals split across four displays. Matrix mode allows you to route the four inputs in any matrix configuration and to switch signals with no delay. Note: Input 4 will be disabled under output timing 1080i@60/50 in Dual and Video Wall modes. - Key Features
-
- 4 HDMI inputs and 4 HDMI outputs
- Three output modes: video wall, dual, matrix
- Supports resolutions up to 1920x1200/60 and 1080p60 in 8/10/12 bit color depth
- Supports up to LPCM 7.1-Ch audio
- Selections via front panel, remote, RS-232, IP Telnet, included GUI, or built-in web server
- OSD setup
- HDCP 1.1 compliant
- Accepts locking HDMI cables
UPC: 857391003543 In the Box A-Neuvideo 4x4 HDMI Video Wall Processor & Seamless Matrix Switcher 12VDC, 3A Power Adapter Remote Control Software CD Driver User Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 4x4 HDMI Video Wall Processor & Seamless Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-QUAD Specs | Bandwidth | 225 MHz / 6.75 Gbps | | Input & Output | 4x HDMI inputs
4x HDMI outputs
1x RJ45 control port
1x RS-232 control port
1x USB mini service port | | Supported Resolution | Up to 1920 x 1200/60 and 1920 x 1080p60 | | Color Depth | 12/10/8 bit | | Supported Audio | Up to 7.1-channel LPCM at 192 kHz sampling rate
(LPCM 7.1-Ch/6-Ch/2-Ch, AC3, DTS, Dolby Digital Plus, Dolby TrueHD, DTS-HD ) | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Material | Aluminum | | Silkscreen Color | Black | | Power Consumption | 15 W | | Power Supply | 12 VDC /3 A (US/EU standards, CE/FCC/UL certified) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 - 90% RH (non-condensing) | | Dimension | 17 x 10 x 1.8" (44 x 25 x 4.4 cm) | | Weight | 4.85 lb (2.2 kg) | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 22.1 x 15.0 x 4.0" |
