Product description

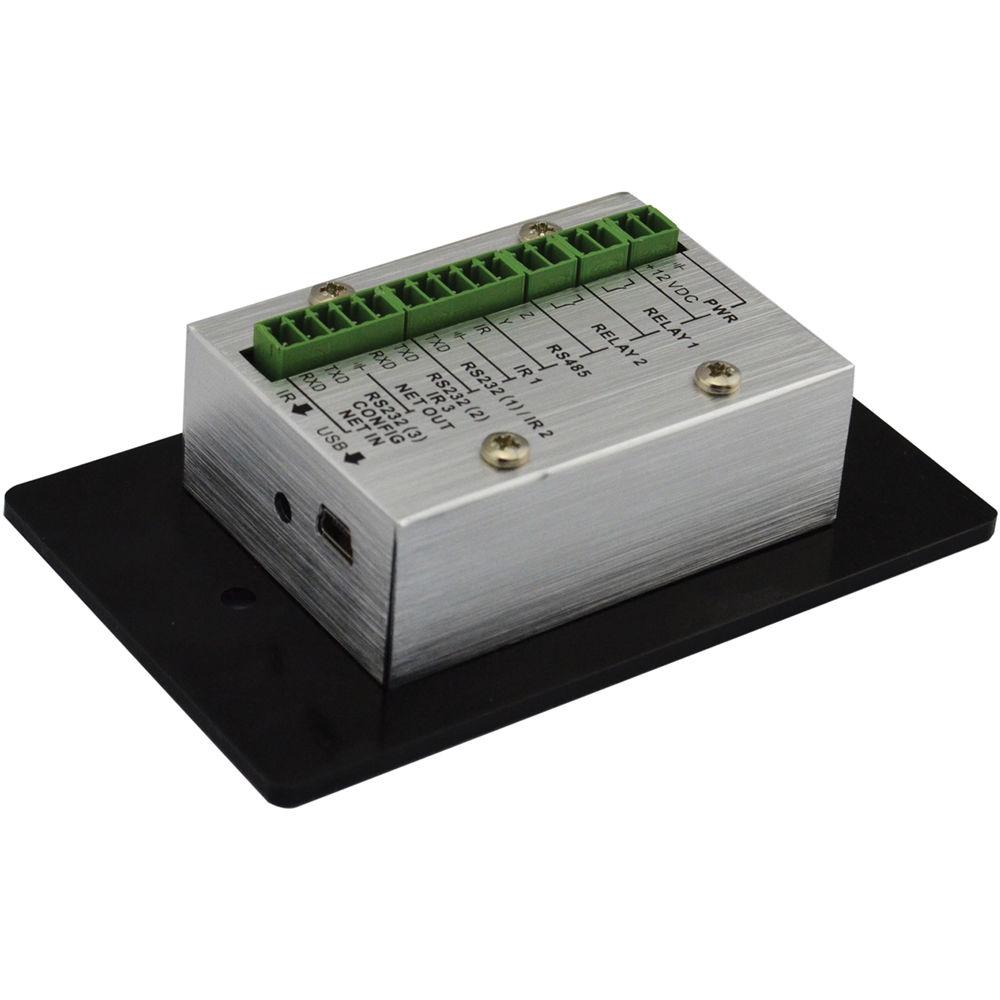

The A- Neuvideo ANI-8BWP is a fully programmable wall control panel. Every button is programmable and works either individually or together. The ANI-8BWP supports multiple types of signaling; RS-232, RS-485, Infrared, Relay, and mini USB for programming. Please note that RS-232-1 and IR-2 share the same port and cannot be used at the same time. Also, RS-232-2 and IR-3 share the same port and cannot be used at the same time. It can fully control any product such as switchers, DVD players, projectors, screens, and more. It is designed for ease of use when controlling devices for presentation show rooms, classrooms or meeting rooms.
  • Every button can be programmed to send a bi-directional RS-232 and RS-485 commands simultaneously
  • Every button can be programmed to send an infrared code or control a relay
  • Every button also have the ability to learn infrared codes via the "learning function"
  • ID looping function allows up to (99) ANI-8BWP so they can be looped and controlled together using a unique ID

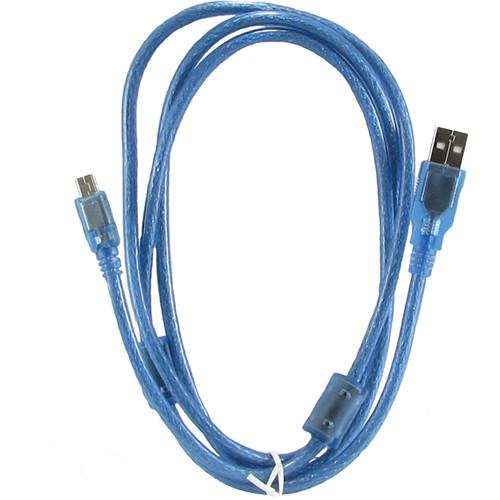

  • Programmed by USB or RS-232 using our PC software allows for quick and easy setup
  • Backlit buttons with customizable labels
  • Backlit brightness is also adjustable
  • Dimension: 4.48 in tall and 2.75 in wide; fits standard single-gang low-voltage boxes
UPC: 857391003352 In the Box A-Neuvideo 8 Button Programmable Wall Control Panel
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the A-Neuvideo 8 Button Programmable Wall Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    A-Neuvideo ANI-8BWP Specs

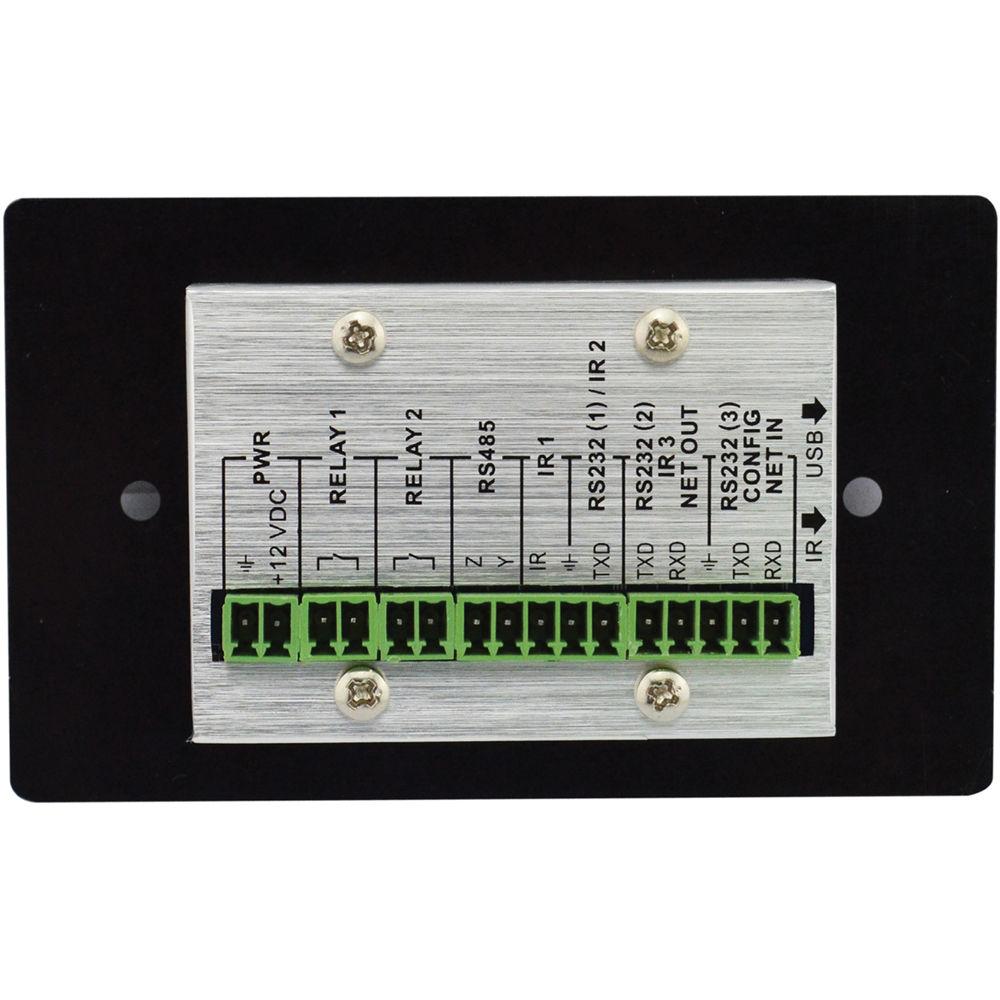

    Port Program Port: USB or RS-232
    Serial Control Port: RS-232
    Output Port:
    3x RS-232
    1x RS-485

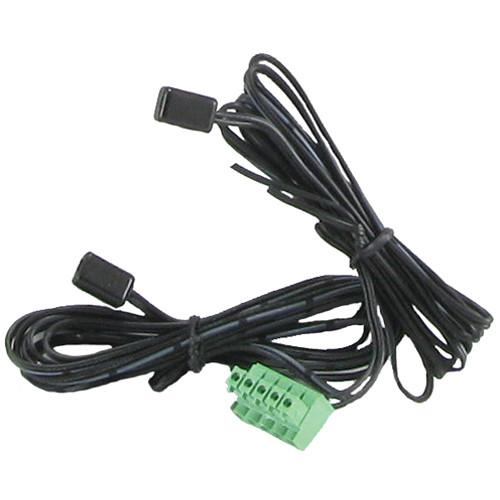

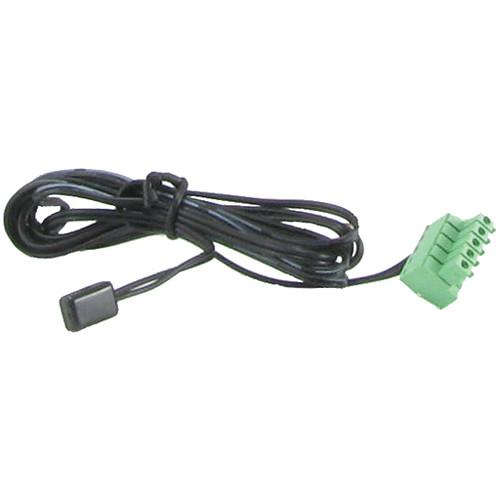

    3x Infrared
    2x Relay
    Baud Rate & Protocol 9600 baud, 8 data bits, 1 stop bit, no parity
    Software WP
    Temperature -4° to +158°F (-20° to +70°C)
    Frequency Response 20 Hz to 20 kHz
    Humidity 10 to 90%
    Power Supply 100 VAC~240 VAC, 50/60 Hz
    Power Consumption 1 W
    Power Consumed: 420 mA maximum

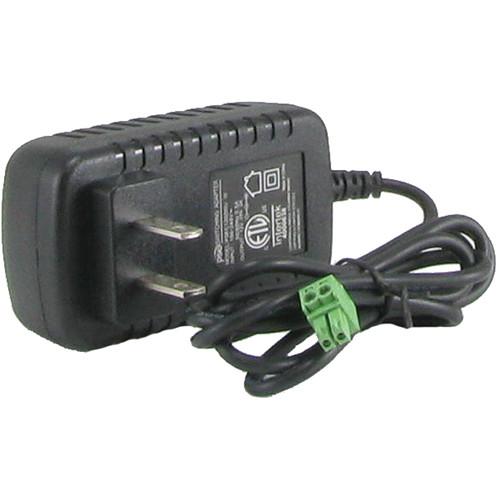

    Power Source DC 12 V @ 500 mA
    Bandwidth Video: 400 MHz
    Enclosure Type Metal case
    Dimensions Case Dimenionss (L x W x H): Single-gang electron box, 4.5 x 2.75 x 1.1 (114 x 70 x 28 mm)
    (L x W x H): 12 x 6.4 x 1.6" (304.8 x 162.6 x 40.6 mm)
    Weight 6 oz (170.1 g)
