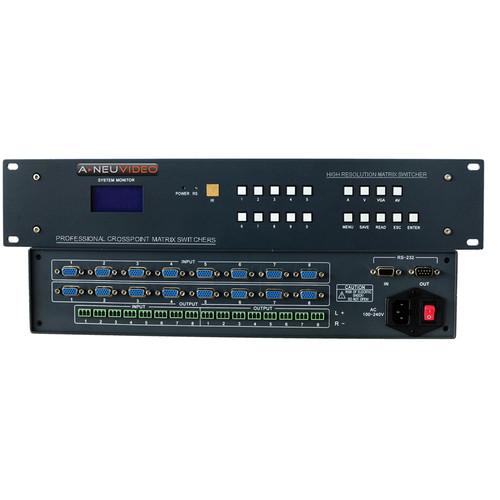

Product description This is a professional crosspoint VGA Matrix Switcher from A-Neuvideo, offering 8 VGA inputs and 2 outputs as well as corresponding Phoenix unbalanced stereo audio I/O. It uses high-performance IC chips and features a 350MHz bandwidth supporting resolutions up to 2048 x 1536/60Hz and 1280 x 1024/120Hz.
A monochrome dot-matrix LCD display confirms routing selections, which you can control via front panel push buttons or RS-232 communication interface. Up to 30 user preset matrixes can be stored. A user-friendly GUI compatible with all versions of Windows up to Windows 8 is included. - Key Features
-
- 8 VGA inputs
- 2 VGA outputs
- Corresponding Phoenix unbalanced stereo audio I/O
- Audio follow video or audio breakaway
- Supports resolutions up to 2048 x 1536/60Hz and 1280 x 1024/120Hz
- 19" rack-mountable
- <100ns switching delay
- Monochrome dot-matrix LCD routing display
- Front panel and RS-232 control
- Supports up to 30 user preset matrixes
- Includes Windows-compatible GUI for manual/auto switching
- Cascadable 255 units deep
In the Box A-Neuvideo 8x2 VGA Serial Matrix Switcher with Audio RS-232 Cable Power Cable Testing and Application Software CD Certification and Warranty Card User Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo 8x2 VGA Serial Matrix Switcher with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-VGA802-A Specs | Video I/O | Input: 8x VGA
Output: 2x VGA
Bandwidth: 350 MHz (-3 dB)
0-10 MHz (+0.2 dB to -0.1 dB)
0-120 MHz (+6.5 dB to -1.0 dB)
Input Level: 0.5 Vp-p min, 2.0 Vp-p max
Impedance: 75 Ω
Brightness Color Interference: -68.5 dB @ 5 MHz
Echo Wasting: -85 dB @ 10 MHz
SNR (S/N): 72.8 dB
Switch Speed: Up to 100 ns | | H & V Sync | Input Level: 1 to 5 Vp-p
Input Impedance: 10 K Ω
Output Level: Compatible TTL
Output Impedance: 75 Ω
Synchronous Polarity: Following | | Audio | Input: 8x 3.81 mm Phoenix, stereo unbalanced
Output: 2x 3.81 mm Phoenix, stereo unbalanced
Bandwidth: 1 MHz
Gain: Unbalanced 0 dB (can be changed), balanced 6 dB
SNR (S/N): 73.5 dB (1 Vpp) empty-load
Channel Isolation: > 76 dB @ 1 KHz
Input Impedance: High resistance, > 47 K Ω
Output Impedance: 47 Ω | | Control | Front panel push buttons, RS-232, Windows based GUI software | | MTBF | 50,000 hours | | Power Supply | 85 - 265 VAC, 50 Hz / 60 Hz | | Power | 20 - 50 W | | Chassis | Aluminum |
