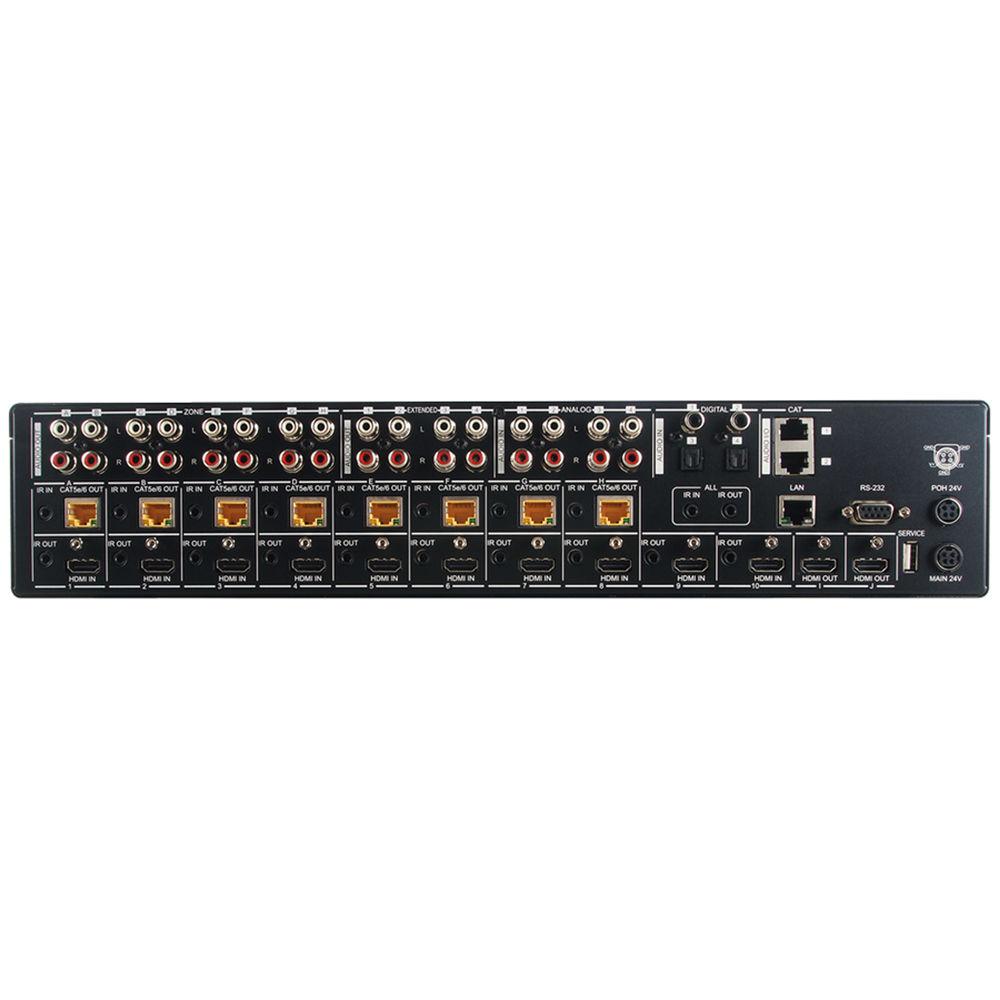

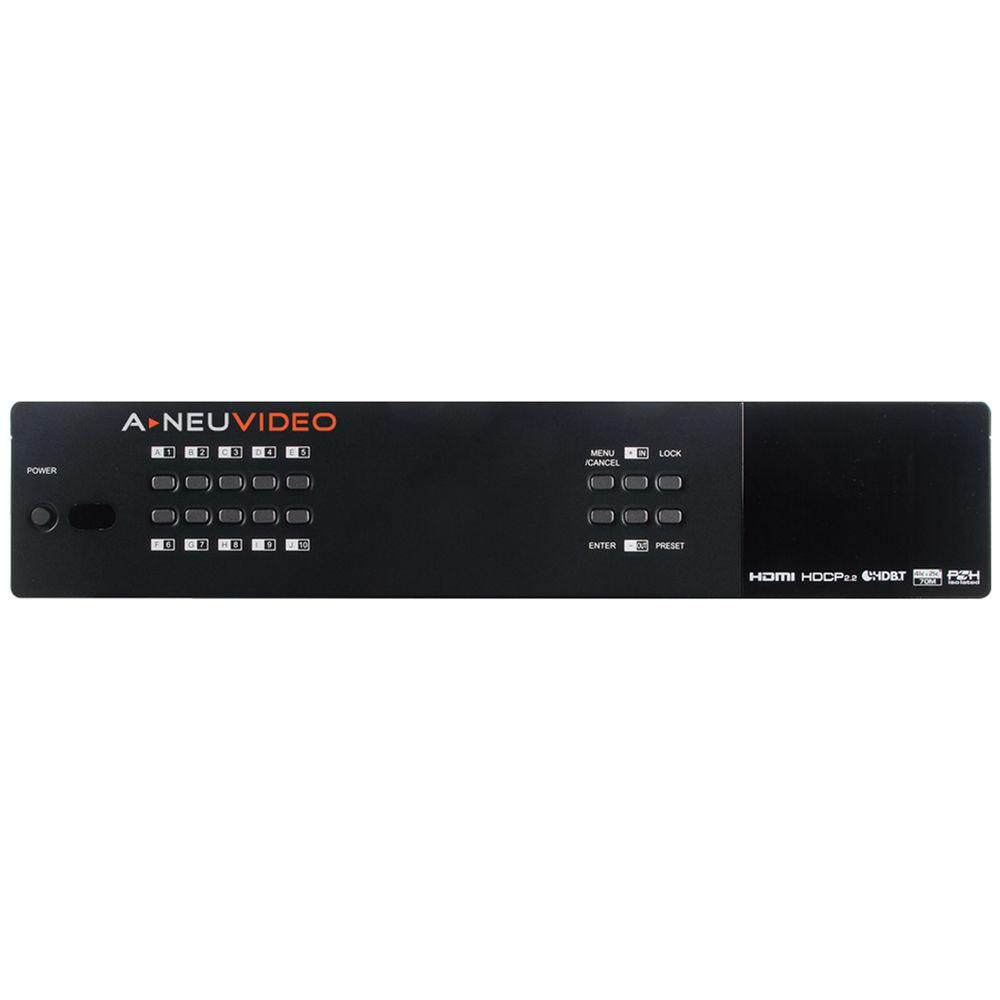

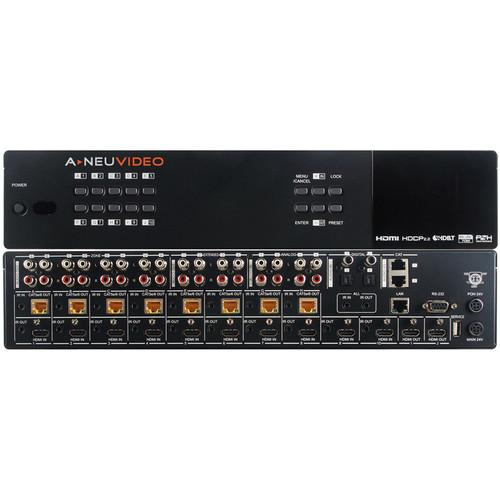

User Manual for A-Neuvideo ANI-1082UHD 10x10 HDMI HDBaseT Matrix Switcher Click to enlarge the picture
Contents of the user manual for the A-Neuvideo ANI-1082UHD 10x10 HDMI HDBaseT Matrix
- Product category: Routers & Switchers A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Routers & Switchers
 |
User manual for the A-Neuvideo ANI-1082UHD 10x10 HDMI HDBaseT Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description Route up to 10 HDMI sources, with separate audio for each source, to up to 10 destinations using HDMI or HDBaseT with the A-Neuvideo ANI-1082UHD 10x10 HDMI/HDBaseT Matrix Switcher. HDMI resolutions up to UHD 4K are supported over the HDBaseT outputs, while HDMI outputs support up to DCI 4K. The advantages of HDBaseT include longer cable runs, compared to HDMI, with no loss in quality and the ability to carry video, audio, power, Ethernet, and control signals over a single CAT5/6/7 cable. Built to fit into a standard 19" equipment rack, this 2 RU device sits between your A/V sources and the displays. Embedded audio is supported, as is stereo analog audio and 2-channel LPCM via RCA and optical. Audio and video signals can be sent to different outputs in a multi-zone scenario.A/V integrators can take advantage of the control flexibility of the ANI-1082UHD. Keep the unit inside an equipment closet along with the connections, and control it remotely, either via the included remote control, RS-232 software control, or Ethernet. IR transmitter and blaster units are included for use on both the transmitter and receiver end for complete control of your equipment setup. - HDMI 2.0, HDCP 1.4 and HDCP 2.2 compliant
- Routes 10 HDMI sources to 10 displays using 8 HDBaseT outputs and 2 independent or mirrored HDMI outputs
- HDBaseT 5-Play supports video, audio, Ethernet, PoH (Power over HDBaseT), and bi-directional control
- UHD 4K signals can be carried up to 198' over CAT5e/6 and 328' over CAT6a/7
- Supports pass-through of all standard digital audio formats: LPCM 2.0/5.1/7.1, bitstream and HD bitstream
- Supports audio matrix functionality enabling full audio management of the system including HDBaseT audio selection, fully independent audio-only zones and HDMI audio embedding and de-embedding (LPCM only)
- Supports Digital to Analog Conversion (DAC) and Analog to Digital Conversion (ADC) for audio integration
- Supports integrated audio over CAT inputs and outputs for transmission up to 984'
- Supports volume, treble, bass, and audio delay for lip-sync (up to 230ms) on analog audio outputs and mute on all outputs
- HDBaseT outputs with Optical Audio Return (OAR) support
- Audio mixer functionality (3 mixers in total)
- Advanced internal and external EDID management with 4 sets of configurable EDID settings
- Internal test pattern generation for self-testing and sink testing
- Capable of generating 4K test signals up to 60 Hz
- Bi-directional IR support over HDBaseT
- Control via front panel controls, Ethernet (Telnet and WebGUI), RS-232, and IR remote
- Fits in 2 RU in a standard 19" equipment rack
UPC: 857391003901 In the Box A-Neuvideo ANI-1082UHD 10x10 HDMI/HDBaseT Matrix Switcher Remote Control 2 x IR Extension Cable 2 x IR Blaster Cable 2 x Power Supply with Power Cord Rack Ears Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo ANI-1082UHD 10x10 HDMI HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-1082UHD Specs | Inputs | 10 x HDMI type A
2 x TOSLINK, optical 2-channel LPCM audio
2 x RCA, 2-channel LPCM audio
4 x 2RCA, stereo analog audio
2 x RJ45, digital audio propriety data
8 x 3.5 mm, IR receiver
1 x 3.5 mm, IR receiver for all
1 x RJ45, network control
1 x DB-9, RS-232
1 x USB Type-A, service | | Outputs | 8 x RJ45, HDBaseT
2 x HDMI type A
8 x 2RCA, stereo analog audio
4 x 2RCA, stereo analog audio (extended)
10 x 3.5 mm, IR emitter
1 x 3.5 mm, IR emitter for all | | Video Bandwidth | HDMI: 600 MHz / 18 Gbps
HDBaseT: 340 MHz / 10.2 Gbps | | Resolution Support | TV:
4096 x 2160 (HDMI output only)
3840 x 2160
1080p
1080i
720p
576p
480p
NTSC
PAL
VESA:
VGA - WUXGA | | IR Frequency | 38 kHz | | Baud Rate | 115,200 Bd | | Power Supply | 24 VDC, 6.25 A | | Power Consumption | 175 W | | ESD Protection | Air Discharge: ±12 kV
Contact Discharge: ±8 kV | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% (non-condensing) | | Dimensions | 19 x 14 x 3.8" / 48.3 x 35.6 x 9.6 cm | | Weight | 14.3 lb / 6.5 kg |
