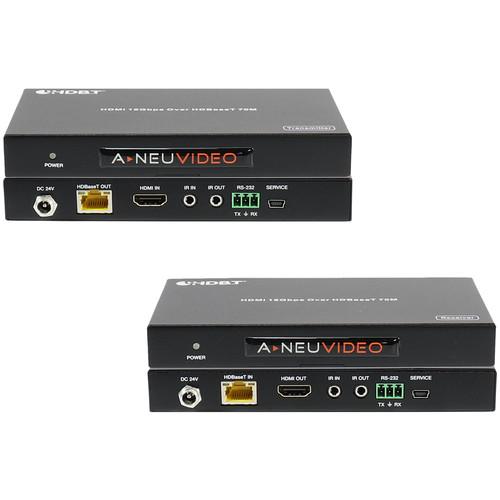

Product description This A-Neuvideo ANI-HDR70 4K HDMI HDR Transmitter/Receiver over Category Cable can transmit your HDMI signal up to 230' over Cat 6 cable. Simply connect your HDMI signal to the input of the transmitter, connect to the HDBaseT output, and then connect the receiver at the other end. The system supports HDMI 2.0b, HDCP 2.2 protocols as well as DVI over HDMI. Supporting 18 Gb/s throughput enables transmission of 4K2K signals at either 50 or 60 Hz, and the system supports HDR over HDMI as well as HDMI HBR (High Bit Rate) audio.
PoC (Power over Cable) is supported, which allows you to connect the included power supply to either the transmitter or receiver to power them both. Bidirectional IR is also supported using the included IR blasters and receivers; this allows you to remotely control either the source or display while up to 230' away. - 10-bit HDR (High Dynamic Range) pass-through
- Supports HDMI HBR (High Bit Rate) audio pass-through
- When either the TX or RX is powered by 24V, 1A power supply, the other does not need a power supply from the DC jack. PoC power consumption is less than 24W.
- Bidirectional RS-232 control signal is transmitted along with the HDMI signal.
- Bidirectional IR control signal is transmitted along with the HDMI signal.

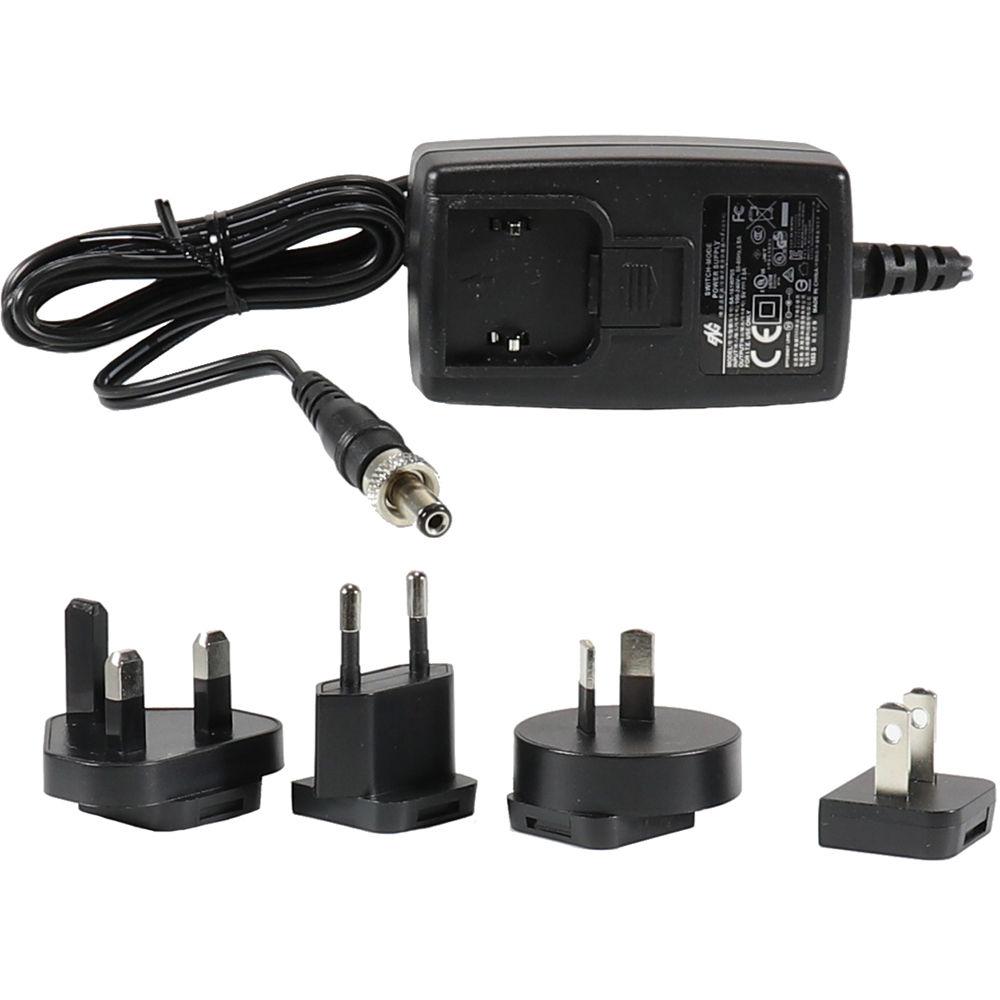

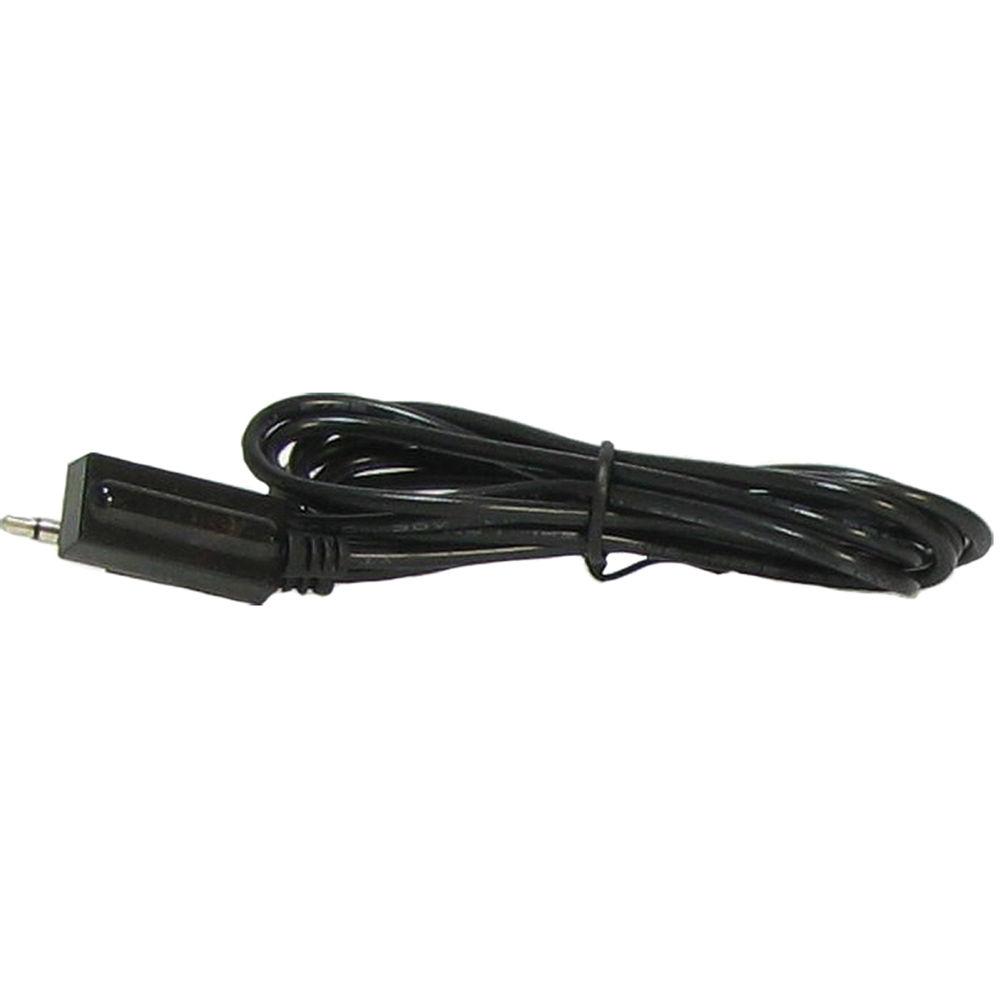

UPC: 859777007022 In the Box A-Neuvideo ANI-HDR70 4K HDMI HDR Transmitter/Receiver over Category Cable (230') 24 VDC, 1A Power Supply 2 x Wideband IR Transmitters 2 x Wideband IR Receivers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo ANI-HDR70 4K HDMI HDR Transmitter Receiver over Category Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-HDR70 Specs | Transmission Distance | Cat 6 Cable
230' / 70 m: 1080p 60 Hz 36-bit, 3D1080p 30 Hz 36-bit
130' / 40 m: 1080p 60 Hz 48-bit,1080p 120 Hz 24-bit, 3D-1080p 60 Hz 36-bit, 4K2K 30 Hz 24-bit, 4K2K 50/60 Hz (YUV420), 4K2K 50/60 Hz (YUV444) | | HDMI Compliance | HDMI 2.0b | | HDCP Compliance | HDCP 2.2
HDCP 1.4 | | Bandwidth | 18 Gb/s | | Video Resolutions | 4K2K 50/60 Hz (YUV4:4:4)
4K2K 30 Hz
1080p 120 Hz
1080p 3D 60 Hz | | Color Space | RGB
YCbCr 4:4:4
YCbCr 4:2:2 | | Color Depth | 10-bit
12-bit | | Audio | HDMI (Pass-through)
LPCM 2/5.1/7.1CH
Dolby Digital
DTS 5.1
Dolby Digital+
Dolby TrueHD
DTS-HD Master Audio
Dolby Atmos
DTS:X
Optical
LPCM 2CH
LPCM 5.1
Dolby Digital 2/5.1CH
DTS 2/5.1CH | | Interface | Transmitter

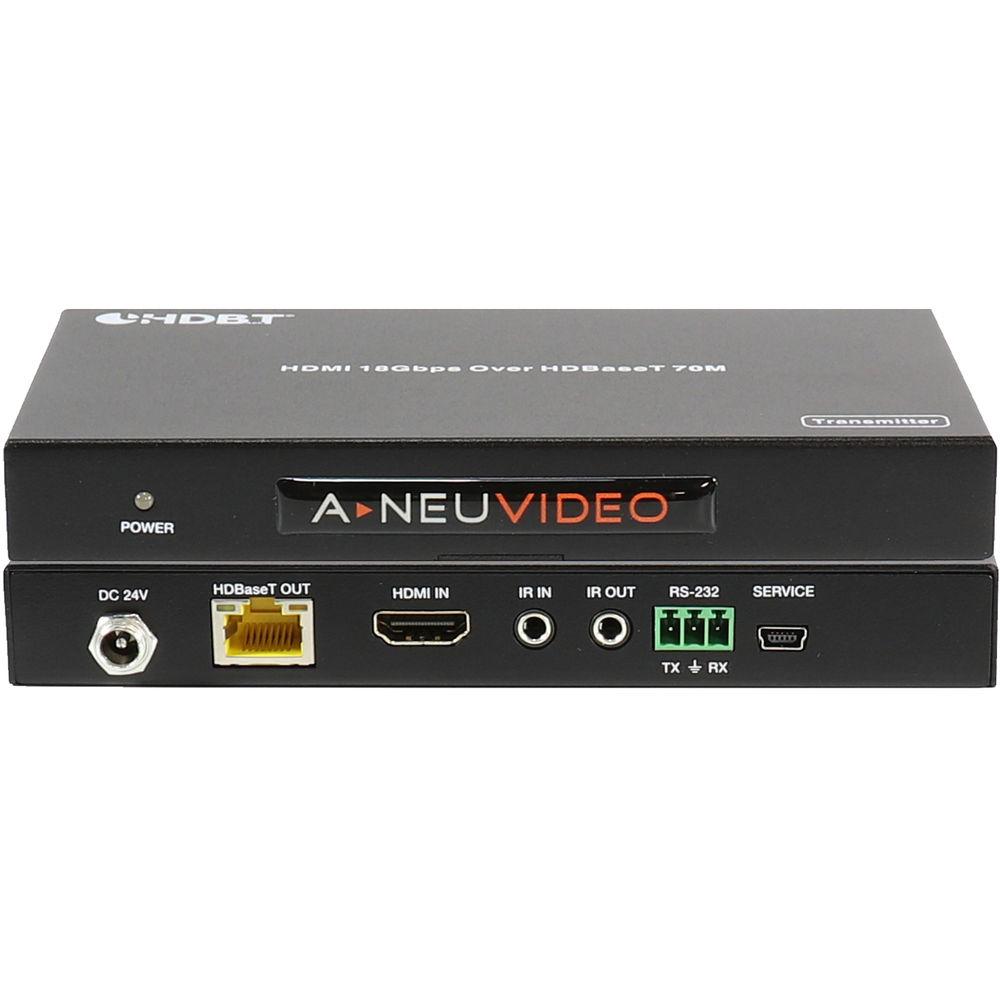

HDMI In: 1 x Type A
Ethernet In/Out: 1 x RJ45
HDBaseT Out: 1 x RJ45
IR Input: 1 x 1/8" / 3.5 mm stereo mini jack
IR Output: 1 x 1/8" / 3.5 mm stereo mini jack
RS-232: 1 x Phoenix
Service: 1 x mini-USB
Receiver

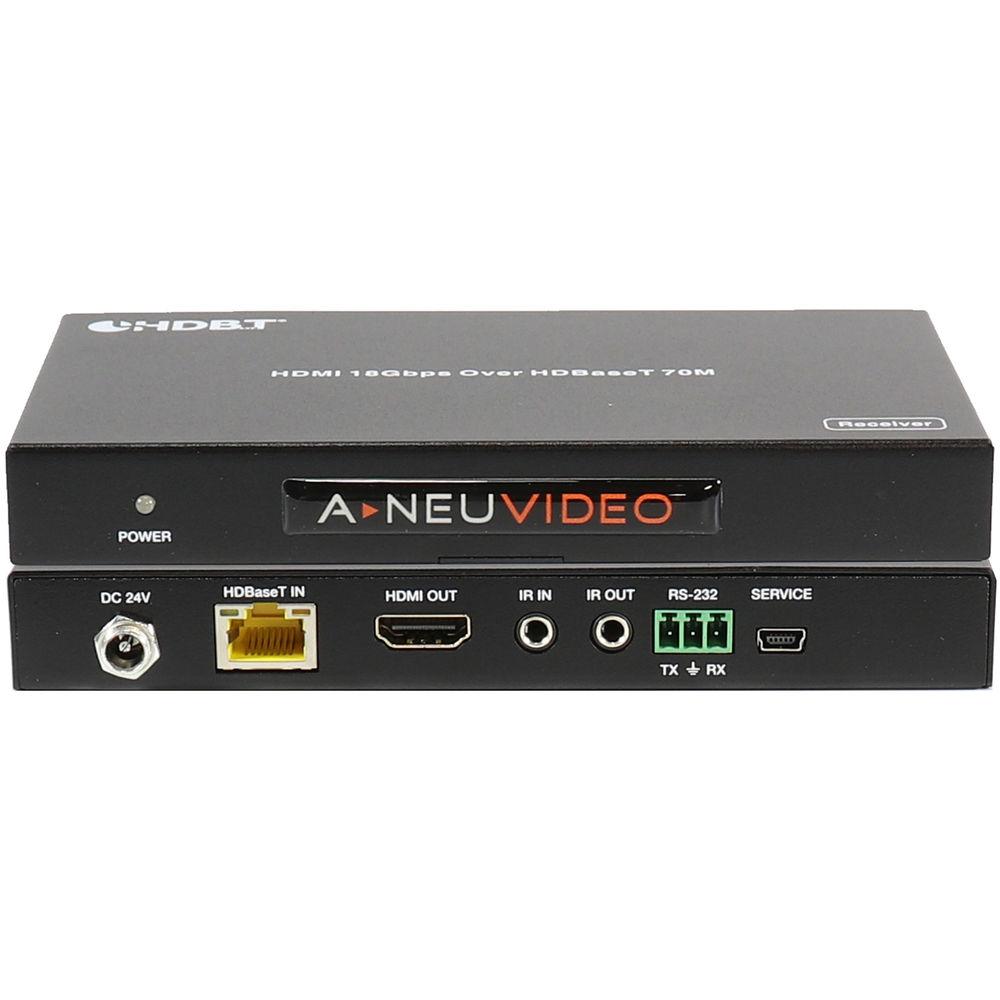

HDMI Out: 1 x Type A
Ethernet In/Out: 1 x RJ45
HDBaseT In: 1 x RJ45
IR Input: 1 x 1/8" / 3.5 mm stereo mini jack
IR Output: 1 x 1/8" / 3.5 mm stereo mini jack
RS-232: 1 x Phoenix
Service: 1 x mini-USB | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Power Supply | Input: 100 - 240 VAC, 50/60 Hz
Output: 24 VDC, 1 A (US/EU standards, CE/FCC/UL certified) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Relative Humidity | 20 to 90% RH (non-condensing) | | Power Consumption | 24 W (max) | | Dimensions | 6.2 x 3.5 x 0.8" / 15.75 x 8.89 x 2.0 cm (each unit) | | Weight | 11.75 oz / 333 g (each unit) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 13.5 x 9.75 x 2.75" |
