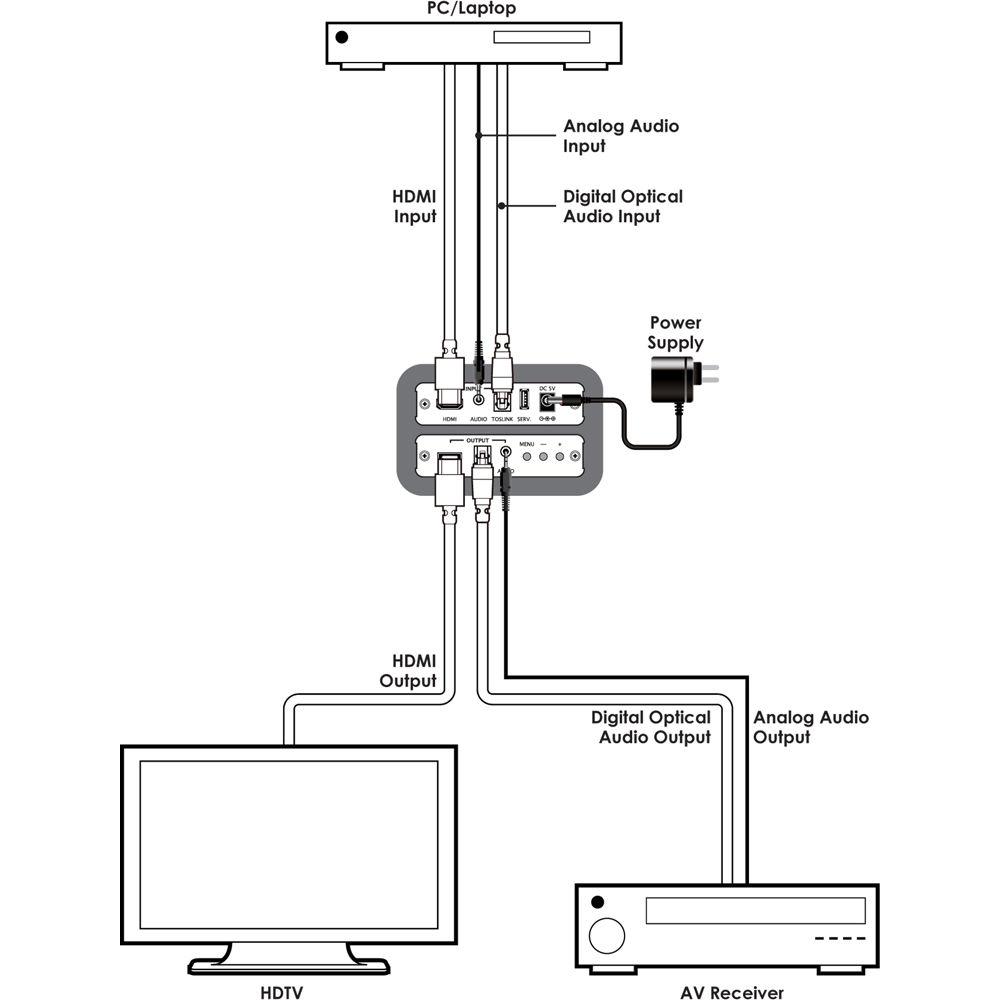

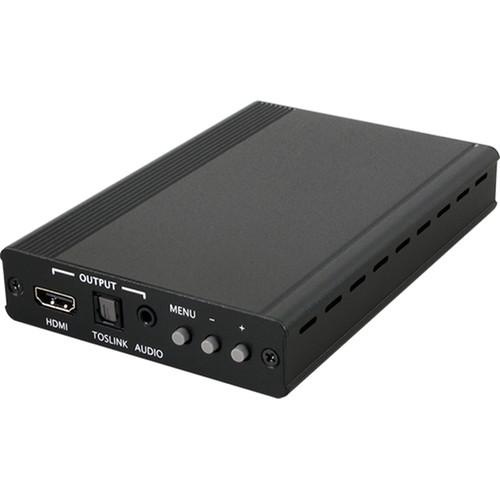

Product description The black A-Neuvideo ANI-HPNHN HDMI to HDMI Converter/Scaler with USB Port (Black) accepts HDMI input with a separate Toslink or analog audio and scales it to a HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. Any HDMI input resolution can be up-converted up to 1080p or down-converted as well. The ANI-HPNHN is also an ideal solution for converting PAL to NTSC (50 to 60 Hz) or NTSC to PAL (60 to 50 Hz). This ANI-HPNHN is also a full featured scaler with resolution conversion with no signal degradation. It allows for underscan or overscan setting.
The ANI-HPNHN scaler has a comprehensive OSD menu that allows a user to select a variety of output resolutions and adjust for good picture quality. It is ideal for using between incompatible HDMI sources and/or displays by changing picture resolution and frame rate of the HDMI source to match the native resolution of the HDMI display. The unit includes a USB port for firmware updates. - Can scale up or down any resolution from HDTV or VGA to WUXGA
- Automatically detects the factory settings of the connected display and outputs the corresponding resolution and refresh rate when the NATIVE output is selected
- PAL to NTSC or NTSC to PAL conversion
- Supports 3D motion video adaptive, 3D de-interlacing, and 3 x 2 / 2 x 2 pull-down detection and recovery
- Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB level, and scan size
- Supports High-Resolution Input and Output:
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, and WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

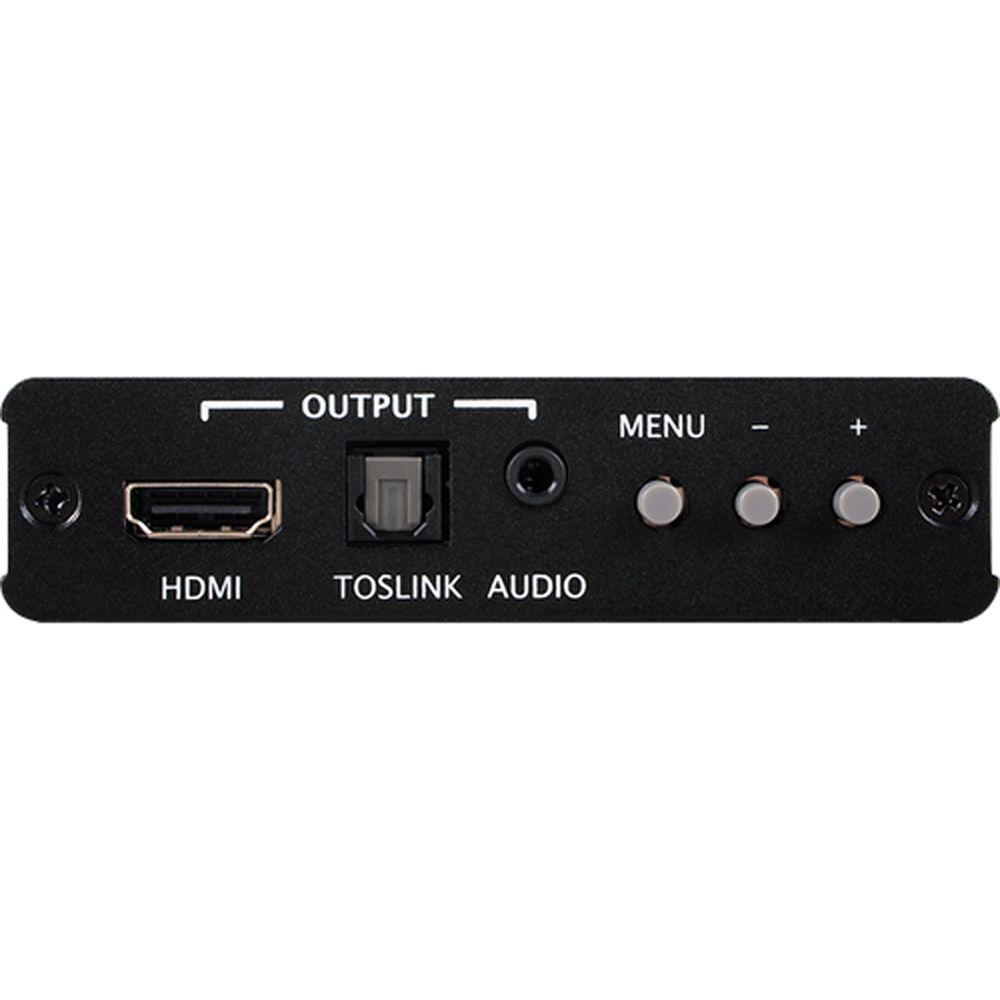

Digital and analog audio input and output - Interface
- A USB port is available for firmware updates only.
UPC: 857391003239 In the Box A-Neuvideo ANI-HPNHN HDMI to HDMI Converter/Scaler with USB Port (Black) Worldwide Plug Adapters 6' (1.83 m) 3.5 Mini Stereo to RCA Stereo Audio Cable 5 VDC/1 A Universal Power Supply 100/240 V, 50 to 60 Hz User Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo ANI-HPNHN HDMI to HDMI Converter Scaler with USB Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

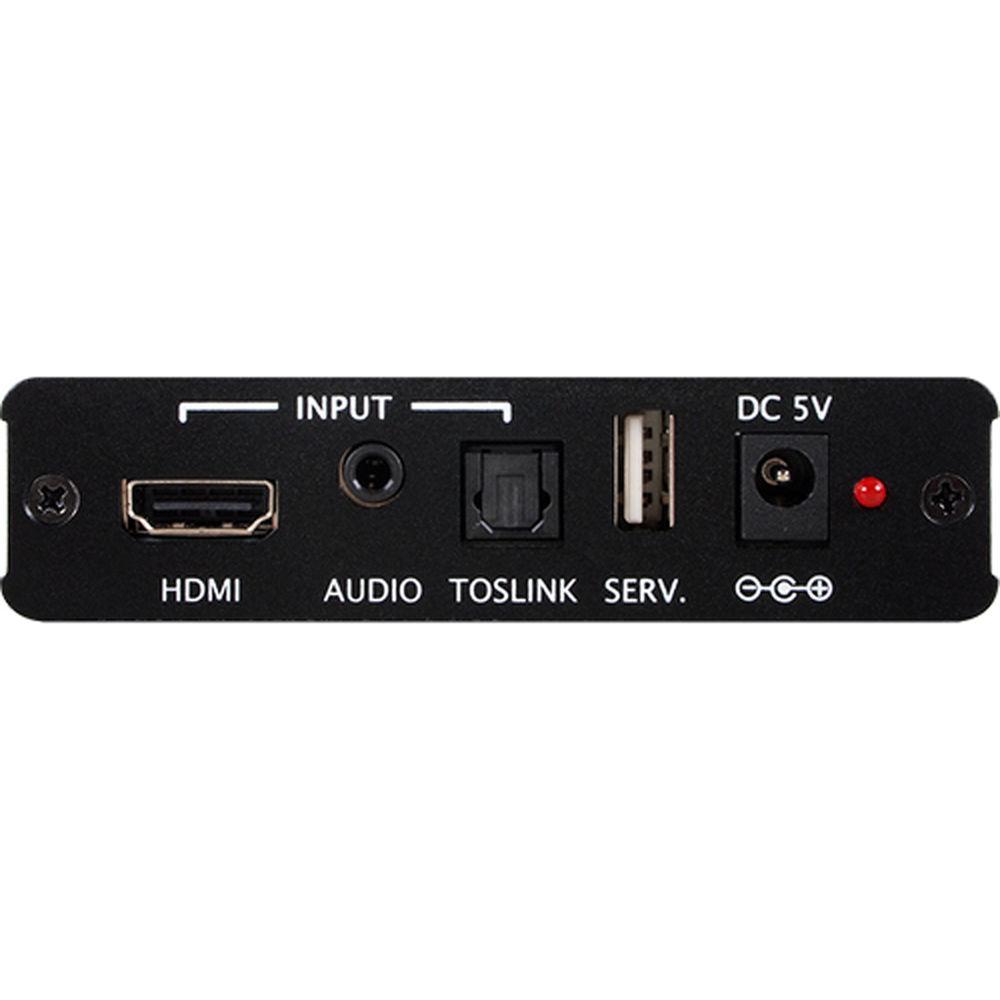

Technical parametersA-Neuvideo ANI-HPNHN Specs | Ports | Input & Output:
1x HDMI
1x Toslink
1x 3.5 mm phone jack | | Resolutions | Scale: Any HD (480i to 1080p)/ PC (VGA to WUXGA) resolutions to/from another PC/HD resolution | | Input/Output | High Resolution
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, and WUXGA
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
Digital & analog audio input & output
USB: 1 x USB port (for firmware updates only) | | Frequency Bandwidth | 1.65 Gbps (single link) | | Frame Rate | Supports: 50/60 Hz frame rate conversion (PAL to NTSC or NTSC to PAL) | | Power Supply | 5 VDC, 2.6 A | | Standards | US/EU | | Certifications | CE,FCC, & UL | | Dimensions (W x D x H) | 4.02 x 5.71 x 0.98"(102 x 145 x 25 mm) | | Weight | 2.21 lb (1 kg) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.1 x 7.2 x 2.9" |
