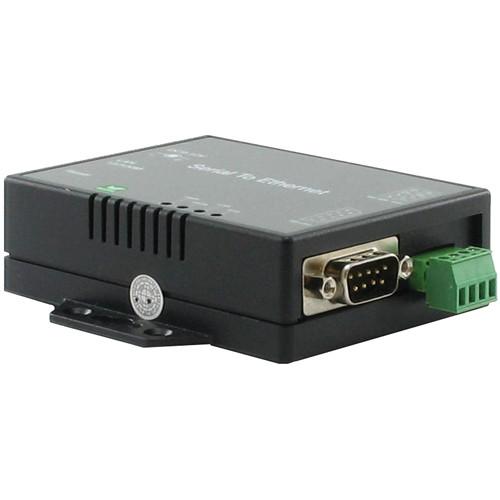

User Manual for A-Neuvideo EP-132 External RS-232 Serial to Ethernet Converter Click to enlarge the picture
Contents of the user manual for the A-Neuvideo EP-132 External RS-232 Serial to
- Product category: Accessories for Converters A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Accessories for Converters
|
User manual for the A-Neuvideo EP-132 External RS-232 Serial to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description The Shinybow EP-132 External RS-232 Serial to Ethernet Converter adds Ethernet capability to any Shinybow switcher that has an RS-232 port for the purpose of connecting serial devices to a LAN (Local Area Network) or WAN (Wide Area Network).The EP-132 TCP/IP converter is designed to operate on serial ports over 10 / 100M Ethernet networks. The data is transmitted via TCP / IP protocol. Therefore control is available via Ethernet, Intranet and Internet. This converter comes packaged in a plastic case that is well suited for industrial environments. All the serial ports operate in common RS-232 mode, industrial RS-422 and RS-485 modes configuration.The presence of auto-detect feature allows for a simple and quick installation process. It works with WINXP and WIN2000 and it includes the redirect software that maps any local COM port to an IP address you assign to the device. It works with the ShinyBow routing switcher program. - Allows for data conversion between RS-232/422/485 and Ethernet
- Converts the serial device (RS-232, RS-422, RS-485) data/signal into the TCP/IP packet data/signal and sends them out with the Ethernet data stream or converts the TCP/IP packet data/signal into serial device data/signal
- Web-based setup and dynamic IP configuration
- Supports DHCP client mode, simplifying network address configuration and management
- Features Dual LAN speed and firmware remote update
- Supports 10/100 Mb/s Ethernet, auto-detected
- Server / Client dual modes
- The 8051 Series can be configured as a network server or network client. In the client mode, it can be installed on the network which is protected by the NAT router or firewall, without the need of real IP address
- Parameters setup based on HTTP protocol by using standard browsers (IE and Netscape) for which no special software is required
- Built-in security control
- Features a watch dog function
- Protected setup the password to prevent intruders
- Firmware can be updated directly via Ethernet network to keep up with network standards
UPC: 857391003253 In the Box A-Neuvideo EP-132 External RS-232 Serial to Ethernet Converter Power Adapter (Input: 120VAC 60Hz 200mA) (Output: 9VDC 500mA) Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo EP-132 External RS-232 Serial to Ethernet Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo EP132 Specs | CPU | 8-bits 8051, 36.864 MHz | | RAM | 32 kB SRAM | | ROM | 64 kB | | Ethernet | Port Type: RJ-45 connector
Speed: 10 /100 MB/s (auto-detecting )
Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
Mode: TCP Server, TCP Client, UDP
Setup: HTTP browser setup (IE and Netscape), RS-232 console
Security: Setup password
Protection: Built-In 1.5 Kv magnetic isolation | | Serial Port | Number of Ports: 1 x RS-232 / RS-422/RS-485 port
Port Type: DB9 male
Speed: 300 b/s to 115.2 kb/s
Parity: None, odd, even
Data Bit: 7, 8
Stop Bit: 1, 2
RS-232 Signals: Rx, Tx, GND, RTS, TS, DTR, DSR, DCD
RS-422 Signals: Rx+, Rx-, Tx+, Tx- (surge protection)
RS-485 Signals: Data+, Data- (surge protection)
Built-in RS-422/RS-485 terminal resistor | | Power | Input: 9 to 12 VDC | | LED | Lamp:
PWR (green)
DATA (red-blink during data transferring and receiving) / LAN (red) / SYS (red-blink) | | Environment | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: 14 to 158°F (-10 to 70°C) | | Regulatory Approvals | EMC: FCC Class A, CE Class A
Compliant with RoHS | | Dimensions (W x D x H) | 3.3 x 3.0 x 1.0" (83.8 x 76.2 x 25.4 mm) | | Weight | 3.20 oz (90.72 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.6 x 5.9 x 2.2" |
