Product description Carry up to a 4K HDMI signal to an HDMI display up to 328 ft away with the A-Neuvideo HDMI HDBaseT Extender, consisting of a transmitter and receiver, both compact and an easy match in any room in your home or establishment. Connect your HDMI source and carry the signal over a single Cat 5e/6 cable, sold separately, via the HDBaseT output. PoE-capable, the set only needs to be powered on one end. So connect the included power supply either to the transmitter or receiver, and the other unit will be powered over the Cat 5e/6 cable. The same cable will also carry bidirectional IR control and bidirectional RS-232 control. - Key Features
-
- Extend an HDMI up to 328 ft over as single UTP Cat 5e/6 cable
- Carry HDMI, bidirectional IR, bidirectional RS-232, and PoE over the same cable
- IR transmitter and receiver included
- HDCP compliant
- Less than 10W PoE power consumption
- HDMI 1.4 compatible
- Formats
-
- 4K2K at 30Hz, 24-bit : 230 ft extension
- 1080p at 60Hz, 36-bit: 328 ft
- 3D 1080p at 30Hz, 36-bit: 230 ft
- 1080p at 60Hz, 48-bit: 230 ft
- 1080p at 120Hz, 24-bit: 230 ft
- 3D 1080p at 60Hz, 36-bit: 230 ft
UPC: 857391003642 In the Box A-Neuvideo HDMI HDBaseT Extender with PoE - Transmitter

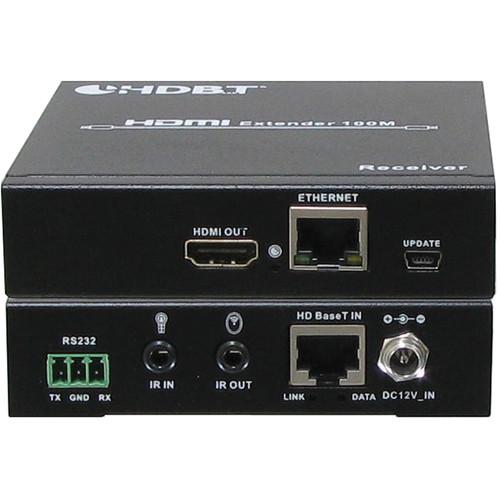

- Receiver
- Power Supply

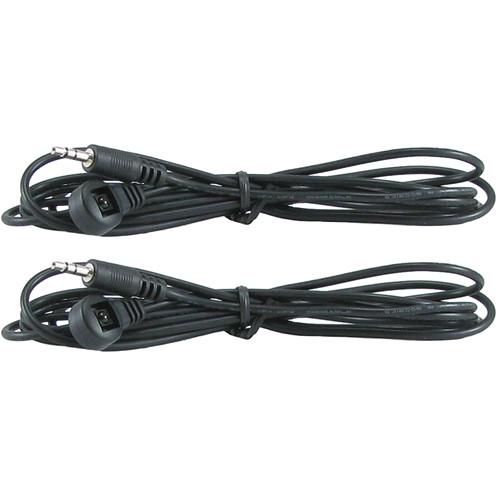

- 2 x Wideband IR Transmitters

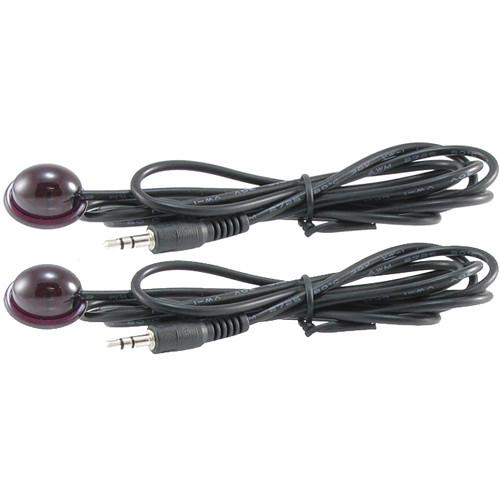

- 2 x Wideband IR Receivers

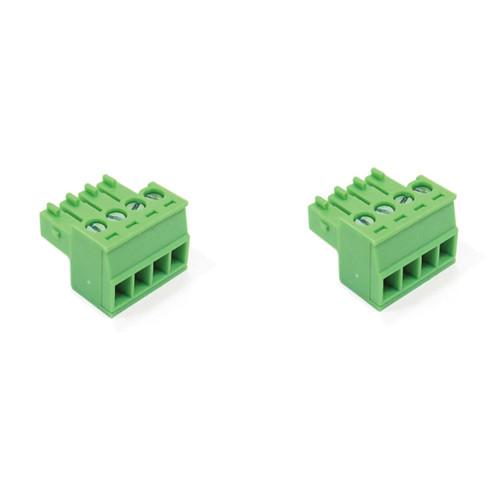

- 2 x Phoenix Male Jacks
- 4 x Mounting Ears
- User Guide
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo HDMI HDBaseT Extender with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-5PLAY Specs | Bandwidth | 2.97 Gbps | | Input / Output | Transmitter:
1x HDMI input
1x RJ45 HDBaseT output
1x RJ45 Internet port
1x IR input
1x IR output
1x Phoenix RS-232 connector
Receiver:
1x RJ45 HDBaseT input
1x HDMI output
1x RJ45 Internet port
1x IR input
1x IR output
1x Phoenix RS-232 connector | | HDMI Version | 1.4 | | HDCP Compliance | Yes | | Supported Formats | 4K2K at 30 Hz, 24-bit : 230 ft (70 m)
1080p at 60 Hz, 36-bit: 328 ft (100 m)
3D 1080p at 30 Hz, 36-bit: 230 ft (70 m)
1080p at 60 Hz, 48-bit: 230 ft (70 m)
1080p at 120 Hz, 24-bit: 230 ft (70 m)
3D 1080p at 60 Hz, 36-bit: 230 ft (70 m) | | ESD Protection | Human Body Model:
± 8 kV (air-gap discharge)
± 4 kV (contact discharge) | | Power Supply | 12 VDC, 2.5 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Power Consumption | 20 W (max) | | Dimensions | 4 x 4 x 1" (10 x 10 x 2.5 cm) (each unit) | | Weight | 0.7 lb (318 g) (each unit) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 12.0 x 9.5 x 2.75" |
