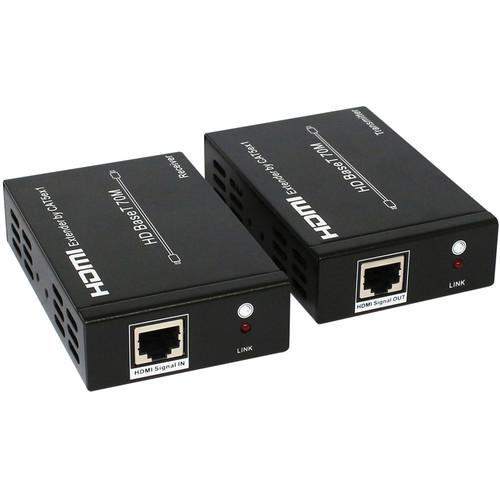

User Manual for A-Neuvideo HDMI PoE Extender over HDBaseT Click to enlarge the picture
Contents of the user manual for the A-Neuvideo HDMI PoE Extender over HDBaseT
- Product category: Video Extenders & Repeaters A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Video Extenders & Repeaters
|
User manual for the A-Neuvideo HDMI PoE Extender over HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|
Product description This is a 4K Ultra HD HDMI over HDBaseT transmitter/receiver set from A.Neuvideo, supporting 4K distances up to 100 ft and 1080p up to 230 ft. It offers bidirectional IR input and output, which allows you to control the source device from the display location. It also features Power-over-Ethernet (PoE) capability, which lets you power both units with only one power supply connected to either unit. IR transmitters/receivers and a power supply are included. Note: Not compatible with EZ-RJ45 connectors. - Key Features
-
- Transmits 4K UHD/30Hz/24-bit up to 100 ft
- 2K/30Hz/24-bit up to 200 ft
- 1080p/60Hz/36-bit up to 230 ft
- 3D 1080p/30Hz/36-bit up to 230 ft
- 1080p/60Hz/48-bit up to 130 ft
- 1080p/120Hz/24-bit up to 130 ft
- 3D 1080p/60Hz/36-bit up to 130 ft
- Bandwidth 2.97 Gbps
- HDMI V1.4 supported
- HDCP compliant
- Bidirectional IR control; IR transmitters/receivers included
- Power-over-Ethernet; power supply included
- Uses single UTP/STP CAT5e/6/7 cables, sold separately
- UTP/STP cable termination follows the standard of IEEE-568B
- Full 3D pass through
- Less than 10W power consumption (20W max)
- High EMI (interference) rejection
- Supports Dolby TrueHD and DTS-HD Master Audio embedded audio
UPC: 857391003536 In the Box A-Neuvideo HDMI PoE Extender over HDBaseT Transmitter Receiver 2 x IR Transmitters 2 x IR Receivers User Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo HDMI PoE Extender over HDBaseT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-HDB70 Specs | Transmission Distance | 4K UHD/30Hz/24-bit up to 100 ft (30.5 m)
2K/30Hz/24-bit up to 200 ft (61 m)
1080p/60Hz/36-bit up to 230 ft (70 m)
3D 1080p/30Hz/36-bit up to 230 ft (70 m)
1080p/60Hz/48-bit up to 130 ft (40 m)
1080p/120Hz/24-bit up to 130 ft (40 m)
3D 1080p/60Hz/36-bit up to 130 ft (40 m) | | Frequency Bandwidth | 2.97 Gbps | | Transmitter Input/Output | 1x HDMI input
1x RJ45 output
1x IR Transmitter jack
1x IR Receiver jack | | Receiver Input/Output | 1x RJ45 input
1x HDMI output
1x IR Transmitter jack
1x IR Receiver jack | | Cables Supported | HDMI 1.4
UTP/STP LAN cable CAT5e/6/7 | | HDCP Compliant | Yes | | Power Supply | 12 VDC 2.5 A | | Power Consumption | 20 W | | ESD Protection | ± 8 kV (air-gap discharge)
± 4 kV (contact discharge) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (Non-condensing) | | Dimensions | 2.5 x 3.9 x 1" (6.4 x 10 x 2.5 cm) | | Weight | 0.7 oz (200 g) (each unit) | | | | Package Weight | 1.865 lb | | Box Dimensions (LxWxH) | 10.15 x 9.15 x 2.35" |
