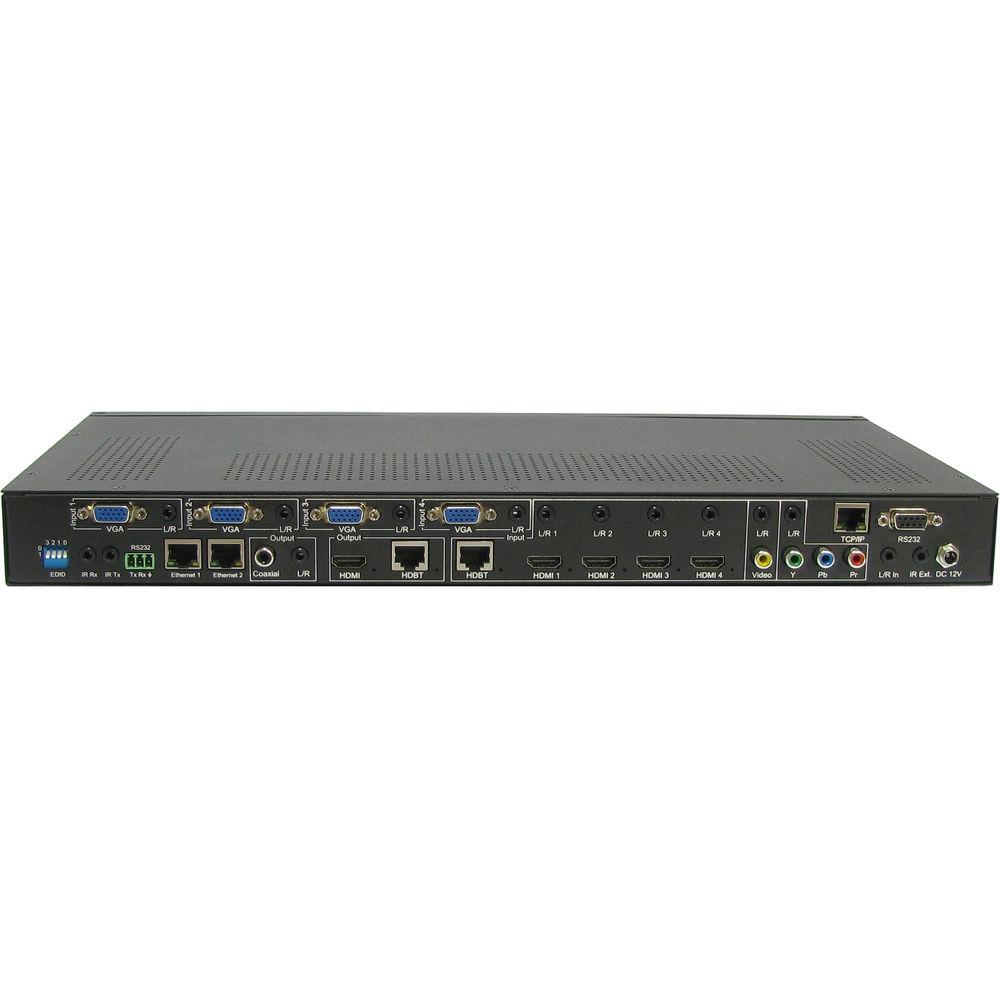

Product description The A-Neuvideo Multi-Format Video Presentation Scaler Switch features 11 inputs of various video formats including HDMI, VGA, component, and composite and HDBaseT with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions from 640 x 480 up to 1920 x 1080 @ 60 Hz, and using by-pass supports up to 4K2K @ 30 Hz. The switcher features embedded splitter and dual switcher modes and can work as 11:1x2 multiple splitter or 5x1 and 11x1 dual switcher. It also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel, IR remote control, or RS-232 interface.The ANI-11x2MFS integrates easily in various analog to digital applications such as when used in collaboration environments, lecture halls, conference rooms, class rooms, healthcare facilities, and control centers.

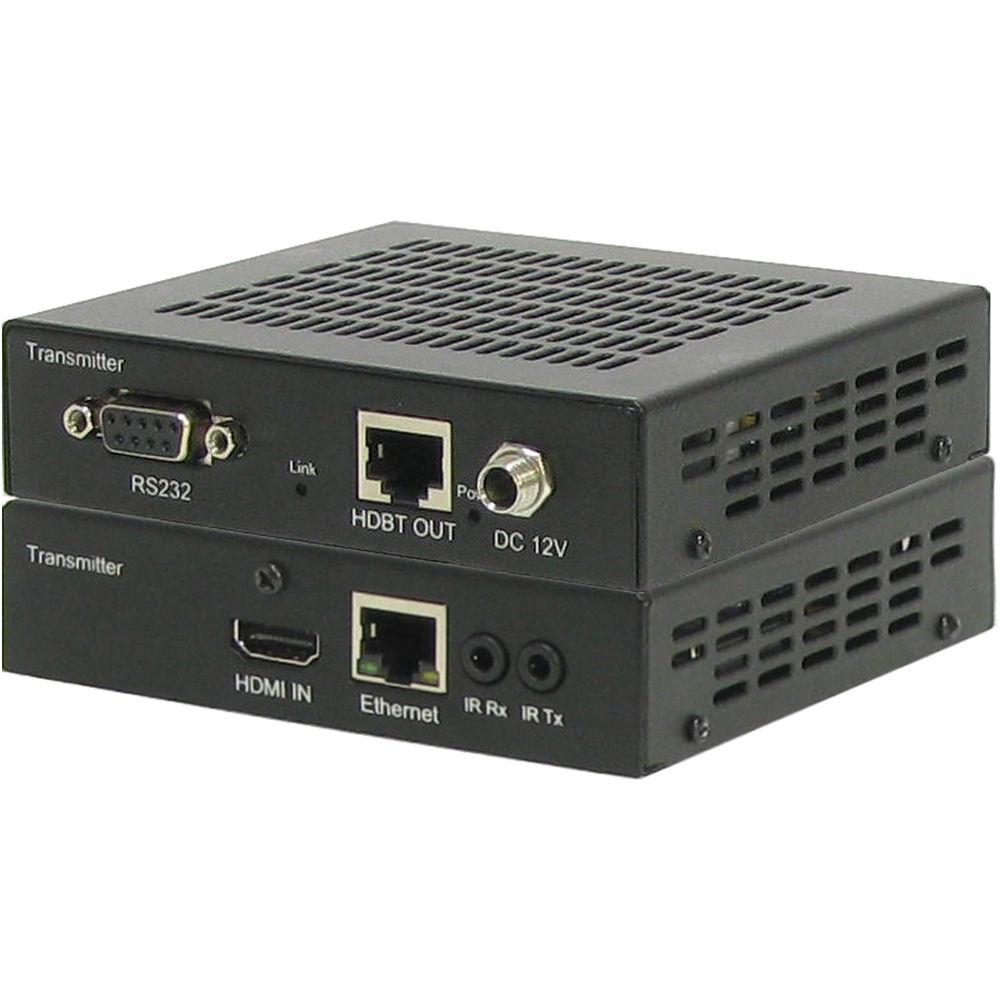

The ANI-11x2MFS-Tx (Transmitter)/ANI-11x2MFS-Rx (Receiver) are HDBaseT Extenders. They can transmit 1080p @ 60 Hz at 48-bit deep color via a single Cat5e up to 330' and 4K2K @ 30 Hz up to 230' Bi-directional IR, RS-232, and Ethernet can also be transmitted over the same Cat5e cable. With support for POH (power over HDBaseT), only one power supply is needed at either transmitter or the receiver. Main Unit - Switch and scale 11 inputs to 2 HD/UHD displays
- 4 HDMI, 4 VGA, 1 YPbPr, 1 Composite, and 1 HDBaseT inputs
- 2 simultaneous outputs (1 HDMI, 1 HDBaseT)
- Bypass and scaled formatted output selectable
- Dual mode selectable (11:1x2 splitter mode or 5x1 and 11x1 dual switcher mode)
- HDTV formats up to 4K2K @ 30 Hz on both input and output (bypass)
- Scaling from 640 x 480 to 1920 x 1080 @ 60 Hz
- HDBaseT PoE Transmitter and HDBaseT PoE receiver supports distance up to 330'
- Audio embedder and audio extractor
- OSD menu for volume control and resolution selection
- Controllable via front panel, IR remote, TCP/IP, or RS-232
- Front-panel LCD display for status feedback
- Easy installation with rack-mounting ears
Transmitter & Receiver - HDMI v1.4 and HDCP compliant
- Supports 1080p @ 60 Hz, 3D, and 4K2K @ 30 Hz
- Supports 1080p @ 60 Hz or VESA: 1920 x 1200 @ 60 Hz up to 330'
- Transmission distance for 4K2K @ 30 Hz up to 230'
- Dolby TrueHD and DTS-HD master audio pass through HDMI output
- Bi-directional IR, RS-232, and Ethernet pass-through
- Power over HDBaseT supported
- Only one power supply needed at either transmitter or receiver side

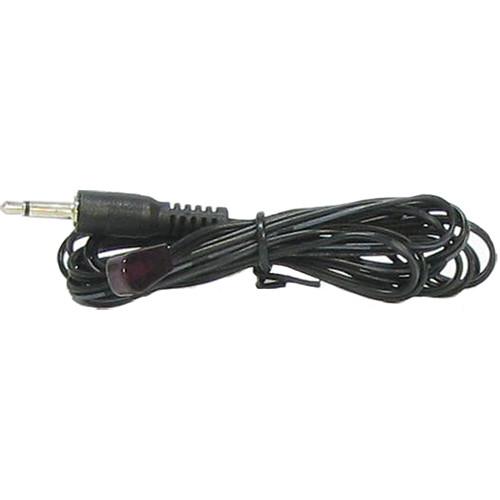

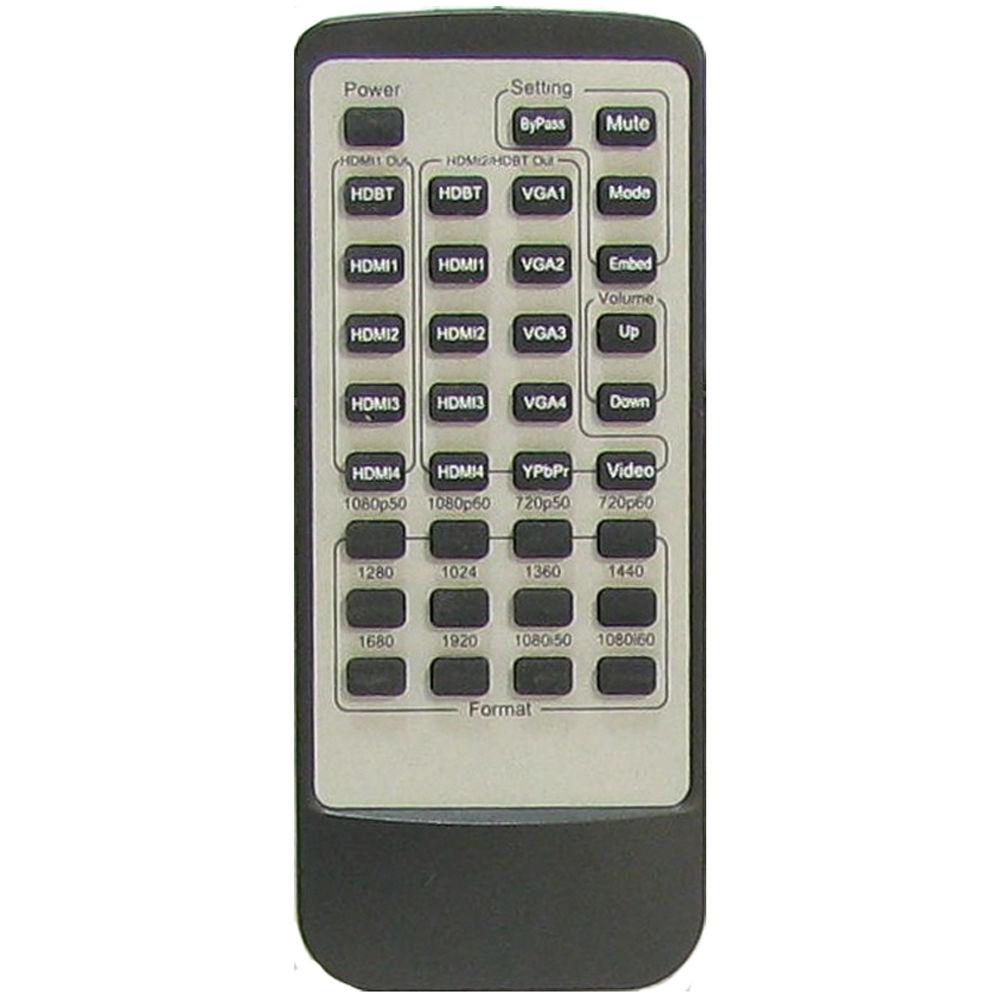

UPC: 857391003802 In the Box A-Neuvideo Multi-Format Video Presentation Scaler Switch with Audio, Transmitter & Receiver Remote Control Rack-Mounting Ears ANI-11x2MFS-HDBaseT PoE Transmitter ANI-11x2MFS-HDBaseT PoE Receiver IR Transmitter and IR Receiver 4 x Surface Mounting Tabs 12V/2A DC Power Supply 12V/5A Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo Multi-Format Video Presentation Scaler Switch with Audio, Transmitter & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-11X2MFS Specs | | | Bandwidth | 10.2 Gb/s | | Video Input Connectors | 4 x HDMI Type A
4 x VGA
1 x RJ45
1 x YPbPr
1 x AV | | Video Output Connectors | 1 x HDMI Type A
1 x RJ45 | | Audio Input Connectors | 11 x 3.5 mm stereo jack | | Audio Output Connectors | 1 x 3.5 mm stereo jack
1 x RCA (SPDIF) | | RS-232 Serial Port | 1 x DB 9 connector
1 x 3-Phoenix terminal | | TCP/IP | 3 x RJ-45
2 x Ethernet pass-thru
1 x Device control | | Input Ports | IR
2 x 3.5 mm stereo jack | | Output Port | IR
1 x 3.5 mm mono jack | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Supply | 12 VDC @ 5 A | | Dimensions (W x H x D) | 17.2 x 8.9 x 1.73" (438 x 225 x 44 mm) without feet or rack ears | | Weight | 9 lb (4 kg) | | | | Bandwidth | 2.97 Gb/s per color | | Video Input | Transmitter: 1 x HDMI Type A, 19-pin, female
Receiver: 1 x RJ-45 | | IR | Input: 2 x 3.5 mm stereo jack
Output: 2 x 3.5 mm stereo jack | | Audio | Passes up to Dolby TrueHD or DTS-HD Master Audio | | Resolution | Video: Up to 4K2K @ 30 Hz
VESA: Up to 1920 x 1200 | | Distance | 230' (70.1 m) @ 1080p over Cat5e/6
130' (39.6 m) @ 4K2K @ 30 Hz over Cat5e/6 | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (20 to 60°C) | | Power Supply | 12 VDC / 2 A, screw type connector | | Power Consumption | 9.5 W | | Dimensions | 4.1 x 2.9 x 1.1" (105 x 73 x 27 mm) | | Weight | 7 oz (200 g) | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 19.449 x 12.205 x 6.221" |
