User Manual for A-Neuvideo UHD 4K HDMI 2.0 Audio Extractor Click to enlarge the picture
Contents of the user manual for the A-Neuvideo UHD 4K HDMI 2.0 Audio
- Product category: Embedders & De-Embedders A-Neuvideo
- Brand: A-Neuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for A-Neuvideo Embedders & De-Embedders
 |
User manual for the A-Neuvideo UHD 4K HDMI 2.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any A-Neuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official A-Neuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a A-Neuvideo product will considerably shorten its lifespan!
|

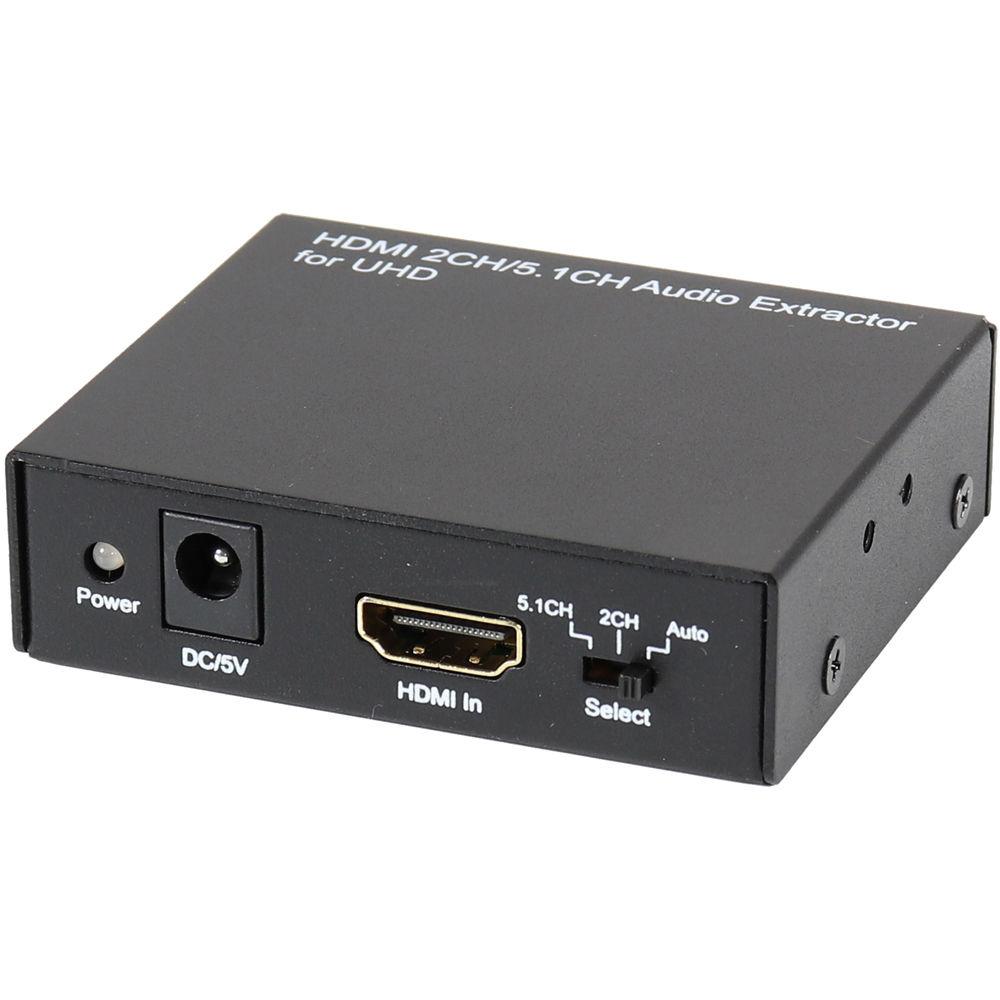

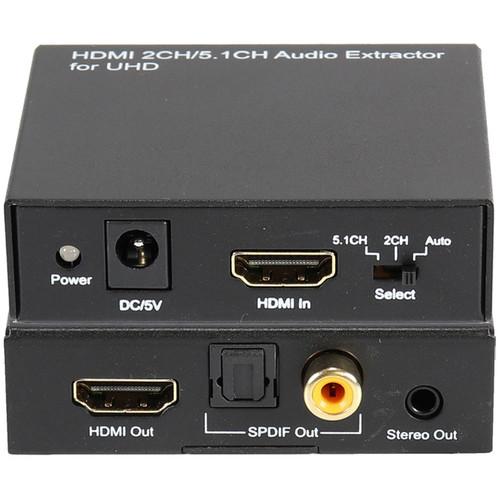

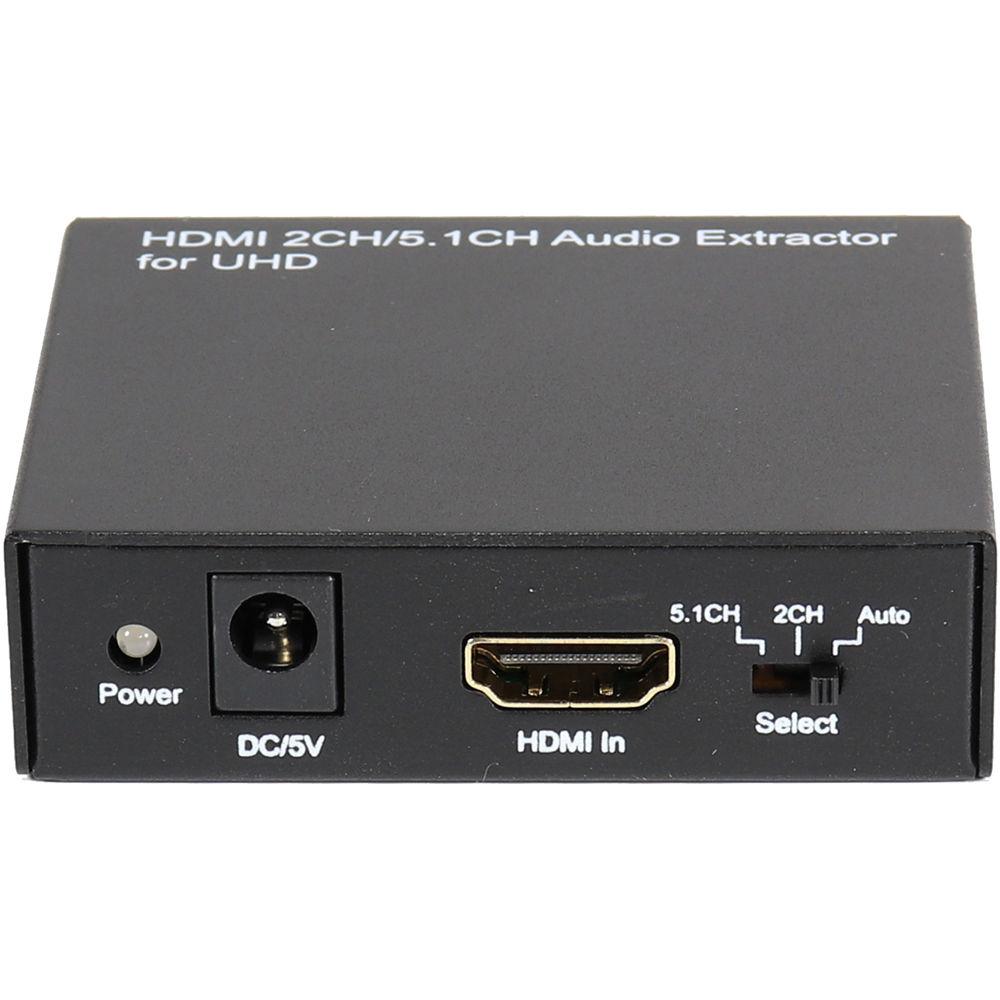

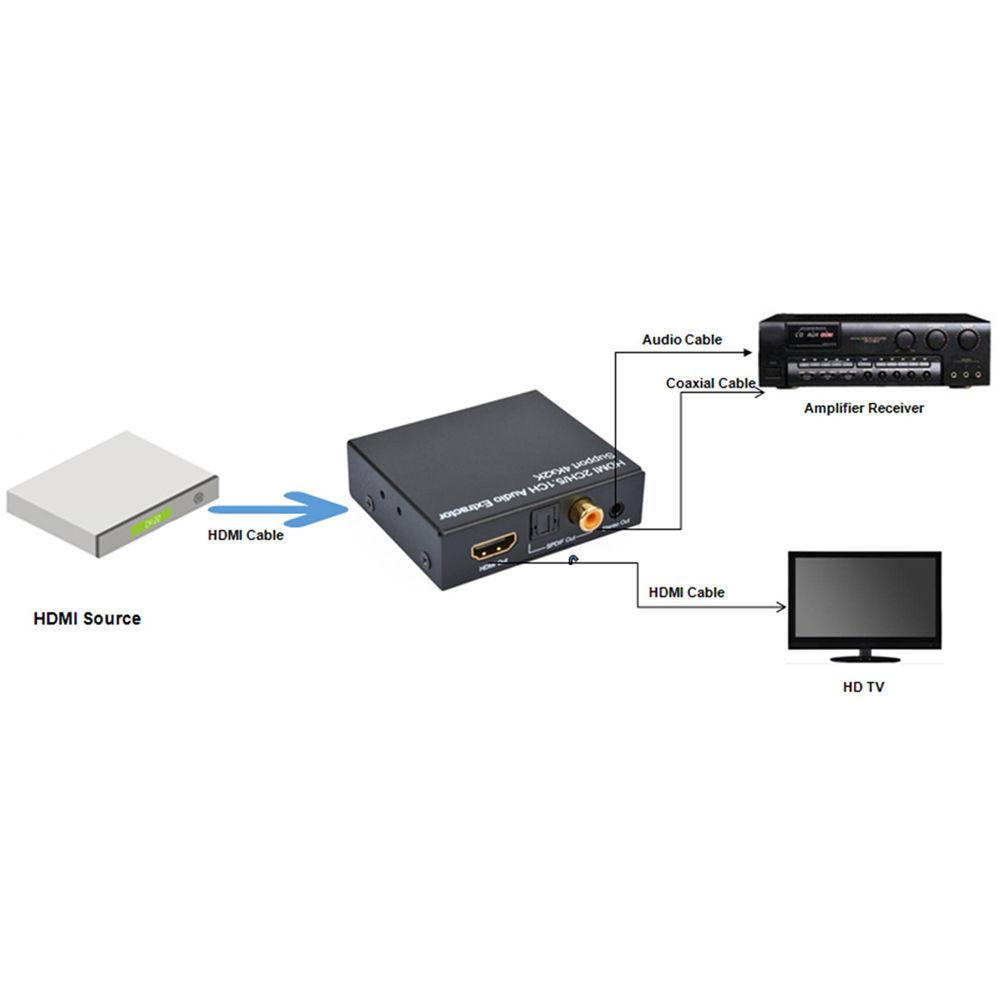

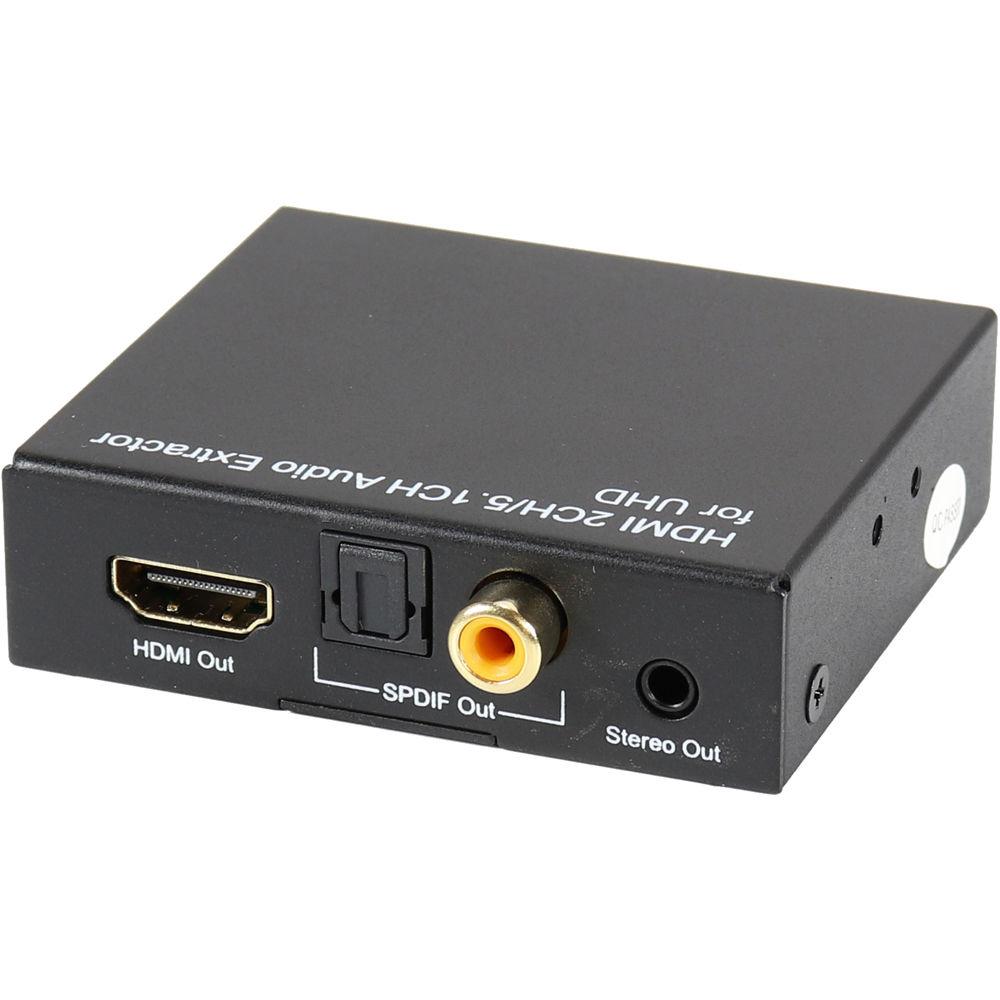

Product description Separate your audio from an HDMI source and listen to it on high-end speakers with this UHD 4K HDMI 2.0 Audio Extractor from A-Neuvideo. This extractor connects an HDMI video source to an HDMI TV and to a separate audio system over a TOSLINK, RCA, or stereo audio port.
Multichannel audio is extracted and sent to your sound system in a variety of formats such as 5.1/7.1, MAT/MLP, Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, and DTS-HD Master, and it also supports LPCM uncompressed audio. Supported video resolutions include 12-bit 4K at 60 Hz, 1-bit 1080p at 60 Hz, or 12-bit 720p/1080i at 60 Hz.

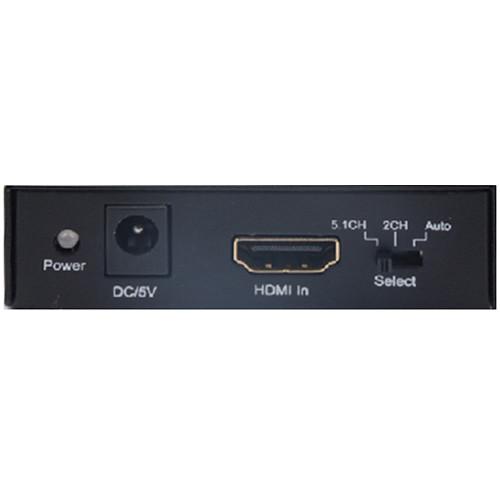

A manual selection toggle allows you to switch between 5.1, 2-channel stereo, and auto-select audio output. If you plug a stereo-only device such as headphones into the stereo jack, the output will automatically switch to stereo. The original audio will also remain embedded with your HDMI pass-through video.

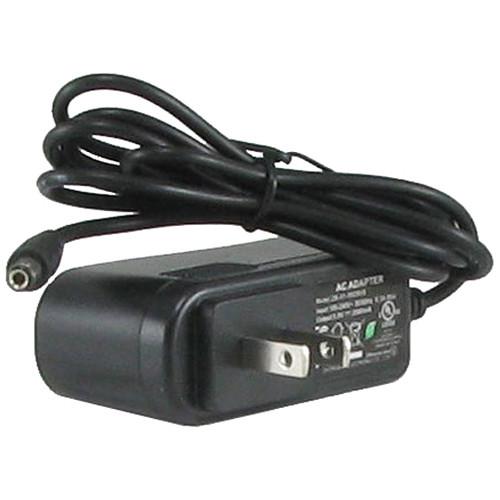

An AC adapter is included with the unit. UPC: 859777007053 In the Box A-Neuvideo UHD 4K HDMI 2.0 Audio Extractor Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the A-Neuvideo UHD 4K HDMI 2.0 Audio Extractor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersA-Neuvideo ANI-5.1CH4K Specs | Supported Resolutions | 12-bit 4K at 60 Hz
1-bit 1080p 60 Hz

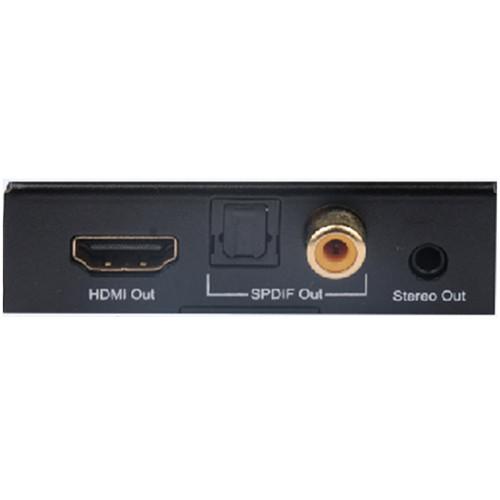

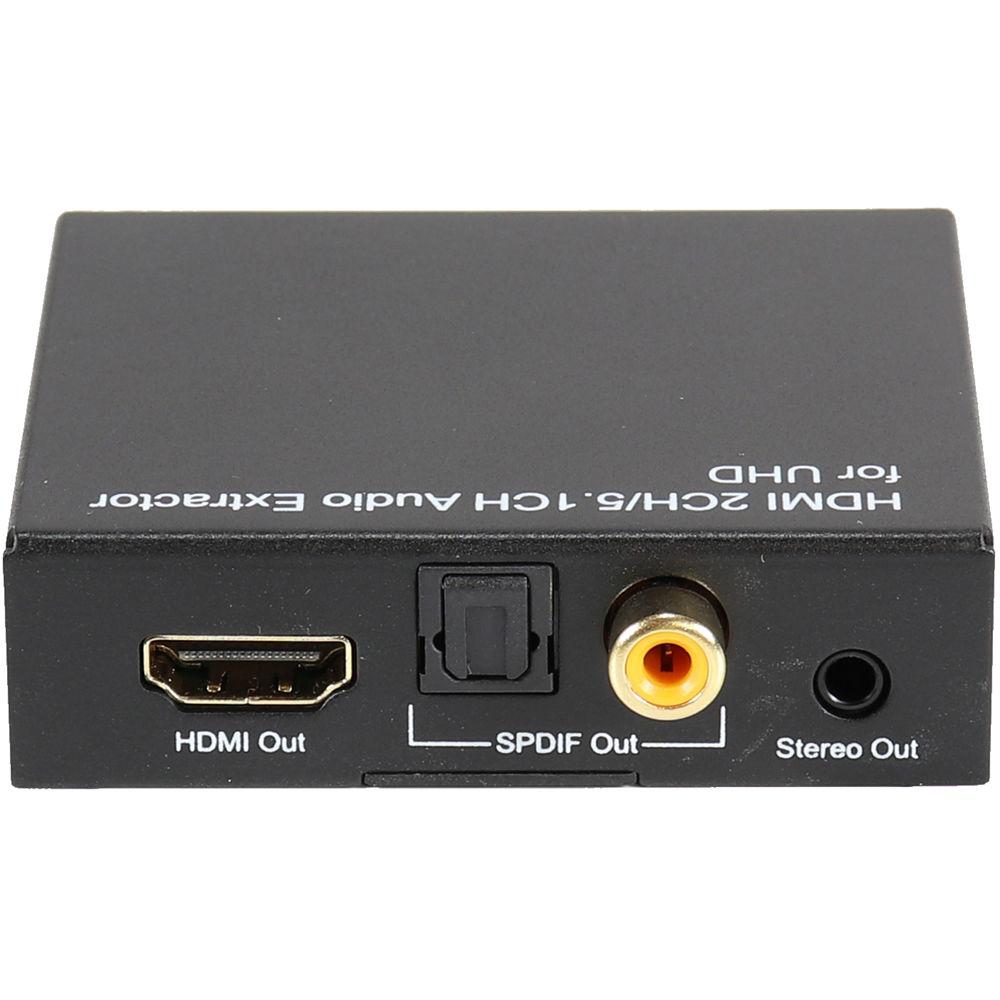

12-bit 720p/1080i at 60 Hz | | Maximum Bandwidth | 6 Gb/s per channel, total of 18 Gb/s | | Content Protection | HDCP 2.2 and 1.4 | | Audio Formats | 5.1 / 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, uncompressed LPCM | | Input | 1 x HDMI | | Output | 1 x HDMI
1 x TOSLINK
1 x RCA
1 x Stereo | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F / -10 to 80°C | | Storage Humidity | 5 to 90% RH (no condensation) | | Power | AC Power: 5 V, 1 A
Consumption: 2 W | | Compliance | FCC, CE | | Dimensions | Not supplied by manufacturer | | Weight | Not supplied by manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 2.5" |
