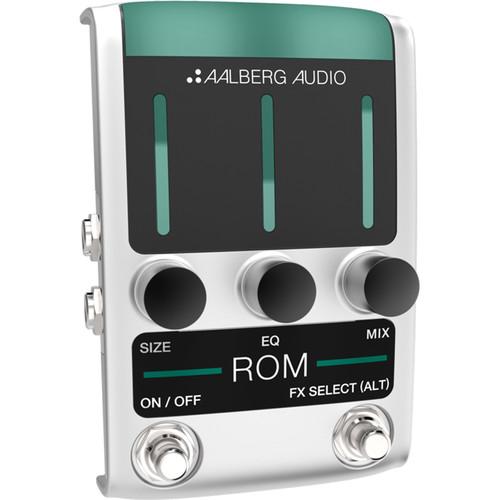

Product description The ROM RO-1 Reverb Pedal from Aalberg Audio uses complex algorithms to recreate an endless variety of warm and realistic-sounding reverb effects, both mono and stereo, in a stompbox that can be controlled wirelessly with the optional AERO AE-1 controller. The ALT footswitch toggles between different pre-configured user settings, allowing you to switch between two different types of reverbs or use different pre-delay values.
The ROM RO-1 Reverb Pedal can also be controlled by a free iOS / Android remote app that provides easy editing and allows the saving of presets for later recall. All the electronics are contained in a rugged, custom-made aluminum housing, while the onboard green LED bars at the top provide actual parameter settings, easily seen from a distance or in low light. The ROM is powered by an optional 9V adapter. - General Features
-
- Parameters: Size, EQ, and Mix
- Switch between plate and hall reverb
- True bypass
- Compatible with AERO AE-1 Wireless Controller
- Upgrade firmware and sound algorithms by using the Aalberg Update app (iOS only)
- Control pedal and get extended functionality using the Aalberg Remote App (Coming soon)
- Controls
-
- Size: From small room to an extreme big hall sound
- EQ: Low Pass Filter to change between a bright tone to a darker reverb tone
- Mix: Dry/wet mix: from completely dry sound to completely wet reverb sound
- FX-Select (ALT)
- FX-Select: Choose active effect parameter (Size, EQ or Mix) for wireless control with AERO controller (optional)
- ALT: Lets you change between two modes for the ROM pedal. Press and hold the FX-Select footswitch to toggle between the two modes
- ALT (no light): Short pre-delay
- ALT (light): Long pre-delay
- On/Off: Set the pedal to ON (activated) or OFF (true bypass)
- Input / Output Setups
-
- Mono In / Mono Out: Connect your instrument to Mono In and the amplifier to Mono Out
- Mono In / Stereo Out: Connect your instrument to Mono In and use both Mono and Stereo Outputs. This gives a stereo spread between the two outputs
- Dry / Wet Split: Connecting your instrument to Stereo In will split the dry wet signal as follows
- Mono Out: 100% wet signal
- Stereo Out: 100% dry signal
- Stereo In / Stereo Out: For a more spacious reverb using two amplifiers. Connect stereo signal to both inputs, then connect one amplifier to Mono Out, and another amplifier to Stereo Out
In the Box Aalberg ROM RO-1 Reverb Pedal with Wireless Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aalberg ROM RO-1 Reverb Pedal with Wireless Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAalberg RO-1-U Specs | Connectors | Input: 2 x 1/4" / 6.35 mm (mono/stereo)
Output 2 x 1/4" / 6.35 mm (mono/stereo)
DC power jack | | Controls | Size, EQ, Mix, On/Off (true bypass), FX-Select (ALT) | | Indicators | Parameter Level Indicators: LED bar indicators for Size, EQ, and Mix | | Input and Output Impedance | Input Impedance (@1 kHz): 1 MOhm
Output Impedance (@1 kHz): < 1 kOhm | | Audio Input Levels | Maximum Input Signal: 3.22 Vp-p (2.28 Vrms) | | Sample Rate | 48 kHz | | Bit Depth | 24 | | Power | Power Supply: 9 VDC, 2.1 mm plug, center negative (not included)
Current Draw: 250 mA | | Dimensions (W x H x D) | 3.7 x 2.2 x 5.6" / 94.0 x 55.9 x 142.2 mm | | Weight | 13.0 oz / 368.5 g |
