User Manual for Aalberg TRYM TR-1 Tremolo Pedal with Wireless Control Click to enlarge the picture
Contents of the user manual for the Aalberg TRYM TR-1 Tremolo Pedal with
- Product category: Effects Pedals Aalberg
- Brand: Aalberg
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aalberg Effects Pedals
|
User manual for the Aalberg TRYM TR-1 Tremolo Pedal with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aalberg product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aalberg user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aalberg product will considerably shorten its lifespan!
|

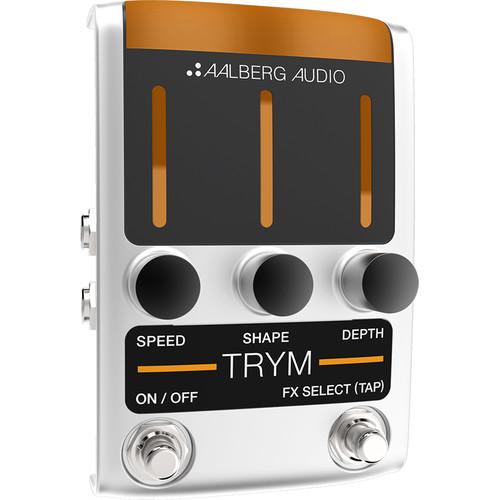

Product description The TRYM TR-1 Tremolo Pedal from Aalberg Audio delivers everything from a hard-hitting square wave to a gentle sine wave-shaped tremolo effect in a stompbox that can be controlled wirelessly with the optional AERO AE-1 controller. The Tap-Tempo footswitch changes the tremolo speed, and by using the stereo mode you can alternate the tremolo effect from left to right, providing a mesmerizing and spacious tremolo effect.
The TRYM TR-1 Tremolo Pedal can also be controlled by a free iOS / Android remote app that provides easy editing and allows the saving of presets for later recall. All the electronics are contained in a rugged, custom-made aluminum housing, while the onboard yellow LED bars at the top provide actual parameter settings, easily seen from a distance or in low light. The TRYM is powered by an optional 9V adapter. - General Features
-
- Parameters: Speed, Shape, and Depth
- Use tap tempo to set the speed of the tremolo effect
- Multiple signal configurations
- True bypass
- Compatible with AERO AE-1 Wireless Controller
- Upgrade firmware and sound algorithms by using the Aalberg Update app (iOS only)
- Control pedal and get extended functionality using the Aalberg Remote App (Coming soon)
- Controls
-
- Speed: Adjust the speed of the tremolo effect
- Shape: Change between a mild sine wave tremolo (lowest setting), a more aggressive square wave tremolo (highest setting), or a mix between sine and square wave
- Depth: Adjust the amplitude of the tremolo effect, the “degree” of tremolo effect. Depth set to minimum equals no tremolo effect
- FX-Select / Tap Tempo
- Two modes
- Tap: Tap the desired tremolo speed using the footswitch (TAP)
- FX-Select: Choose active effect parameter (SPEED, SHAPE, and DEPTH) for wireless control with AERO controller (optional)
- On/Off: Set the pedal to ON (activated) or OFF (true bypass)
- Input / Output Setups
-
- Mono In / Mono Out: Connect your instrument to Mono In and the amplifier to Mono Out
- Panning Stereo: Connect your instrument to Mono In, then connect one amplifier to Mono Out, and another amplifier to Stereo Out. The tremolo effect will now alternate between the two outputs, giving a spacious tremolo effect
In the Box Aalberg TRYM TR-1 Tremolo Pedal with Wireless Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aalberg TRYM TR-1 Tremolo Pedal with Wireless Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAalberg TR-1-U Specs | Connectors | Input: 2 x 1/4" / 6.35 mm (mono/stereo)
Output 2 x 1/4" / 6.35 mm (mono/stereo)
DC power jack | | Controls | Speed, Shape, Depth, On/Off (true bypass), FX Select (Tap) | | Indicators | Parameter Level Indicators: LED bar indicators for Speed, Shape, and Depth | | Input and Output Impedance | Input Impedance (@1 kHz): 1 MOhm
Output Impedance (@1 kHz): < 1 kOhm | | Audio Input Levels | Maximum Input Signal: 3.22 Vp-p (2.28 Vrms) | | Sample Rate | 48 kHz | | Bit Depth | 24 | | Power | Power Supply: 9 VDC, 2.1 mm plug, center negative (not included)
Current Draw: 250 mA | | Dimensions (W x H x D) | 3.7 x 2.2 x 5.6" / 94.0 x 55.9 x 142.2 mm | | Weight | 13.0 oz / 368.5 g |
