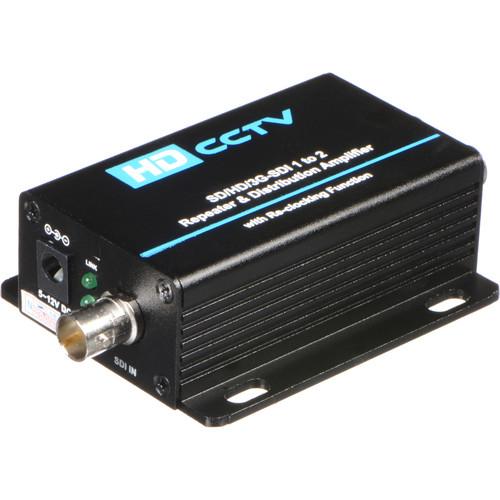

User Manual for AAS HD-SDE-122R SD HD 3G-SDI Distribution Amplifier Extender Click to enlarge the picture
Contents of the user manual for the AAS HD-SDE-122R SD HD 3G-SDI Distribution
- Product category: Signal Extenders AAS
- Brand: AAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAS Signal Extenders
|
User manual for the AAS HD-SDE-122R SD HD 3G-SDI Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAS product will considerably shorten its lifespan!
|
Product description The HD-SDE-122R SD/HD/3G-SDI Distribution Amplifier/Extender from AAS receives an SDI video input, re-clocks, equalizes the signal, and then distributes it to two identical outputs. It splits an SDI or HD-SDI video source into two HD-SDI or SD-SDI displays at the same time. Input power will be split between the two BNC outputs. If only one BNC output is in use, cover the second BNC output with the BNC-to-RCA cover connector. - Distributes and extends SDI video signals (3G-SDI, HD-SDI, SD-SDI)
- Transmits signals with data rates up to 1485 Mb/sec
- Supports SMPTE 292M and SMPTE 259M type signals
- Two separately buffered outputs
- Cable equalization (Beldon 1694A) and signal retiming
- Dual-color LED indication of input lock and rate
- Passes all ancillary data
- Re-clocking function capability with unlimited repeater connection
UPC: 721405356201 In the Box AAS HD-SDE-122R SD/HD/3G-SDI Distribution Amplifier/Extender 12VDC 1A Power Adapter with Locking Power Connector BNC-to-RCA Cover Connector Limited 1-Year Warranty User Manual PDF 583.4kbbeusexuzswrbdd Table of Contents
|
Upload User Manual
Have you got an user manual for the AAS HD-SDE-122R SD HD 3G-SDI Distribution Amplifier Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAS HD-SDE-122R Specs | SDI Standards | 3G-SDI, SD-SDI, HD-SDI | | Detection Method | Automatic HD/SD-SDI | | Supported Protocols | SMPTE 259M, SMPTE 292M, and SMPTE 344M | | Video Bandwidth | 2.97 Gbps
2.97/1.001 Gbps | | Data Rates | 270, 1483, 1485 Mbps | | Video Support | HD: 720p at 50/59.94/60 fps, 1035i at 50/59.94/60fps , 1080i 50/59.94/60 fps, 1080p at 24/30 fps
SD NTSC at 59.94 Hz, PAL at 50 Hz | | SDI Signal Type | SMPTE-292M, SMPTE-259M | | Output Impedance | 75 Ohms | | Cable Equalization | Unlimited repeater connection | | RP-918 Pathological Patterns | Immune | | PCB Stack-up | 4-layer board (impedance control differential 100 Ohms, single 50 Ohms) | | Input | 1 x BNC (SDI) | | Output | 2 x BNC (SDI) If only 1 BNC output is in use, cover the 2nd BNC output with the included BNC-to-RCA cover connector. | | BNC Connector | 75 Ohms interlocked socket | | Eye Pattern Characteristics | Amplitude: Within 800 mV ±3% (< 10%)
Rise Overshoot: Less than 2% (< 10%)
Fall Overshoot: Less than 2% (< 10%)
Long Time Jitter: 0.195 UI (< 1.0 UI)
Timing Jitter: 0.195 UI (< 1.0 UI)
Alignment Jitter: 0.127 UI (< 0.2 UI) | | Fixedness | Inter-locked power supply | | Power Input | 5 to 24 VDC with locking power connector | | Power Consumption | 4 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90%, non-condensing | | Housing Material | Aluminum | | Dimensions | 5.7 x 3.2 x 1" (145 x 80 x 25 mm) | | Weight | 0.66 lb (300 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.7 x 5.9 x 1.5" |
