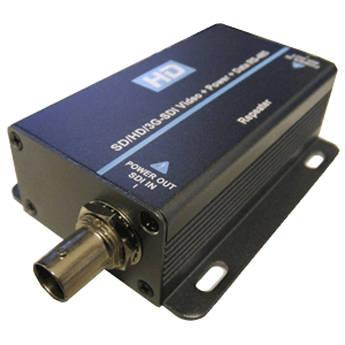

User Manual for AAS HD-SDE-VDP Repeater for SD HD 3G-SDI Video Power Data RS-485 Transmission over Coax Kit Click to enlarge the picture
Contents of the user manual for the AAS HD-SDE-VDP Repeater for SD HD
- Product category: Signal Extenders AAS
- Brand: AAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAS Signal Extenders
|
User manual for the AAS HD-SDE-VDP Repeater for SD HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAS product will considerably shorten its lifespan!
|
Product description The HD-SDE-VDP Repeater for SD/HD/3G-SDI Video + Power + Data RS-485 Transmission over Coax Kit from AAS supports transmission distance of up to 600’ (200m) with a data rate of 1.5 Gb/s. It supports 14 types of SMPTE-compliant HD formats (1.485 Gb/s, 1.485/1.001 Gb/s). This repeater equalizes as well as re-clocks the input HD-SDI video signal and distributes it to 2 identical channels. - Adaptive Equalizer returns the signal to its original amplitude and modulation
- Re-clocking function resynchronizes the signal
- Cable driver retransmits the signal with its original characteristics
- Data and power can be transmitted from the recorder side to the camera over the coax cable
- Up to 7 repeaters (sold separately) may be powered from the coax cable 1
Please Note: Requires 24VDC to power more than 2 repeaters close - Maximum cable length (Belden 1694A) up to 1,300' (400m) for SD - SDI signal, 600' (200m) for HD-SDI and 450' (140m) for 3G - SDI signals
UPC: 721405356744 In the Box AAS HD-SDE-VDP Repeater for SD/HD/3G-SDI Video + Power + Data RS-485 Transmission over Coax Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AAS HD-SDE-VDP Repeater for SD HD 3G-SDI Video Power Data RS-485 Transmission over Coax Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAS HD-SDE-VDP Specs | Connectors | 1 x BNC SDI | | Input & Output Signal | SD-SDI (270 Mb/s)
HD-SDI (1.485 Gb/s)
3G-SDI (2.97 Gb/s) | | SDI Impedance | 75 Ω | | Coaxial Cable Capability | Belden 1694A
SD-SDI 1300' (400 m)
HD-SDI 600' (200 m)
3G-SDI 450' (140 m) | | RS-485 Support | Connector: Plug-in terminal block
Pitch: 3.81 mm
Poles: 3
Rated Voltage: 800 V
Rated Current: 8 A | | Power Provided | Minimum 8 VDC feed via Coax | | Performance Specifications | RG6 Sample 1 (16 dB/100 m) (Belden 1694A)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 650' (200 m)
Requires 5 repeaters for transmission up to 3280.8' (1.00 km) with power consumption of 6 W after 2 repeaters
RG6 Sample 2 (16 dB/100 m) (Carol Brand)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 650' (200 m)
Requires 3 repeaters for transmission up to 3280.8' (1.00 km) with power consumption of 1.8 W after 2 repeaters
5C-HFBT Sample (16 dB/100 m) (Amphenol)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 650' (200 m)
Requires 5 repeaters for transmission up to 3280.8' (1.00 km) with power consumption of 6 W after 2 repeaters
RG59 Sample (23dB/100m)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 450' (140 m)
Requires 5 repeaters for transmission up to 2296.6' (700 m) with power consumption of 6.5 W after 2 repeaters
3C-2V Sample 1 (41 dB/100 m)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 325' (78 m)
Requires 5 repeaters for transmission up to 1279.5' (390.0 m) with power consumption of 6.5 W after 2 repeaters
RG11 Sample (10 dB/100 m) (CommCcope F1160BVV)
Maximum Coax Length for Error-Free Operation @ 1.5 Gb/s: 1050' (200 m)
Requires 4 repeaters for transmission up to 4265.1' (1.3 km) with power consumption of 4 W after 2 repeaters | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Relative Humidity | Up to 85% RH (non-condensation) | | Dimensions | 3.31 x 1.89 x 0.98" (84.00 x 48.00 x 25.00 mm) | | Weight | 3.0 lb (1.3 kg) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.1 x 5.8 x 2.1" |
