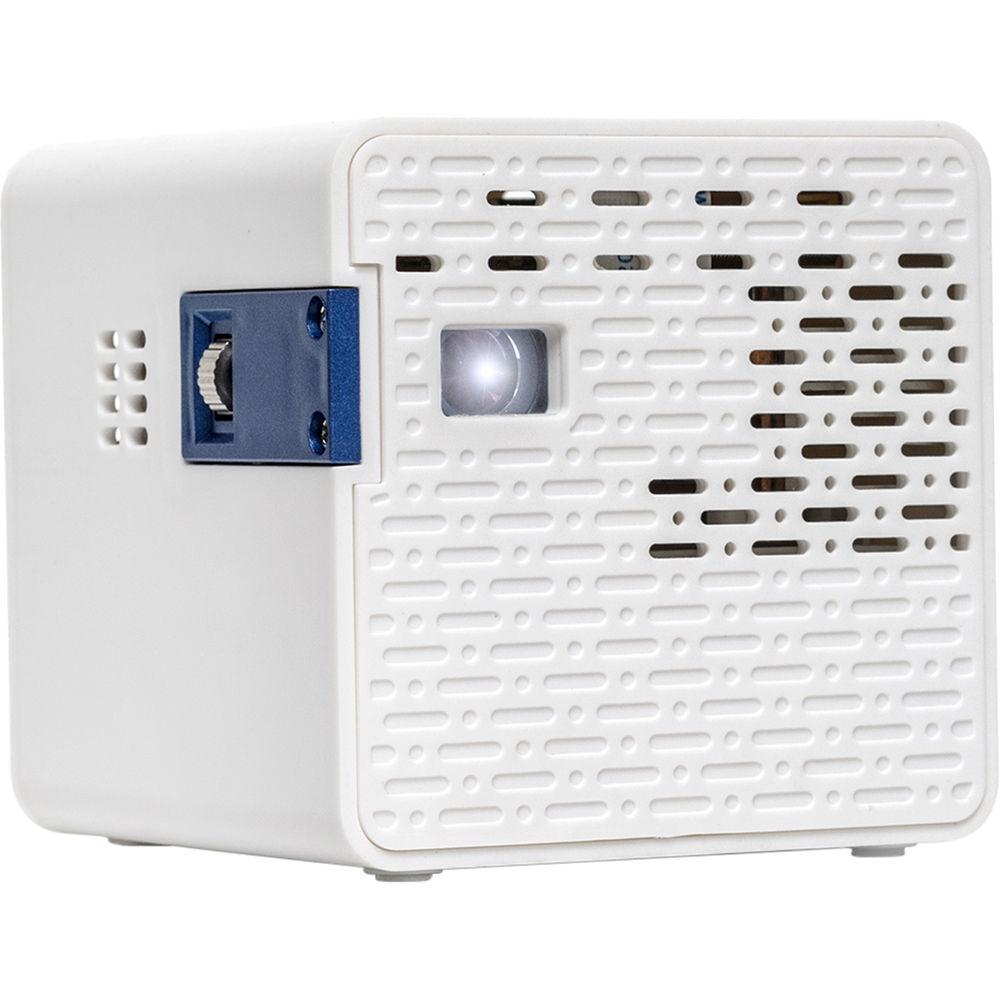

User Manual for AAXA Technologies HD Pico 50-Lumen HD LED Pico Projector Click to enlarge the picture
Contents of the user manual for the AAXA Technologies HD Pico 50-Lumen HD
- Product category: Pico Projectors AAXA Technologies
- Brand: AAXA Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAXA Technologies Pico Projectors
 |
User manual for the AAXA Technologies HD Pico 50-Lumen HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAXA Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!
|
Product description Display your presentations and other media wherever you want with the AAXA Technologies HD Pico 50-Lumen HD LED Pico Projector. It can project images up to 80" diagonal and features a 1280 x 720 native resolution, but will accept video signals up to 1080p. It provides up to 50 lumens of brightness with a 2000:1 contrast ratio to help enhance detail and clarity.
The HD Pico sports a mini-HDMI and an 1/8" composite video input, plus a USB port with an integrated media player to play back your digitally stored images, videos, and music. It has a built-in rechargeable battery that will last up to 2.5 hours in eco mode for presenting while on the go. With its compact (2.25 x 2.35 x 2.35"), lightweight (6 oz) design, the HD Pico can be used nearly anywhere. - 1280 x 720 High Definition
- The HD Pico produces HD resolution, integrating a 6 micron-per-pixel imager mated to the LEDs that enables a high-definition optical engine that is not much larger than two quarters stacked together.
- Portable Entertainment
- In addition to its digital and composite inputs, the HD Pico includes an onboard media player and digital picture playback capabilities. The onboard media player decodes files directly off a USB stick or microSD card and is capable of handling high-resolution videos, movies, and pictures. The HD Pico employs a 150-minute lithium ion battery (in eco mode) capable of maintaining its capacity even after 1000 charge cycles. The onboard battery provides true "anytime, anywhere" operation.
- Environmentally Friendly
- The LED is 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.
- Versatile Multimedia Support
-
- Onboard media player supports popular file formats
- Bring presentations anywhere and everywhere
- Enjoy gaming and entertainment without large TVs
- Connect to Blu-ray/DVD players, computers, gaming consoles, cell phones, tablets, USB devices, and more

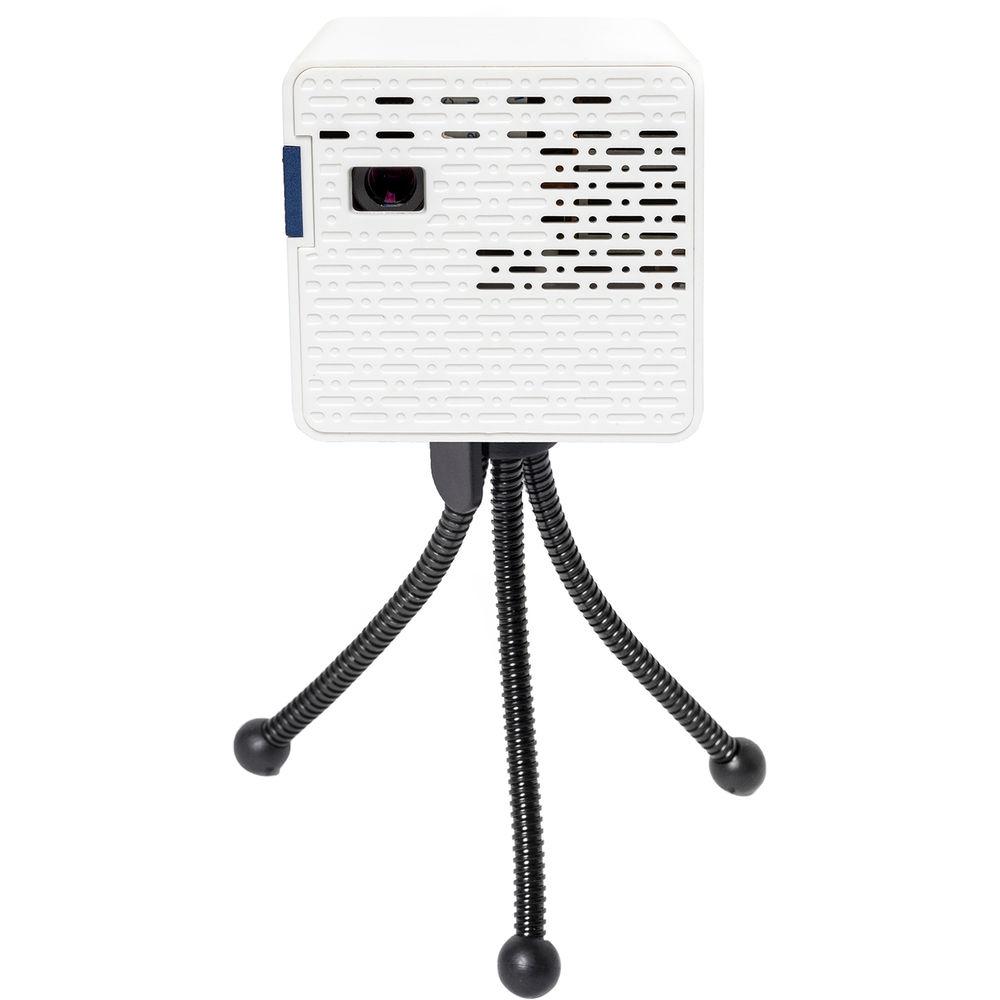

UPC: 864589000161 In the Box AAXA Technologies HD Pico 50-Lumen HD LED Pico Projector Remote Control Composite A/V Cable Tripod USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AAXA Technologies HD Pico 50-Lumen HD LED Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAXA Technologies KP-102-01 Specs | | | Display System | LCoS | | Native Chip Resolution | 1280 x 720 | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 50 Lumens | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 2000:1 | | | | Focus | Manual | | Throw Distance | 20 - 130" / 50.8 - 330.2 cm | | Throw Ratio | 1.9:1 | | Projection Size | 10 - 80" / 25.40 - 203.20 cm | | | | Built-In Speaker | Yes | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x Mini HDMI Audio/Video (Input)
1 x USB 2.0 Type-A Female (Input)
1 x 1/8" (3.5 mm) Mini Video (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | TXT | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI, WMV | | Supported Languages | English
French
German
Simplified Chinese
Spanish | | Power Consumption | Medium Brightness: 10 W | | Dimensions (W x H x D) | 2.3 x 2.4 x 2.4" / 5.8 x 6.1 x 6.1 cm Approximately | | Weight | 6.0 oz / 170.1 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 3.0" |
