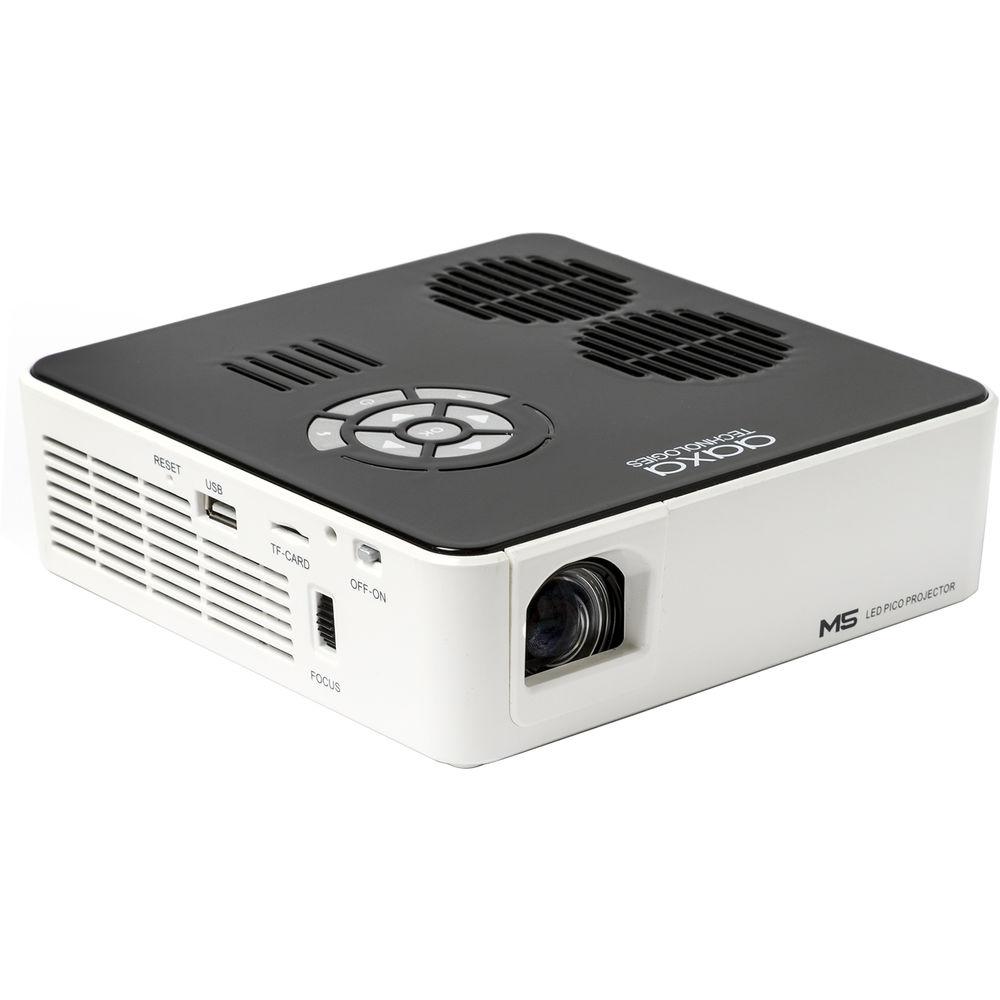

Product description Display your presentations and other media wherever you want with the AAXA Technologies M5 900-Lumen WXGA Pico Projector. It features a 1280 x 800 native resolution, but will display video up to 1080p. It provides up to 900 lumens of brightness when plugged in for power, with a 2000:1 contrast ratio to enhance detail and clarity.

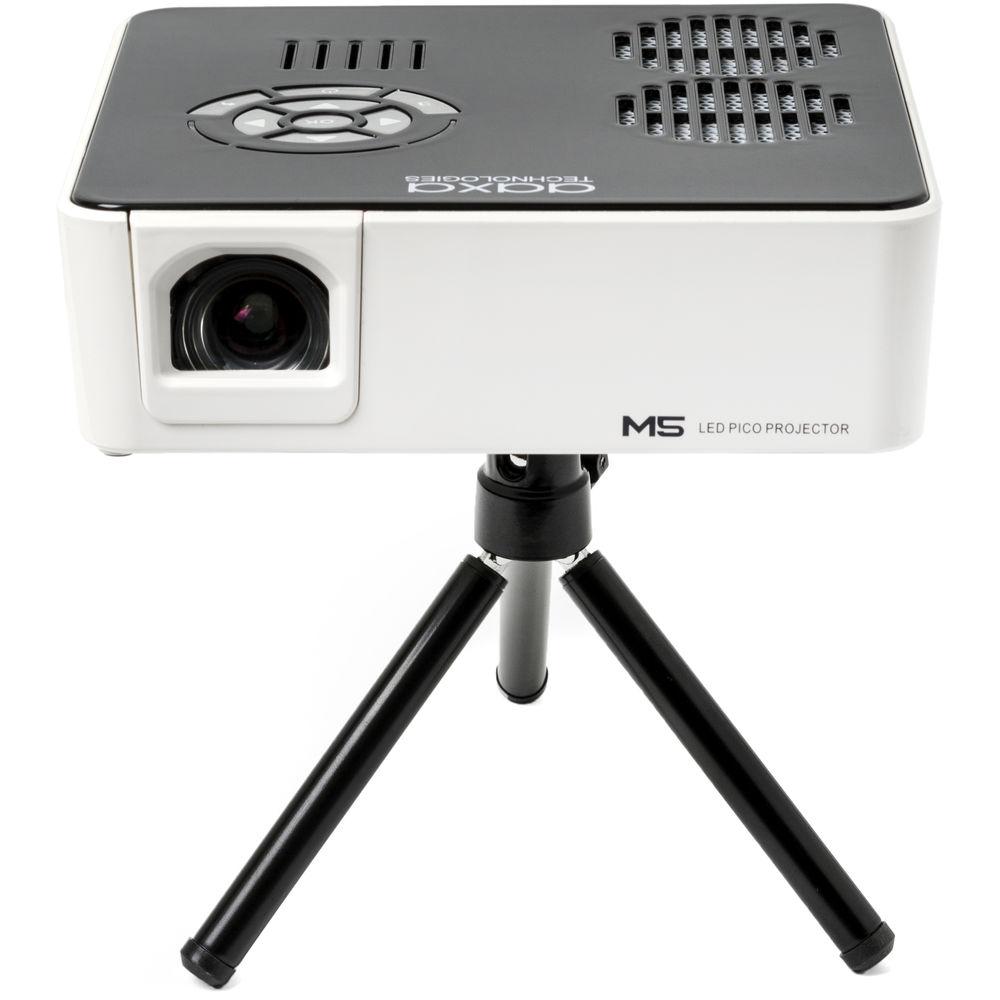

The M5 sports an HDMI, VGA, 1/8" A/V, microSDHC, and USB input for playback of nearly all of your media. The integrated media player supports popular formats such as MP3, WAV, WMA, AVI, JPG, TXT, and more. Its rechargeable battery will last up to 70 minutes in eco brightness mode for presenting while on the go. For added convenience, the M5 includes a remote control, tripod, A/V cable, and a carrying case. - 900-Lumen Optical Engine
- The AAXA M5 features a solid-state optical engine comprised of light-emitting-diode technology mated to a DLP imager. The AAXA M5's optical engine produces 900 LED lumens at peak power.
- HD WXGA Resolution
- The M5 features WXGA (1280 x 800) native resolution to display high definition video sources and is capable of scaling resolutions up to 1080p.
- 70-Minute Onboard Lithium-Ion Battery

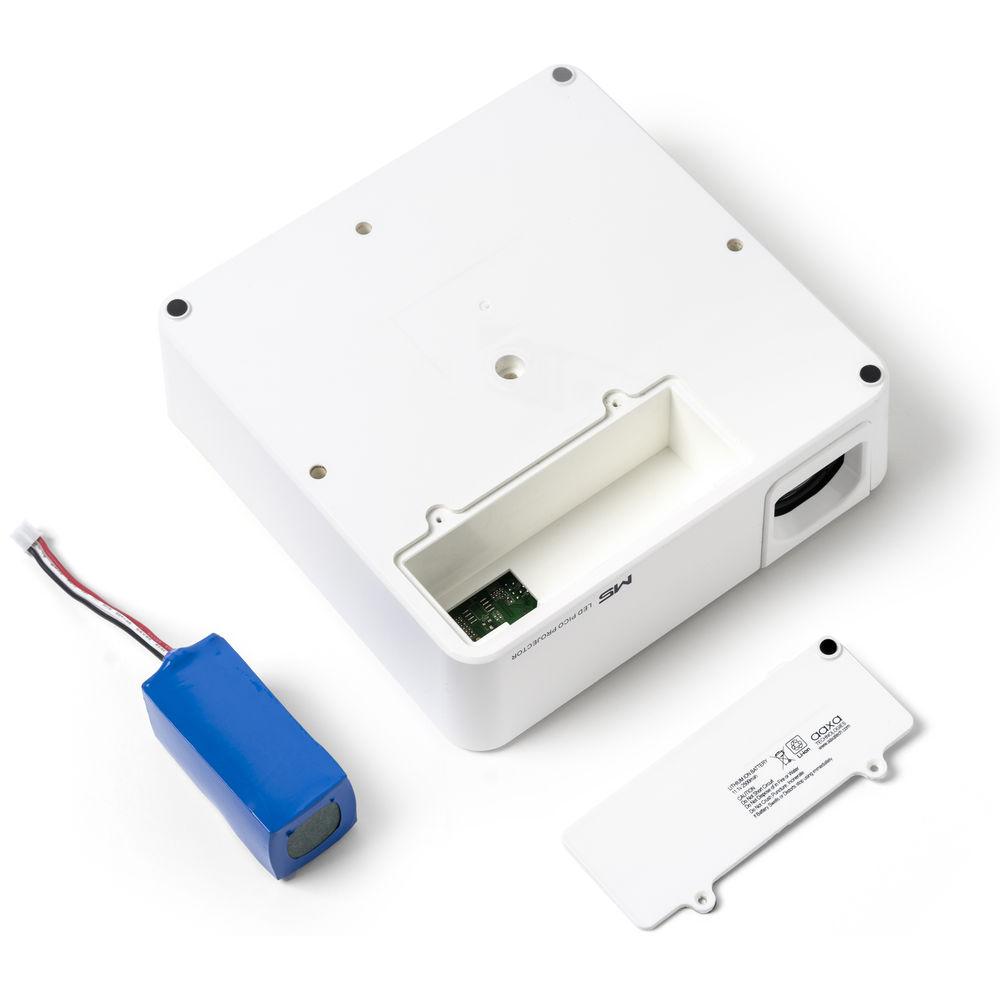

- The AAXA M5 features an onboard 28-watt lithium-ion battery that supports a 70-minute operating time (in eco brightness mode) to give anyone the ability to deliver presentations without cords.
- All-in-One Media Projector
- The AAXA M5 an all-in-one projection solution that, in addition to its wide array of inputs, includes an onboard media player and digital picture playback capabilities. The media player decodes files directly off a USB stick or microSD card and is capable of handling high-resolution videos, movies, and pictures. This feature allows users to leave the laptop and power cords at home by delivering presentations and videos directly from the projector while fully cordless.
- Vivid Colors
- The LEDs in the M5 are designed to create vivid colors and be more durable than conventional projector lamps.
- Fast Cool-Down and Near-Instant Full Brightness
- With LED projectors, there is no need to wait for long lamp warm-up and cool-down times. The M5's LED light source enables it to achieve full brightness within seconds and turn off instantly.
- Long Operating Life
- The M5's LED light source lasts up to 10 times longer than conventional lamps, so bulb changes are virtually a thing of the past.
- Versatile Connectivity

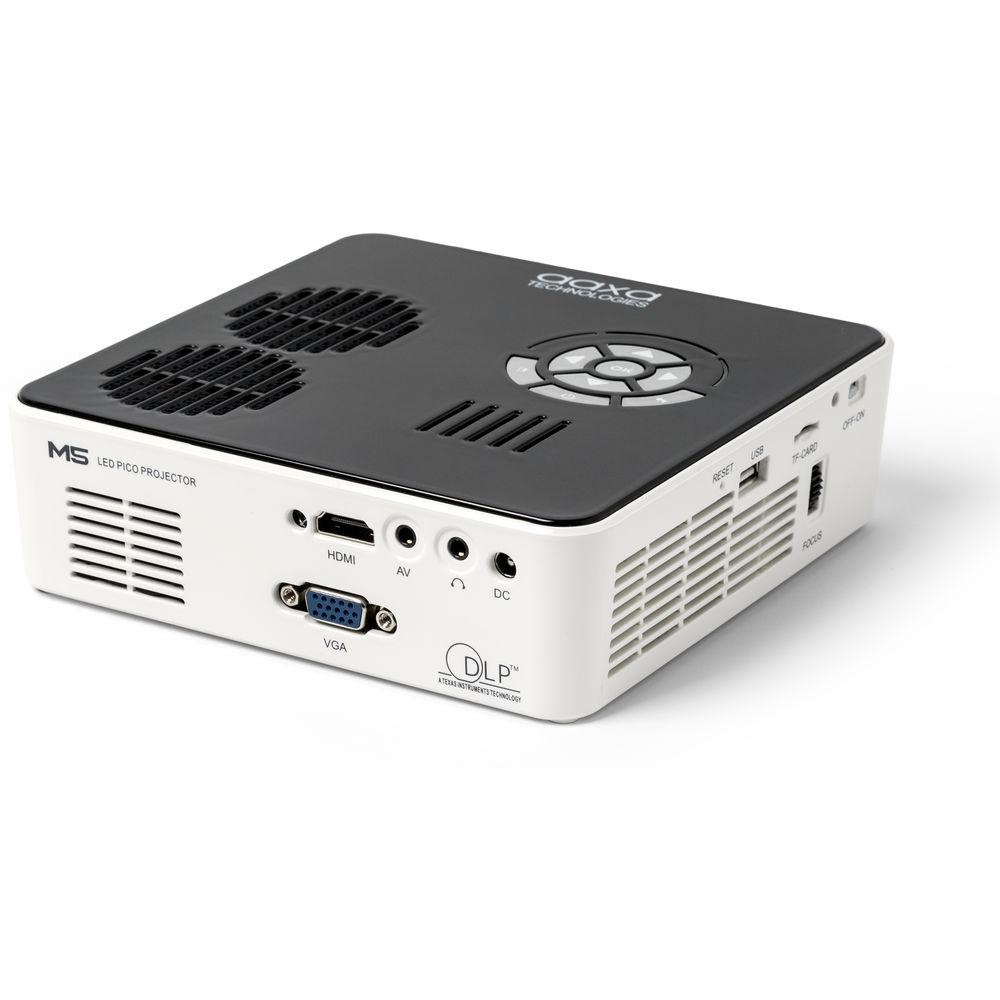

- The AAXA M5 features an array of inputs including HDMI, VGA, and composite video, which enables users to connect a variety of different sources, including smartphones, directly to the projector. With the AAXA M5, users can deliver presentations, play videos, and watch digital TV all from a single device.
- Environmentally Friendly
- The AAXA M5's LED is free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.
UPC: 864589000154 In the Box AAXA Technologies M5 900-Lumen WXGA LED Pico Projector Remote Control with Battery A/V Cable Tripod Carrying Case Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AAXA Technologies M5 900-Lumen WXGA LED Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAXA Technologies M5 Specs | | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 900 Lumens
500 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 2000:1 | | | | Focus | Manual | | Throw Ratio | 1.2:1 | | Projection Size | 10 - 150" / 25.40 - 381.00 cm | | | | Keystone Correction | Manual | | Built-In Speaker | Yes | | Speaker Power | 2W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x USB Type-A Female (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output) | | Memory Card Slot | 1 x microSD (Unspecified Type) | | | | Light Source | LED | | Expected Lamp Life | Low Brightness: 30,000 Hours | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | TXT | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI, WMV | | Supported Languages | English
French
German
Simplified Chinese
Spanish | | Power Consumption | Medium Brightness: 65 W | | Dimensions (W x H x D) | 6.0 x 1.8 x 6.0" / 15.2 x 4.6 x 15.2 cm | | Weight | 1.95 lb / 884.50 g | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.1 x 9.5 x 4.5" |
