User Manual for AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector

Click to enlarge the picture
AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector Contents of the user manual for the AAXA Technologies M6 1200-Lumen Full HD
  • Product category: Pico Projectors AAXA Technologies
  • Brand: AAXA Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AAXA Technologies Pico Projectors

AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector
User manual for the AAXA Technologies M6 1200-Lumen Full HD contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AAXA Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!



Product description

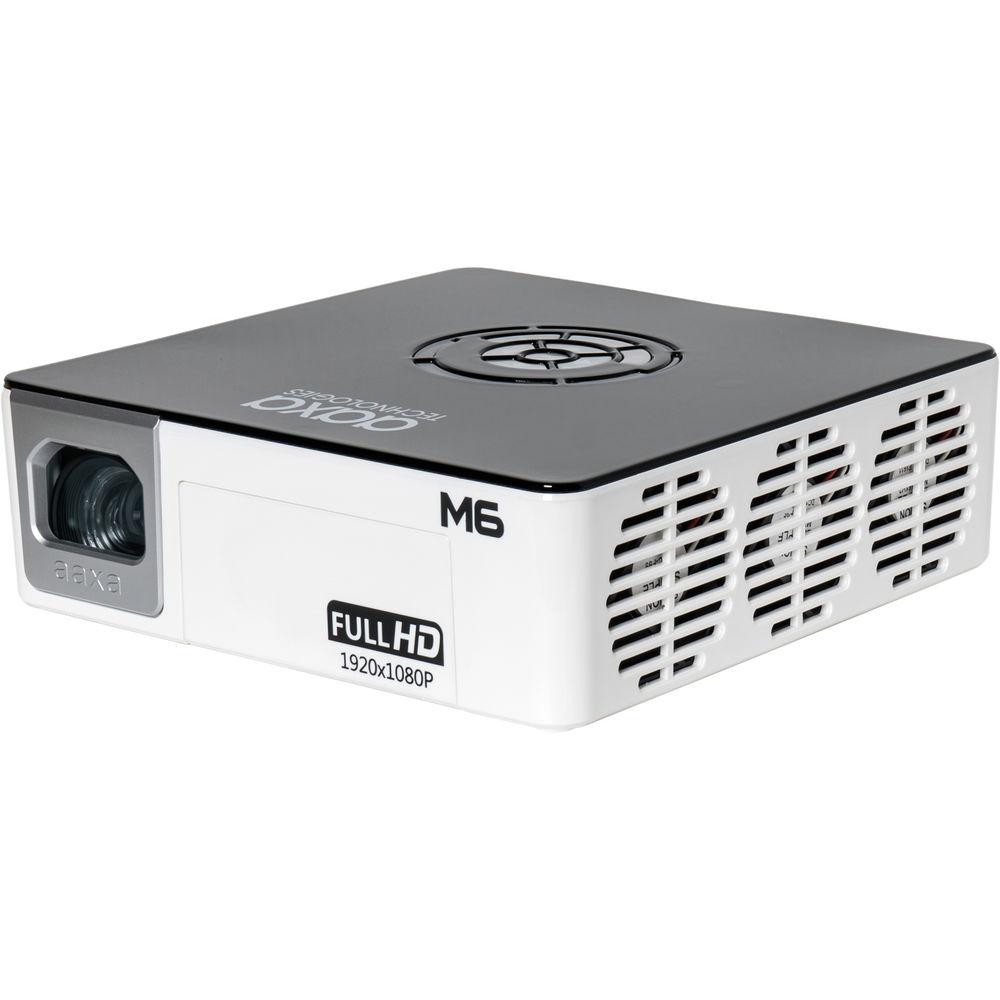

Display your presentations and other media wherever you want with the AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector. It can project images up to 200" diagonal and features a 1080p 1920 x 1080 native resolution. It provides up to 1200 lumens of brightness on AC power with a 2000:1 contrast ratio to help enhance detail and clarity, or up to 500 lumens while running off the built-in battery.

The M6 sports an HDMI and an 1/8" composite video input, plus a microSD slot and USB port with an integrated media player to play back your digitally stored images, videos, and music. The built-in rechargeable battery will last up to 1.5 hours for presenting while on the go.
    1080p Full HD Resolution
  • The M6 projector delivers 1080p resolution and features a DLP imager designed to achieve enhanced on-screen resolution in a small form-factor.
    Anytime, Anywhere Projection
  • The M6 measures just 7 x 2.1 x 7" and has a built-in 90-minute lithium-ion battery. Combined with solid-state LEDs, the M6 is designed to withstand the rigors of mobile environments. The LEDs also enable the M6 to consume little power while delivering up to 1200 lumens of brightness on AC power, or 500 lumens in battery mode.
    30,000-Hour LED Light Source
  • The M6 employs solid-state LED lighting technology. The direct projection of red, green, and blue is designed to eliminate the need for filters and color wheels that are typically found in lamp-based projectors. The LEDs produce up to 1200 lumens of brightness, allowing 200" movies to be projected in dark areas. These LEDs last up to 30,000 hours and don't contain the environmentally damaging mercury found in many lamp-based projectors.
    Onboard Media Player

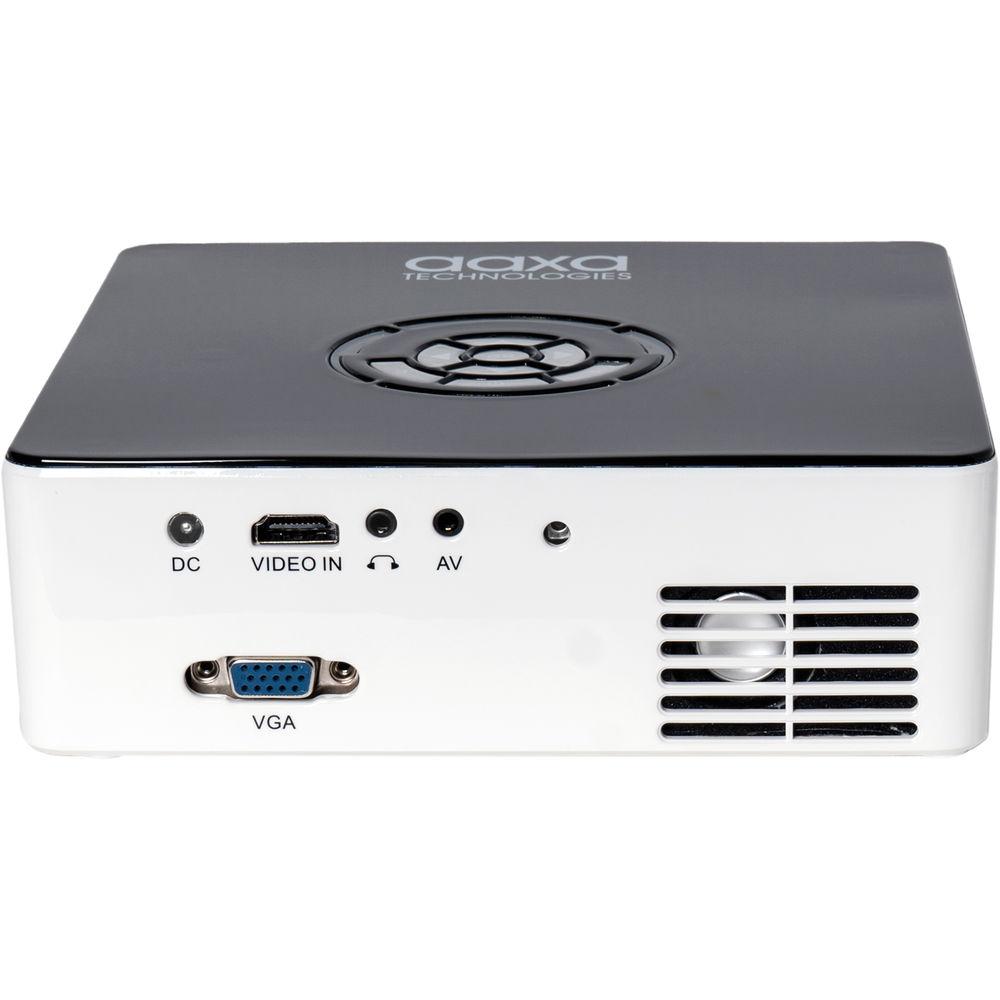

  • The M6 projector features an onboard media player capable of directly playing videos, pictures, and music through a USB stick or microSD card. With an onboard speaker and battery, the M6 is an all-in-one entertainment projector. Additional connectivity features include HDMI compatibility, VGA connector, A/V port, and 1/8" headphone port.
UPC: 864589000192 In the Box AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector
  • Remote Control
  • Composite A/V Cable
  • Carrying Case
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AAXA Technologies M6 1200-Lumen Full HD LED Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AAXA Technologies M6 Specs

    Native Chip Resolution 1920 x 1080 (Full HD)
    Supported Resolutions Maximum: Full HD 1080p - 1920 x 1080
    Max Brightness 1200 Lumens
    500 Lumens
    Offset 100%
    Aspect Ratio Native: 16:9
    Contrast Ratio 2000:1
    Focus Manual
    Throw Distance 11 - 192" / 27.94 - 487.68 cm
    Throw Ratio 1.2:1
    Projection Size 12 - 200" / 30.48 - 508.00 cm
    Keystone Correction None
    Built-In Speaker Yes (Stereo)
    Speaker Power 4W
    Inputs/Outputs 1 x HDMI Audio/Video (Input)
    1 x USB 2.0 Audio/Video (Input)
    1 x VGA (DE-15) Video (Input)
    1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
    1 x 1/8" (3.5 mm) Mini Headphone (Output)
    Memory Card Slot 1 x microSDHC
    Light Source LED
    Expected Lamp Life Medium Brightness: 30,000 Hours
    Supported Audio File Types MP3, WAV, WMA
    Supported Document File Types TXT
    Supported Photo File Types BMP, JPEG
    Supported Video File Types AVI
    Supported Languages English
    French
    German
    Italian
    Japanese
    Korean
    Spanish
    Traditional Chinese
    Power Consumption Medium Brightness: 75 W
    Dimensions (W x H x D) 7.0 x 2.1 x 7.0" / 17.8 x 5.3 x 17.8 cm
    Weight 2.5 lb / 1.13 kg
    Package Weight 5.6 lb
    Box Dimensions (LxWxH) 11.2 x 11.2 x 3.1"
