User Manual for AAXA Technologies P2-A 130-Lumen WVGA LED Smart Pico Projector Click to enlarge the picture
Contents of the user manual for the AAXA Technologies P2-A 130-Lumen WVGA LED
- Product category: Pico Projectors AAXA Technologies
- Brand: AAXA Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAXA Technologies Pico Projectors
 |
User manual for the AAXA Technologies P2-A 130-Lumen WVGA LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAXA Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!
|
Product description Display your presentations and other media wherever you want with the AAXA Technologies P2-A 130-Lumen WVGA LED Smart Pico Projector. It can project images up to 100" diagonal and features a WVGA 854 x 480 native resolution, but accepts signals up to 1080p. It provides up to 130 lumens of brightness on AC power with a 1000:1 contrast ratio to help enhance detail and clarity.

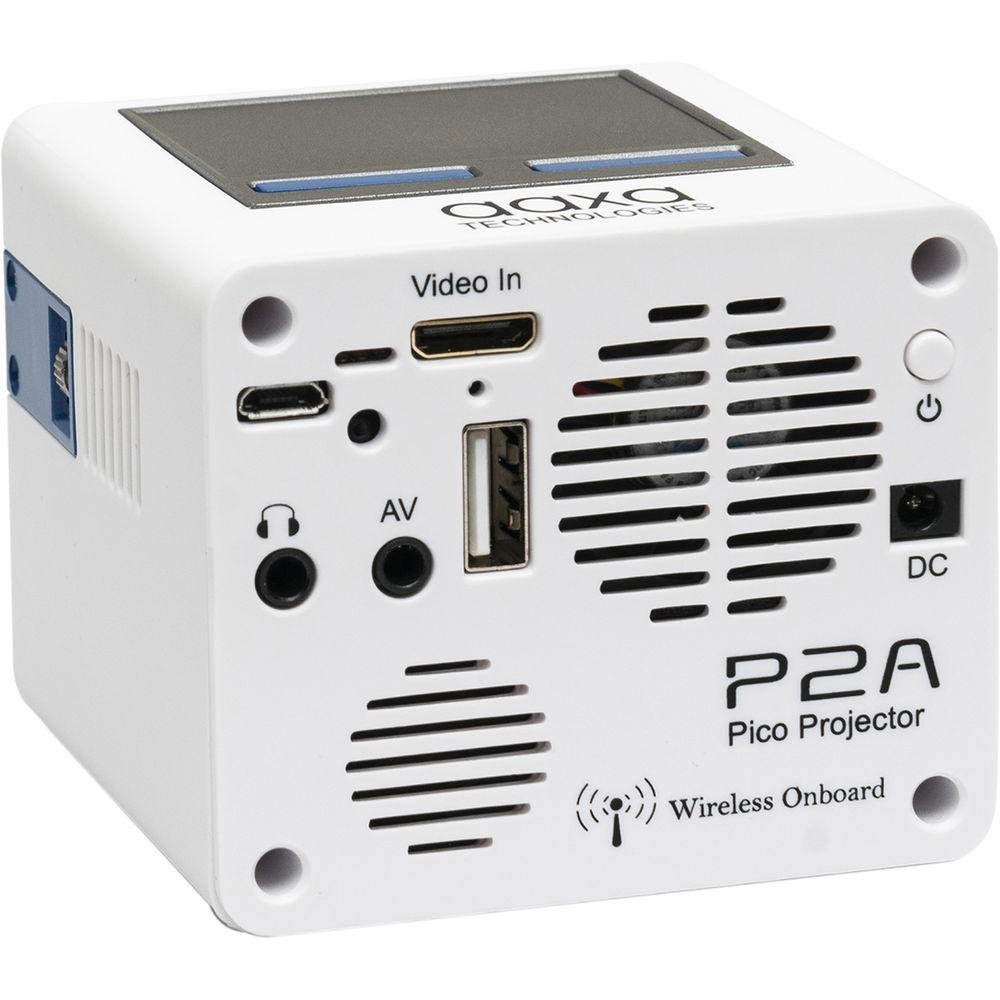

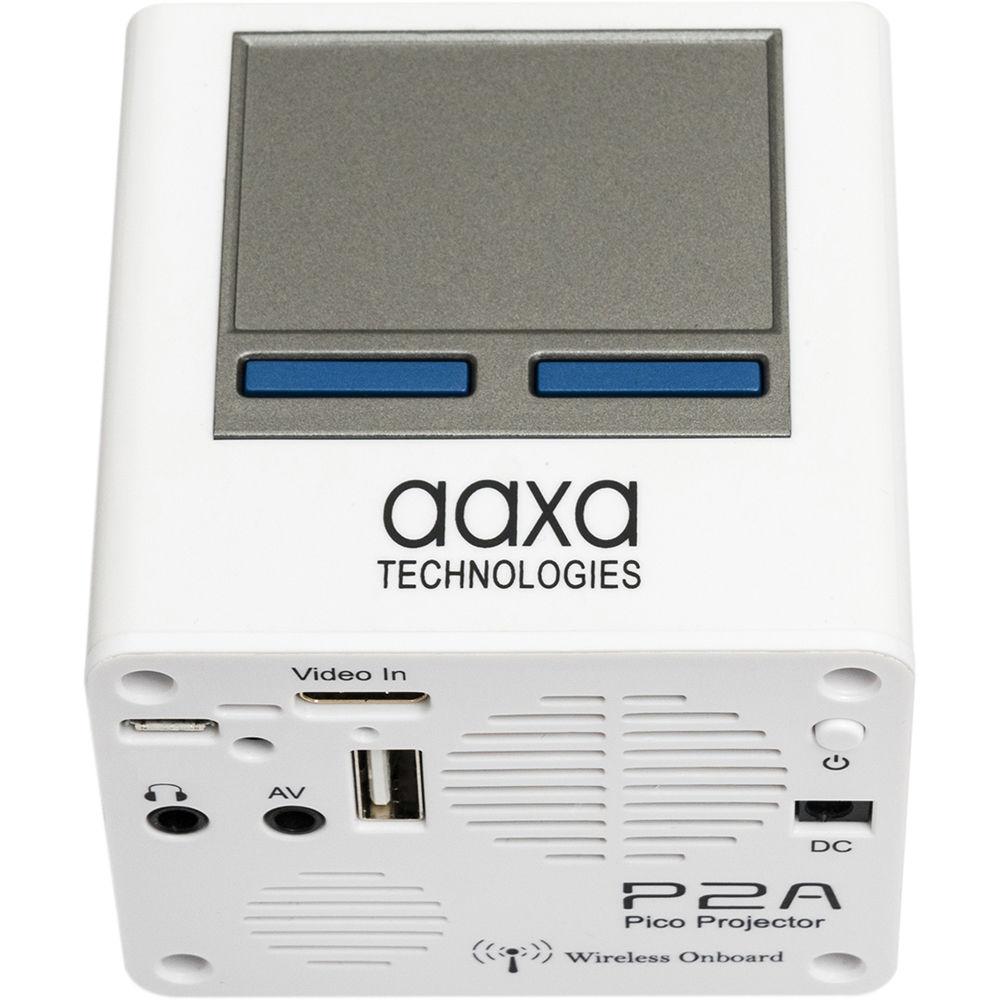

The P2-A sports a mini-HDMI and an 1/8" composite video input, plus a microSD slot and USB port with an integrated media player to play back your digitally stored files, images, videos, and music. The built-in rechargeable battery will last up to 2.5 hours for presenting while on the go. - Android Lollipop 5.1
- The P2-A is powered by a quad-core ARM Cortex 1.3 GHz CPU operating Android 5.1 for access to apps, streaming videos, and more.
- Wireless Projector
- Onboard wireless chipset enables video streaming, smartphone mirroring, and connection to Bluetooth devices with Bluetooth 2.0.
- 130-Lumen Optical Engine
- A solid-state optical engine delivers 130 lumens with up to a 30,000-hour lifespan on the LEDs.
- 150-Minute Battery
- A built-in 14-watt battery allows up to 150 minutes of mobile projection.
- Additional Features
-

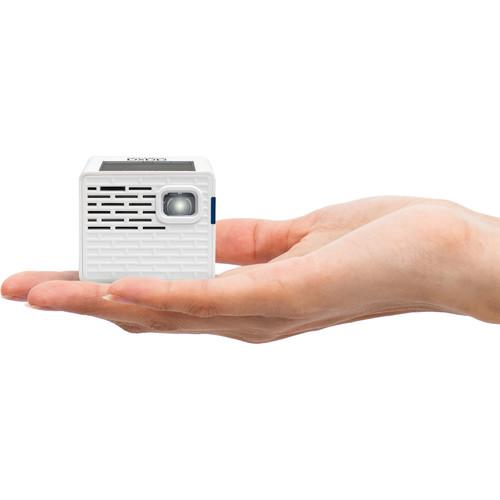

- Portable design at just 8.8 oz and no more than 2.8" to a side
- Built-in capacitive touch screen for simplified control
- Vibrant Color Technology
- 1GB of RAM

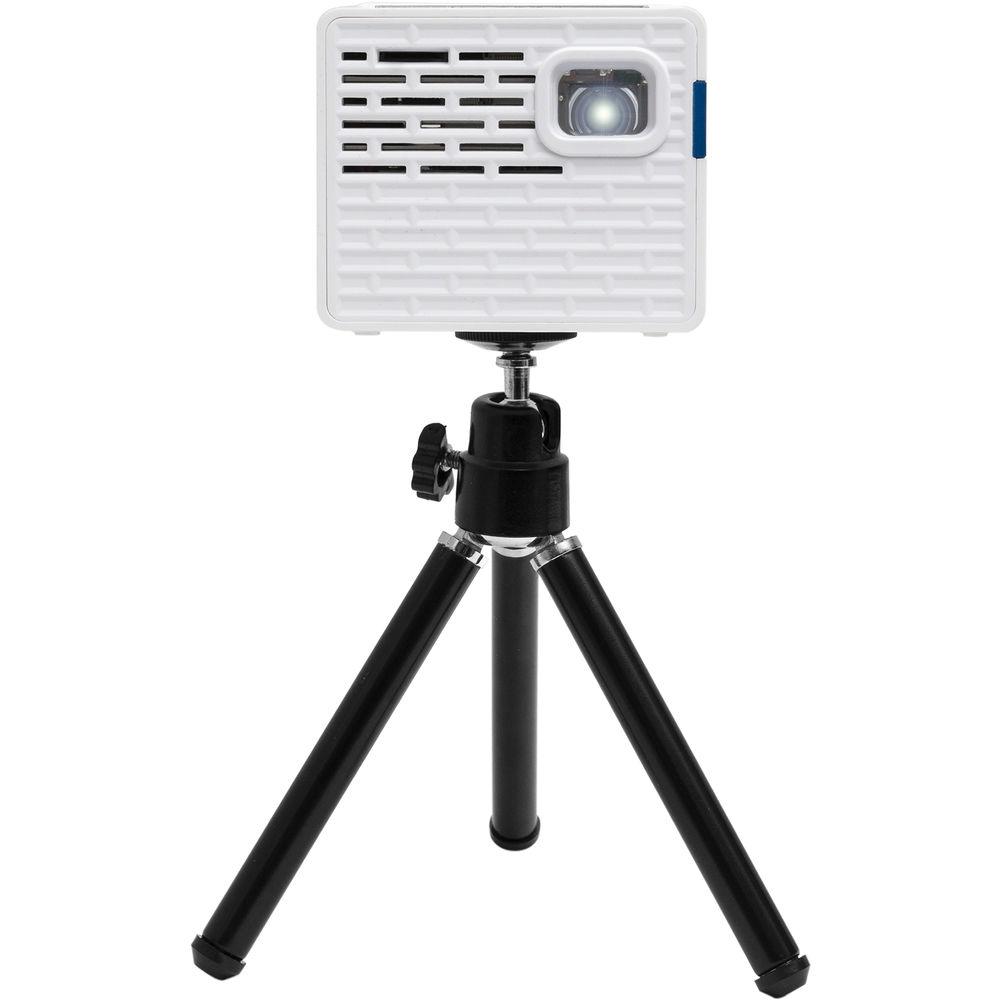

UPC: 862334000404 In the Box AAXA Technologies P2-A 130-Lumen WVGA LED Smart Pico Projector Remote Control Composite A/V Cable Tripod Power Adapter Limited 1-Year Warranty Guides & Manuals uwqacbzrwtfbuqdaseqsatucycfed Table of Contents
|
Upload User Manual
Have you got an user manual for the AAXA Technologies P2-A 130-Lumen WVGA LED Smart Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AAXA Technologies P2-A 130-Lumen WVGA LED Smart Pico Projector can be downloaded in PDF format at the link stated below.
Technical parametersAAXA Technologies P2-A Specs | | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 130 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 1000:1 | | | | Focus | Manual | | Throw Ratio | 1.2:1 | | Projection Size | 8 - 100" / 20.32 - 254.00 cm | | | | Built-In Speaker | Yes | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x Mini HDMI Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output)
1 x USB 2.0 Type-A Female (Input)
1 x Micro-USB Control (Input) | | Memory Card Slot | 1 x microSDHC | | Internal Storage | 8.0GB | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | DOC, PDF, PPT, TXT, XLS | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI | | Supported Languages | Dutch
English
French
German
Japanese
Korean
Simplified Chinese
Spanish

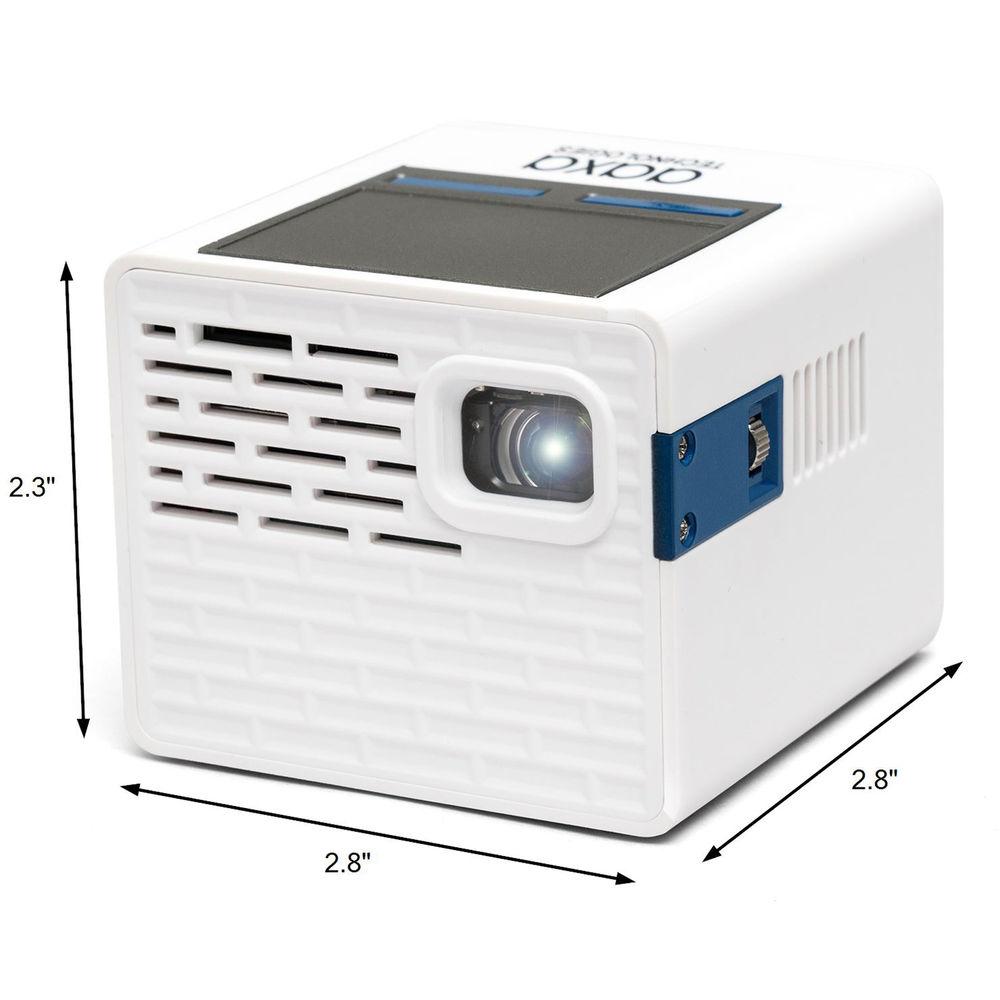

Traditional Chinese | | Power Consumption | Medium Brightness: 11 W | | Dimensions (W x H x D) | 2.8 x 2.8 x 2.3" / 7.1 x 7.1 x 5.8 cm | | Weight | 8.8 oz / 249 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.4 x 6.5 x 2.7" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
