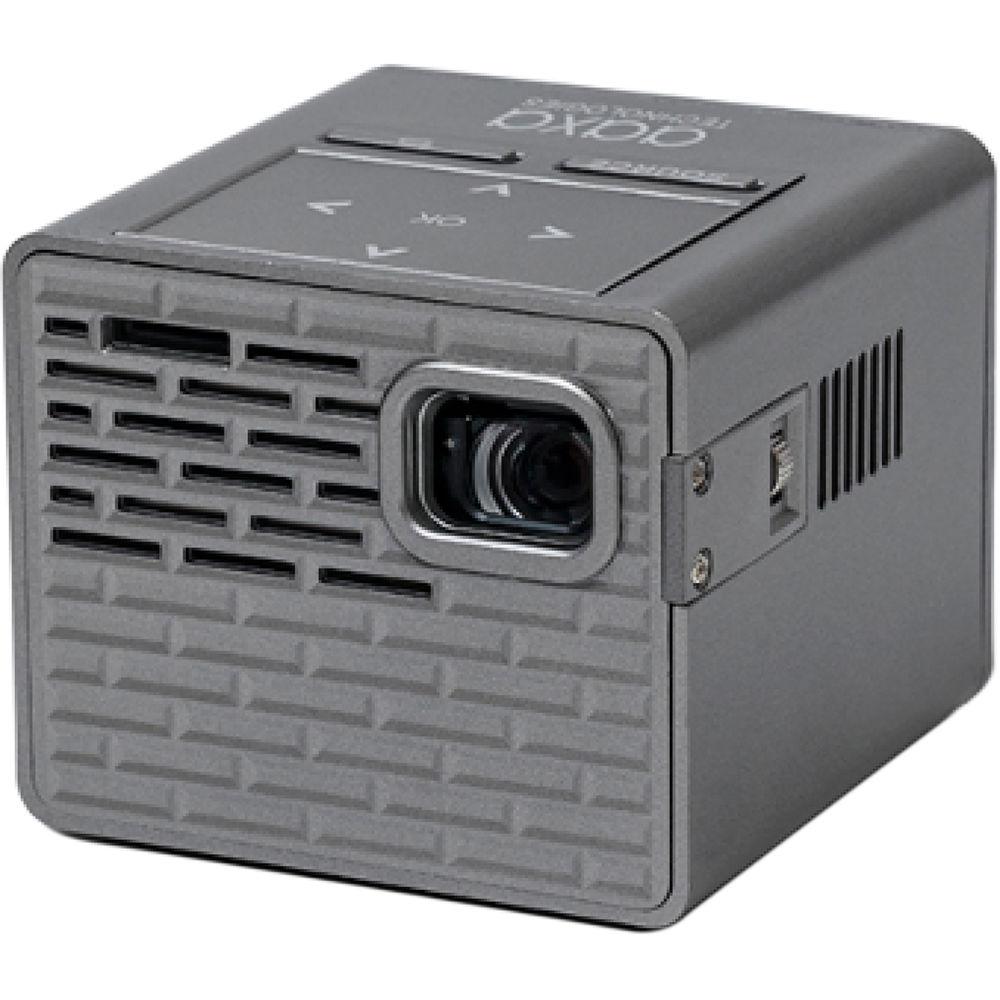

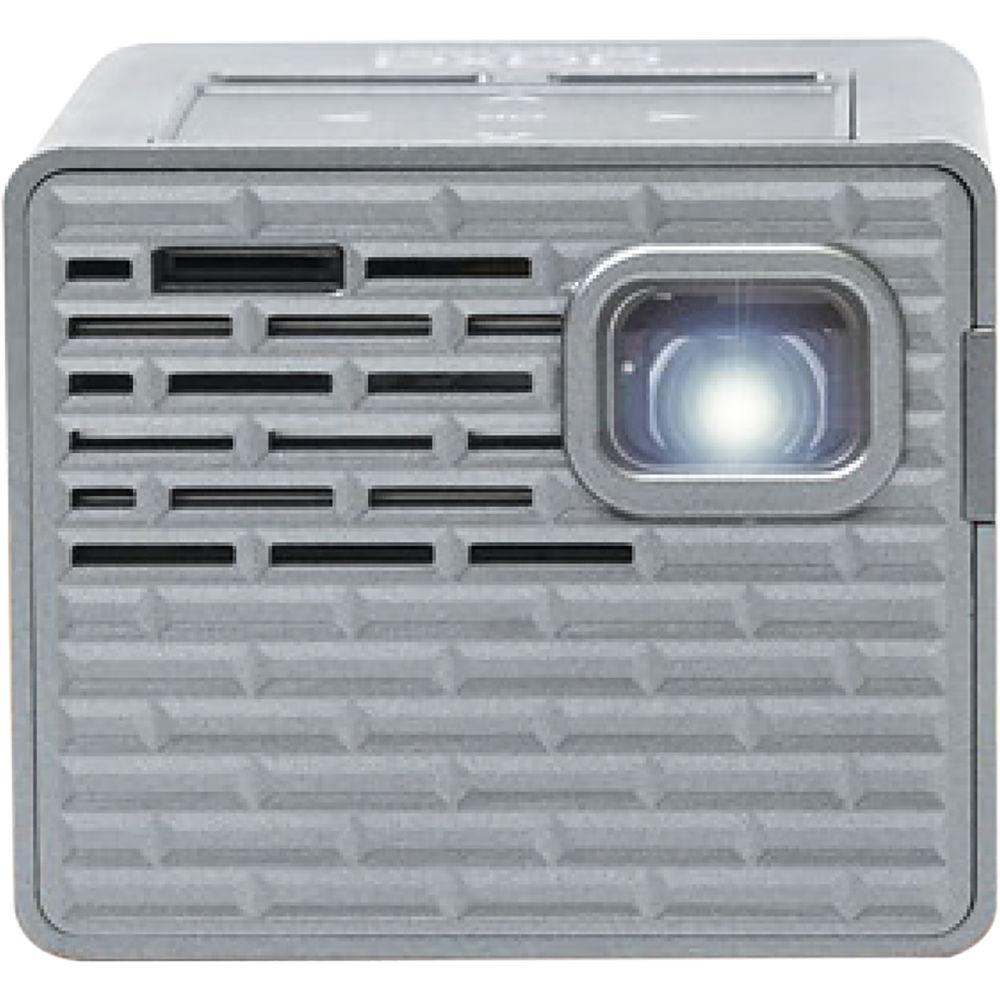

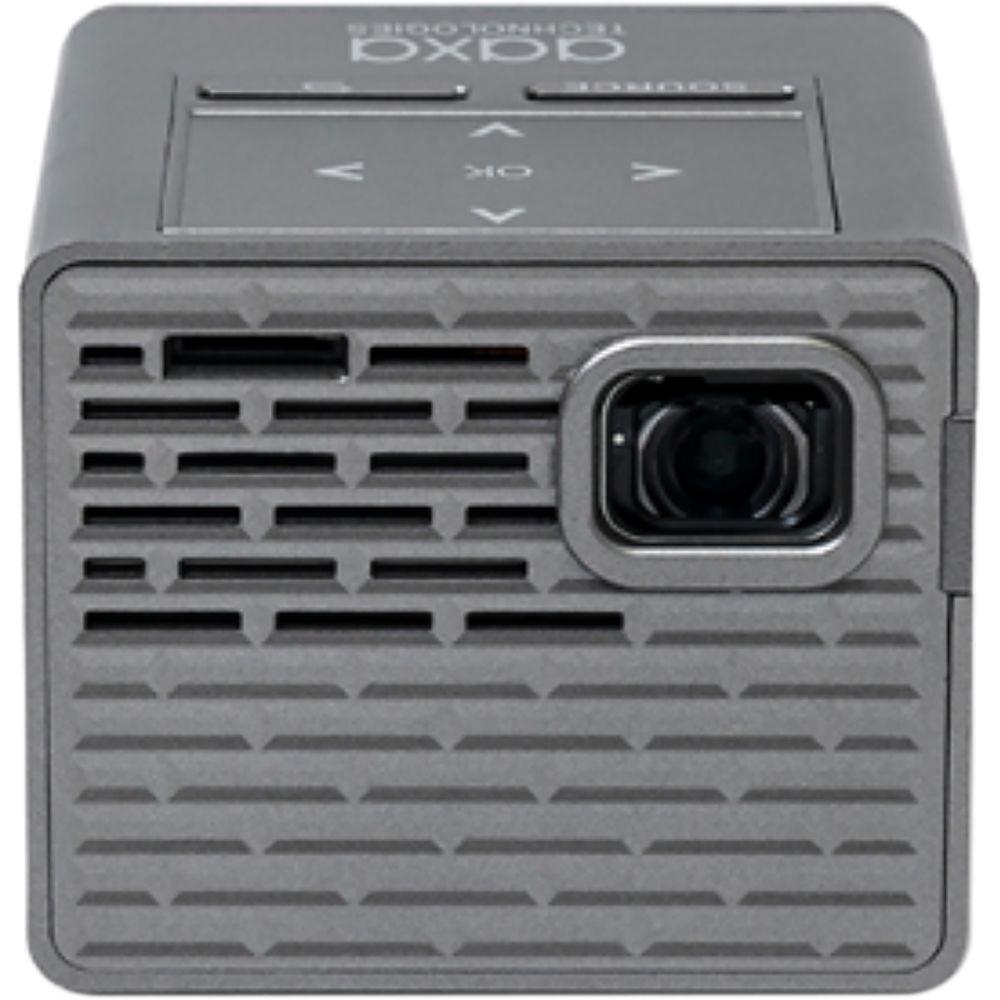

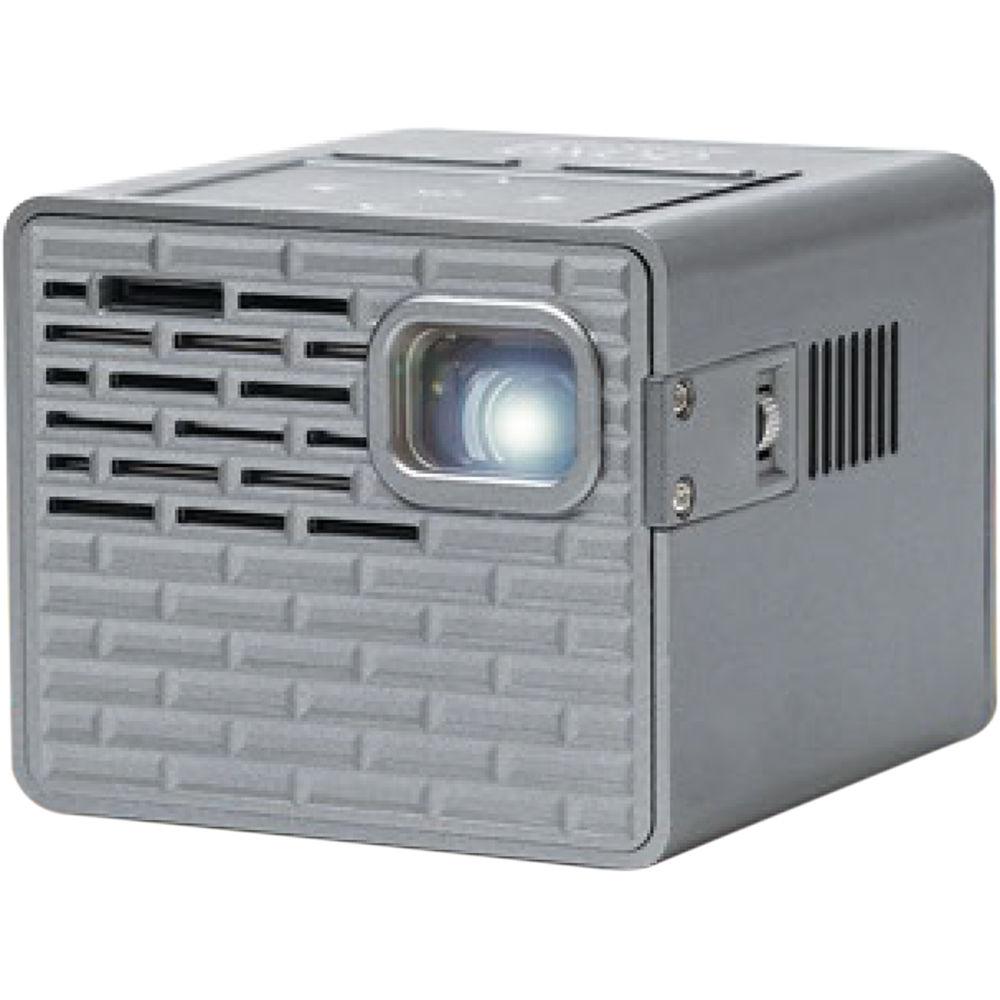

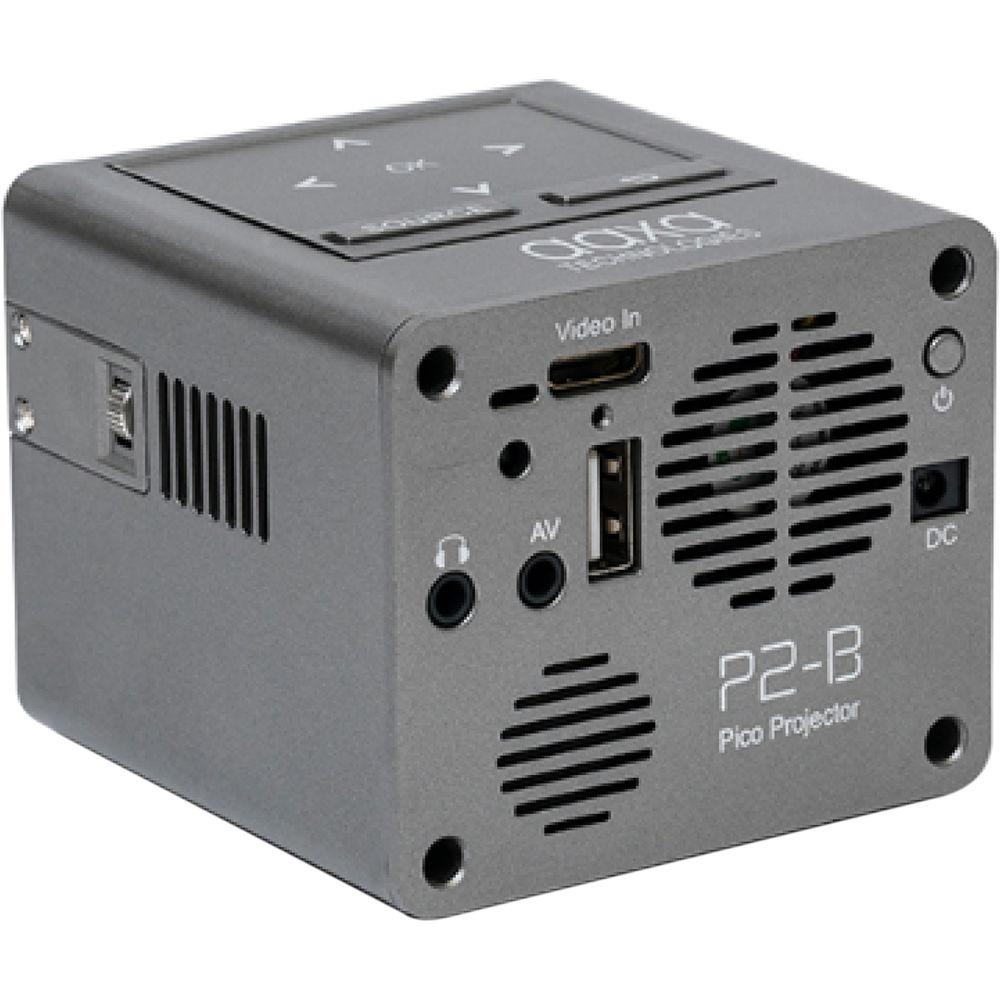

Product description Display your presentations and other media wherever you want with the AAXA Technologies P2-B 130-Lumen WVGA DLP Pico Projector. It can project images up to 100" diagonal and features a WVGA 854 x 480 native resolution, but accepts signals up to 1080p. It provides up to 130 lumens of brightness on AC power with a 1000:1 contrast ratio to help enhance detail and clarity.
The P2-B sports a mini-HDMI and an 1/8" composite video input, plus a microSD slot and USB port with an integrated media player to play back your digitally stored files, images, videos, and music. The built-in rechargeable battery will last up to 2.5 hours for presenting while on the go. - Mobile Projection
- Project nearly anywhere, anytime, with the onboard 150-minute lithium-ion battery.
- Onboard Media Player
- The onboard media player enables video, picture, and music playback, plus allows for viewing of TXT documents.
- 130-Lumen Optical Engine
- The solid-state optical engine delivers up to 130 lumens of brightness from the LED light source and is capable of images up to 100" in dark areas.
- 30,000-Hour Osram LED Light Source
- Solid-state LED technology enables instant-on, instant-off functionality and a life span of up to 30,000 hours.

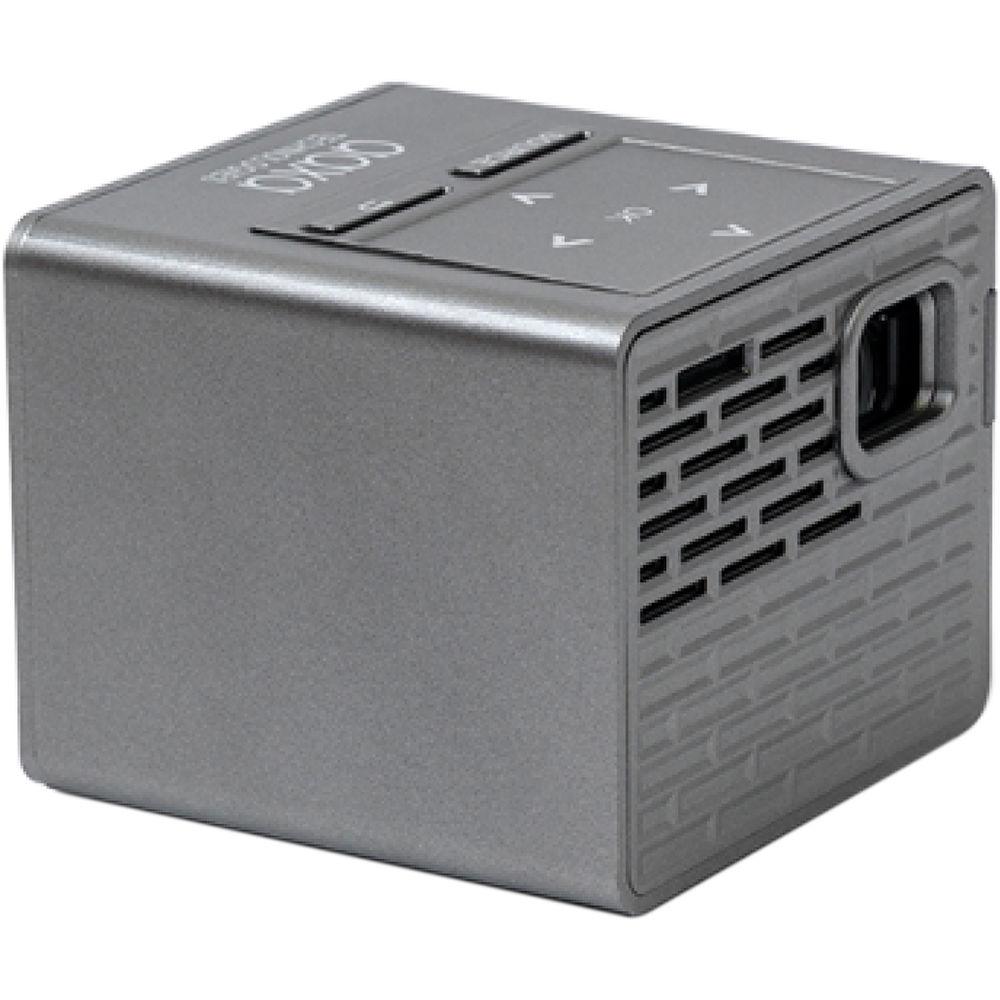

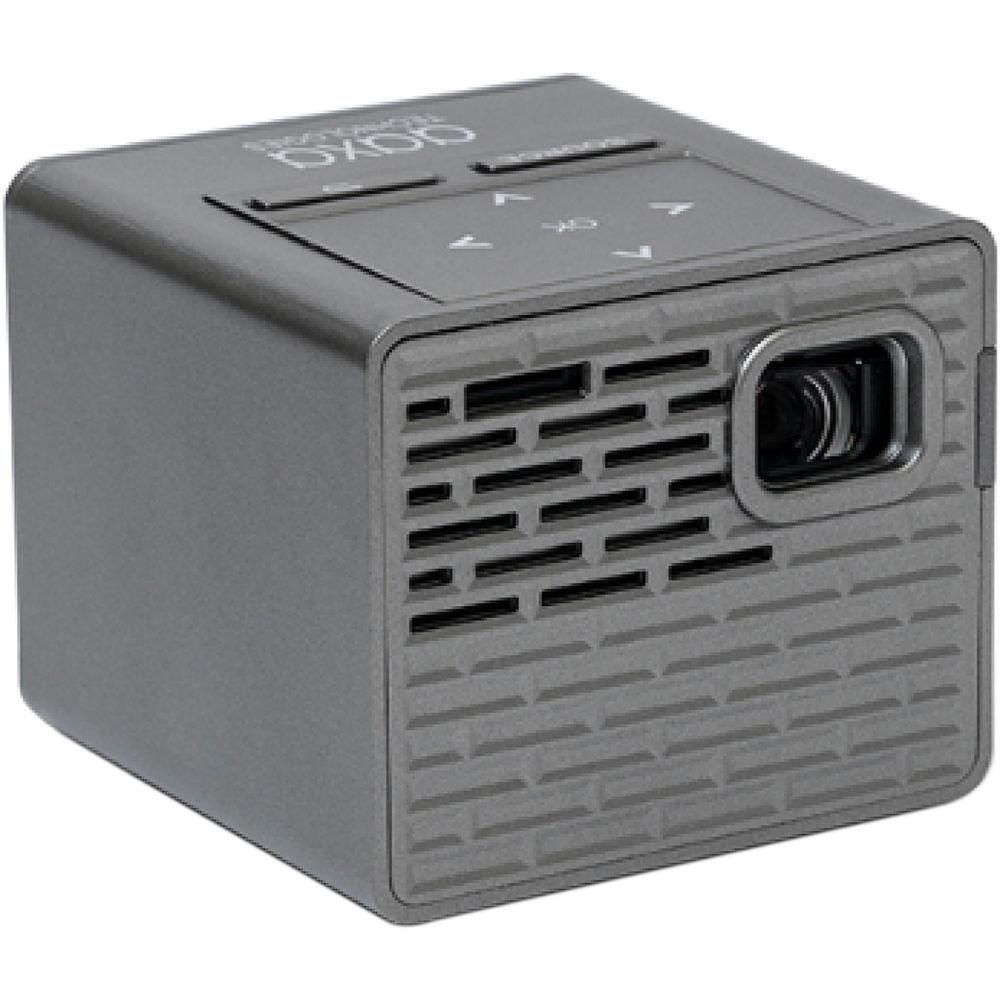

- Compact, Portable Design
- Measuring under 3" per side and weighing just 8.8 oz, this projector is truly mobile.
- Multiple Input Options

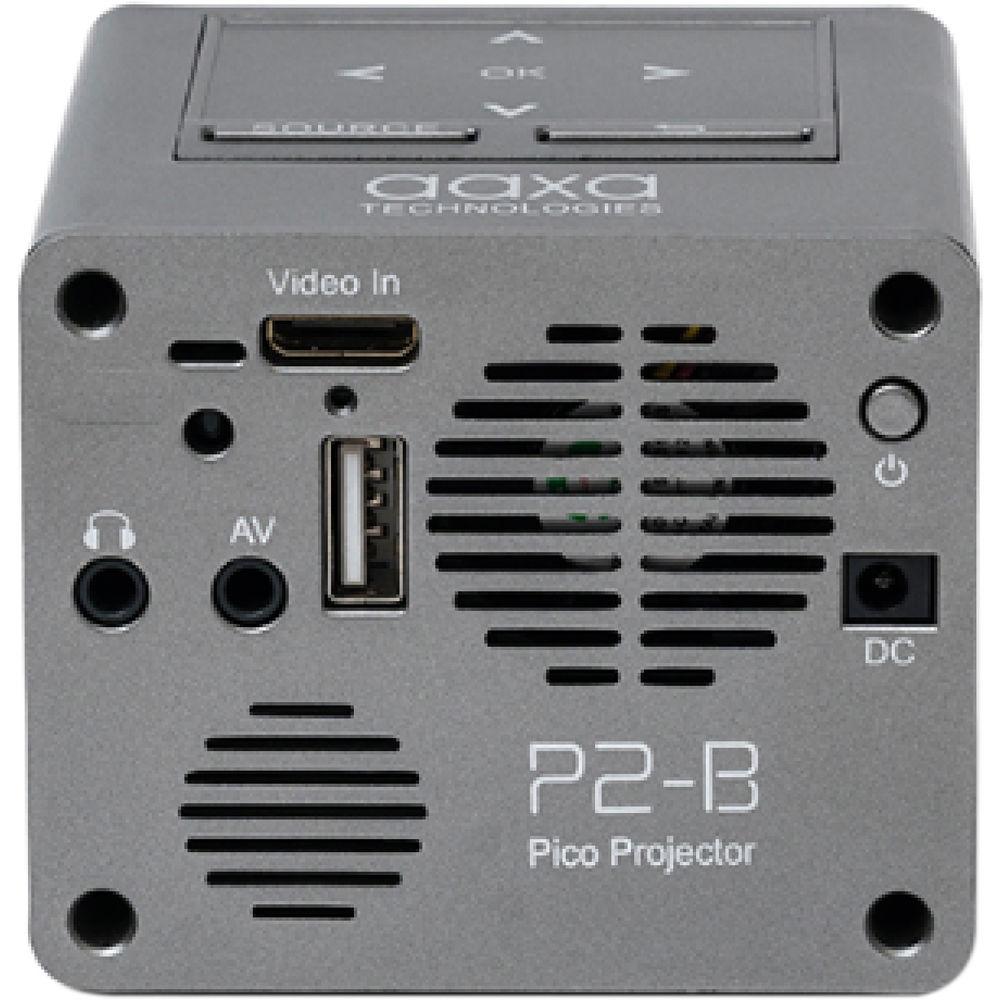

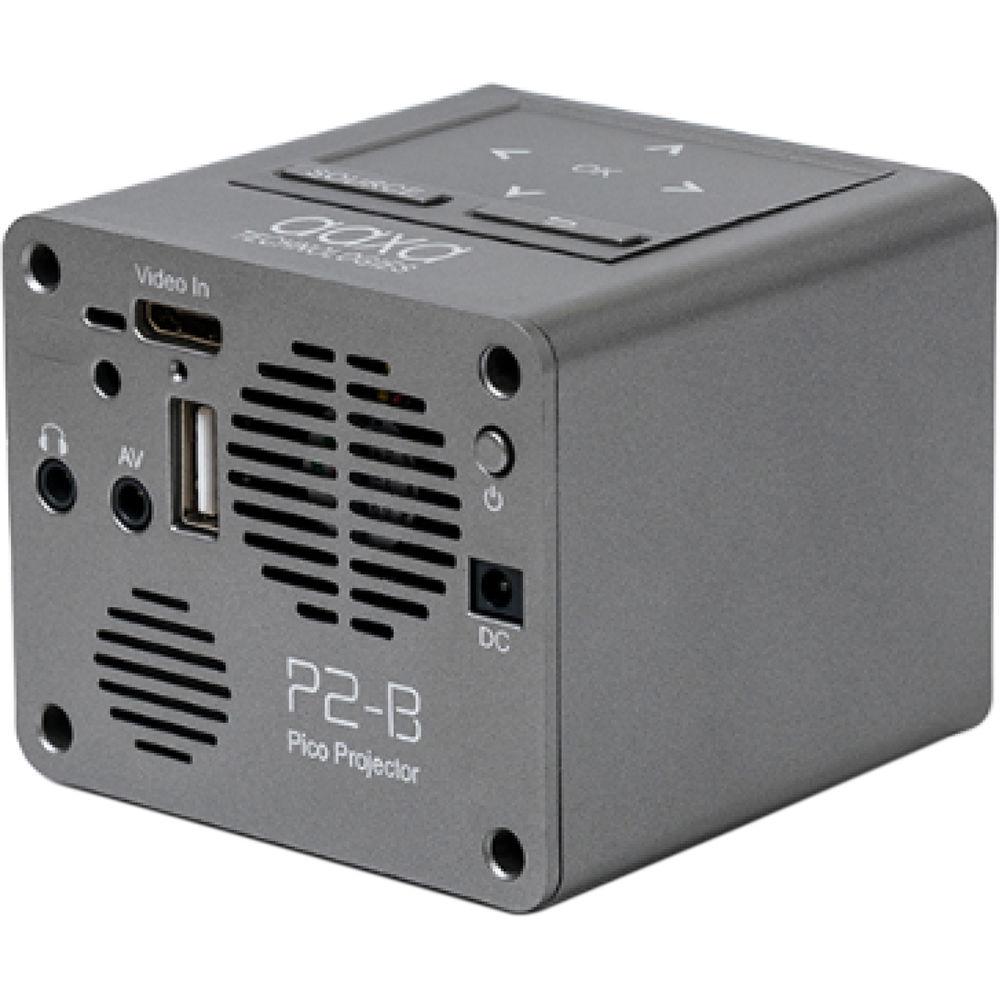

- The P2-B features multiple input options, including a USB port, microSD card slot, mini-HDMI input, 1/8" composite video input, and an 1/8" headphone output, plus a 1W speaker. All of this is controlled by a built-in touchpad or the included IR remote control.
UPC: 862334000428 In the Box AAXA Technologies P2-B 130-Lumen WVGA DLP Pico Projector Remote Control Composite A/V Cable Tripod Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AAXA Technologies P2-B 130-Lumen WVGA DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAAXA Technologies P2-B Specs | | | Display System | DLP | | Native Chip Resolution | 854 x 480 (WVGA) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 130 Lumens | | Offset | 100% | | Aspect Ratio | Native: 16:9 | | Contrast Ratio | 1000:1 | | | | Focus | Manual | | Optical Zoom | None | | Throw Ratio | 1.2:1 | | Projection Size | 8 - 100" / 20.32 - 254.00 cm | | | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x Mini HDMI Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x USB 2.0 Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output) | | Memory Card Slot | 1 x microSDHC | | Wireless LAN / Wi-Fi | None | | | | Light Source | LED (3 x OSRAM) | | Expected Lamp Life | Medium Brightness: 30,000 Hours | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | TXT | | Supported Photo File Types | BMP, GIF | | Supported Video File Types | AVI | | Supported Languages | Dutch
English
French
German
Japanese
Korean
Simplified Chinese
Spanish
Traditional Chinese | | Power Consumption | Medium Brightness: 11 W | | Dimensions (W x H x D) | 2.8 x 2.8 x 2.3" / 7.1 x 7.1 x 5.8 cm | | Weight | 8.8 oz / 249.5 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 3.2" |
