AAXA Technologies P300 500 Lumen HD

Search your instruction manual in PDF to download

User Manual for AAXA Technologies P300 500 Lumen HD Pico Projector

Click to enlarge the picture
AAXA Technologies P300 500 Lumen HD Pico Projector Contents of the user manual for the AAXA Technologies P300 500 Lumen HD
  • Product category: Pico Projectors AAXA Technologies
  • Brand: AAXA Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AAXA Technologies Pico Projectors

AAXA Technologies P300 500 Lumen HD Pico Projector AAXA Technologies P300 500 Lumen HD Pico Projector AAXA Technologies P300 500 Lumen HD Pico Projector AAXA Technologies P300 500 Lumen HD Pico Projector AAXA Technologies P300 500 Lumen HD Pico Projector
User manual for the AAXA Technologies P300 500 Lumen HD contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AAXA Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!



Product description

The P300 500 Lumen HD Pico Projector from AAXA Technologies is among the world's brightest battery-powered HD pocket projectors. Its compact optical engine produces a brightness of 500 lumens on DC power and at a high-definition (HD) resolution of 1280 x 800. The P300's Vibrant Color LEDs have an operating life of over 30,000 hr. The projector is capable of generating a viewable image of up to 120" (304.8 cm) in diagonal size in low-light conditions.

The P300 has an ARM processor for images and videos, and supports MP4, MP3, AVI, JPG and text file formats, among others. Benefit from an HDMI port for viewing Full HD 1080p video on your HDTV, in addition to VGA, micro USB and AV inputs and a 3.5mm headphone jack. There's also a microSD card slot. The P300 features a built-in lithium-ion battery for use on the go, or can power from the included AC adapter (100 to 240 VAC).

A true pocket projector at less than 5.9" (15 cm) long, 3.9" (9.9 cm) wide, and 1.6" (4.1 cm) tall, the P300 has an adjustable tripod.
  • Delivers up to 500 lumens when powered by the included AC adapter and up to 200 lumens when powered by the internal rechargeable battery
  • Powered by Texas Instruments' DLP Technology
  • Triple LED light source with Vibrant Color Technology has a long operating life of more than 30,000 hr, and produces a vivid display with high color saturation and range. The LED light source also allows the P300 to achieve full brightness in just seconds

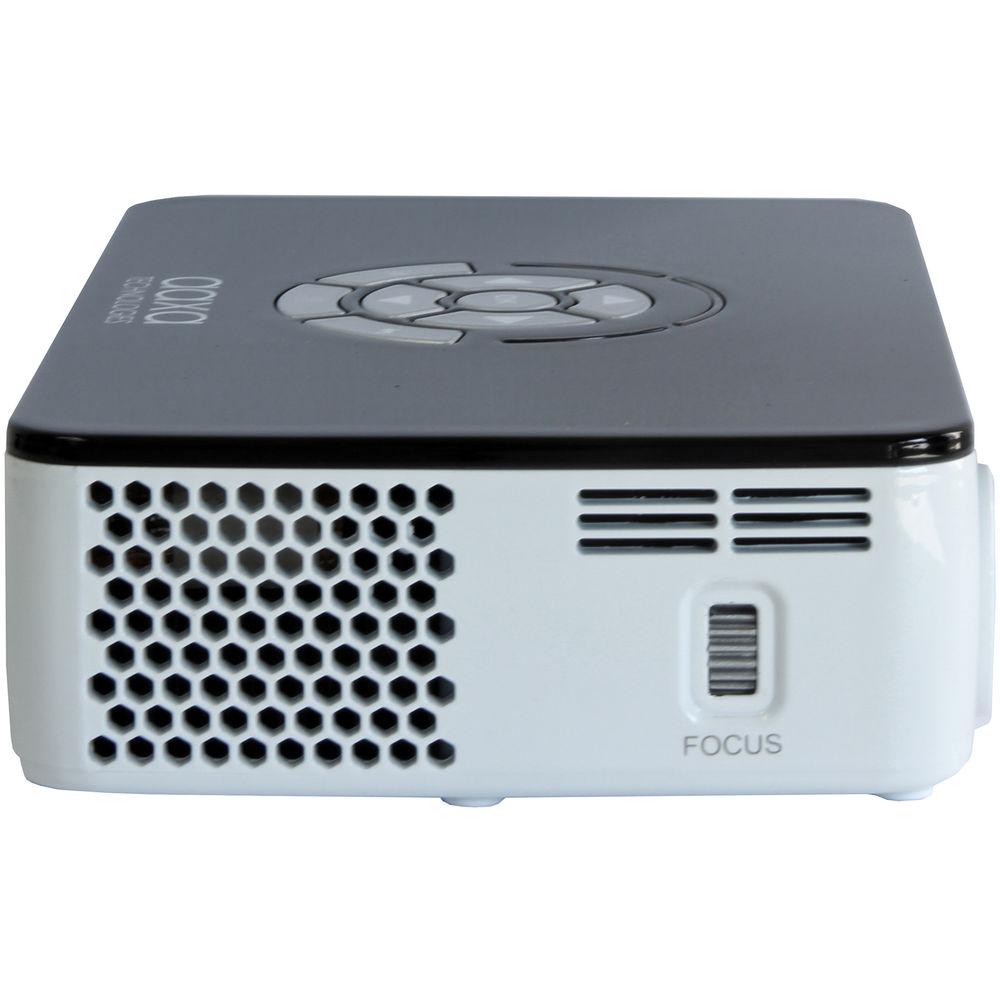

  • Manual focus projection lens
  • Can generate a viewable image of up to 120" (304.8 cm) in diagonal size in low-light conditions
  • Projection angle: 39.3°
  • At the P300's core is an ARM processor for images and videos, including photo slide-show playback
  • The onboard media player is compatible with MP4, MP3, AVI, JPG, WMA, OGG, WAV, WMV, SMV, BMP, GIF and TXT file formats. Share movies, videos, and photos with friends and family; bring presentations anywhere and everywhere with you; and indulge in gaming and entertainment without the need for a large TV or computer monitor
  • Built-in HDMI port enables viewing of Full HD 1080p video on your HDTV
  • Equipped with VGA, micro USB and AV inputs and a 3.5mm headphone jack, plus a microSD card slot
  • Runs on DC power via the included AC adapter and included internal lithium-ion battery, which offers 60 minutes of operation
  • A true pocket-size projector at less than 5.9" (15 cm) long, 3.9" (9.9 cm) wide, and 1.6" (4.1 cm) tall

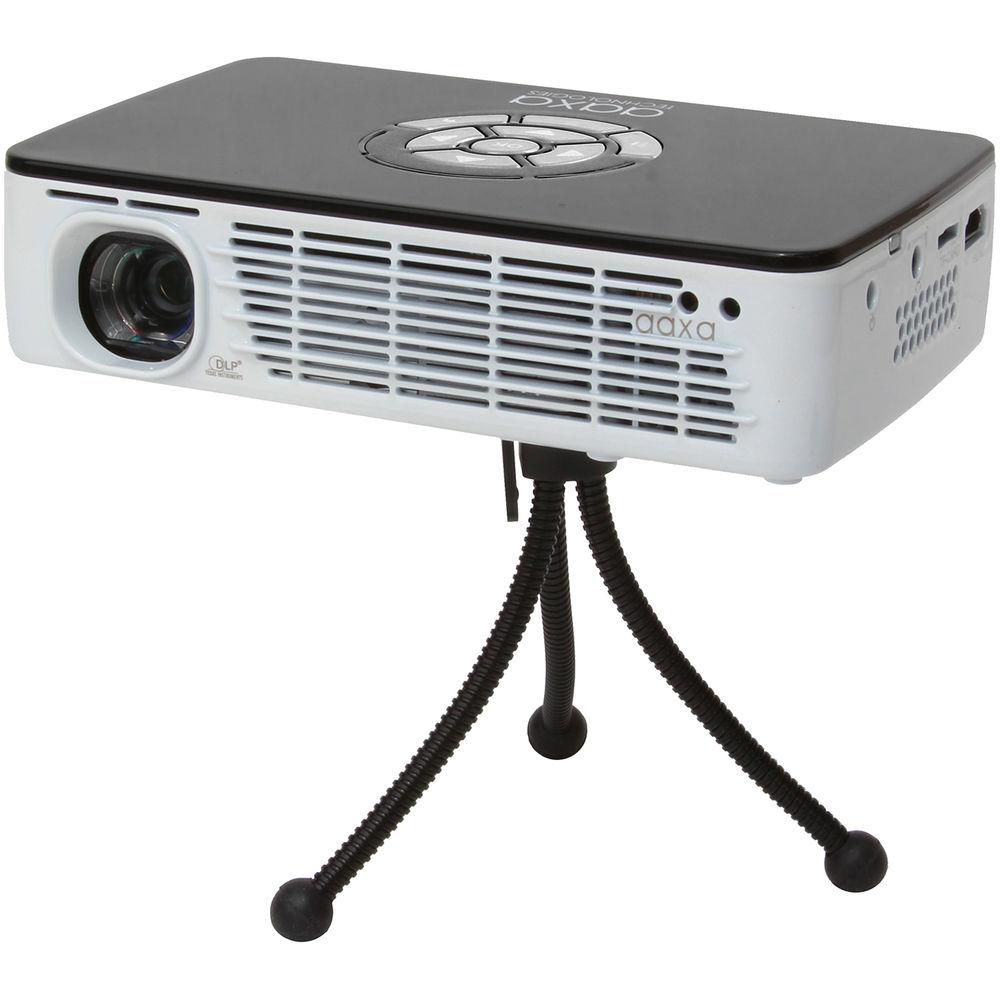

  • Has an adjustable tripod
  • Energy-efficient: Consumes less than 25W when plugged in. Also environmentally-friendly, since the LED is 100% free of mercury and will likely never need to be replaced
  • The optional AAXA P300 iPod A/V Cable is available for your iPod, iPhone, or iPad
  • Menu language options: English, Spanish, French, German, Chinese
  • Supports MP3, WMA, OGG, WAV, AVI, BMP, JPG, GIF, and TXT file formats
  • CE and FCC Class A certifications
UPC: 670541790304 In the Box AAXA Technologies P300 500 Lumen HD Pico Projector
  • Adjustable Tripod
  • Composite AV Cable
  • Wall Charger
  • Remote Control
  • VGA Adapter Cable
  • 100 to 240V AC Power Adapter
  • Limited 1-Year Warranty
  • User Manual PDF 2.4mbbwrvsqcwvvvvdu Table of Contents




    Upload User Manual

    Have you got an user manual for the AAXA Technologies P300 500 Lumen HD Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AAXA Technologies P300 Specs

    Display System DLP
    Native Chip Resolution 1280 x 800 (WXGA)
    Supported Resolutions Maximum: Full HD 1080p - 1920 x 1080
    Max Brightness 500 Lumens
    200 Lumens
    Aspect Ratio 16:10
    Contrast Ratio 2000:1
    Focus Manual
    Throw Ratio 1.38:1
    Projection Size 10 - 120" / 25.40 - 304.80 cm
    Inputs/Outputs 1 x HDMI Audio/Video (Input)
    1 x Mini-VGA port Video (Input)
    1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
    1 x 1/8" (3.5 mm) Mini Headphone (Output)
    1 x Mini-USB Type-B Female
    Memory Card Slot 1 x microSD (Unspecified Type)
    Expected Lamp Life Medium Brightness: 30,000 Hours
    Supported Languages English
    French
    German
    Spanish
    Traditional Chinese
    Power Consumption Medium Brightness: 25 W
    Dimensions (W x H x D) 5.9 x 1.5 x 3.8" / 15.0 x 3.8 x 9.7 cm
    Weight 1.3 lb / .6 kg
    Package Weight 2.3 lb
    Box Dimensions (LxWxH) 9.7 x 7.9 x 2.7"

    Rating

    88% users recommend this product to others. And what about you?
    Rating: 4.4 of 5

    This product has already been rated by 82 owners. Add your rating and experience with the product.
