User Manual for AAXA Technologies P5 300-Lumen HD Pico Projector Click to enlarge the picture
Contents of the user manual for the AAXA Technologies P5 300-Lumen HD Pico
- Product category: Pico Projectors AAXA Technologies
- Brand: AAXA Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AAXA Technologies Pico Projectors
 |
User manual for the AAXA Technologies P5 300-Lumen HD Pico contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AAXA Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!
|
Product description Display your presentations and other media wherever you want with the AAXA Technologies P5 300-Lumen WXGA Pico Projector. It features a 1280 x 720 native resolution, but will display video up to 1080p. It provides up to 300 lumens of brightness with a 1000:1 contrast ratio to enhance detail and clarity.

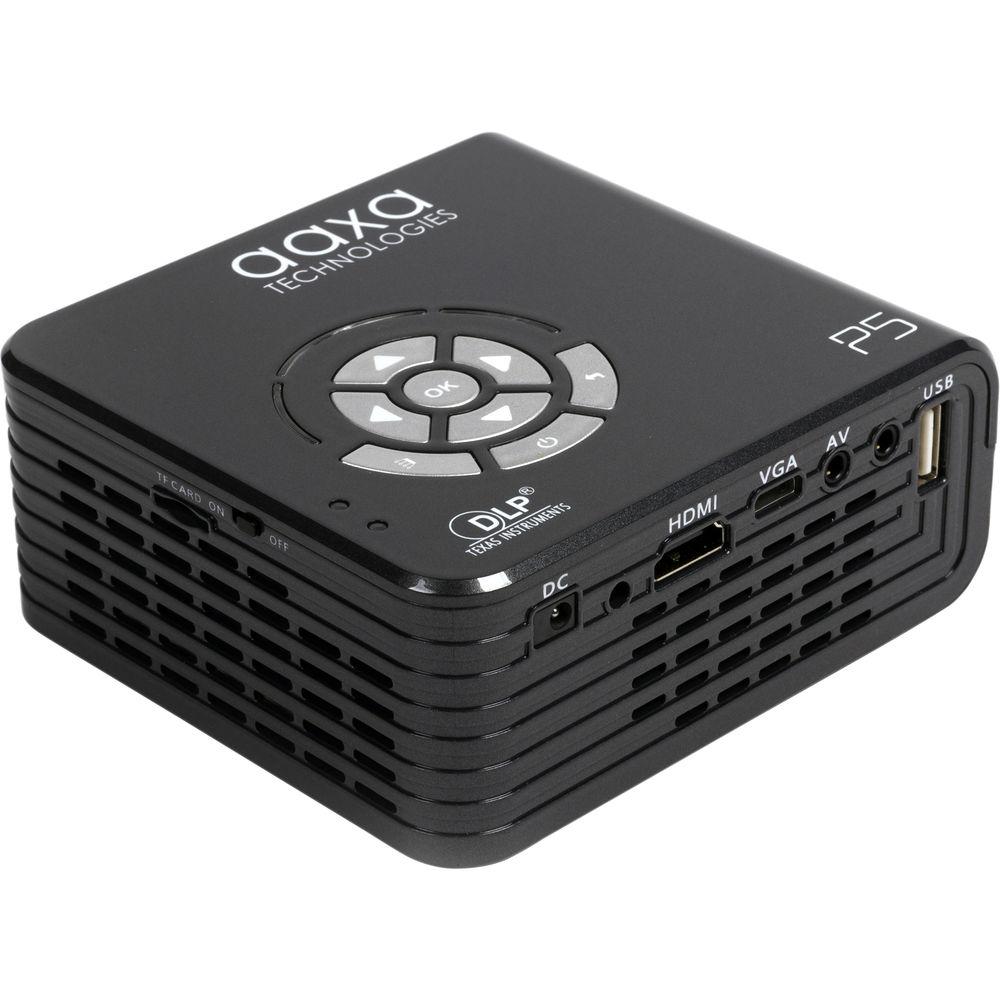

The P5 sports an HDMI, mini-VGA, 1/8" A/V, microSDHC, and USB input for playback of nearly all of your media. The integrated media player supports popular formats such as MP3, WAV, WMA, AVI, JPG, TXT, and more. It includes a snap-on rechargeable battery that will last up to two hours for presenting while on the go. - 120-Minute Quick Release Battery

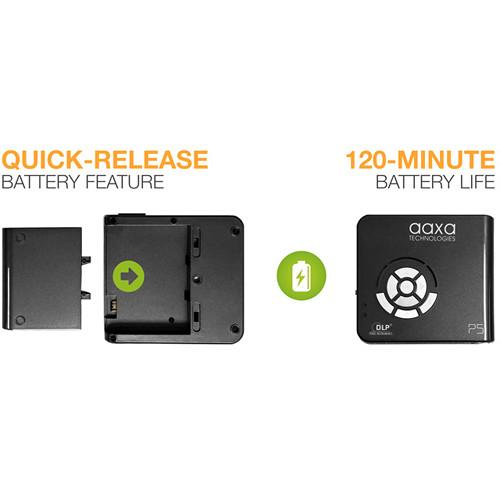

- The AAXA P5's lithium-ion battery enables anywhere/anytime projection. This snap-on battery supports a 120-minute operating time in eco brightness mode and is designed to retain 85% of its charge over 1000 charge cycles. The AAXA P5 Pico projector now gives you the ability to deliver long presentations or enjoy a full-length movie without cords.
- 720p HD Resolution
- The P5 LED Pico Projector delivers 720p native resolution through a Texas Instruments DLP HD resolution imager.
- All-In-One Mobile Media Player
- Onboard is a media player that lets users share photos, videos, and other digital media with family and friends anytime, anywhere.
- Solid-State LED Light Source
- With the P5, there is no need to wait for long lamp warm-up and cool-down times. The P5 LED Pico Projector's LED light source enables it to achieve full brightness within seconds. It also turns off nearly instantly as well. The light source is 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.
- Long Operating Life
- The P5's LED light source is designed to last 10 times longer than conventional lamps, so bulb changes are unnecessary.
- Versatile Multimedia Support
- The P5 will accept sources like Blu-ray or DVD players, computers, gaming consoles, smart devices, USB drives, and more.

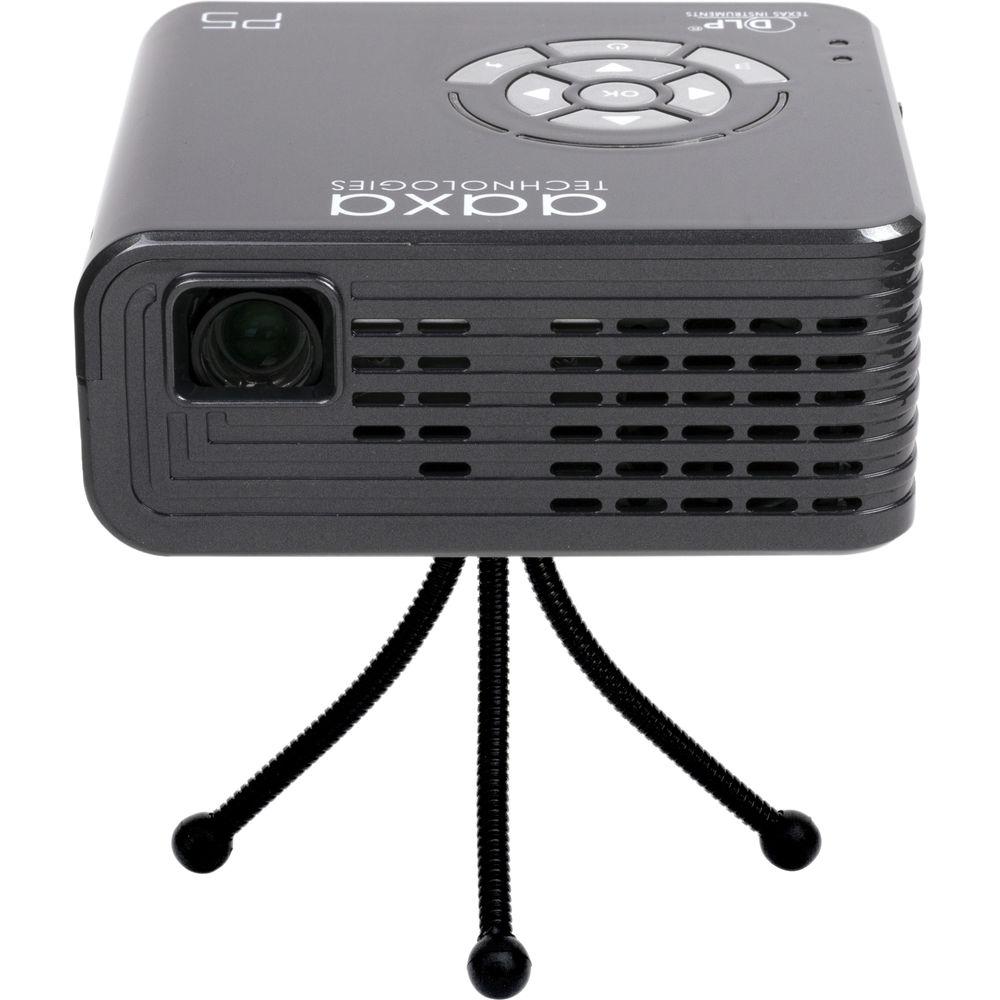

UPC: 864589000130 In the Box AAXA Technologies P5 300-Lumen HD Pico Projector Remote Control Battery Composite AV Cable VGA Cable Wall Charger Tripod Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the AAXA Technologies P5 300-Lumen HD Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the AAXA Technologies P5 300-Lumen HD Pico Projector can be downloaded in PDF format at the link stated below.
Technical parametersAAXA Technologies P5 Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 720 | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1080 | | Max Brightness | 300 Lumens | | Aspect Ratio | 16:9 | | Contrast Ratio | 1000:1 | | | | Focus | Manual | | Throw Distance | 10 - 130" / 25.4 - 330.2 cm | | Throw Ratio | 1.47:1 | | Projection Size | 10 - 100" / 25.40 - 254.00 cm | | | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x HDMI Audio/Video (Input)
1 x Mini-VGA port Video (Input)
1 x 1/8" (3.5 mm) Mini Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Headphone (Output)
1 x USB 2.0 Type-A Female (Input) | | Memory Card Slot | 1 x microSDHC Maximum 16 GB | | | | Light Source | LED | | Expected Lamp Life | Medium Brightness: 15,000 Hours | | Fan Noise | Medium Brightness: 30 dB | | Supported Audio File Types | MP3, WAV, WMA | | Supported Document File Types | TXT | | Supported Photo File Types | BMP, GIF, JPEG | | Supported Video File Types | AVI, WMV | | Supported Languages | English
French
German
Simplified Chinese
Spanish | | Power Consumption | Medium Brightness: 25 W | | Dimensions (W x H x D) | 4.5 x 1.8 x 4.4" / 11.4 x 4.6 x 11.2 cm | | Weight | 0.9 lb / .4 kg | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 2.8" |
