Product description

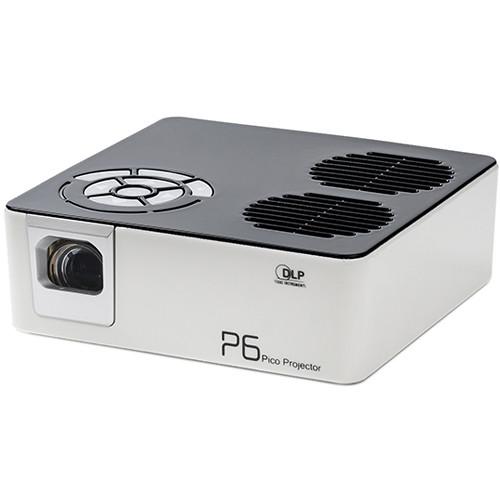

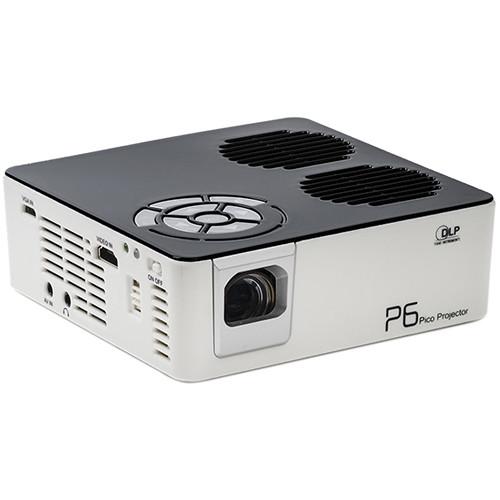

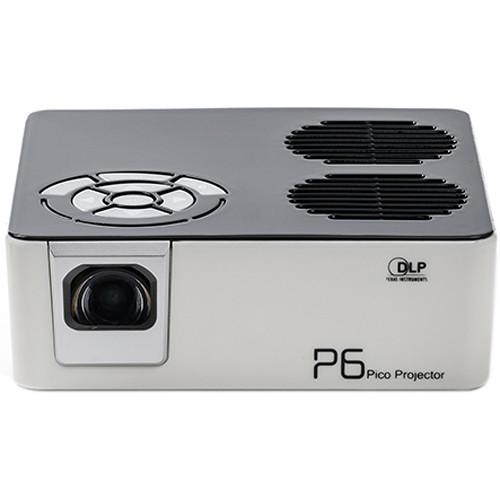

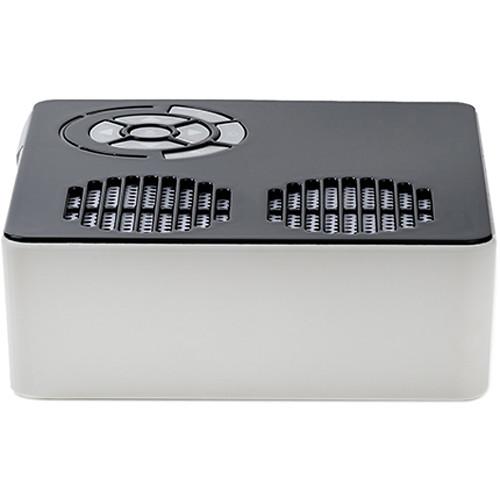

Display your presentations and other media virtually anywhere with the AAXA Technologies P6 600-Lumen WXGA LED Pico Projector. It can project images up to 140" diagonal in dark areas and features a WXGA 1280 x 800 native resolution. It provides up to 600 lumens of brightness on AC power with a 2000:1 dynamic contrast ratio to help enhance detail and clarity; when powered by the internal battery, it outputs up to 350 lumens of brightness.

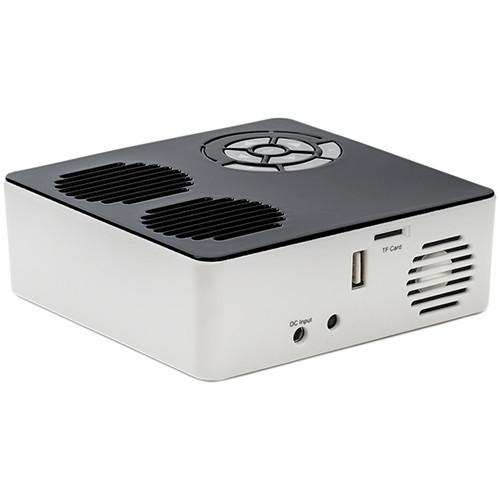

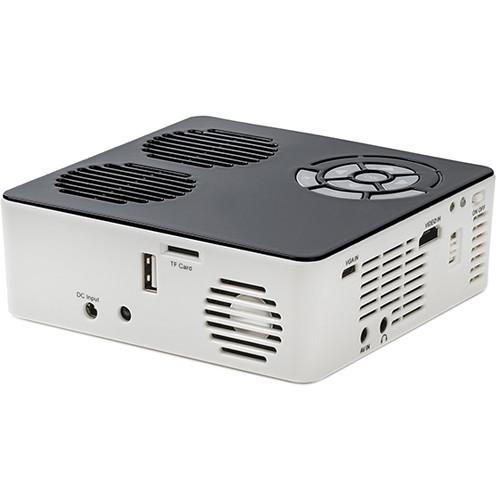

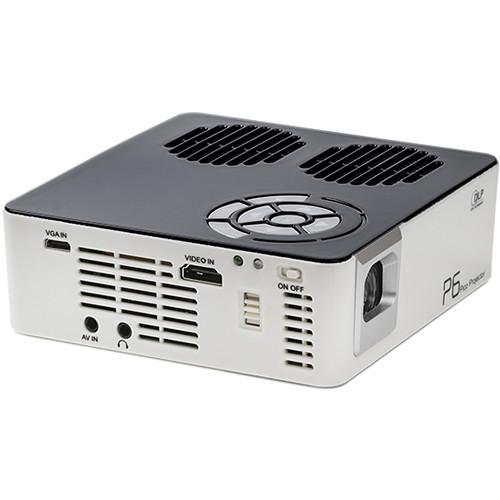

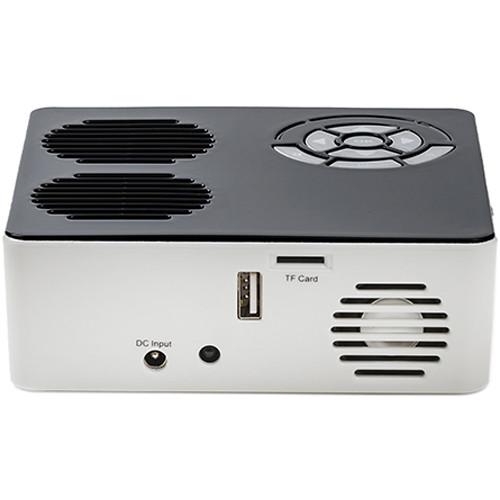

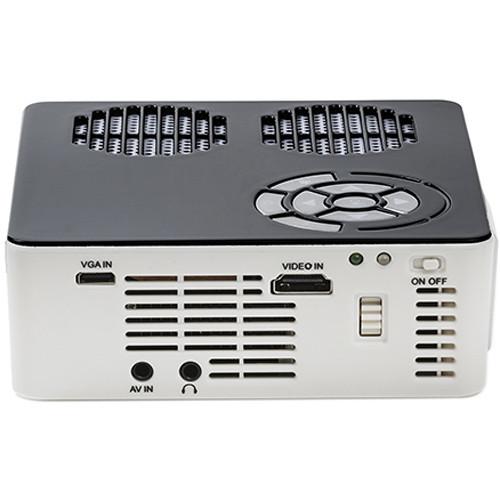

The P6 sports an HDMI, a mini-VGA, and an 1/8" composite video input, plus a microSD slot and USB port. An integrated media player allows you to play back your digitally stored images, videos, and music. The rechargeable battery will last up to 80 minutes for presenting while on the go. A composite A/V cable, VGA adapter cable, tripod, and remote control are included for added convenience.
    Solid State Light Source
  • The optical engine in the P6 features a solid-state LED light source designed to outlast traditional lamp-based light sources with instant-on and instant-off capabilities. LEDs are also mercury-free.
    Compact Design

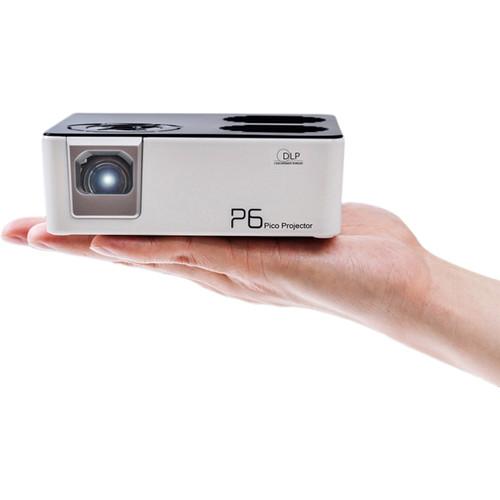

  • At just 5 x 1.7 x 4.8", and with the built-in battery, the P6 can be used nearly anywhere.
    Integrated Speaker
  • The P6 features a built-in 2W speaker.
    Built-In Battery
  • The built-in battery lasts up to 80 minutes per charge, allowing you to project nearly anywhere.
    Onboard Media Player
  • The onboard media player allows the P6 to display videos, pictures, and play back music for computer-less presentation and multimedia enjoyment.
UPC: 862334000435 In the Box AAXA Technologies P6 600-Lumen WXGA LED Pico Projector
  • Remote Control
  • Composite A/V Cable
  • VGA Adapter Cable
  • Tripod
  • Power Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AAXA Technologies P6 600-Lumen WXGA LED Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AAXA Technologies P6 Specs

    Display System 3-Chip DLP
    Native Chip Resolution 1280 x 800 (WXGA)
    Supported Resolutions Maximum: Full HD 1080p - 1920 x 1080
    Max Brightness 600 Lumens
    Offset 100%
    Aspect Ratio Native: 16:10
    Dynamic Contrast Ratio 2000:1
    Color Depth 8-Bit (16.78 Million Colors)
    Focus Manual
    Optical Zoom None
    Throw Distance 19 - 168" / 48.26 - 426.72 cm
    Throw Ratio 1.2:1
    Projection Size 16 - 140" / 40.64 - 355.60 cm
    Keystone Correction Manual
    Built-In Speaker Yes
    Speaker Power 2W
    Inputs/Outputs 1 x HDMI (HDMI Type-A) Audio, Video Input
    1 x USB 2.0 (USB Type-A) Audio, Video Input
    1 x Mini-VGA port Video Input
    1 x Composite (1/8" (3.5 mm) Mini) Audio, Video Input
    1 x 1/8" (3.5 mm) Mini Audio, Headphone Output
    Memory Card Slot 1 x microSD (Unspecified Type)
    Wireless LAN / Wi-Fi None
    Light Source LED
    Expected Lamp Life Low Brightness: 30,000 Hours
    Supported Audio File Types MP3, OGG, WAV, WMA
    Supported Document File Types TXT
    Supported Photo File Types BMP, GIF, JPG
    Supported Video File Types AVI
    Supported Languages Czech
    English
    French
    German
    Italian
    Portuguese
    Simplified Chinese
    Spanish
    Swedish
    Traditional Chinese
    Power Consumption Full Brightness: 38 W
    Dimensions (W x H x D) 5.0 x 1.7 x 4.8" / 12.7 x 4.3 x 12.2 cm
    Weight 1.2 lb / .54 kg
    Package Weight 2.5 lb
    Box Dimensions (LxWxH) 8.8 x 8.0 x 2.8"
