AAXA Technologies P7 600-Lumen Full HD

Search your instruction manual in PDF to download

User Manual for AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector

Click to enlarge the picture
AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector Contents of the user manual for the AAXA Technologies P7 600-Lumen Full HD
  • Product category: Pico Projectors AAXA Technologies
  • Brand: AAXA Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AAXA Technologies Pico Projectors

AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector
User manual for the AAXA Technologies P7 600-Lumen Full HD contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AAXA Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AAXA Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AAXA Technologies product will considerably shorten its lifespan!



Product description

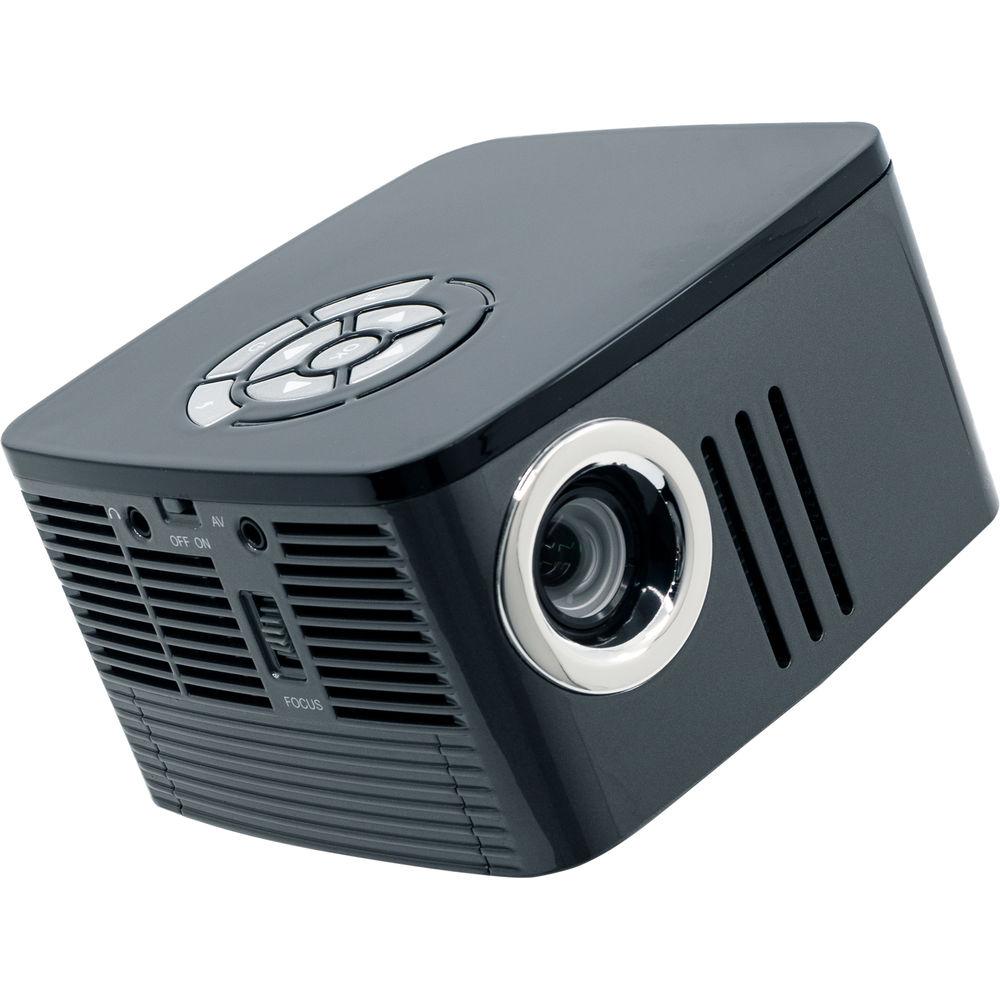

Display your presentations and other media virtually anywhere with the AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector. It can project images up to 120" diagonal and features a 1080p 1920 x 1080 native resolution. It provides up to 600 lumens of brightness on AC power with a 2000:1 dynamic contrast ratio to help enhance detail and clarity, or up to 450 lumens while running off the optional battery.

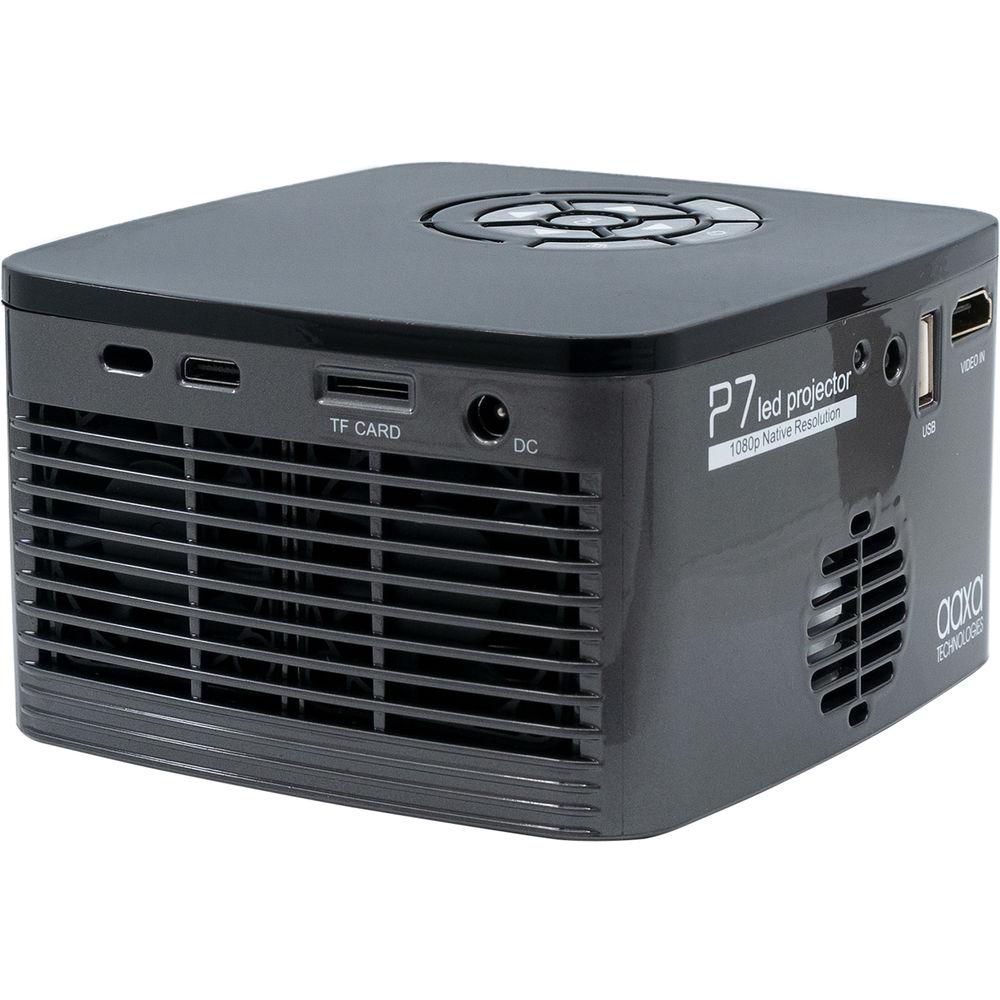

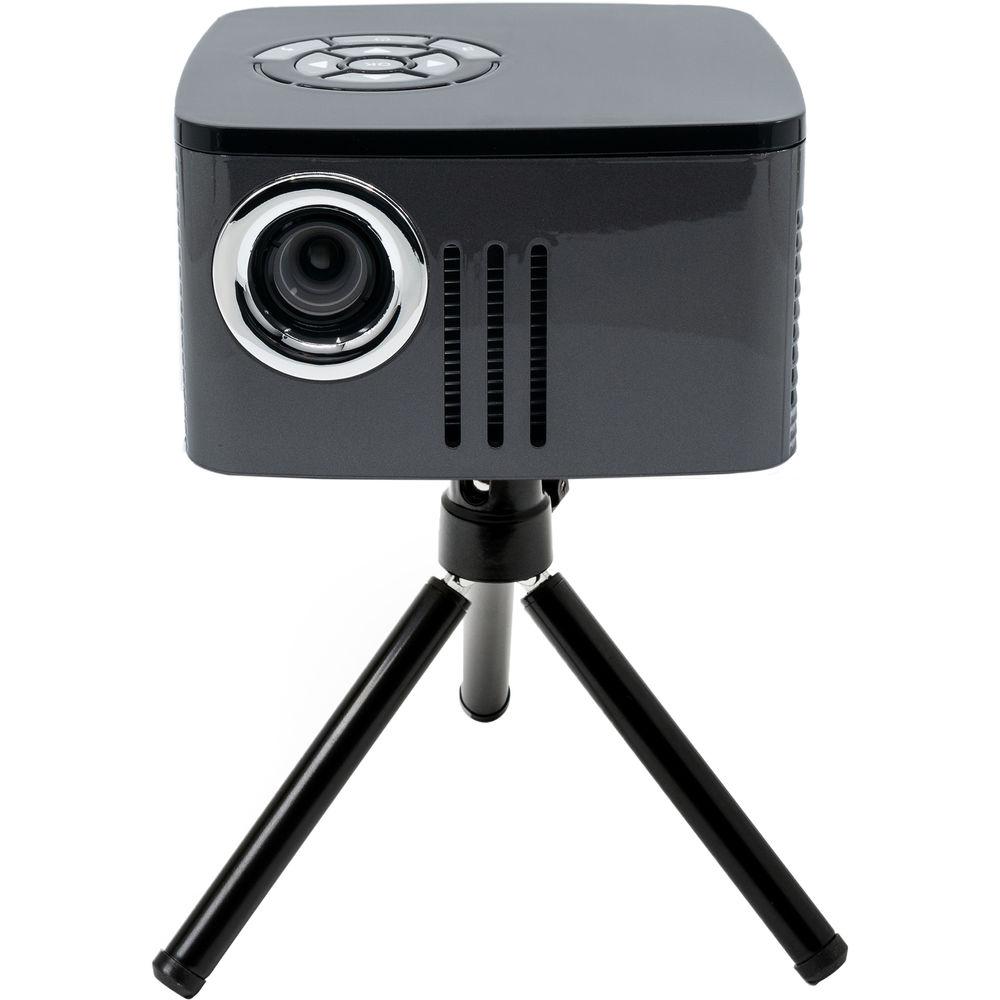

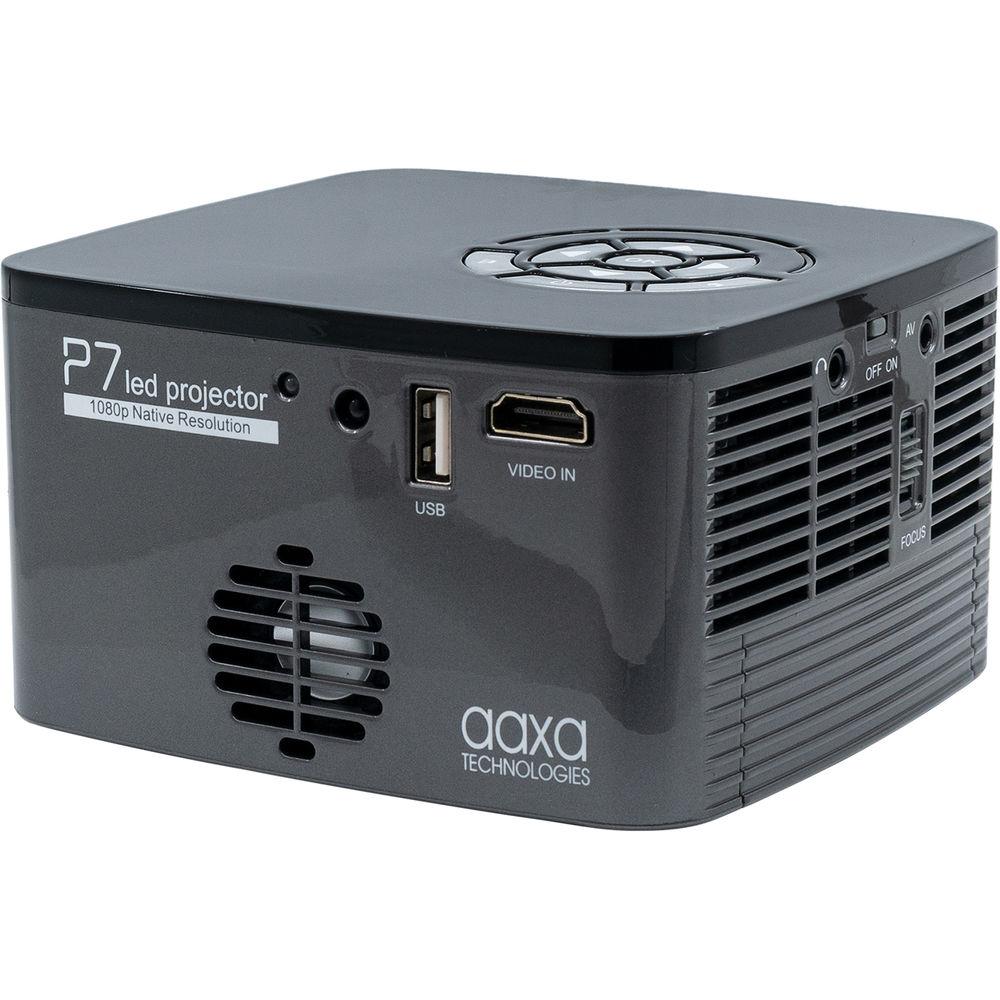

The P7 sports an HDMI, mini-VGA, and an 1/8" composite video input, plus a microSD slot and USB port with an integrated media player to play back your digitally stored images, videos, and music. The included tripod lets you elevate the projector from your table or desktop, and manual keystone correction helps you achieve a squared-off image.
    Full HD Resolution
  • Native 1920 x 1080 resolution helps provide clear images with compatible content.
    Big-Screen Projection
  • The 600-lumen max brightness level helps achieve images up to 120" diagonal in dark settings.
    LED Light Source
  • The 30,000-hour potential lifespan means you won't have to change projector lamps. LEDs also provide instant-on and instant-off with no warm-up or cool-down time. Further, LEDs don't use mercury, so they're more environmentally friendly than projector lamps.

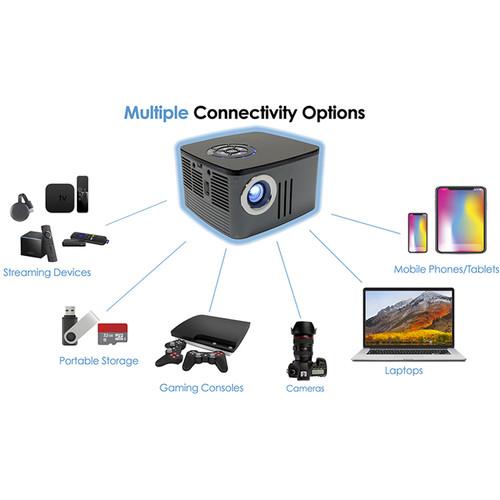

    Enhanced Connectivity
  • Connect a variety of devices with HDMI, VGA, composite A/V, and more connection options.
    Stereo Speakers
  • Stereo sound is provided by dual 2W speakers.
    Project Anywhere with the Optional Battery
  • With the separately sold lithium-ion battery, the P7 can operate for up to 90 minutes and output up to 450 lumens of brightness.
    Additional Features
    • Onboard media player for USB drives & microSD card sources (up to 32GB)
    • Manual digital keystone correction
    • Vibrant Color technology
UPC: 862334000466 In the Box AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector
  • Remote Control
  • Composite A/V Cable
  • Tripod
  • Wall Charger
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AAXA Technologies P7 600-Lumen Full HD DLP Pico Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AAXA Technologies P7 Specs

    Display System 3-Chip DLP
    Native Chip Resolution 1920 x 1080 (Full HD)
    Max Brightness 600 Lumens
    Offset 100%
    Aspect Ratio Native: 16:9
    Dynamic Contrast Ratio 2000:1
    Focus Manual
    Optical Zoom None
    Throw Ratio 1.2:1
    Projection Size 16 - 120" / 40.64 - 304.80 cm
    Keystone Correction Manual
    Built-In Speaker Yes (Stereo)
    Speaker Power 4W
    Inputs/Outputs 1 x HDMI (HDMI Type-A) Audio, Video Input
    1 x Mini-VGA port Video Input
    1 x Composite (1/8" / 3.5 mm Mini) Audio Input
    1 x 1/8" / 3.5 mm Mini Headphone Output
    1 x USB 2.0 (USB Type-A) Data Input
    Memory Card Slot 1 x microSDHC
    Wireless LAN / Wi-Fi None
    Light Source LED
    Expected Lamp Life Medium Brightness: 30,000 Hours
    Fan Noise Full Brightness: 30 dB
    Security Cable Lock Slot
    Supported Audio File Types MP3, OGG, WAV, WMA
    Supported Document File Types TXT
    Supported Photo File Types BMP, GIF, JPG
    Supported Video File Types AVI
    Supported Languages English
    French
    German
    Italian
    Japanese
    Korean
    Simplified Chinese
    Spanish
    Power Consumption Full Brightness: 38 W
    Dimensions (W x H x D) 4.7 x 2.7 x 4.4" / 11.9 x 6.9 x 11.2 cm
    Weight 1.4 lb / .64 kg
    Package Weight 3.11 lb
    Box Dimensions (LxWxH) 7.9 x 6.1 x 3.6"
