User Manual for AC Infinity AIRCOM T9 A V Top-Exhaust Component Cooling System Click to enlarge the picture
Contents of the user manual for the AC Infinity AIRCOM T9 A V
- Product category: Other Accessories AC Infinity
- Brand: AC Infinity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AC Infinity Other Accessories
 |
User manual for the AC Infinity AIRCOM T9 A V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AC Infinity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AC Infinity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AC Infinity product will considerably shorten its lifespan!
|

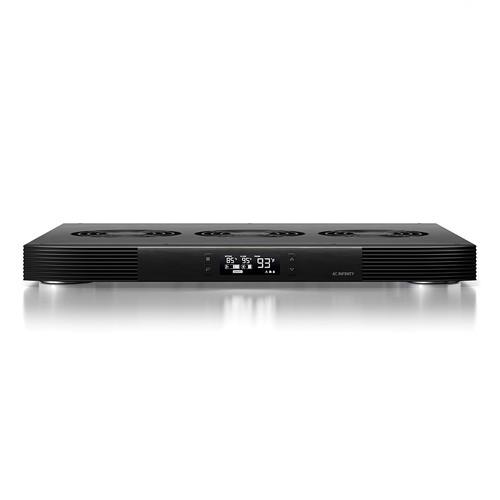

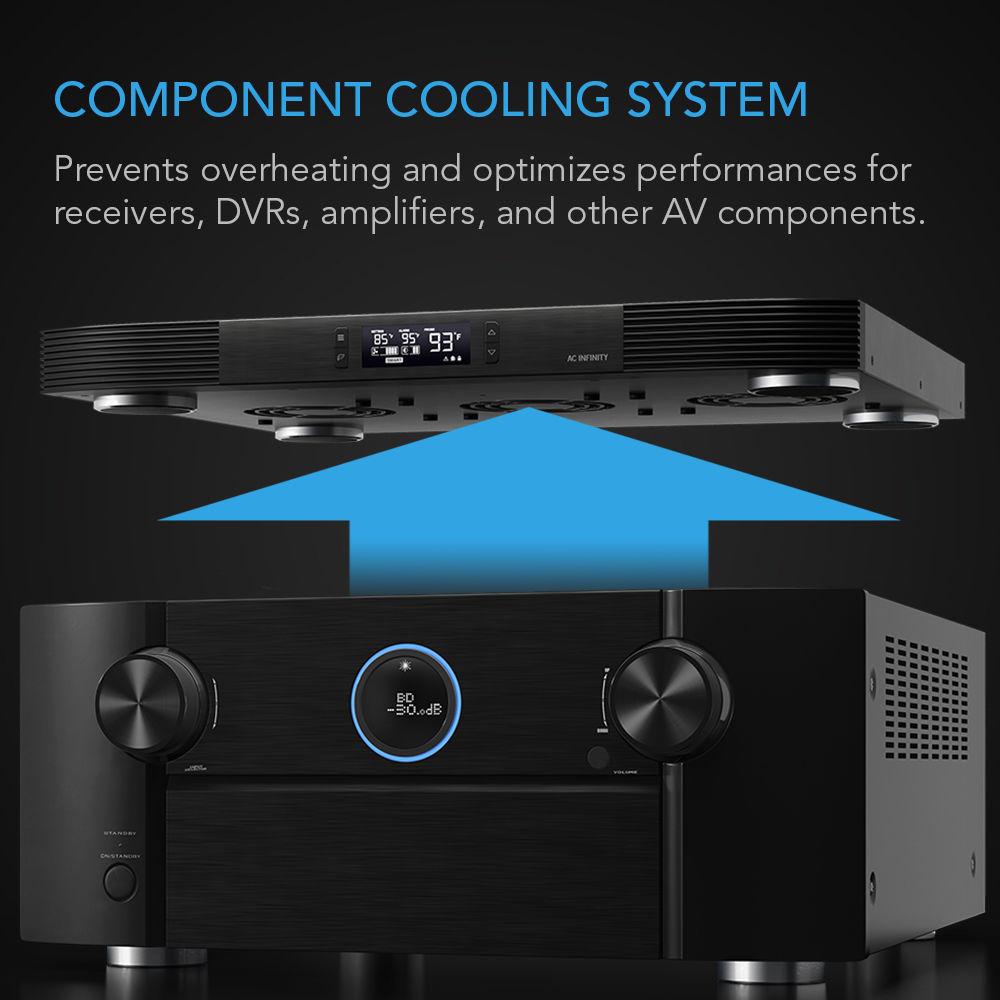

Product description Just in Time for Summer, AC Infinity Keeps Our A/V Components Cool Read More Keep your A/V equipment cool with the AC Infinity AIRCOM T9 A/V Top-Exhaust Component Cooling System. Its triple-fan design moves up to 210 CFM of air while maintaining a low 21 dBA noise level to minimize distractions. The built-in LCD thermostat allows you to control fan speed, alarm alerts, and more. Its rear ports allow you to expand your cooling system to up to six additional fans. To conserve space, you can place additional components weighing up to 30 lb atop the AIRCOM T9. - Intelligent Programming and Design
- Programming includes a thermostat designed for ease of use and a SMART mode that automatically adjusts the fans' speed to react to varying temperatures. Behind the unit are ports that can control up to six individual separately sold AC Infinity AIRPLATE cabinet fans and MULTIFAN component fans.
- Design and Construction

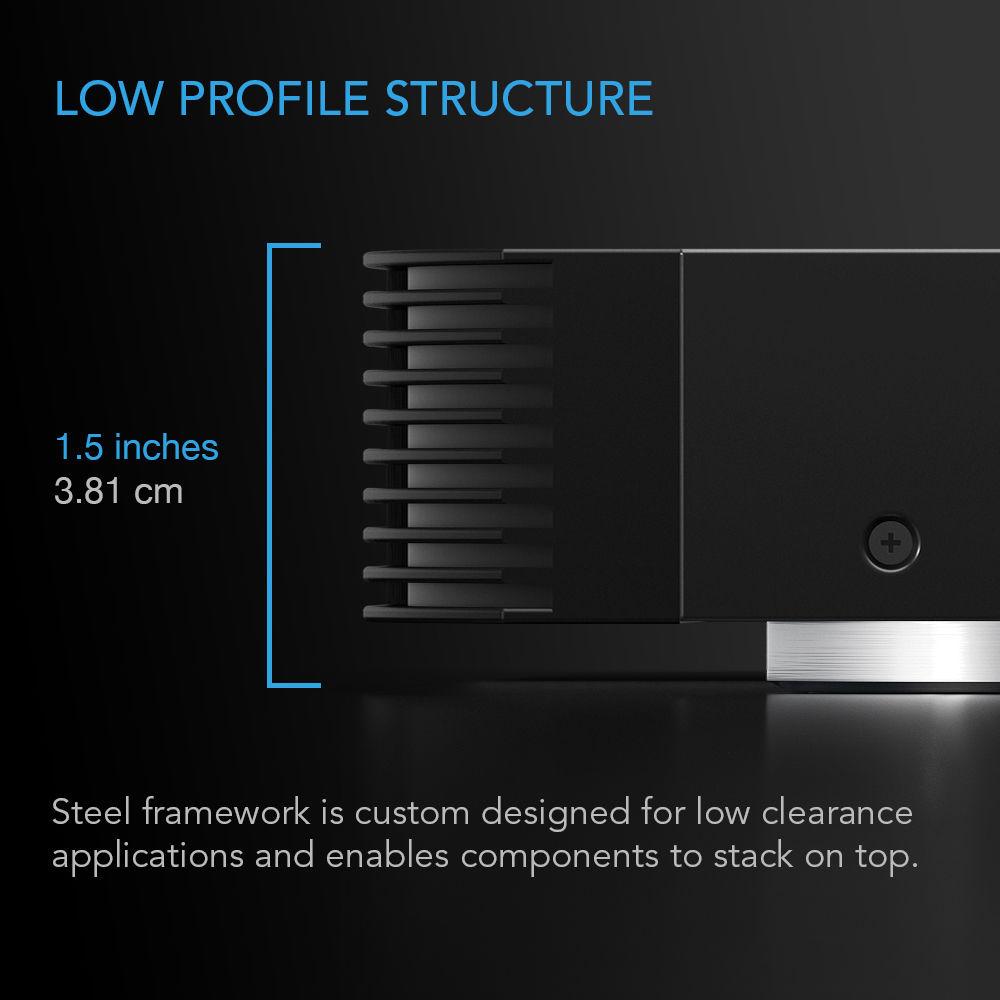

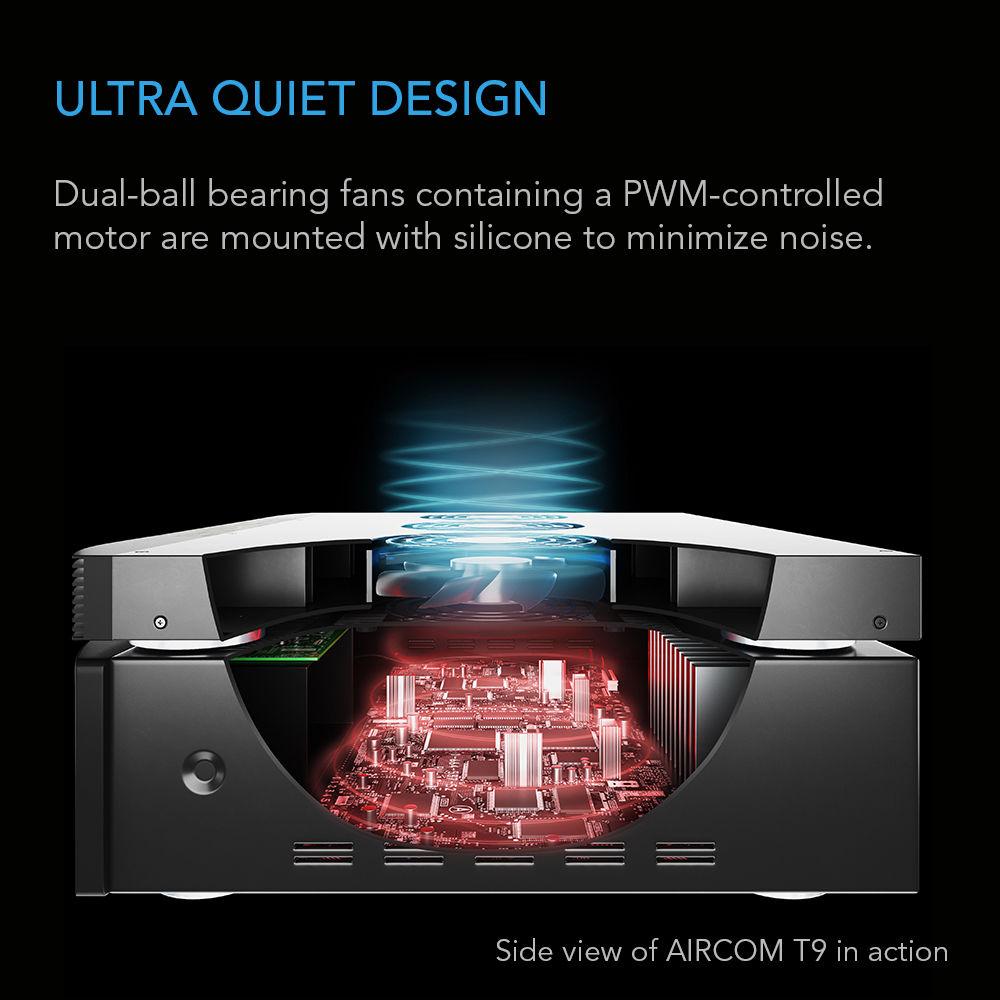

- The AIRCOM T9 features dual-ball bearing blowers rated at 67,000 hours and are certified by CE, UL, and RoHS. Blowers contain a PWM-controlled motor designed to minimize noise during speed variations and are suspended with silicone mounts to absorb vibrations. A low-profile 1.5"-high design allows the unit to fit in applications with a limited height clearance. Aluminum and steel construction enables additional components up to 30 lb to be stacked on top.
- Additional Features
-
- Designed to protect components from overheating, performance issues, and shortened lifespans

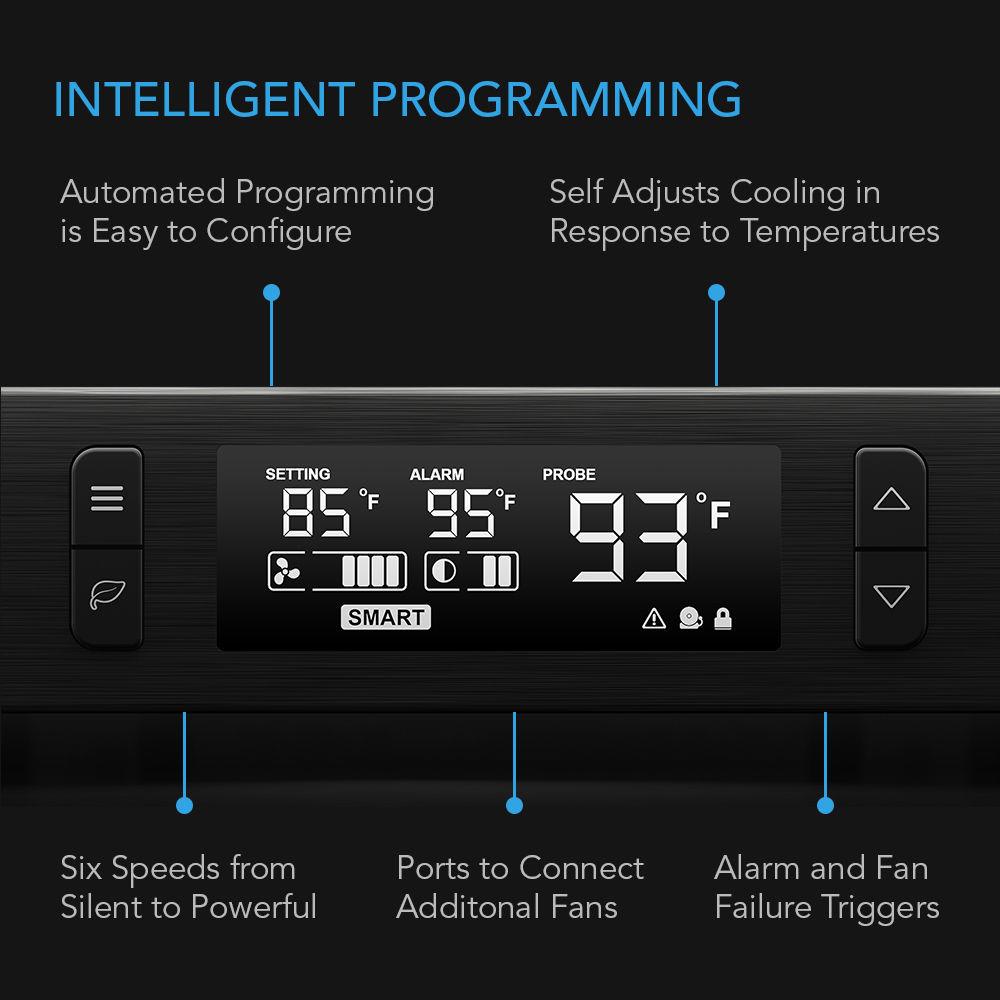

- LCD thermostat programming with six speed controls, alarm alerts, fan failure triggers, and backup memory
- Display lock
UPC: 854759004679 In the Box AC Infinity AIRCOM T9 A/V Top-Exhaust Component Cooling System Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AC Infinity AIRCOM T9 A V Top-Exhaust Component Cooling System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

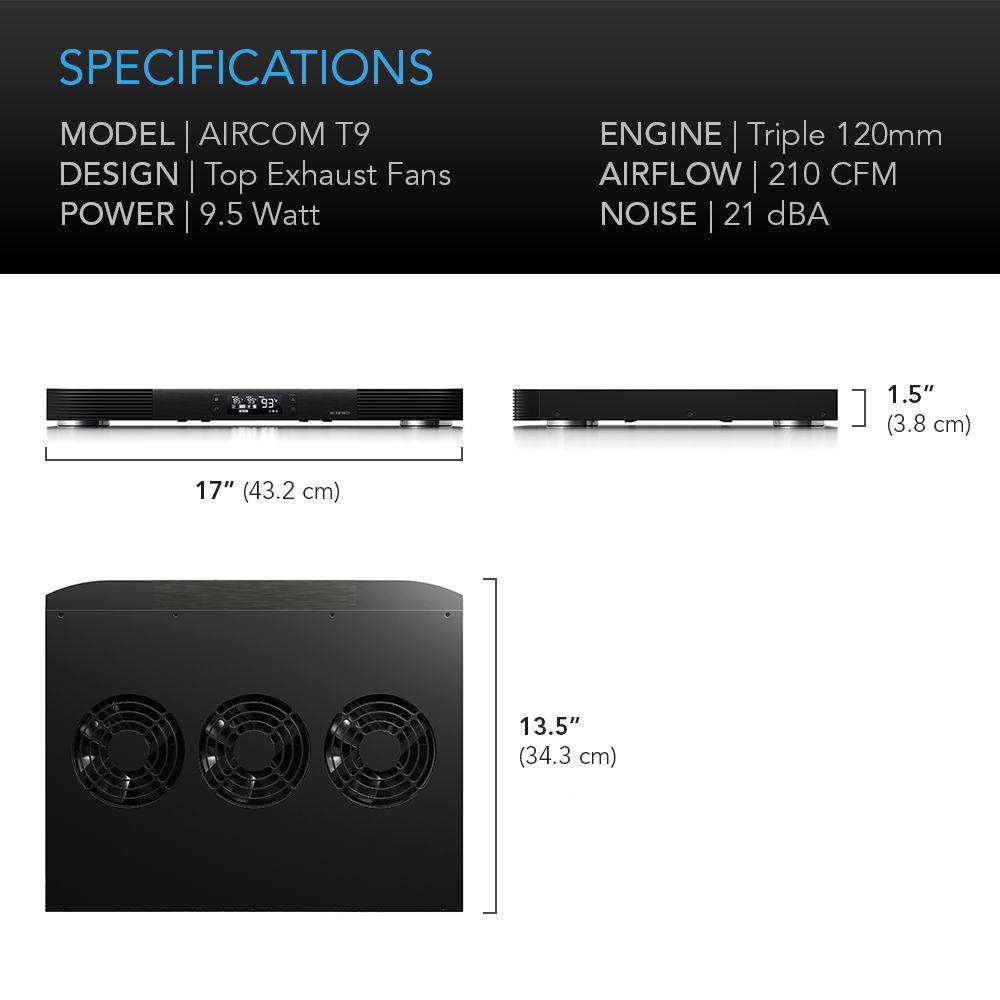

Technical parametersAC Infinity AI-ACT9 Specs | Number of Fans | 3 | | Exhaust System | Direction: Top | | Fan Airflow | 210 CFM | | Noise Level | 21 dBA | | Static Pressure | 1 mm H2O | | Fan Bearing | Dual-ball | | Operating Conditions | Temperature: 14 to 230°F (-10 to 110°C)
Humidity: 35 to 85% RH | | Operating Voltage | 12 VDC | | Power | 9.5 W | | Current | 0.79 A | | AC Power Requirements | 100 to 240 VAC | | Cord Length | 6' (1.83 m) | | Life Expectancy | L10: 67,000 hours | | Approvals | Fan Quality: UL, CE, TUV, RoHS | | Weight Capacity | Top: 30 lb (13.6 kg) | | Dimensions (W x H x D) | 17 x 1.5 x 13.5" (43.2 x 3.8 x 34.3 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 18.8 x 16.0 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
