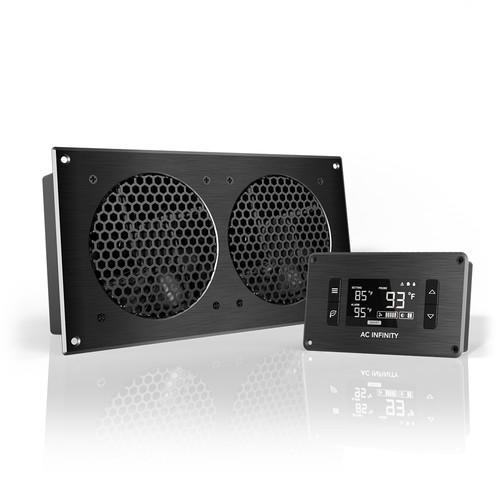

Product description Just in Time for Summer, AC Infinity Keeps Our A/V Components Cool Read More duycbux Keep your cabinet-stored A/V equipment cool with the AC Infinity AIRPLATE T7 A/V Cabinet Dual-Fan Cooling System. Its dual-fan design moves up to 104 CFM of air while maintaining a low 19 dBA noise level to minimize distractions. The included digital controller has a digital display to view the status of your system and is expandable to up to six total fans. The included mounting template will help ease the installation process. - Thermal Controller

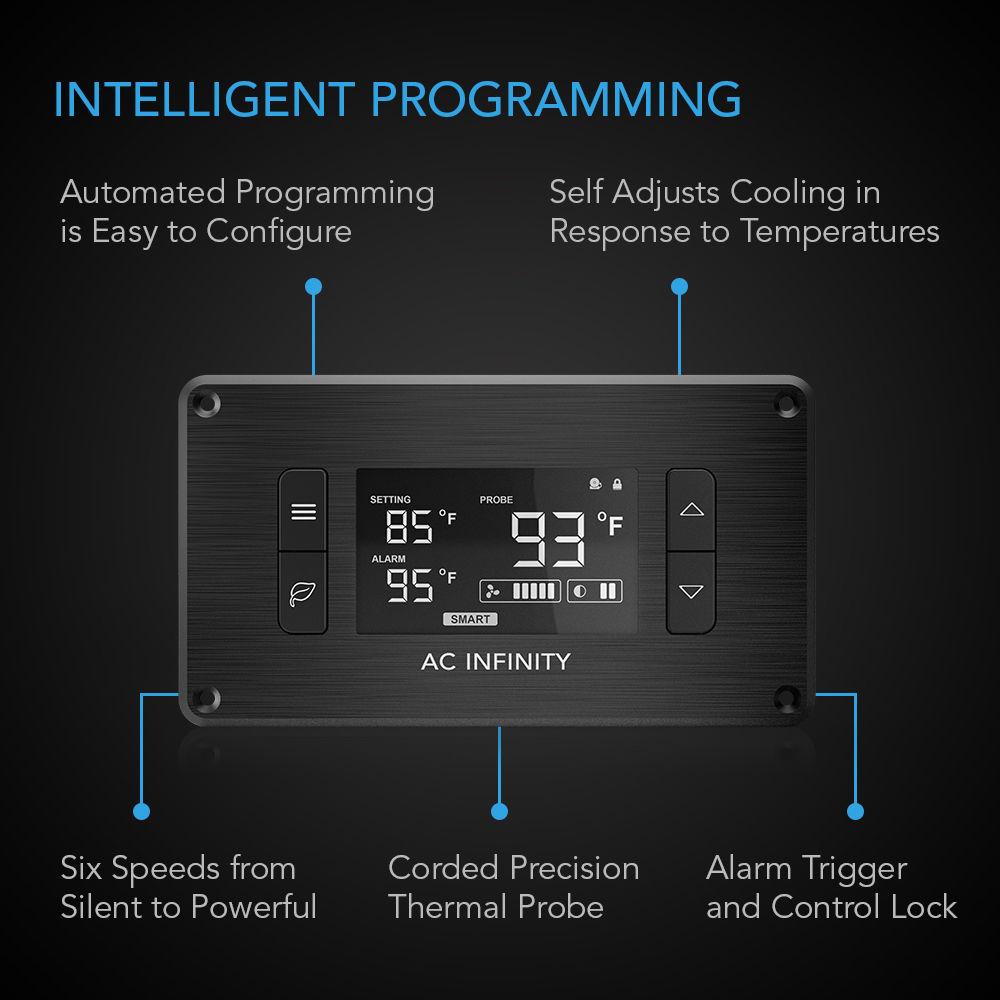

- The controller features an onboard processor with active temperature monitoring as well as intelligent programming that will automatically adjust fan speeds to respond to varying temperatures. Additional features include three backlight settings, power failure memory, and a detachable 6' thermal probe that is water resistant.
- Connect Additional Units

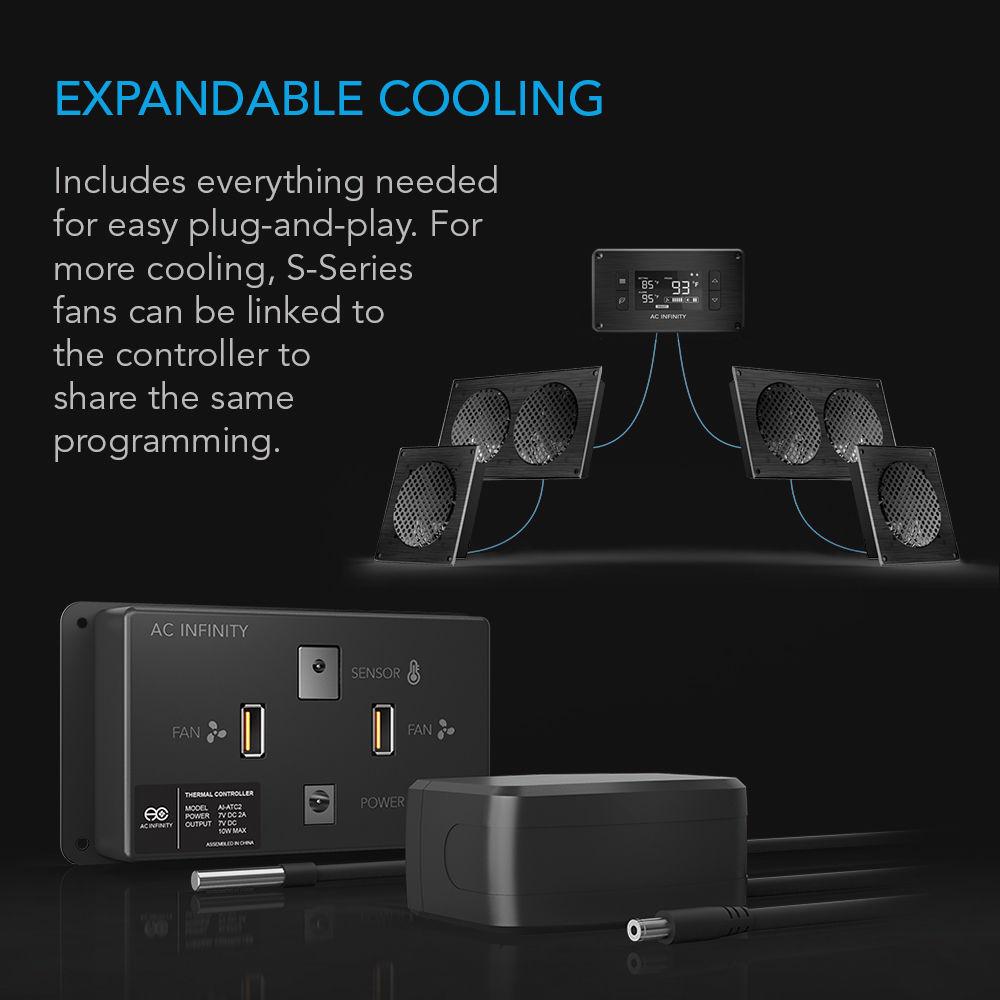

- For cabinets that require more airflow, additional optional AIRPLATE S-series cabinet fans can be connected to the included thermal controller. Up to six fans can share the same thermal controller or wall outlet power source.
- Suitable for Various Applications

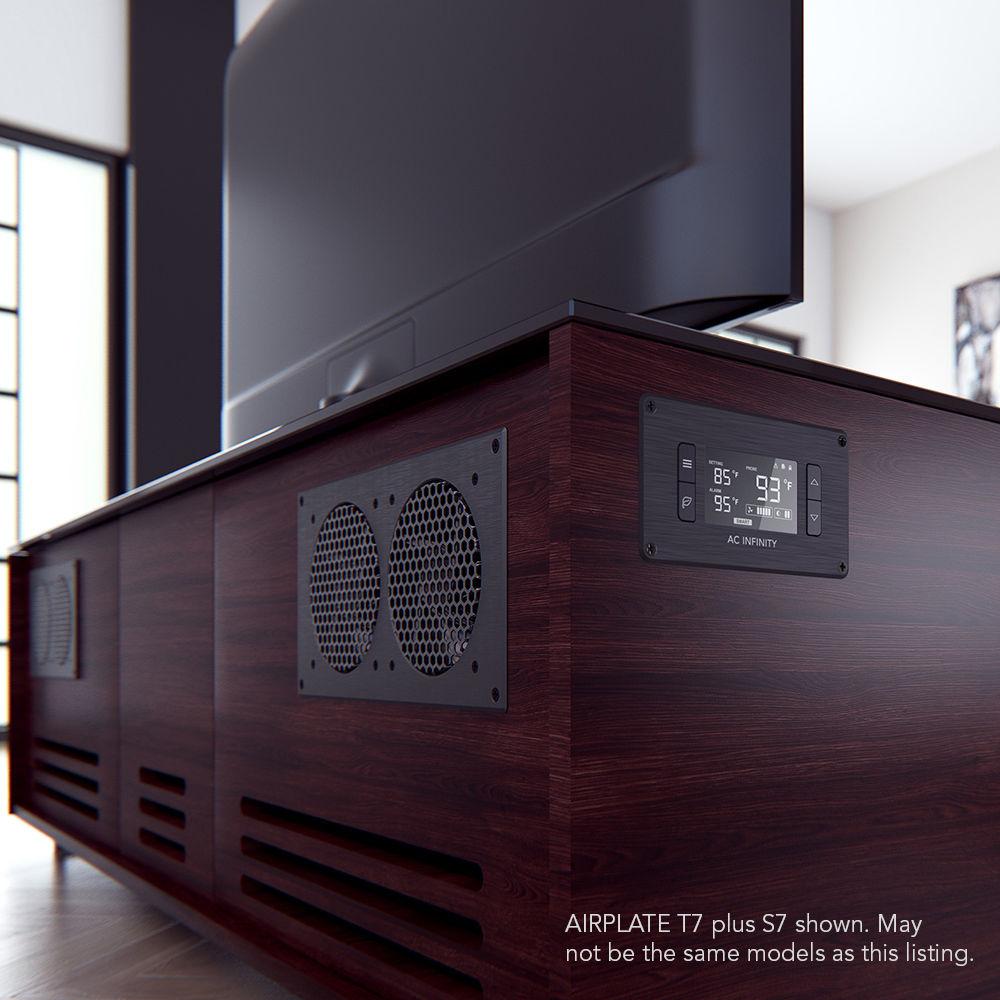

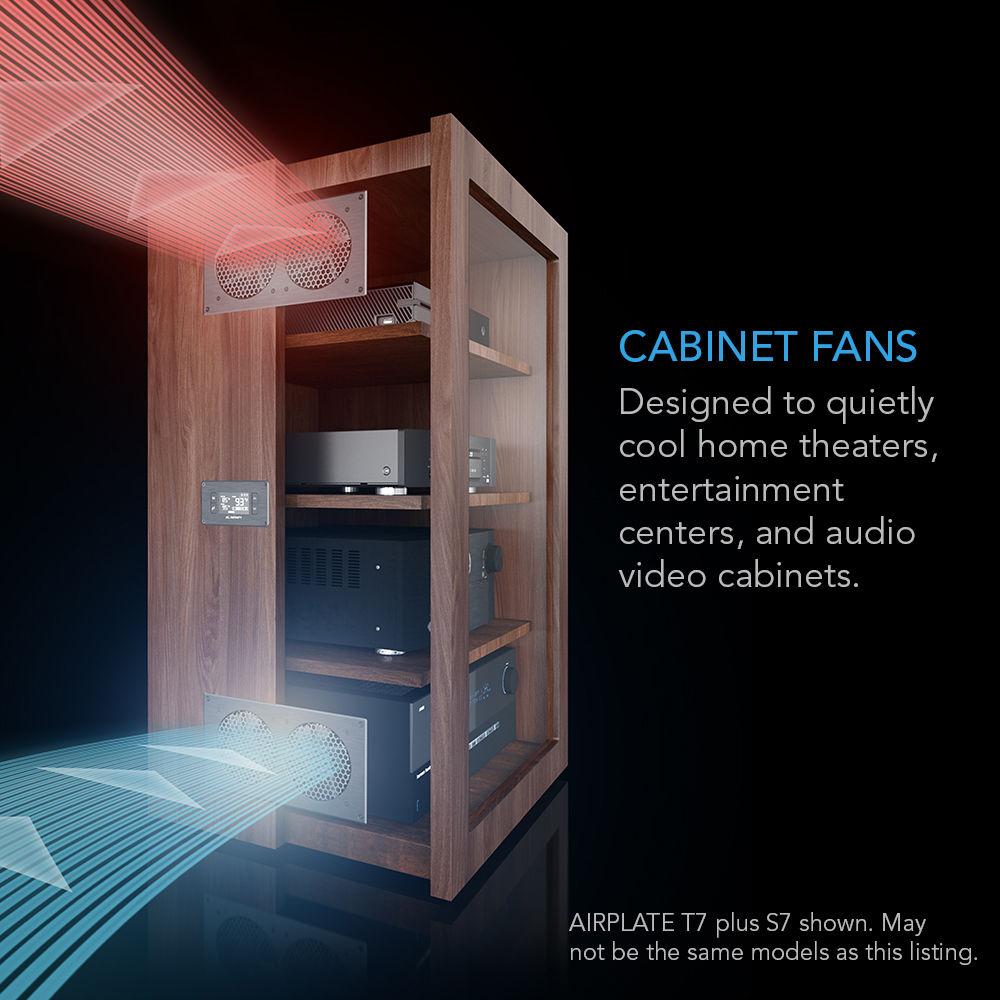

- This cooling system is suitable for a variety of applications, including home theaters, entertainment centers, and audio/video cabinets, plus smaller enclosures and racks holding computers, receivers, amplifiers, and other A/V equipment.
- Additional Features
-

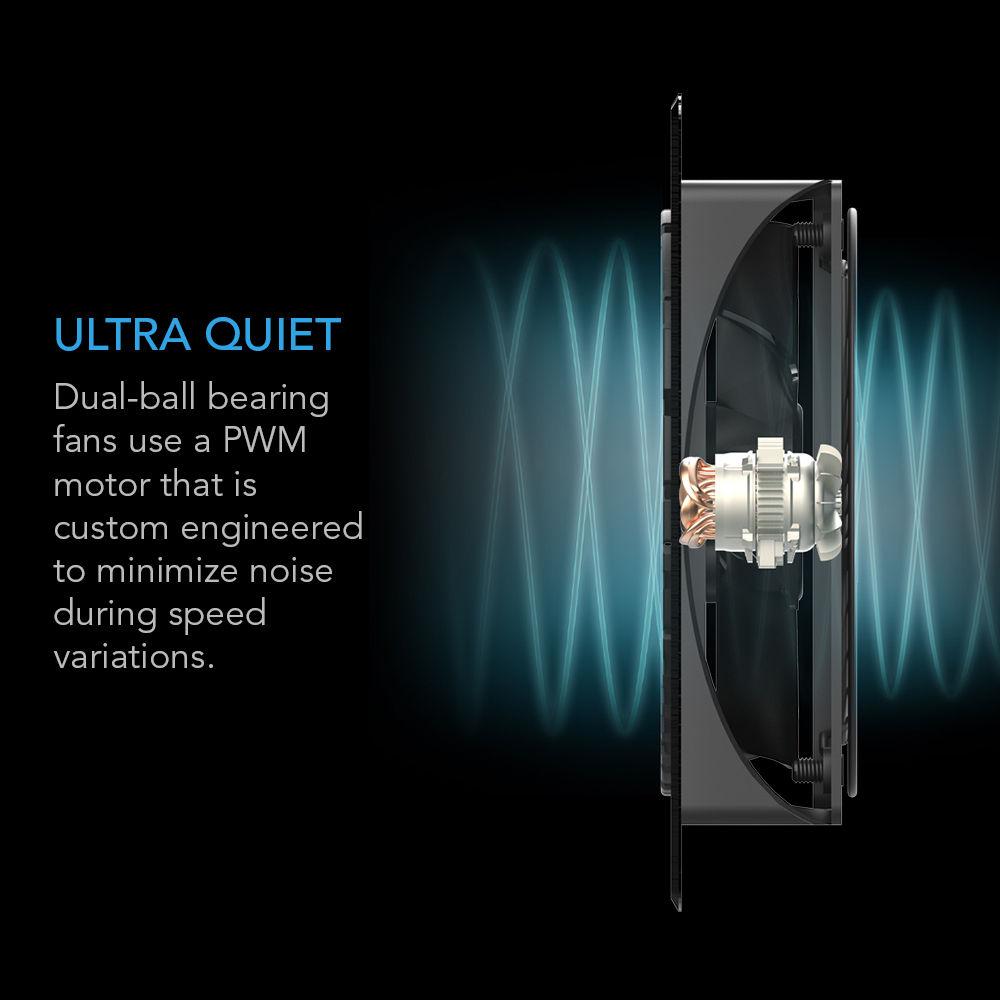

- Designed for cooling cabinets that require minimal noise
- Automated programming that self-adjusts cooling power in response to changing temperatures
- Controller panel with an LCD, alarm system, display lock, six fan speeds, two buffer options, and memory
- Fan and controller contain CNC-machined aluminum frames with a brushed black finish
UPC: 854759004389 In the Box AC Infinity AIRPLATE T7 A/V Cabinet Dual-Fan Cooling System Thermal Probe 4 x Mounting Screw Sets Plastic Stencil USB Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AC Infinity AIRPLATE T7 A V Cabinet Dual-Fan Cooling System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAC Infinity AI-APT7 Specs | Number of Fans | 2 | | Fan Airflow | 104 CFM | | Noise Level | 19 dBA | | Static Pressure | 1 mm H2O | | Fan Bearing | Dual-ball | | Operating Conditions | Temperature: 14 to 230°F (-10 to 110°C)

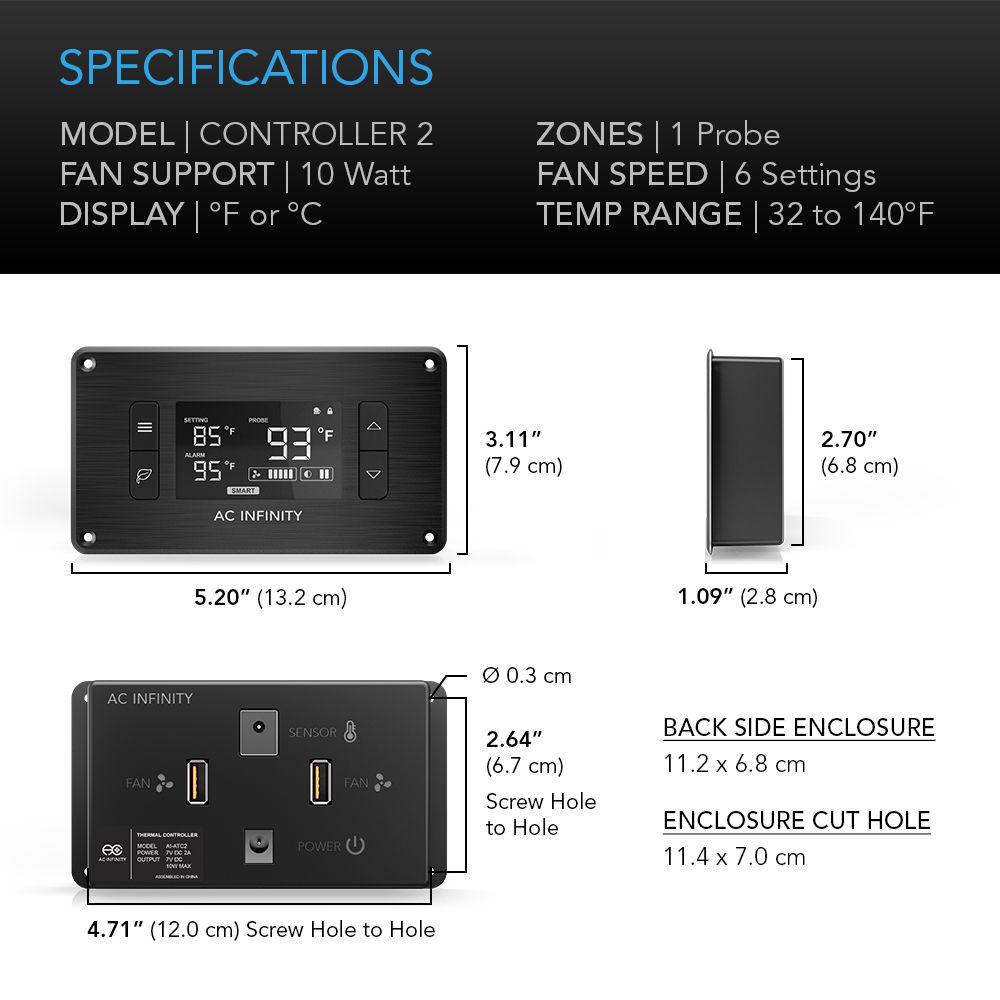

Humidity: 35 to 85% RH | | Operating Voltage | 3 to 7 VDC | | Power | 3.3 W | | Current | 0.66 A | | AC Power Requirements | 100 to 240 VAC | | Display Size | 2.25 x 1.25" (4.7 x 3.2 cm) | | Cord Length | 6' (1.83 m) | | Life Expectancy | L10: 67,000 hours | | Approvals | Fan Quality: UL, CE, TUV, RoHS | | Probe | Length: 6' (1.83 m) | | Controller | Total Dimensions: 5.2 x 3.11 x 1.1" (13.2 x 7.9 x 2.8 cm)

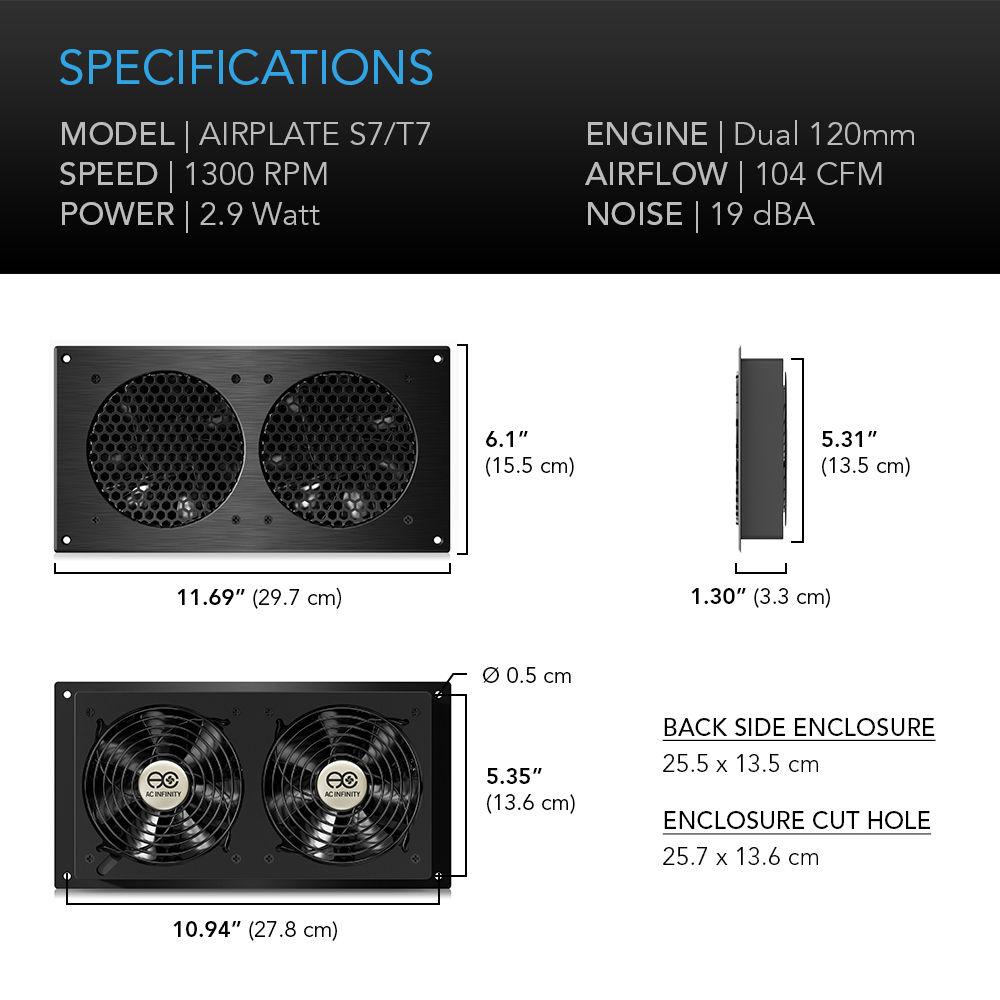

Required Mounting Hole: 4.48 x 2.76" (11.4 x 7 cm) | | Fan Dimensions | Total: 11.7 x 6.1 x 1.3" (29.7 x 15.5 x 3.3 cm)
Required Mounting Hole: 10.12 x 5.35" (25.7 x 13.6 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 19.5 x 7.3 x 2.4" |
