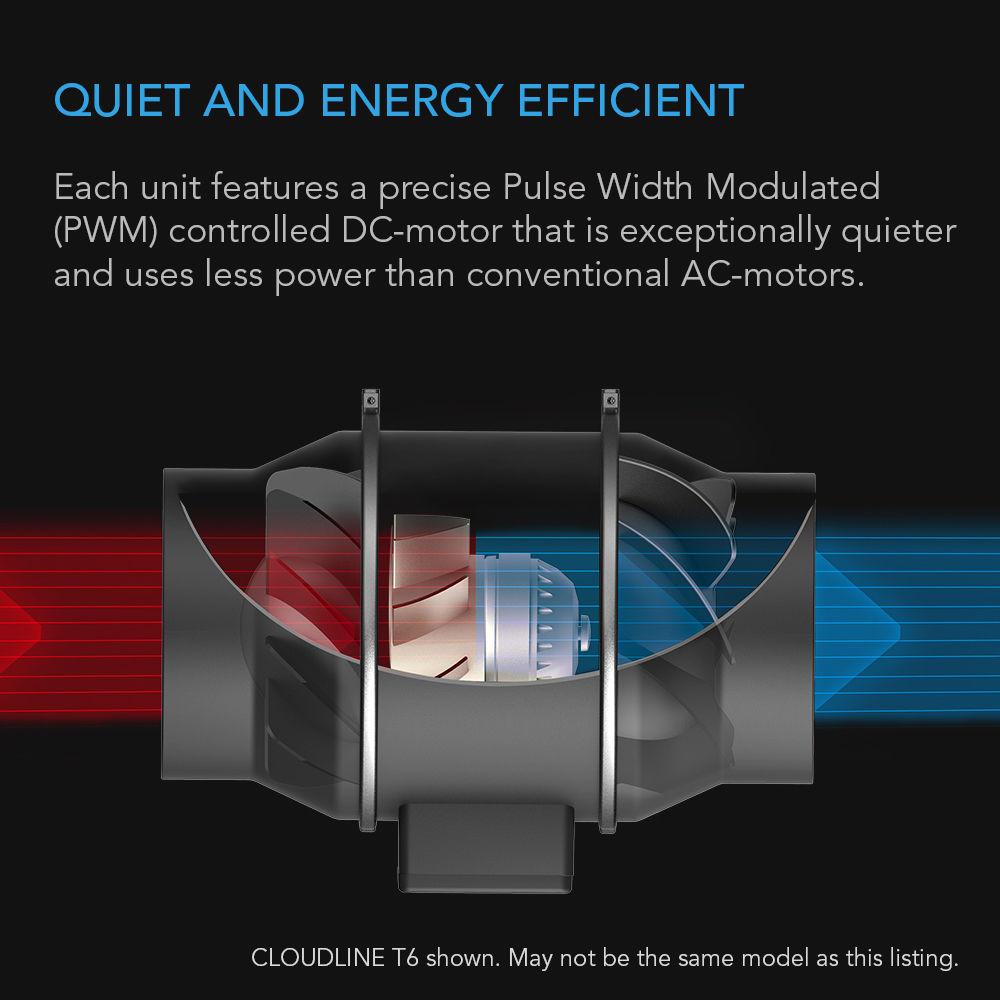

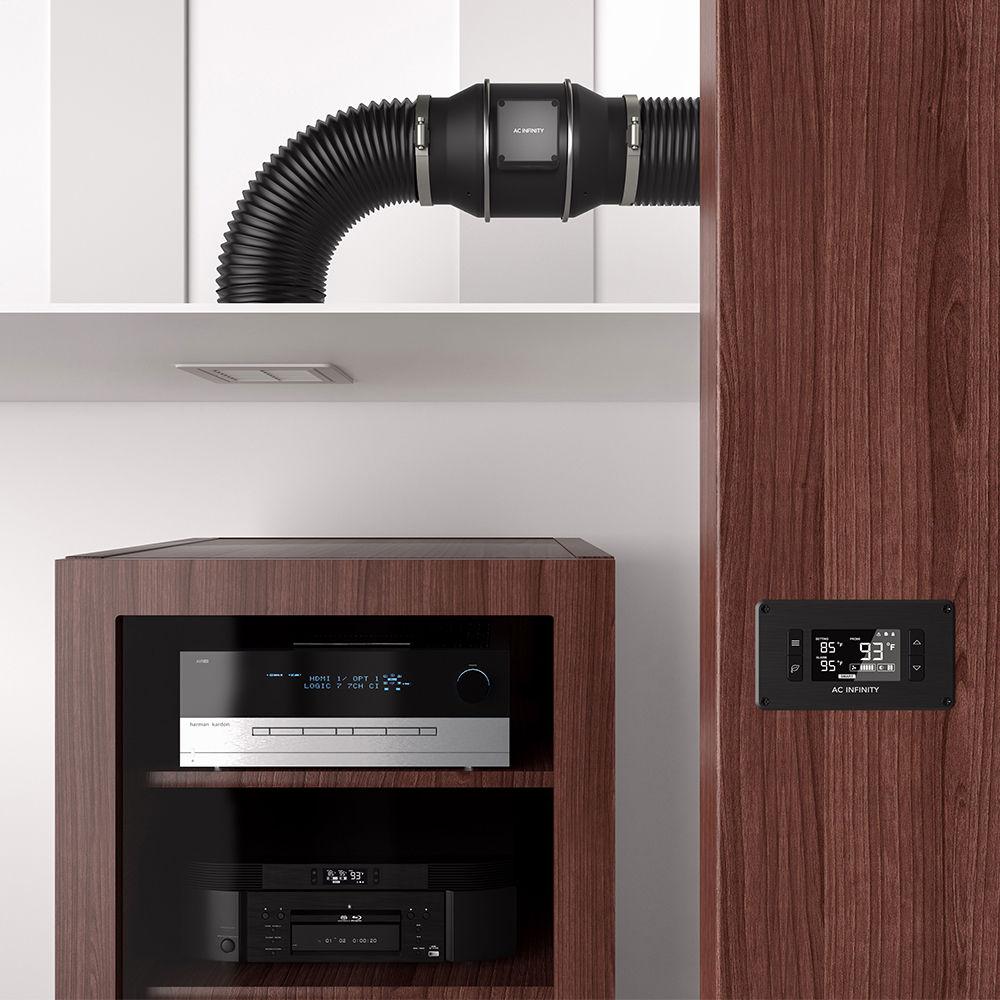

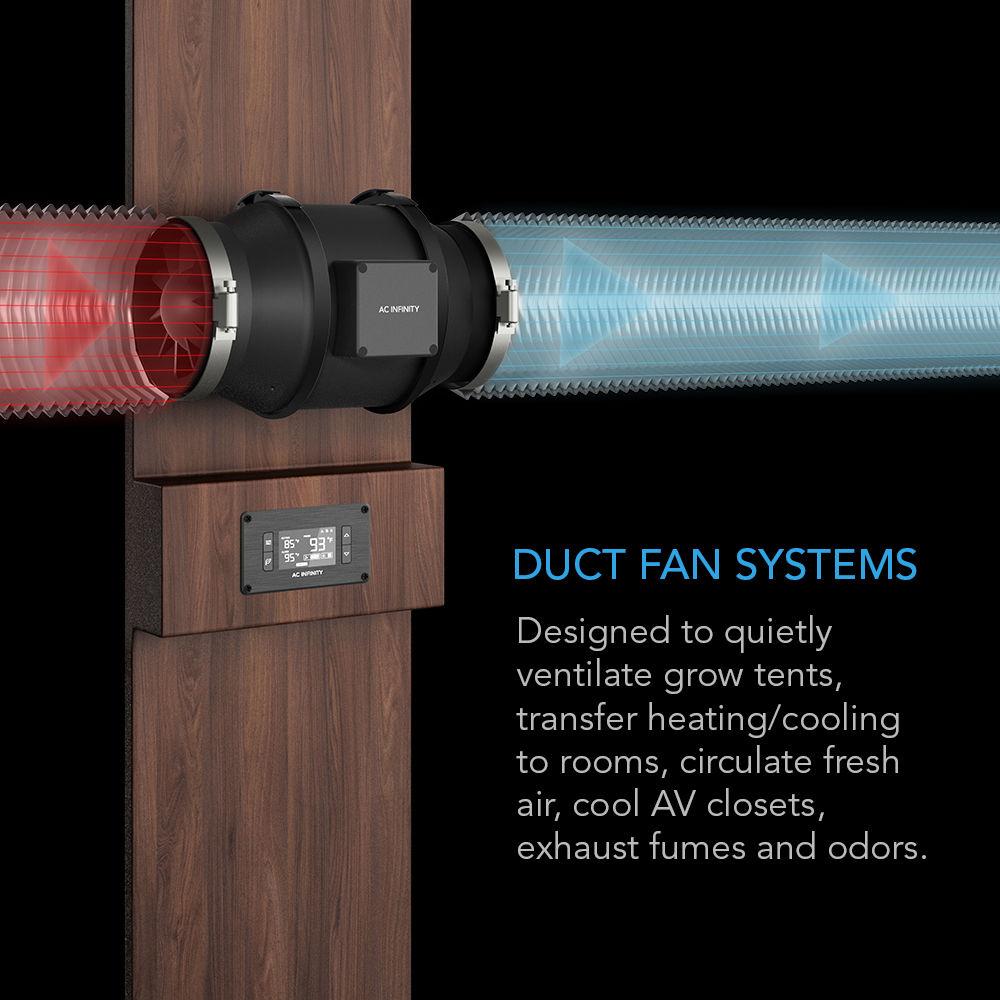

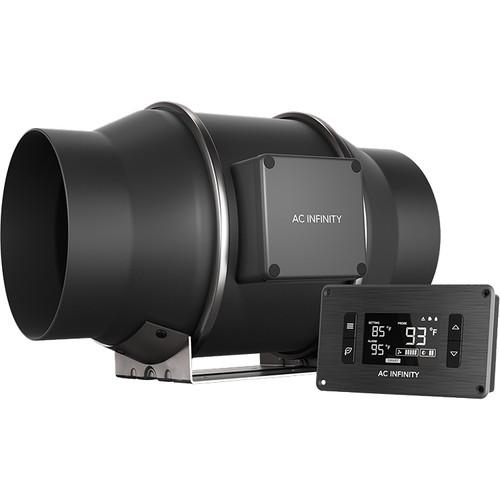

Product description The 6" CLOUDLINE T6 Quiet Duct Fan System from AC Infinity is designed to quietly cool AV equipment rooms and closets, and to ventilate various air circulation and exhaust projects. Featuring an inline mixed-flow design, the duct fan can maintain airflow even in high static pressure applications. The system features a DC motor with PWM control for a quiet and energy efficient performance. The motor box containing the fan's impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. It is IP44 rated, making it highly resistant to dust and liquids, and performs well even in harsh environments.

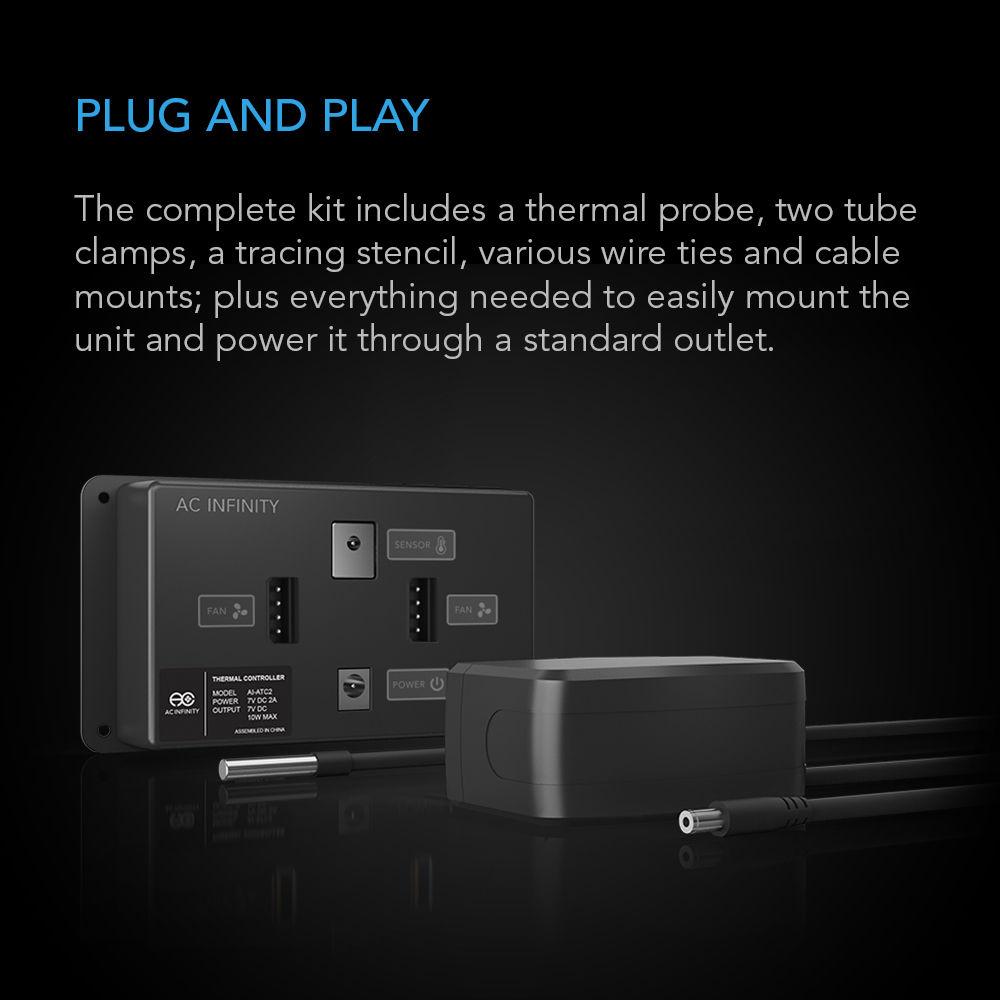

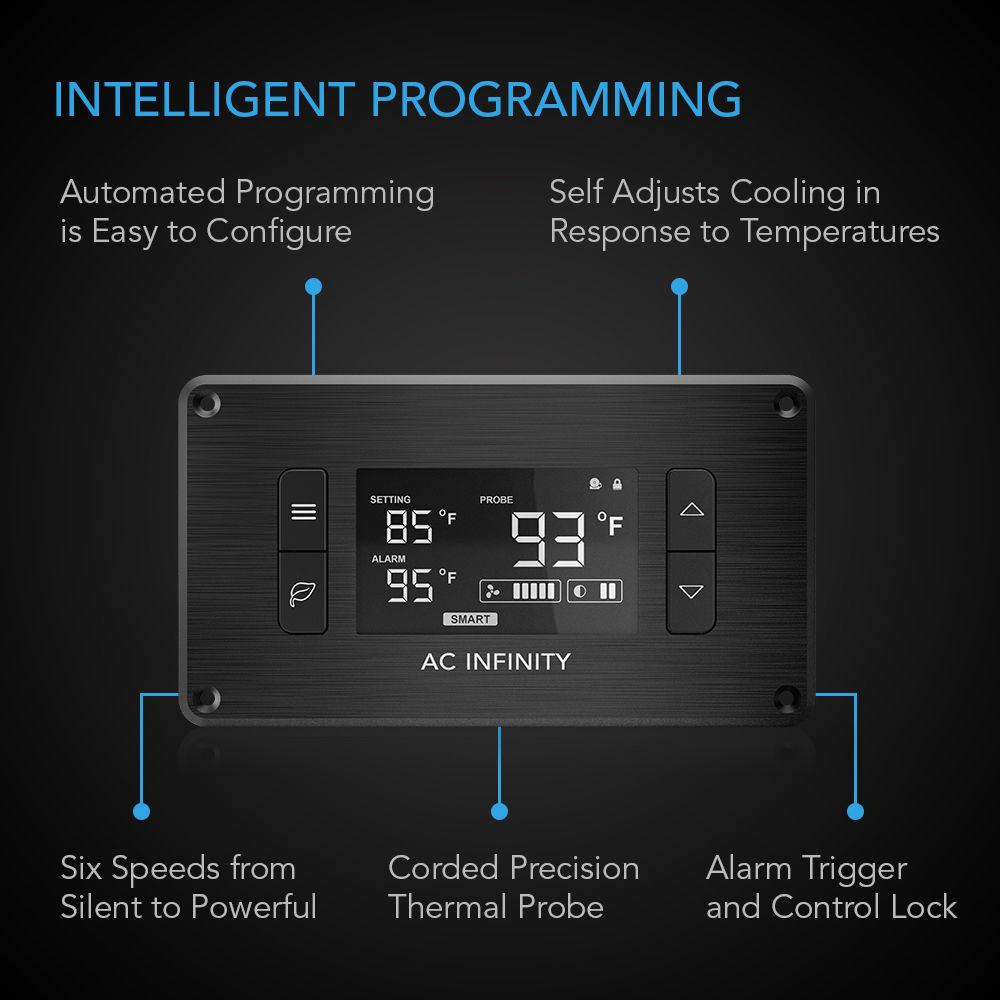

The included intelligent controller features an on-board processor with active temperature monitoring that will automatically adjust fan speeds to respond to varying temperatures. For non-cooling ventilation applications, the controller can provide a readout of the duct fan's speed and status. The programming can be set to run continuously at customizable speeds with easy shut-off and power on-off memory. Additional features include an alarm system, eco-mode, display lock or off while programs are running, three backlight settings, and two buffer options. It also includes a detachable 8' precision thermal probe that is water resistant. UPC: 854759004792 In the Box AC Infinity CLOUDLINE T6 Quiet Inline Mixed-Flow Duct Fan System (6") Thermal Controller Corded Thermal Probe 2 x Duct Clamps AC Plug Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AC Infinity CLOUDLINE T6 Quiet Inline Mixed-Flow Duct Fan System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

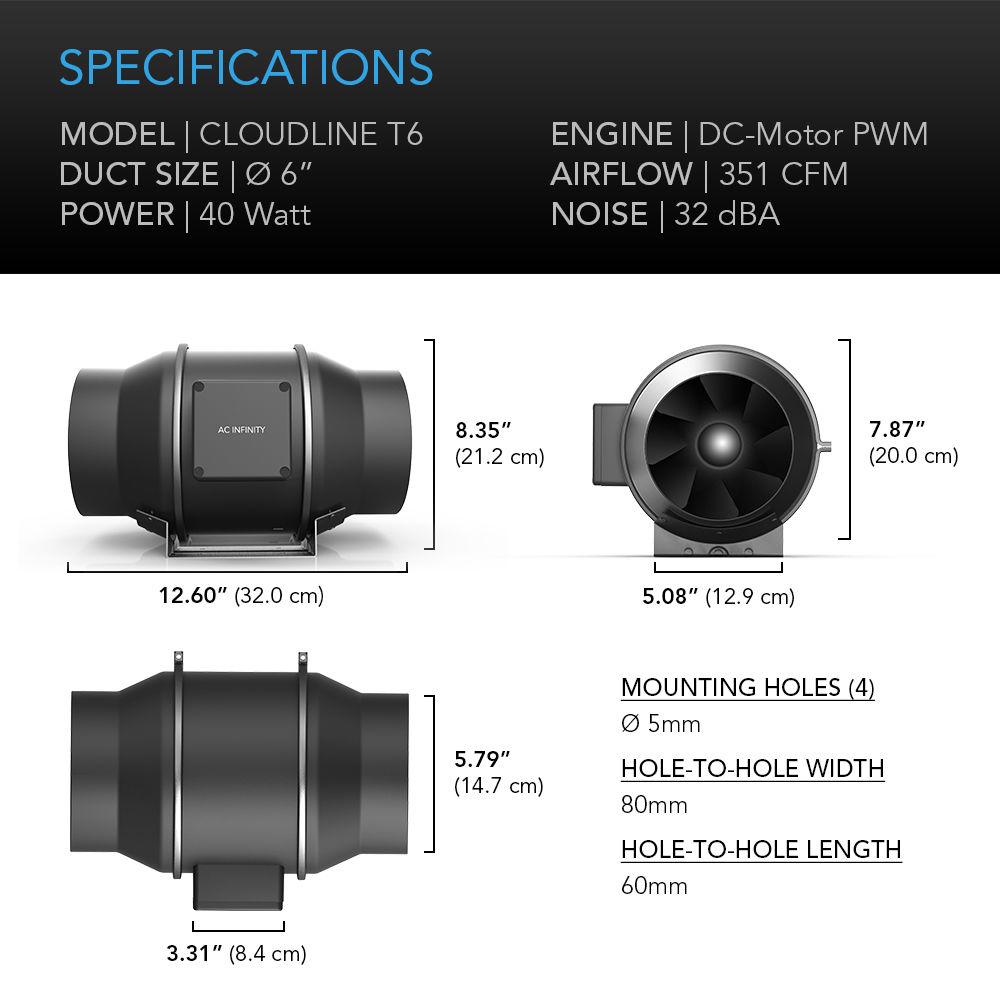

Technical parametersAC Infinity Cloudline T6 Specs | | | Size | 6" (15.2 cm) | | Airflow | 351 CFM | | Noise | 32 dBA | | Static Pressure | 300 Pa | | Operating Voltage | 24 VDC | | Power | 40 W | | Current | 1.67 A | | AC Adapter Input | 100 to 240 VAC | | Operating Temperature | 14 to 230°F (-10 to 110°C) | | Operating Humidity | 35 to 85% RH | | Ingress Protection | IP44 | | Fan Bearing | Dual ball | | Life Expectancy | 67,000 hours | | Approvals | UL, CE, TUV, RoHS | | Mounting Hole | Hole-to-Hole Distance: 3.15 x 2.36" (8.0 x 6.0 cm)

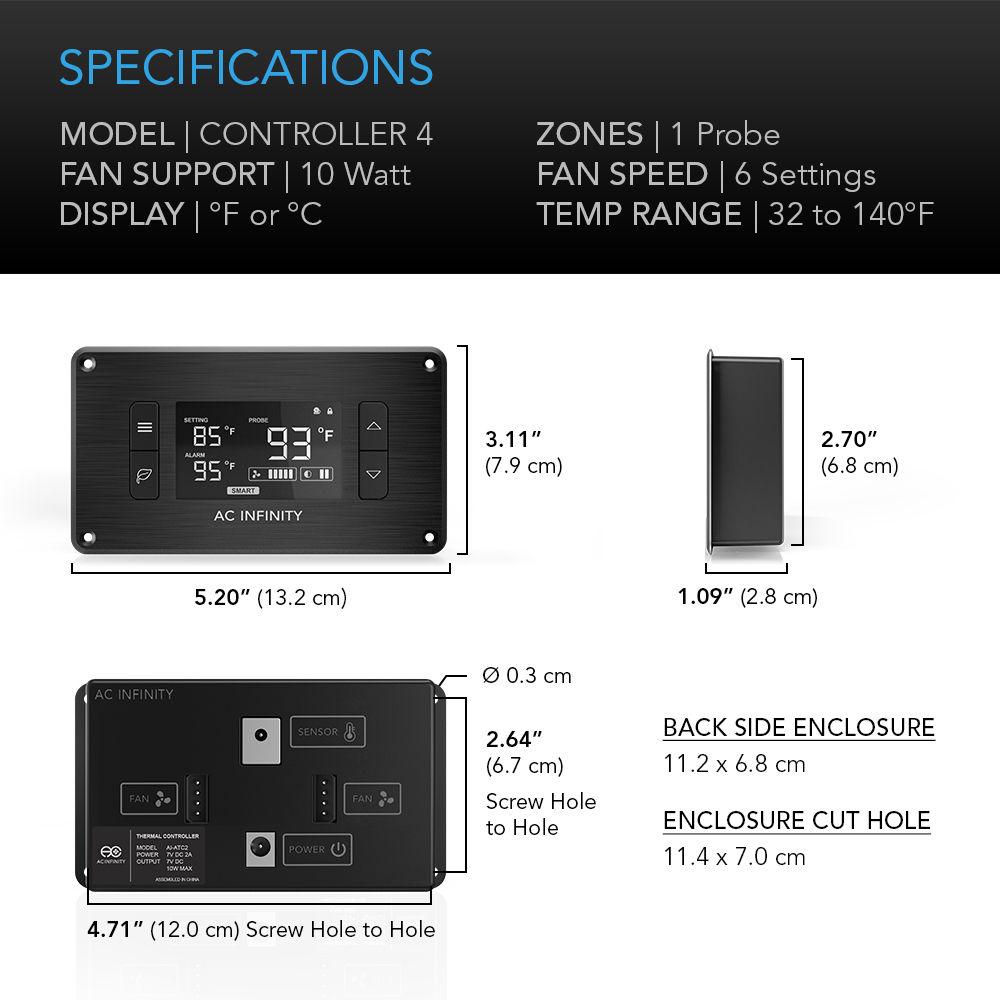

Screw Hole Size: ⌀ 0.236" (⌀ 0.6 cm) | | Cord Length | 12' (3.7 m) | | Dimensions | 7.87 x 12.60 x 8.35" (21.2 x 32.0 x 20.0 cm) | | | | Display Size | 2.25 x 1.25" (4.7 x 3.2 cm) | | Cord Length | 6' (1.8 m) | | Thermal Sensor | Thermal Probe Length: 8' (2.4 m) | | Mounting | Required Mounting Hole: 4.48 x 2.76" (11.4 x 7.0 cm)
Hole to Hole Distance: 4.71 x 2.64" (12.0 x 6.7 cm)
Screw Hole Size: ⌀ 0.157" (⌀ 0.4 cm) | | Dimensions | 5.20 x 3.11 x 1.10" (13.2 x 7.9 x 2.8 cm)
Backside Enclosure: 4.41 x 2.68" (11.2 x 6.8 cm) | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 13.9 x 11.9 x 10.6" |
