Product description

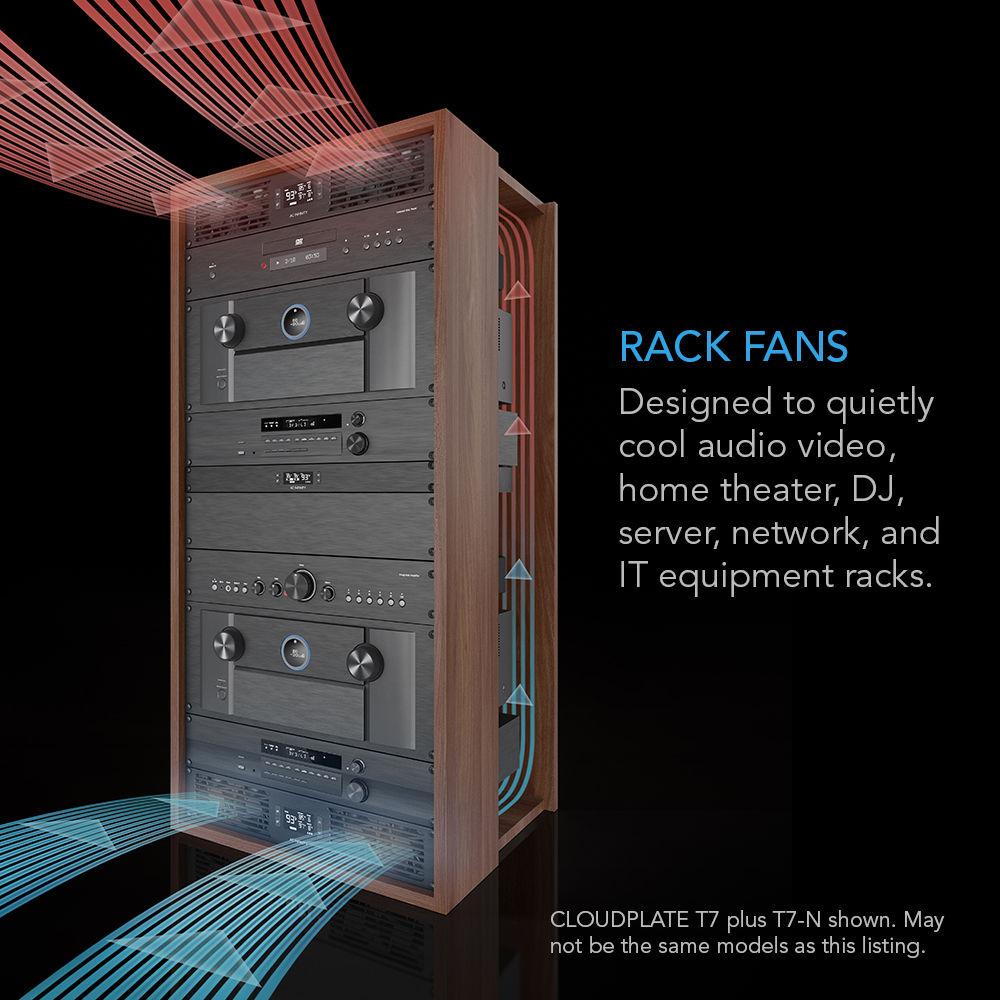

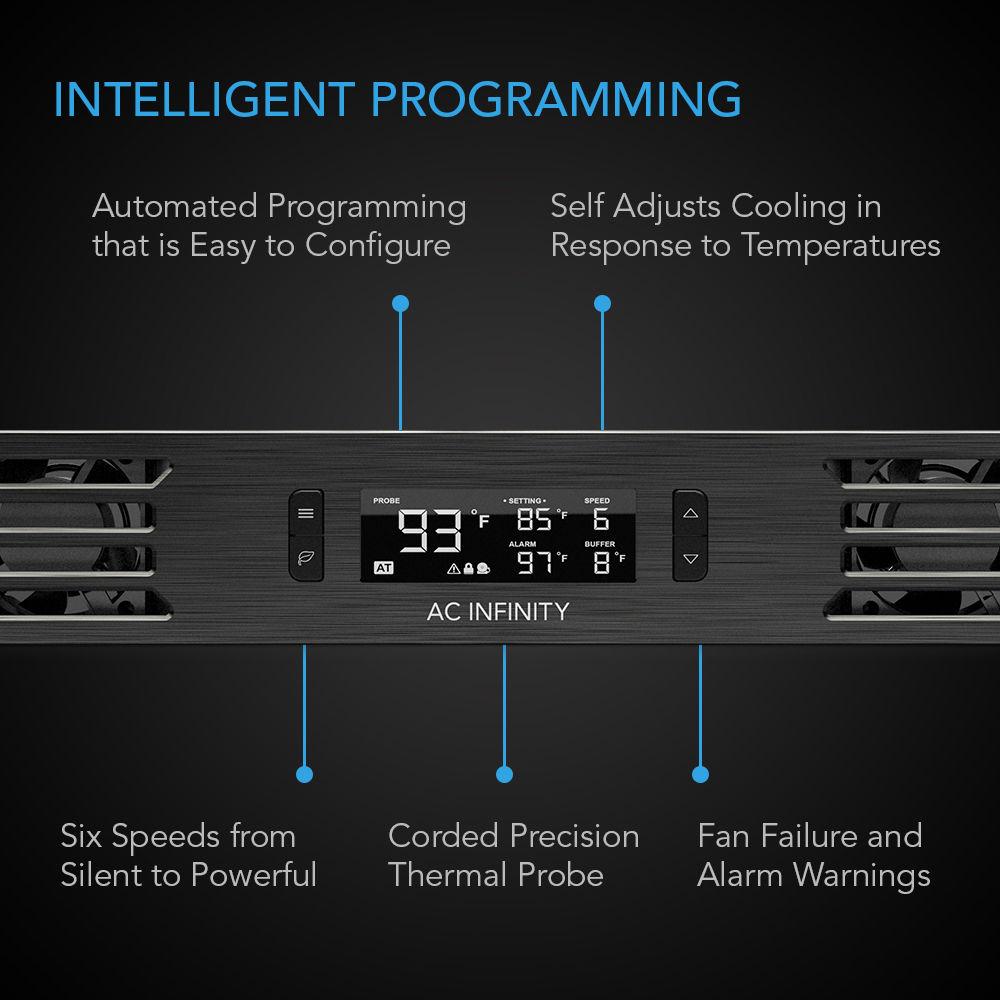

The CLOUDPLATE T1 Quiet Rack Cooling Fan System from AC Infinity is designed for cooling audio/video, DJ, server, network, and IT equipment 19" racks. The system maintains an optimal temperature for rackmount equipment by preventing overheating, ensuring constant performance, and extending their lifespan. An LCD digital controller features a programmable thermostat with automated speed control, alarm warnings, status alerts, and backup memory.

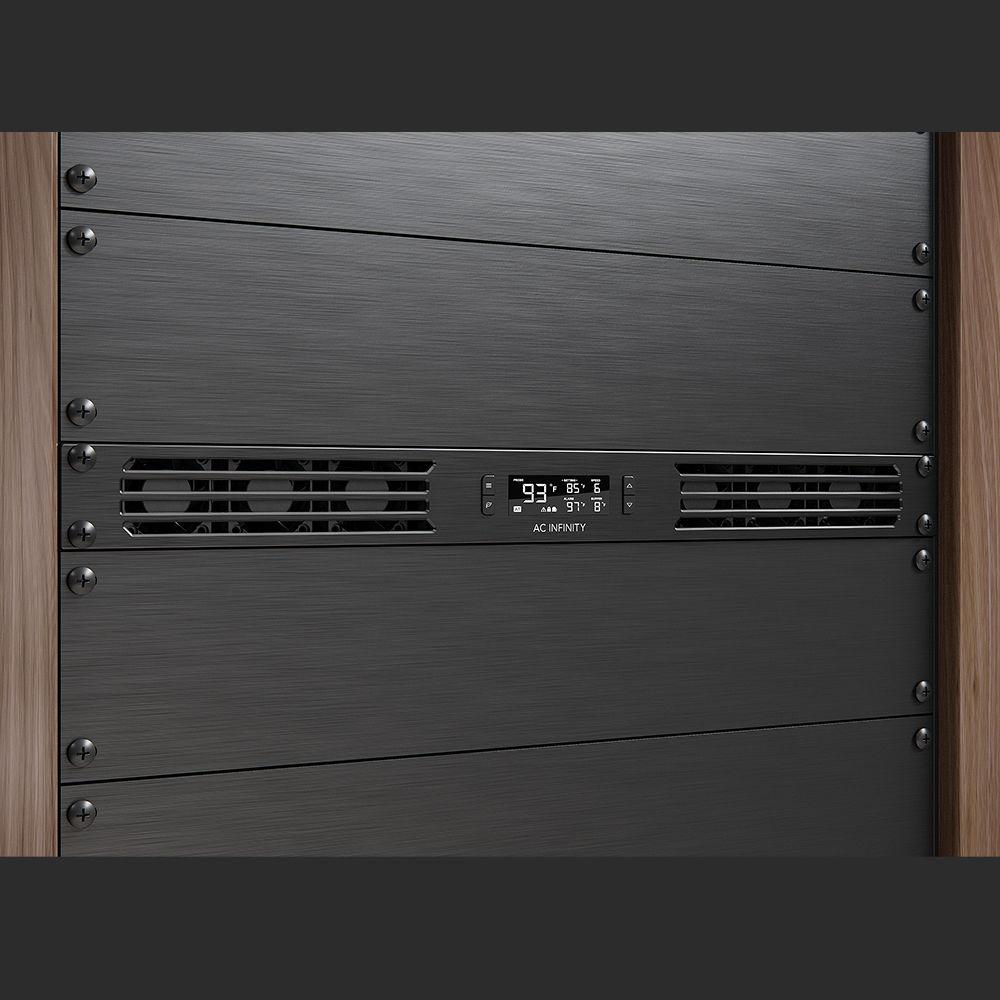

The fans are set to exhaust out heated air and should be positioned near the top of the rack. Programming includes an easy-to-use thermostat and a SMART mode that automatically adjusts the fan's speed to react to varying temperatures. Additional features include alarm alerts, fan failure triggers, power savings setting, display lock, and backup memory. Six fan speeds are available with three screen brightness settings.
  • Fan speed control
  • Up to 8 dBA noise level
  • Anodized aluminum frame with CNC-machined detailing

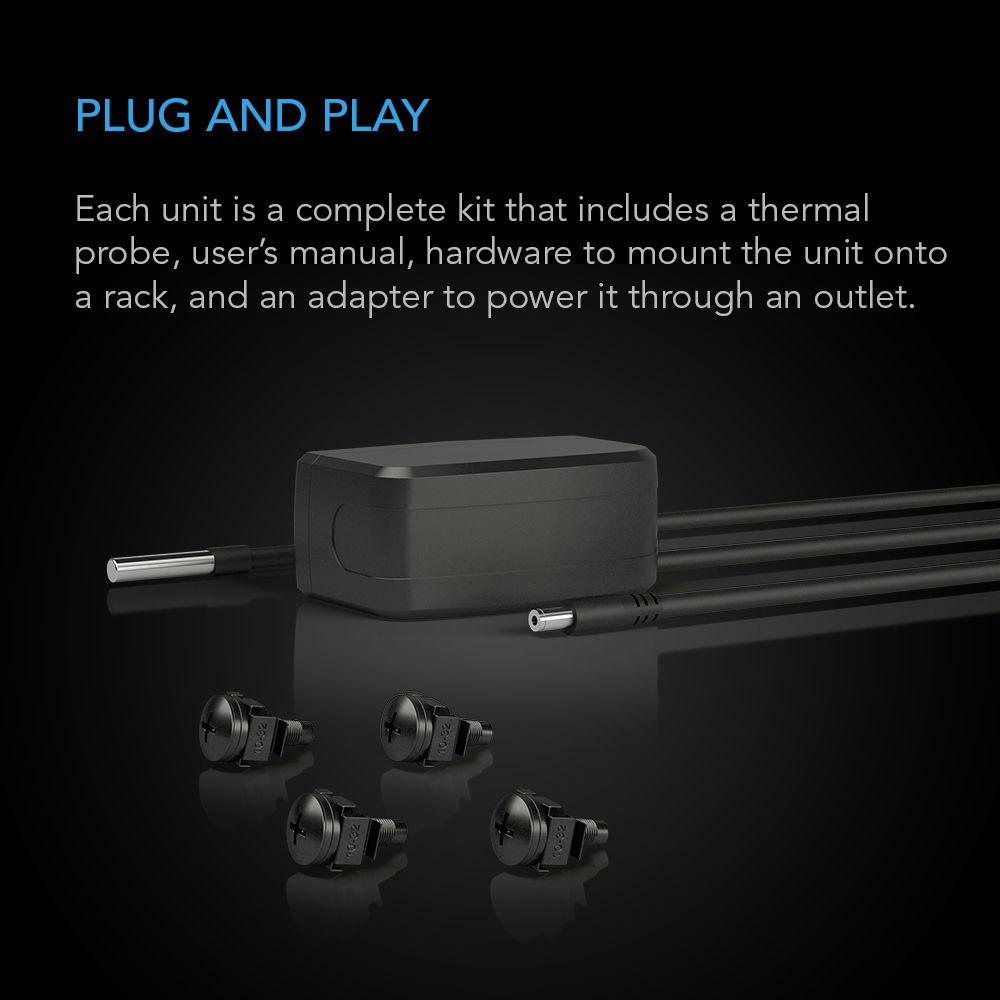

UPC: 854759004976 In the Box AC Infinity CLOUDPLATE T1 Quiet Rack Cooling Fan System (1 RU, Exhaust)
  • Thermal Probe
  • 4 x Mounting Screws
  • Zip Ties
  • Power Adapter
  • Limited 2-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the AC Infinity CLOUDPLATE T1 Quiet Rack Cooling Fan System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

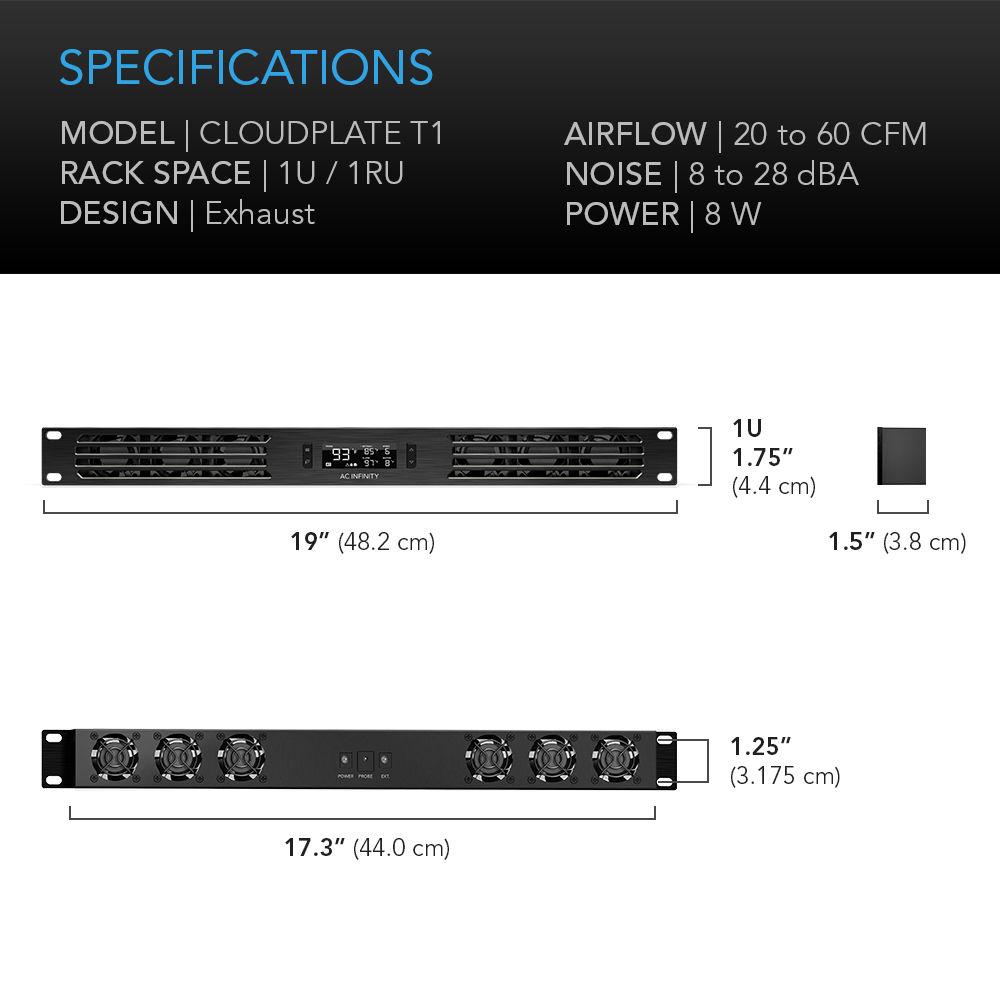

    AC Infinity Cloudplate T1 Specs

    Design Exhaust
    Airflow 20 to 60 CFM
    Noise 8 to 28 dBA
    Static Pressure 2.56 mm/H2O
    Operating Voltage 12 VDC
    Power 8 W
    Current 0.67 A
    Power Input 100 to 240 VAC

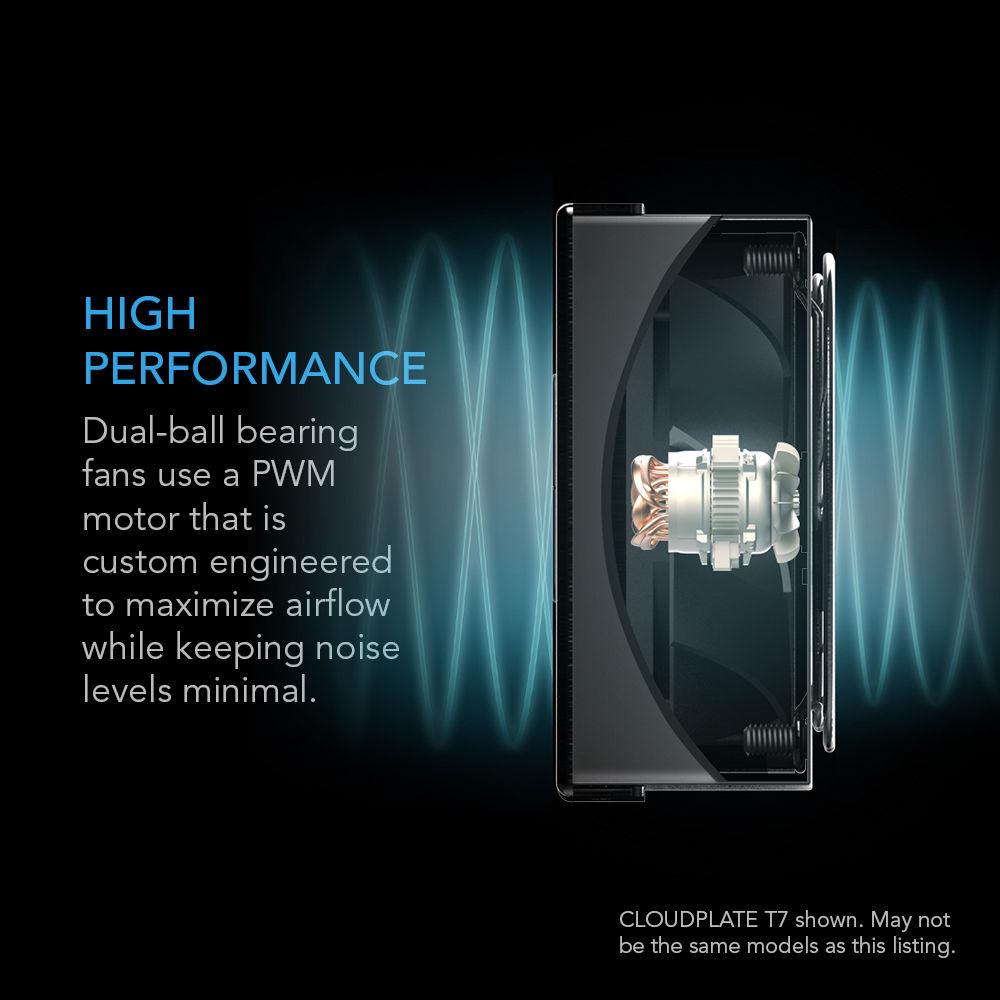

    Fan Bearing Dual Ball
    Life Expectancy 67,000 Hours
    Operating Temperature 14 to 230°F / -10 to 110°C
    Operating Humidity 35 to 85%
    Approvals CE, RoHS
    Rack Mount 1 RU
    Hole Size ⌀0.24 x 0.35" / ⌀6.1 x 9.0 mm Onboard
    Hole to Hole Distance: 18.2 x 1.3" / 46.4 x 3.2 cm
    Display Size 2.25 x 0.75" / 4.7 x 1.9 cm
    Probe 6' / 1.8 m
    Cord Length 6' / 1.8 m
    Dimensions 19.0 x 1.8 x 1.5" / 48.2 x 4.4 x 3.8 cm
    Package Weight 2.75 lb
    Box Dimensions (LxWxH) 22.9 x 4.6 x 2.1"
