User Manual for AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System

Click to enlarge the picture
AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System Contents of the user manual for the AC Infinity CLOUDPLATE T7-N Rackmount Cooling
  • Product category: Rack Fans AC Infinity
  • Brand: AC Infinity
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AC Infinity Rack Fans

AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System
User manual for the AC Infinity CLOUDPLATE T7-N Rackmount Cooling contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AC Infinity product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AC Infinity user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AC Infinity product will considerably shorten its lifespan!



Product description

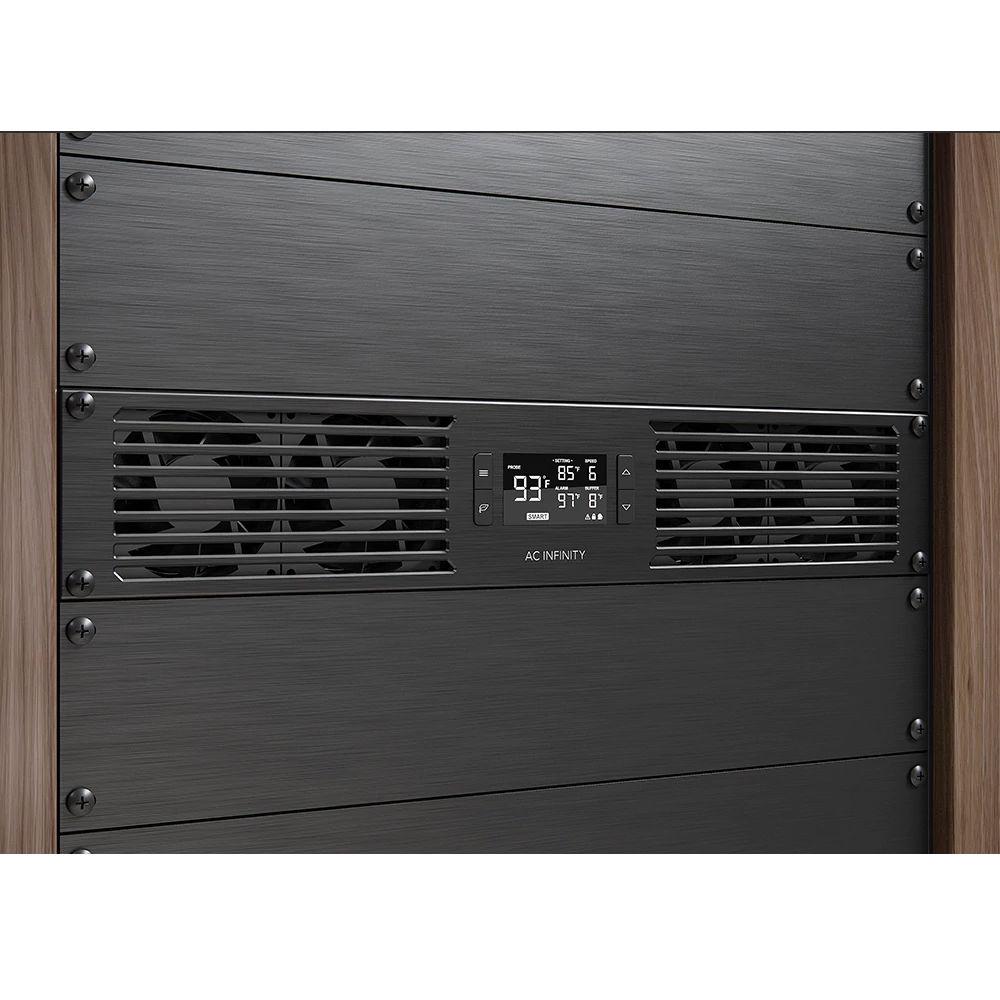

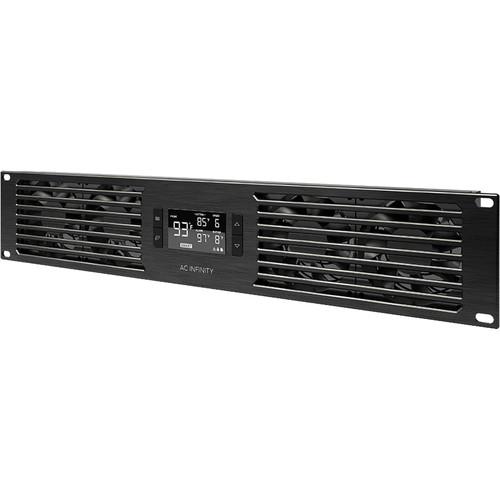

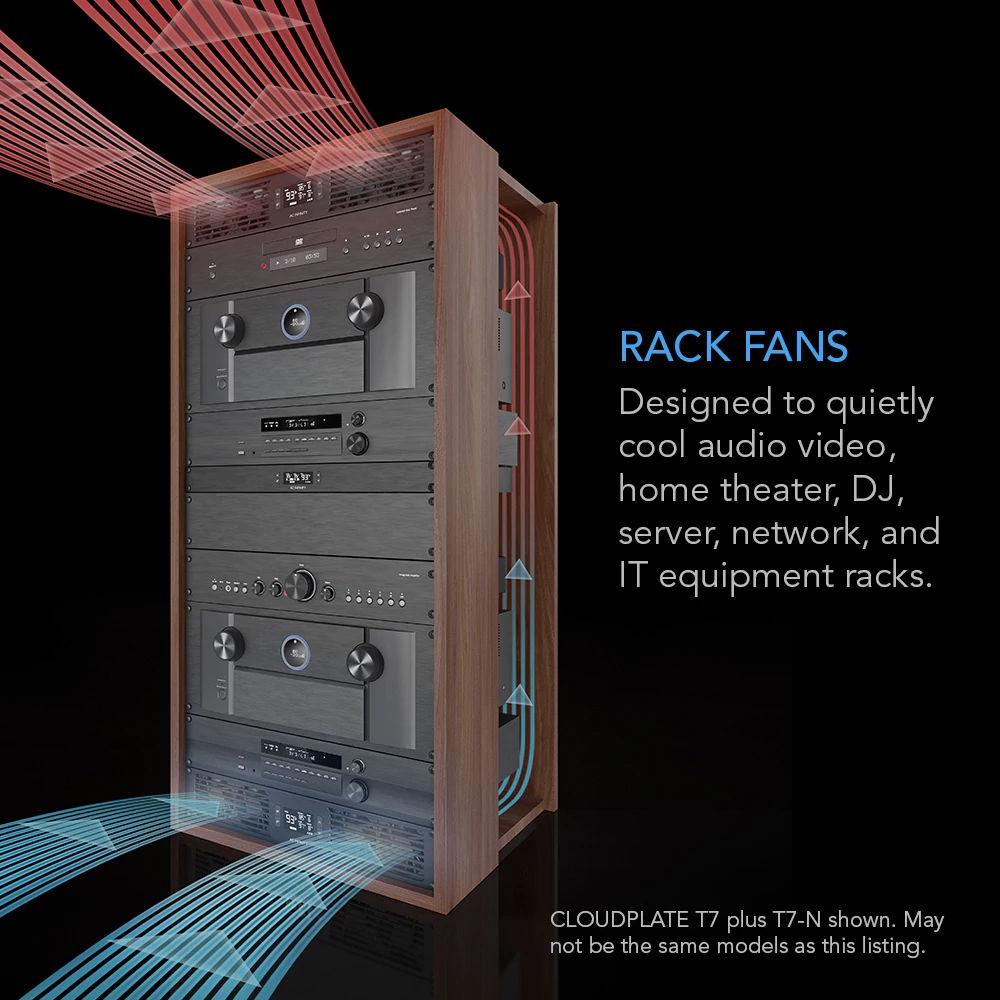

Just in Time for Summer, AC Infinity Keeps Our A/V Components Cool Read More The CLOUDPLATE T7-N from AC Infinity is a rackmount cooling fan system designed for use in server, network, and IT racks where higher noise levels are accepted. It uses 2 RU of space and can be mounted in most 19" racks.Featuring a solid-aluminum enclosure and three fans, the CLOUDPLATE T7-N is intended for heavy-duty use. Its three dual-ball-bearing fans, engineered to reduce noise, are certified by UL, CE, TUV, and RoHS. A backlit LCD screen displays the temperature every second, courtesy of the on-board digital processor. Program the thermostat and fan speed to desired settings, or use SMART energy mode, which automatically adjusts fan speed in response to surrounding temperatures.With an airflow rating of 50 to 220 CFM, the CLOUDPLATE T7-N can cool most racks. It may be used in control rooms, home theaters, or machine rooms, due to a noise level of 10 to 36 dBA. Rackmount screws, cage nuts, a corded thermal probe, and a 12 VDC power supply are included.
    • 2-RU fan system efficiently cools 19" racks
    • Temperature-monitoring in Fahrenheit or Celsius
    • Backlit LCD screen
    • Digital processor with backup memory

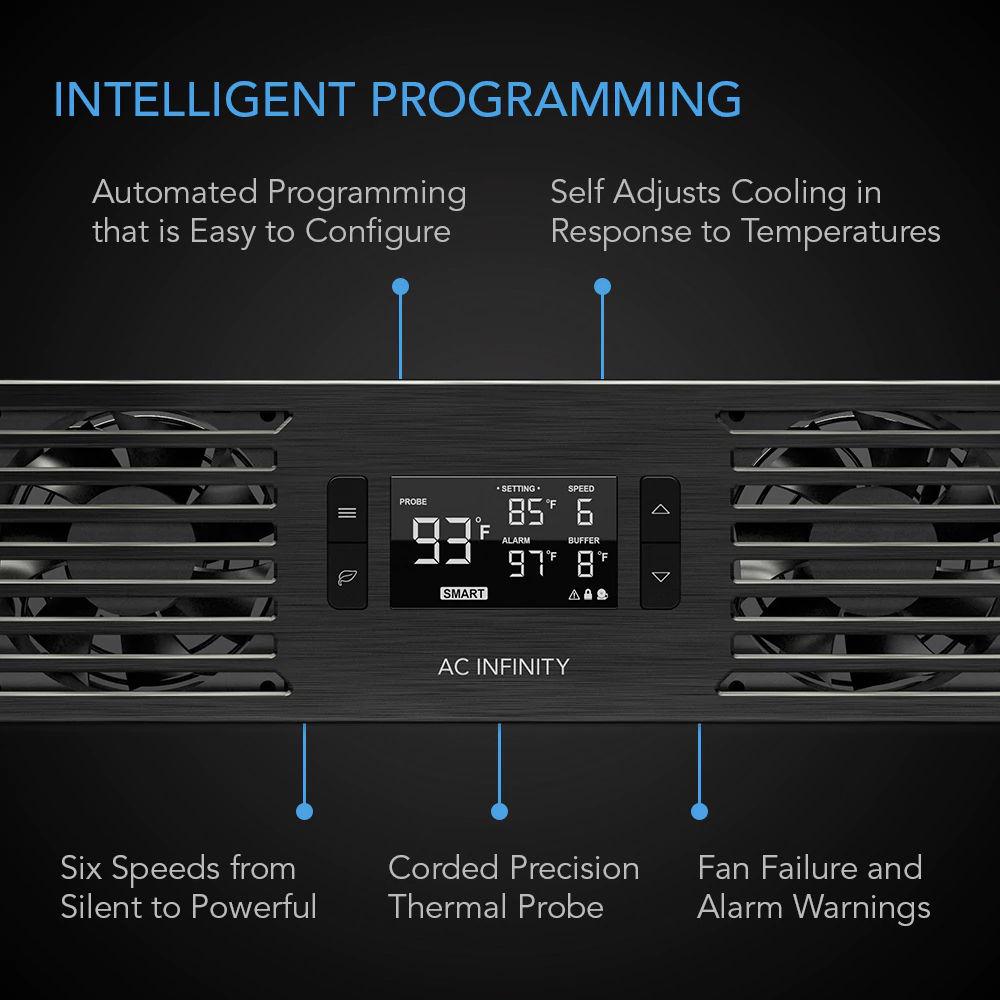

    • Thermostat and speed control
    • SMART energy mode adjusts fan speed in response to surrounding temperatures
    • Six selectable fan speeds
    • Three screen brightness settings
    • Alarm alerts and fan failure triggers
    • Power saving setting
    • Display lock

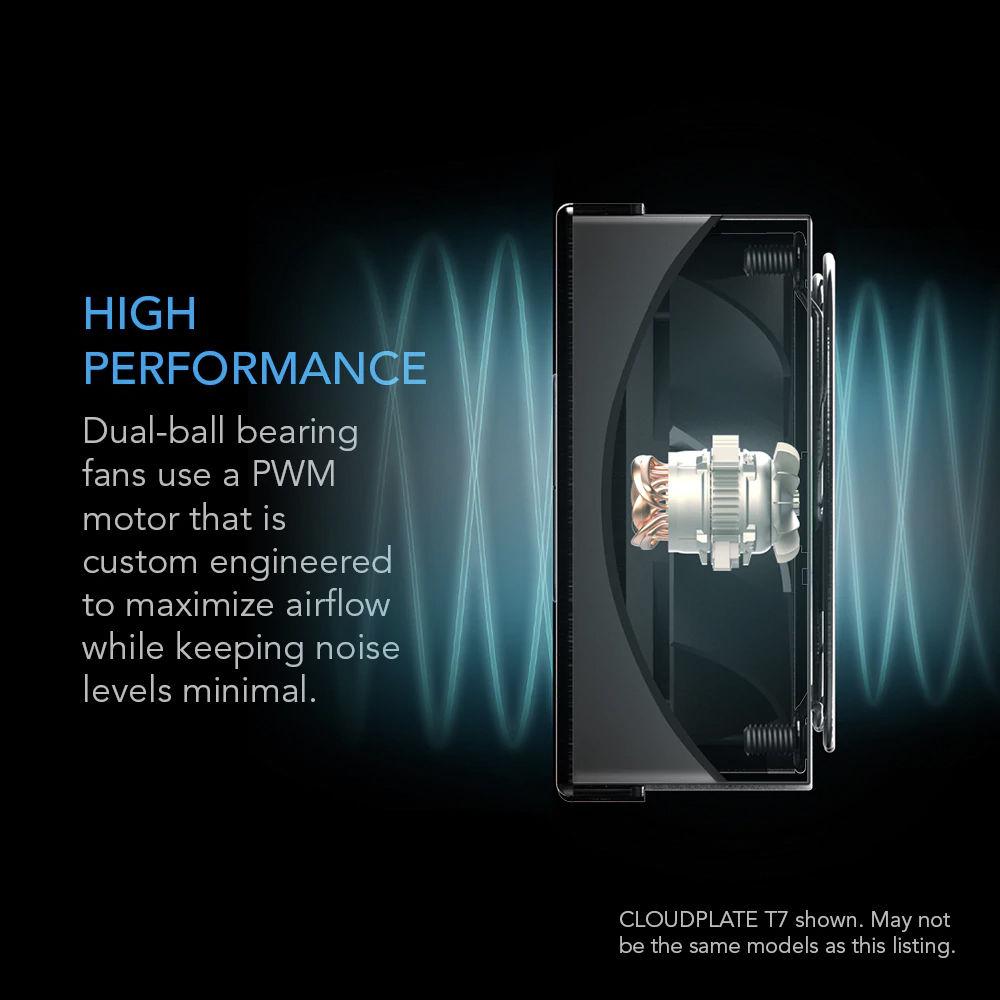

    • 3 x dual-ball-bearing fans certified by UL, CE, TUV, and RoHS
    • 10 to 36 dBA noise level
    • 50 to 220 CFM airflow
    • Solid-aluminum construction

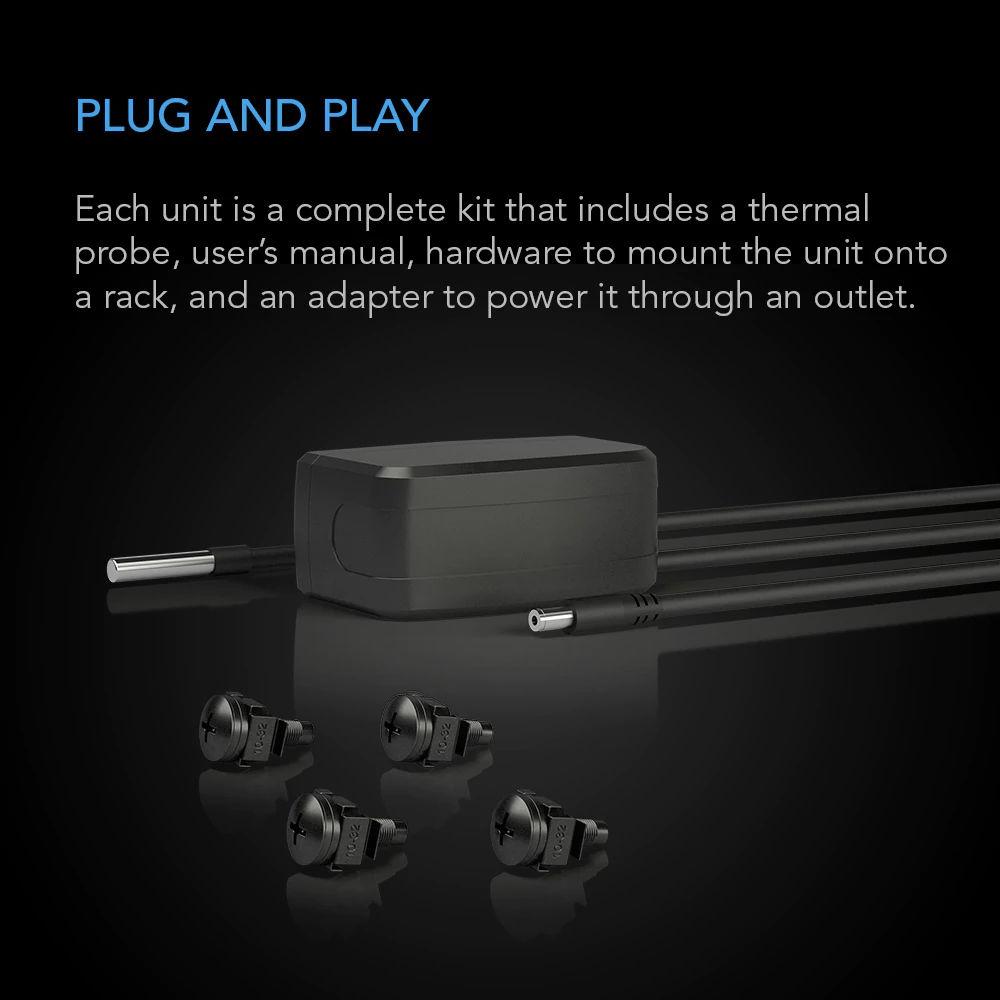

    • Includes power supply, probe, rackmount screws, and cage nuts
UPC: 854759004518 In the Box AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System
  • 12 VDC Power Supply
  • Corded Thermal Probe
  • Rackmount Screw Set
  • Cage Nut Set
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AC Infinity CLOUDPLATE T7-N Rackmount Cooling Fan System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AC Infinity CLOUDPLATE X7 Specs

    Air Flow 50 to 220 CFM
    Noise Level 10 to 36 dBA
    Static Pressure 2.56 mm-H2O
    Operating Voltage 12 VDC
    Wall Adapter Input: 100 to 240 VAC
    Power 10 W
    Current 0.83 A
    Operating Humidity 35 to 85% RH
    Operating Temperature 14 to 230° F / -9 to 110° C
    Fan Bearing Type Dual ball
    Life Expectancy 67,000 hours (L10)
    Approvals Fan Quality: UL, CE, TUV, RoHS
    Rack Size 2 RU
    Mounting Screw Holes 0.2 x 0.4" / 6.1 x 9.0 mm
    Mounting Hole Spacing W x H = 18.3 x 3.0" / 46.4 x 7.7 cm
    Display Size W x H = 2.3 x 1.3" / 5.8 x 3.2 cm
    Probe Length = 72" / 182.9 cm
    Cord Length 72" / 182.9 cm
    Enclosure Material Solid aluminum
    Dimensions (W × H × D) 19.0 x 3.5 x 1.5" / 48.3 x 8.9 x 3.8 cm
    Package Weight 4.0 lb
    Box Dimensions (LxWxH) 25.0 x 5.6 x 1.8"
