User Manual for AC Infinity CLOUDPLATE T7 Rackmount Cooling Fan System Click to enlarge the picture
Contents of the user manual for the AC Infinity CLOUDPLATE T7 Rackmount Cooling
- Product category: Rack Fans AC Infinity
- Brand: AC Infinity
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AC Infinity Rack Fans
|
User manual for the AC Infinity CLOUDPLATE T7 Rackmount Cooling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AC Infinity product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AC Infinity user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AC Infinity product will considerably shorten its lifespan!
|

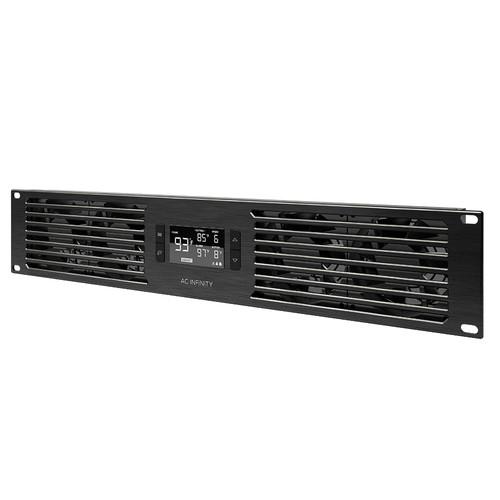

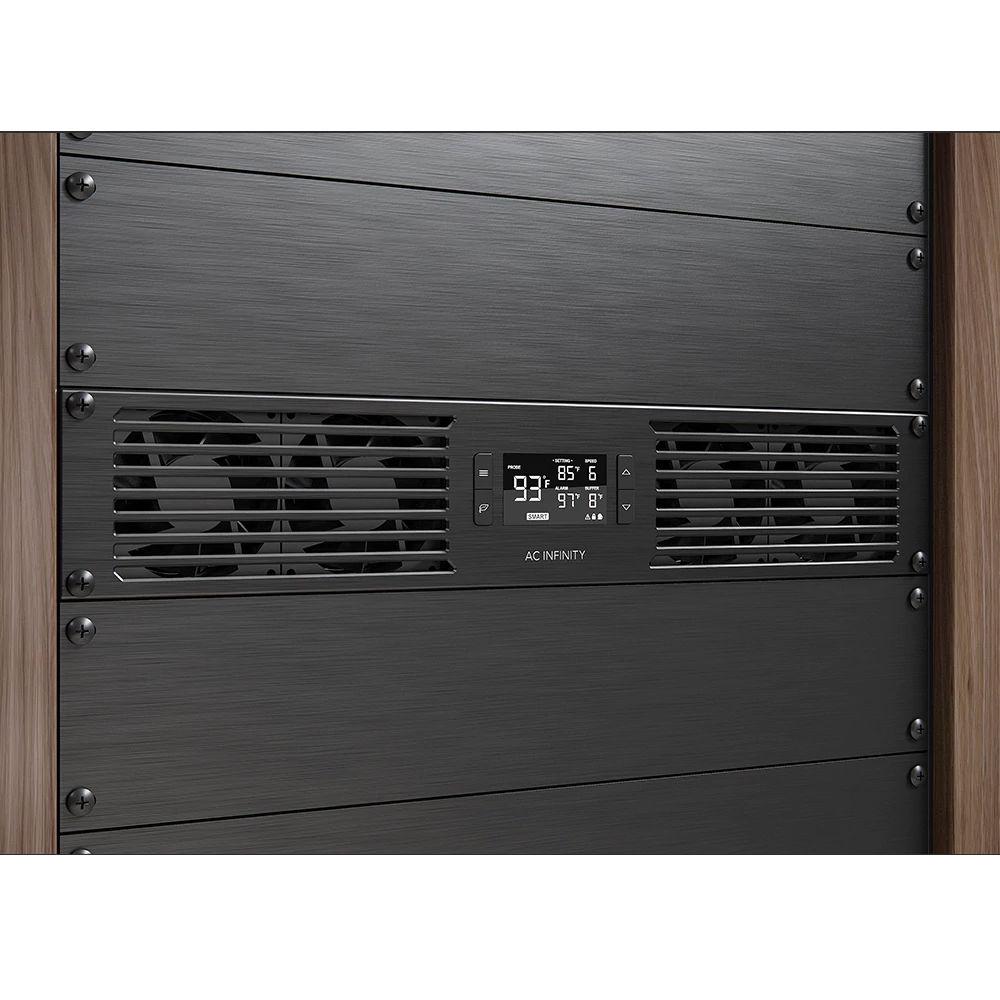

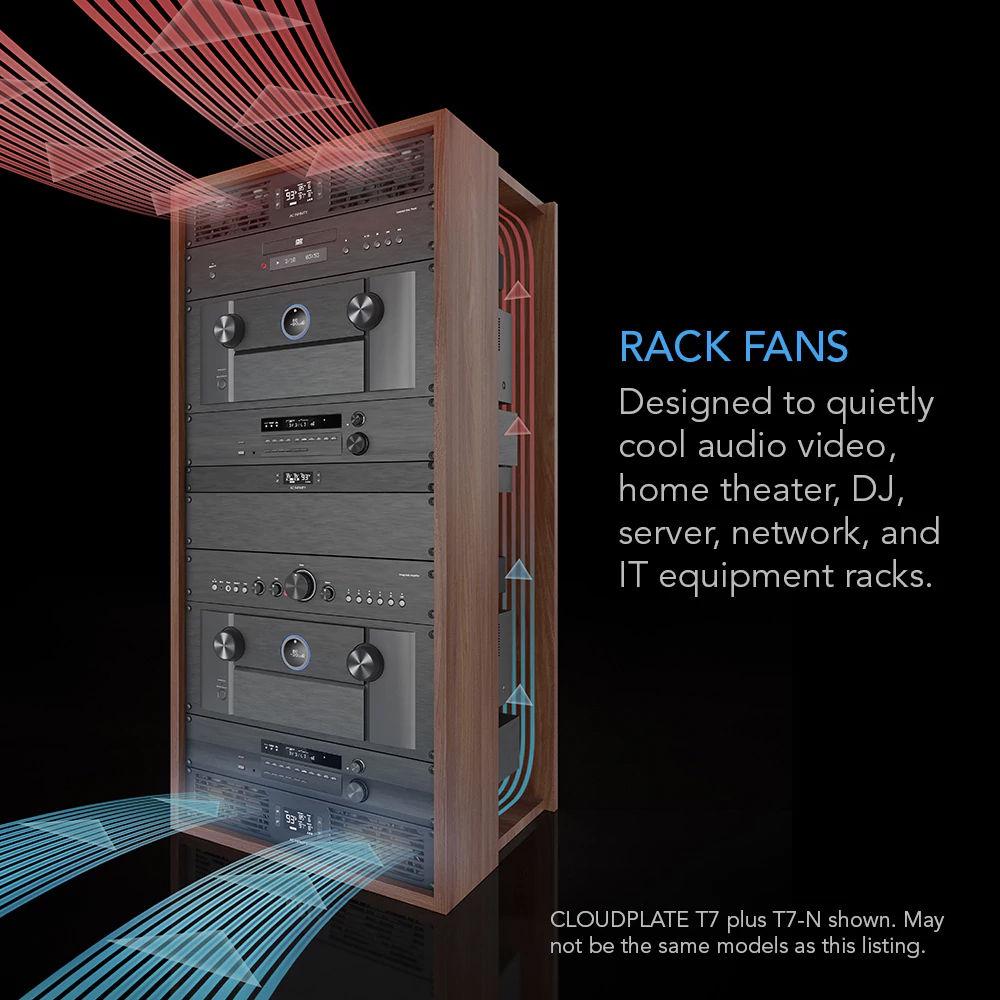

Product description Just in Time for Summer, AC Infinity Keeps Our A/V Components Cool Read More The CLOUDPLATE T7 from AC Infinity is a rackmount cooling fan system designed for use in home theater, studio, and AV racks where low noise levels are required. It uses 2 RU of space and can be mounted in most 19" racks.Featuring an anodized aluminum enclosure and three fans, the CLOUDPLATE T7 is intended for medium-duty use. Its three dual-ball-bearing fans, engineered to reduce noise, are certified by UL, CE, TUV, and RoHS. An LCD screen displays the temperature, fan speed, and more. Program the thermostat and fan speed to desired settings, or use SMART energy mode, which automatically adjusts fan speed in response to surrounding temperatures.With an airflow rating of 50 to 220 CFM, the CLOUDPLATE T7 can cool most racks found in homes, classrooms, offices, and recording studios. It can be used in spaces without dedicated equipment rooms, due to its low noise level of 10 to 36 dBA. Screw sets, a thermal probe, and a 12 VDC power supply are included. -
- 2 RU fan system efficiently cools 19" racks

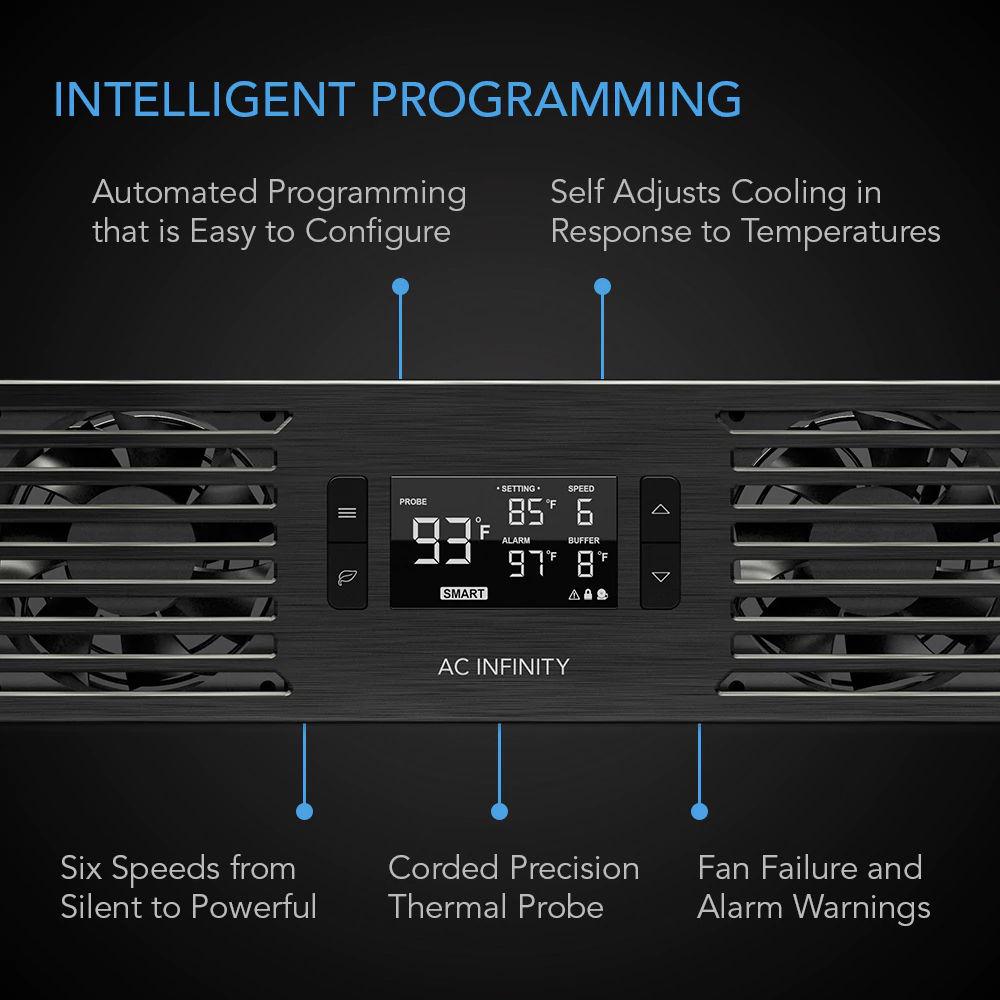

- LCD screen
- Digital processor with backup memory
- Thermostat and speed control
- SMART energy mode adjusts fan speed in response to surrounding temperatures

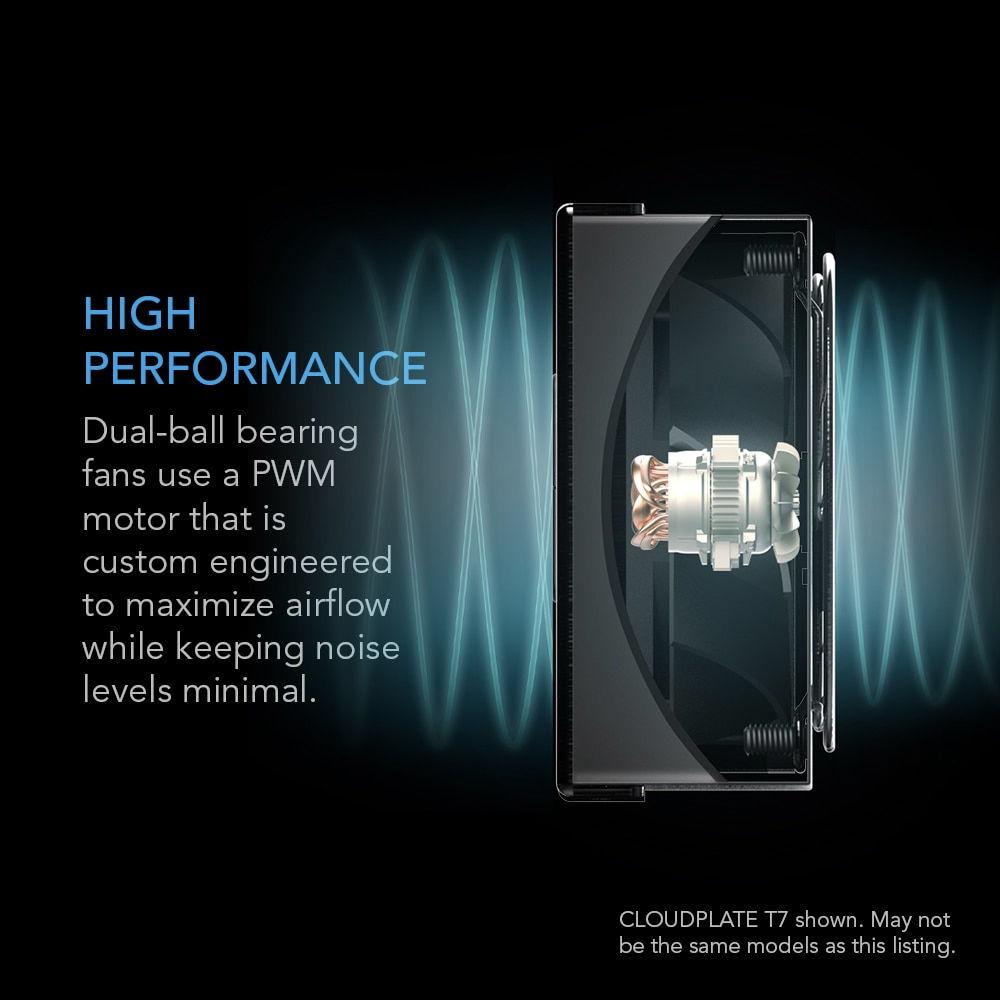

- 3 x dual-ball-bearing fans certified by UL, CE, TUV, and RoHS
- 10 to 36 dBA noise level
- 50 to 220 CFM airflow

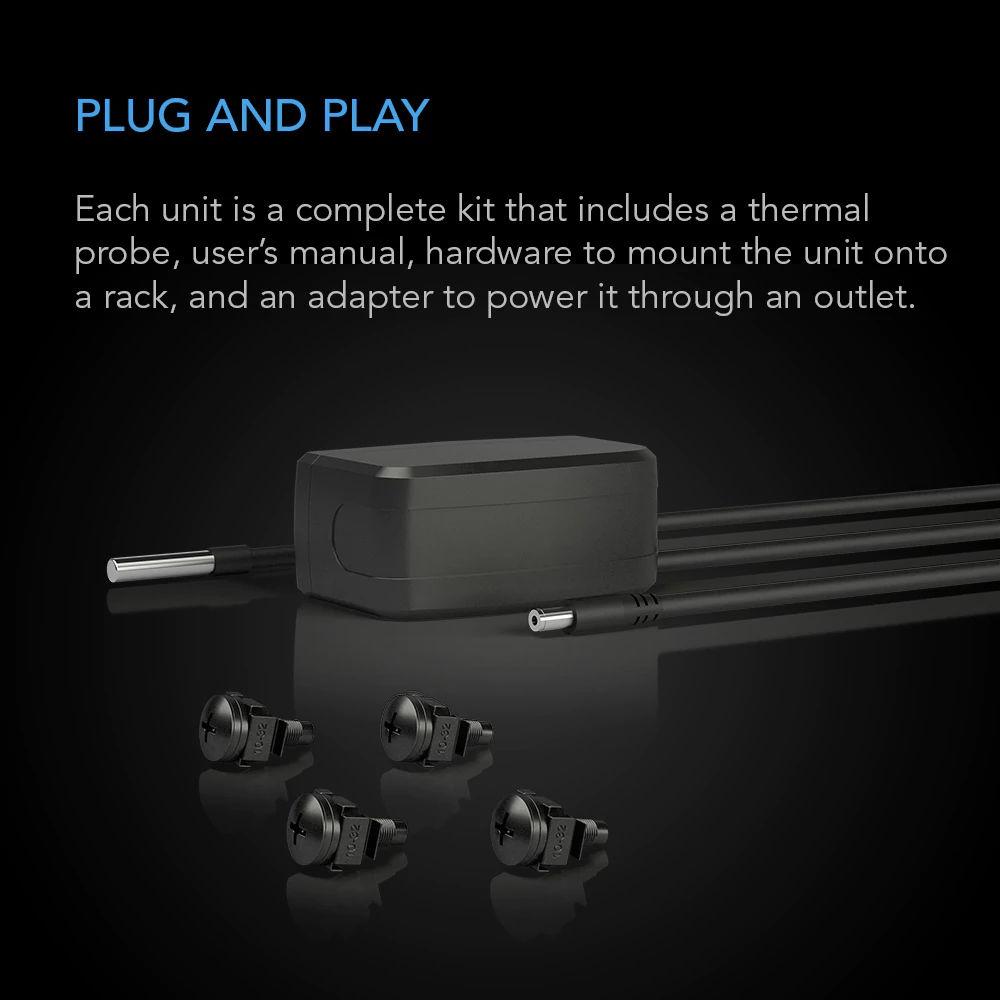

- Includes power supply, thermal probe, and four screw sets
UPC: 854759004501 In the Box AC Infinity CLOUDPLATE T7 Rackmount Cooling Fan System Power Adapter Thermal Probe 4 x Mounting Screws, Washers, and Cage Nuts Zip Tie Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AC Infinity CLOUDPLATE T7 Rackmount Cooling Fan System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

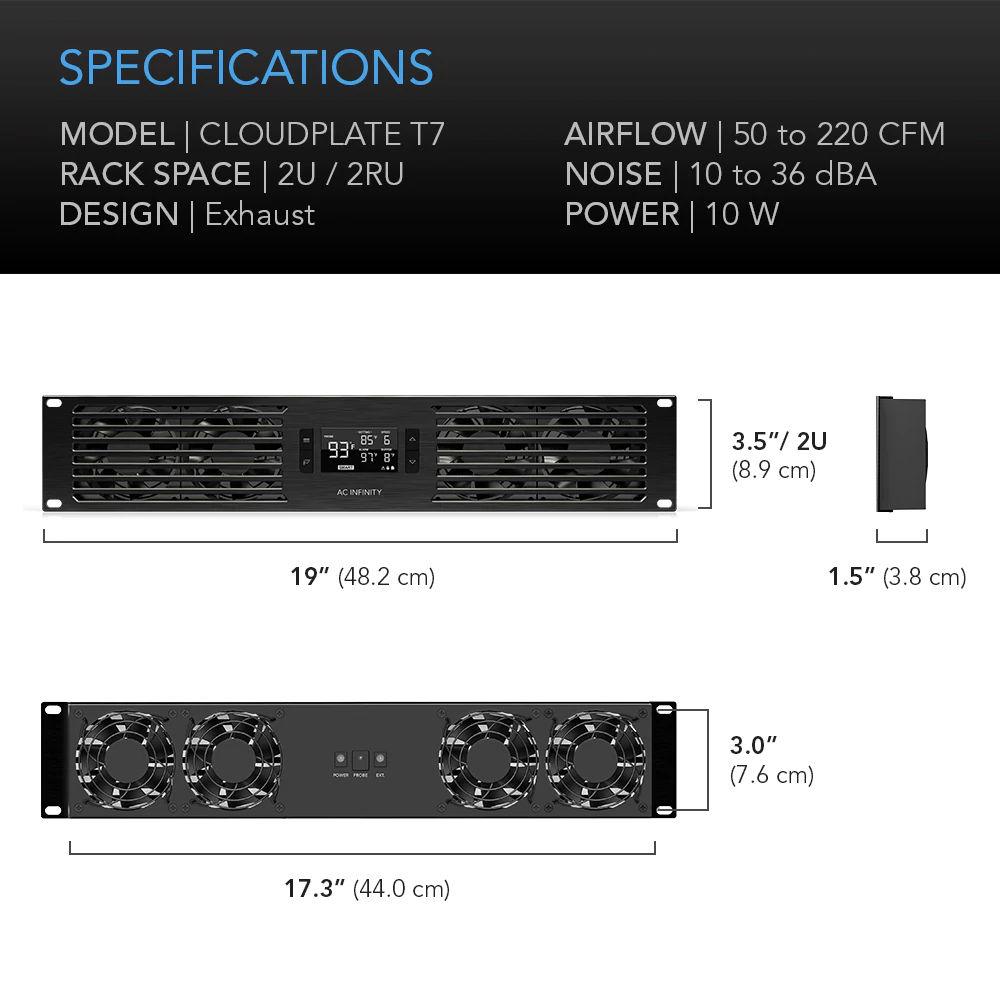

Technical parametersAC Infinity CLOUDPLATE T7 Specs Air Flow | 50 to 220 CFM | Noise Level | 10 to 36 dBA | Static Pressure | 2.56 mm-H2O | Operating Voltage | 12 VDC Wall Adapter Input: 100 to 240 VAC | Power | 10 W | Current | 0.83 A | Operating Humidity | 35 to 85% RH | Operating Temperature | 14 to 230°F / -10 to 110°C | Fan Bearing Type | Dual ball | Life Expectancy | 67,000 hours (L10) | Approvals | Fan Quality: UL, CE, TUV, RoHS | Rack Size | 2 RU | Mounting Screw Holes | 0.2 x 0.4" / 6.1 x 9.0 mm | Mounting Hole Spacing | W x H = 18.3 x 3.0" / 46.4 x 7.7 cm | Display Size | W x H = 2.3 x 1.3" / 5.8 x 3.2 cm | Probe | Length = 6' / 1.8 m | Cord Length | 6' / 1.8 m | Enclosure Material | Anodized aluminum | Dimensions (W × H × D) | 19.0 x 3.5 x 1.5" / 48.3 x 8.9 x 3.8 cm | | Package Weight | 3.655 lb | Box Dimensions (LxWxH) | 25.0 x 5.7 x 1.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to AC Infinity CLOUDPLATE T7 Rackmount Cooling Fan System
Subject: Re The information you sent | Date: 15.12.2020 01:24:35 | Name: Bryan K Raub | Thanks for the information but i didn't find if there is any difference on that letter come after the T7 has a meaning
T7
T7-x
T7-n
what does it mean if it is just
T7
or what does the X or N mean please?
Thanks in advance sorry for any inconvenience in this matter.
BTW do you buy the Cloudplate T7 In new condition?
Regards
Bryan Raub
| Post reply |
Subject: Re: Cloudplate T7 Items | Date: 15.12.2020 00:54:56 | Name: Bryan Raub | What does the letter mean
I see T7-N
I see T7-X
I see some that are just T7
What is the difference between them?
Thanks and regards in advance
Bryan Raub | Post reply |
