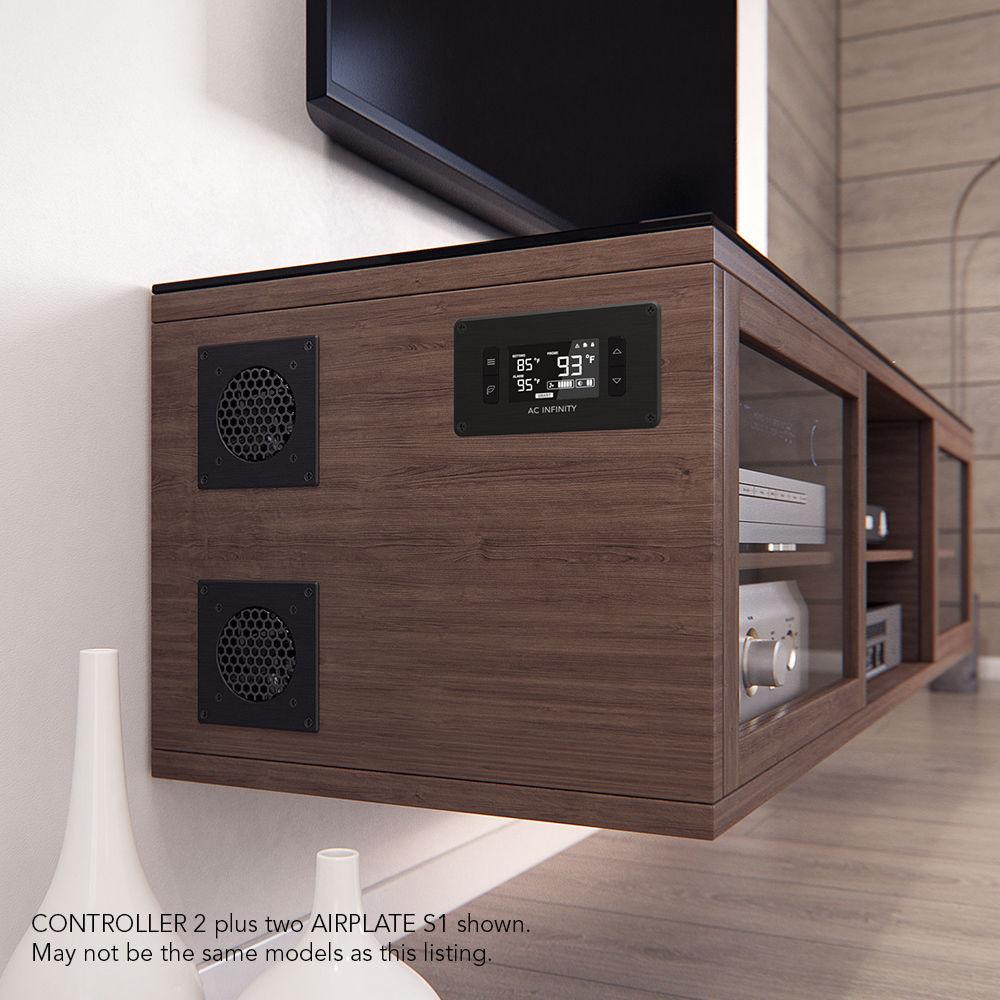

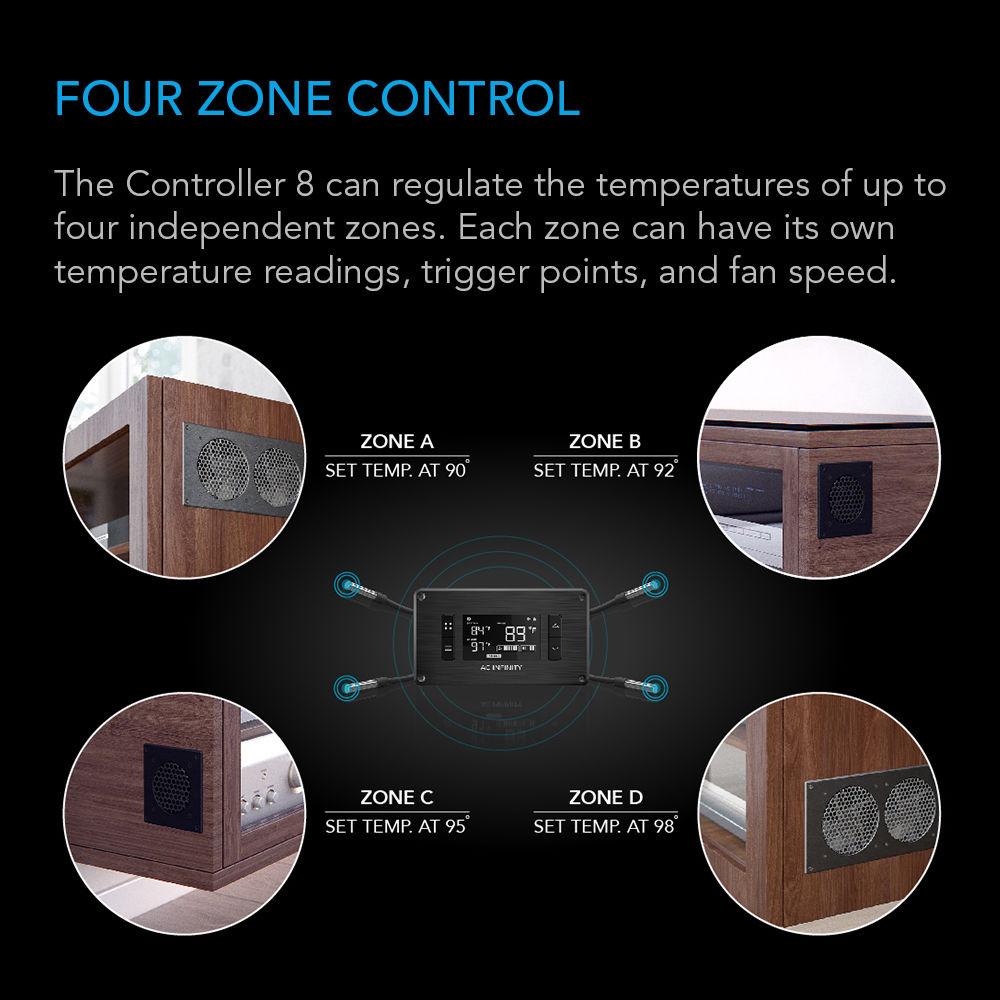

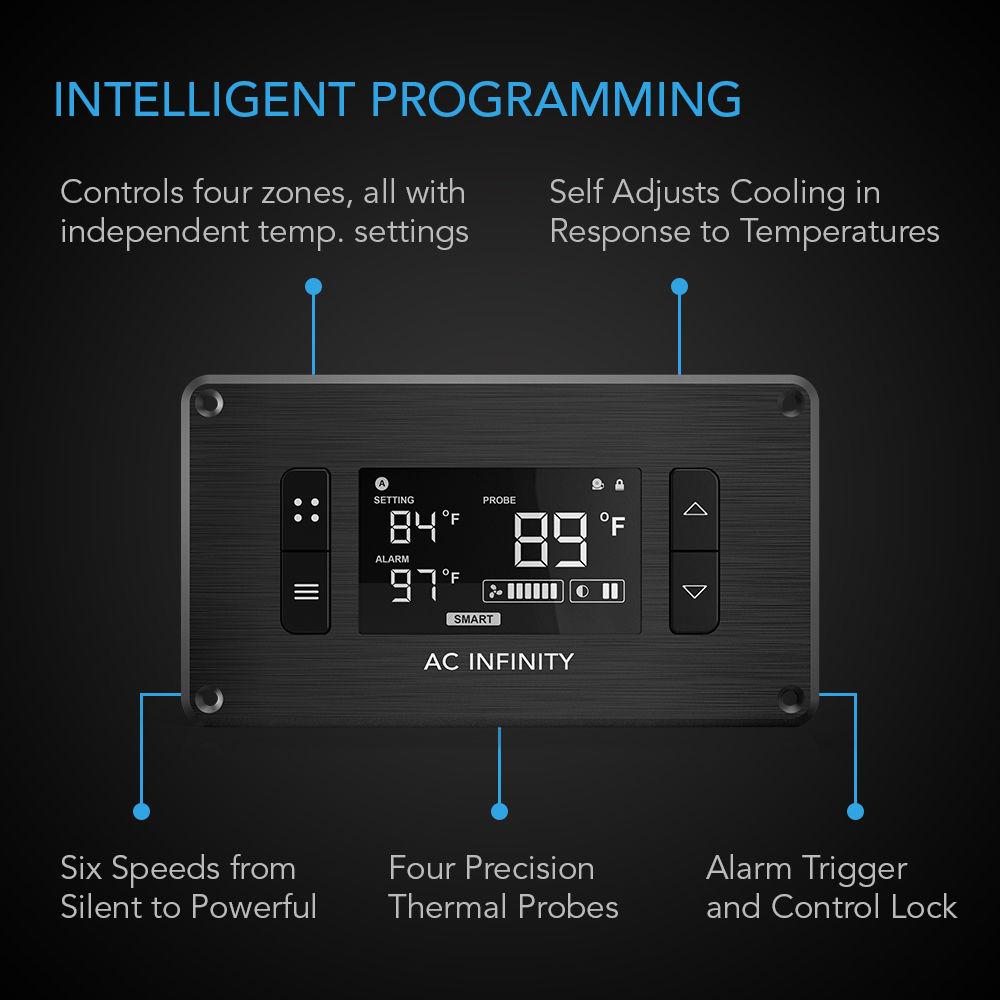

Product description The Controller 8 from AC Infinity is designed to control multiple AIRPLATE series cabinet fans and MULTIFAN series component fans in up to four independent zones. This controller is ideal for cooling multiple enclosures, or for cabinets and shelves that have separate compartments with varying temperatures. Additional features include an alarm system, display lock or off while programs are running, six fan speeds, three backlight settings, two buffer options, and power failure memory.

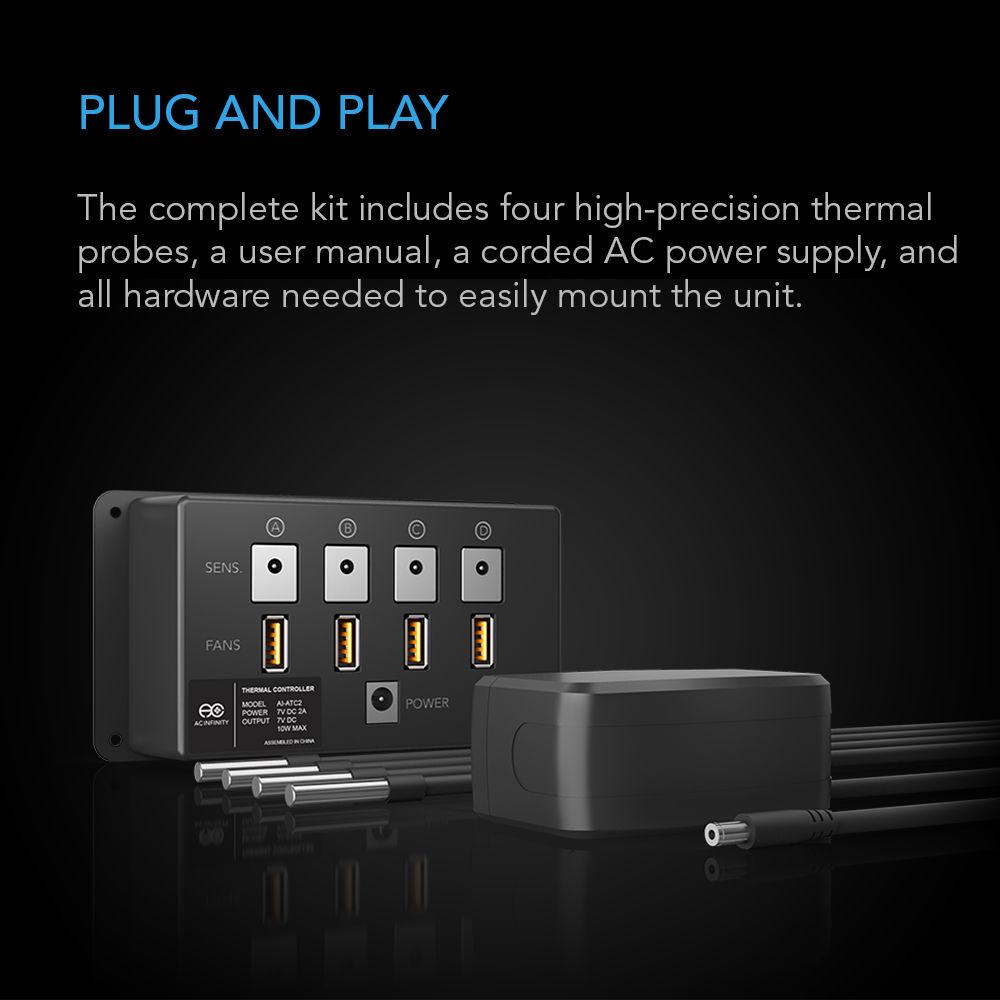

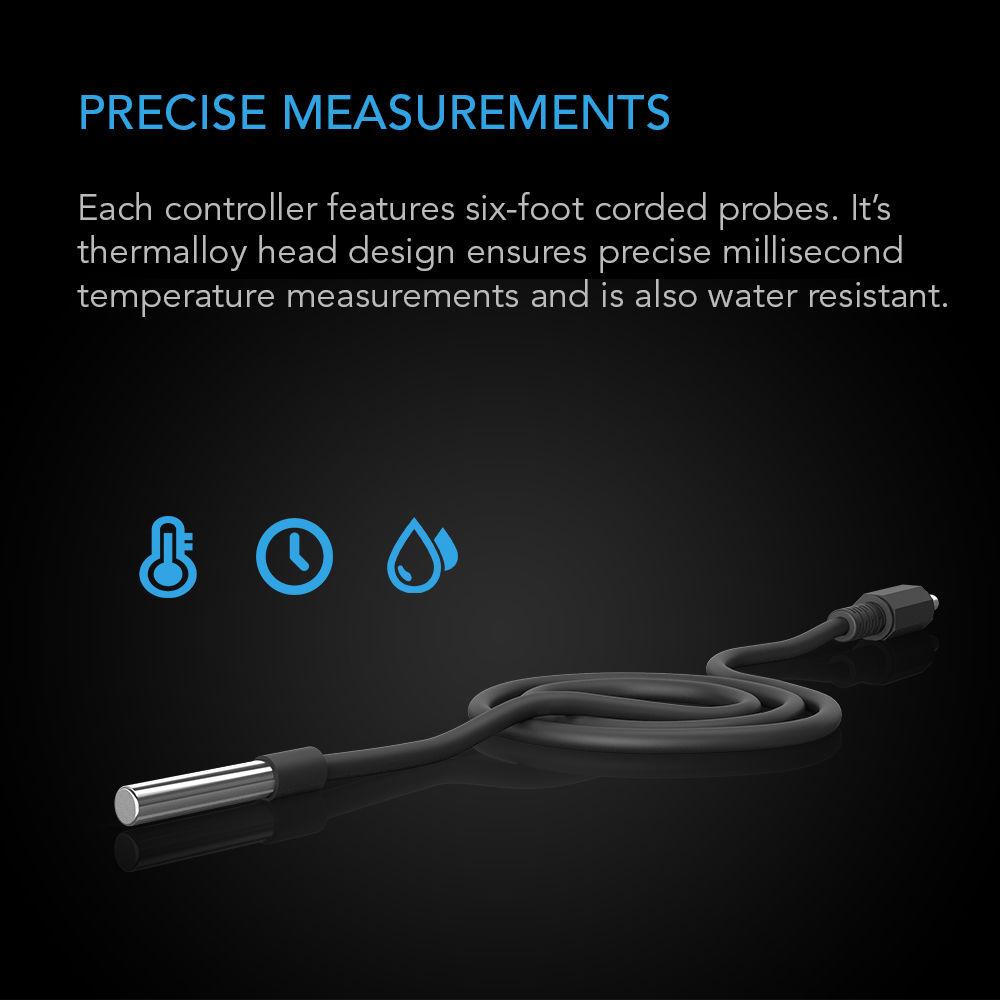

The unit contains a backlit digital LCD, which can display Fahrenheit or Celsius. Its metal frame features a brushed anodized aluminum finish and can be mounted onto wall panels and cabinets. On the back side are four USB fan ports, one power port, and one thermal probe port. The controller includes four 6' precision thermal probes that are water resistant. UPC: 854759004730 In the Box AC Infinity Controller 8 Intelligent Thermal Multi-Zone Fan Controller 4 x Temperature Probes Mounting Wood Screws Mounting Machine Screws Plastic Stencil Wall Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AC Infinity Controller 8 Intelligent Thermal Multi-Zone Fan Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAC Infinity Controller 8 Specs | Compatibility | AIRPLATE series cabinet fans and MULTIFAN series component fans | | Control | Controls up to 18 fans | | Ports | 4 x USB
1 x power

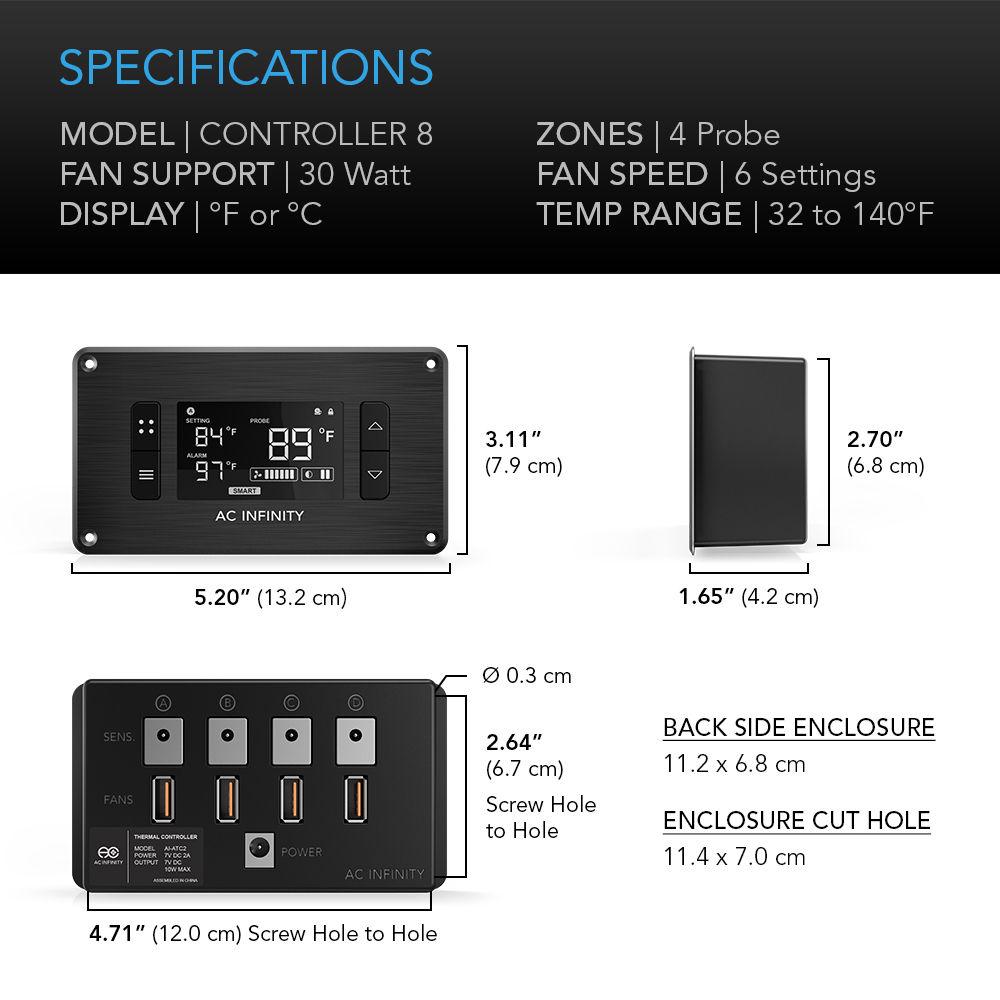

1 x thermal probe port | | Max Power | 30 W | | Operating Voltage | 3 to 7 VDC | | Current | 5.5 A | | Power Input | 100 to 240 VAC | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Operating Humidity | 35 to 85% RH | | Construction | Metal frame with brushed anodized aluminum finish | | Display | 2.25 x 1.25" / 4.7 x 3.2 cm backlit LCD | | Mounting | Required Mounting Hole: 4.48 x 2.76" / 11.4 x 7.0 cm
Hole to Hole Distance: 4.71 x 2.64" / 12.0 x 6.7 cm
Screw Hole Size: ⌀0.119" / ⌀0.3 cm | | Cord Length | 6' / 1.8 m | | Dimensions | Backside Enclosure: 4.41 x 2.68" / 11.2 x 6.8 cm
Total: 5.20 x 3.11 x 1.65" / 13.2 x 7.9 x 4.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.9 x 5.9 x 2.3" |
