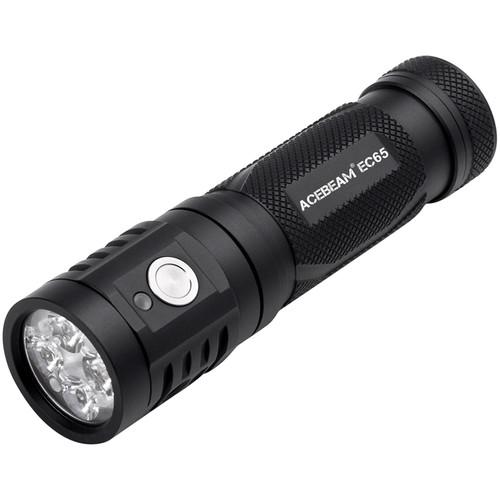

Product description With four Cree XHP35 LEDs and a TIR lens throwing a powerful, even beam, the Acebeam EC65 LED Rechargeable Flashlight is a compact EDC torch bright enough for search-and-rescue, law enforcement, security and industrial applications, as well as recreational and home use. The EC65 has a maximum output of 4000 lumens, powered by a 5100mAh 21700 li-ion battery that recharges inside the light via Type-C USB. Maximum runtime is four days at the 20-lumen firefly setting.
A side switch cycles through five brightness levels and a strobe for signaling or self-defense. Anti-reflective coating on the glass window assures optimal light transmission. The aluminum housing is submersible to 16' and impact-resistant to 3.9'. Digital regulation allows consistent performance across the battery life. Overheat protection helps prevent the powerful LEDs from causing damage or injury, but Acebeam cautions against running the light on turbo for extended periods. - Light Performance
-
- Turbo: 4000 lumens (1 minute), 900 lumens (2.3 hours)
- High: 2000 lumens (4 minutes), 900 lumens (2.2 hours)
- Medium: 650 lumens
- Low: 300 lumens
- Firefly: 20 lumens

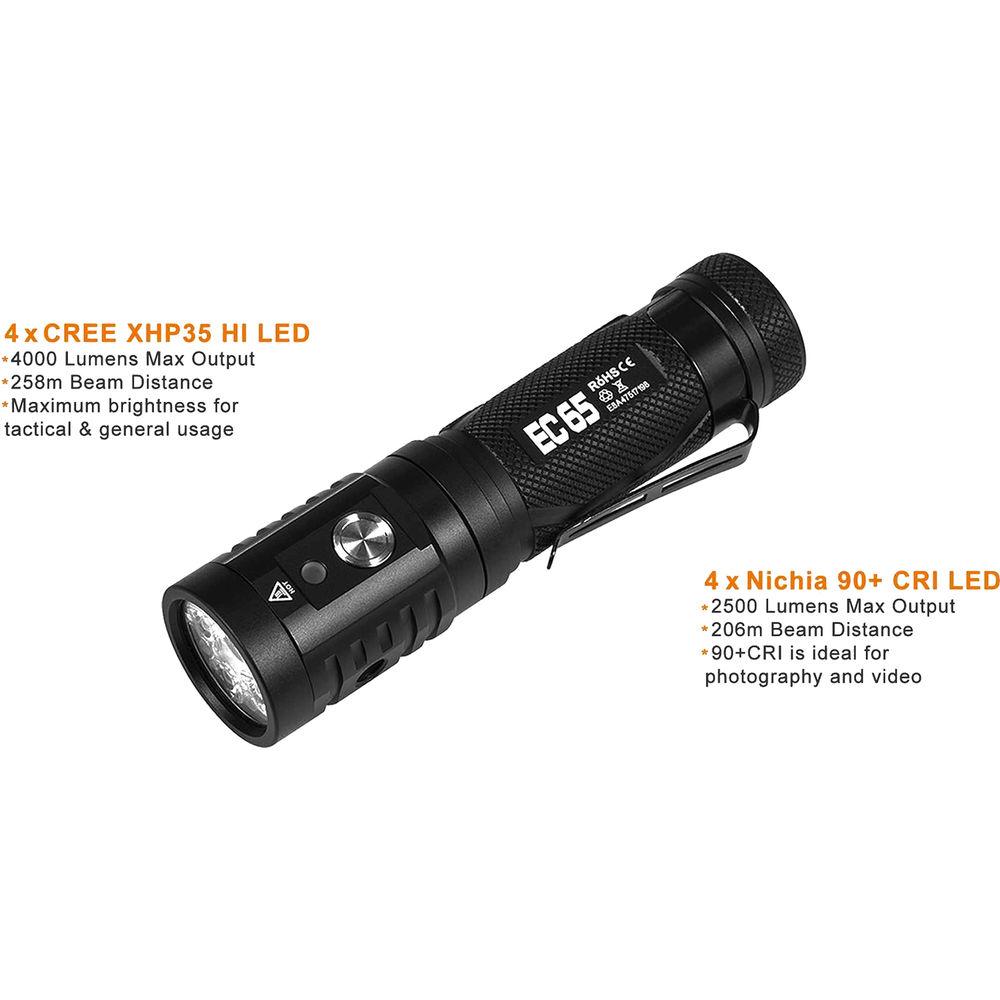

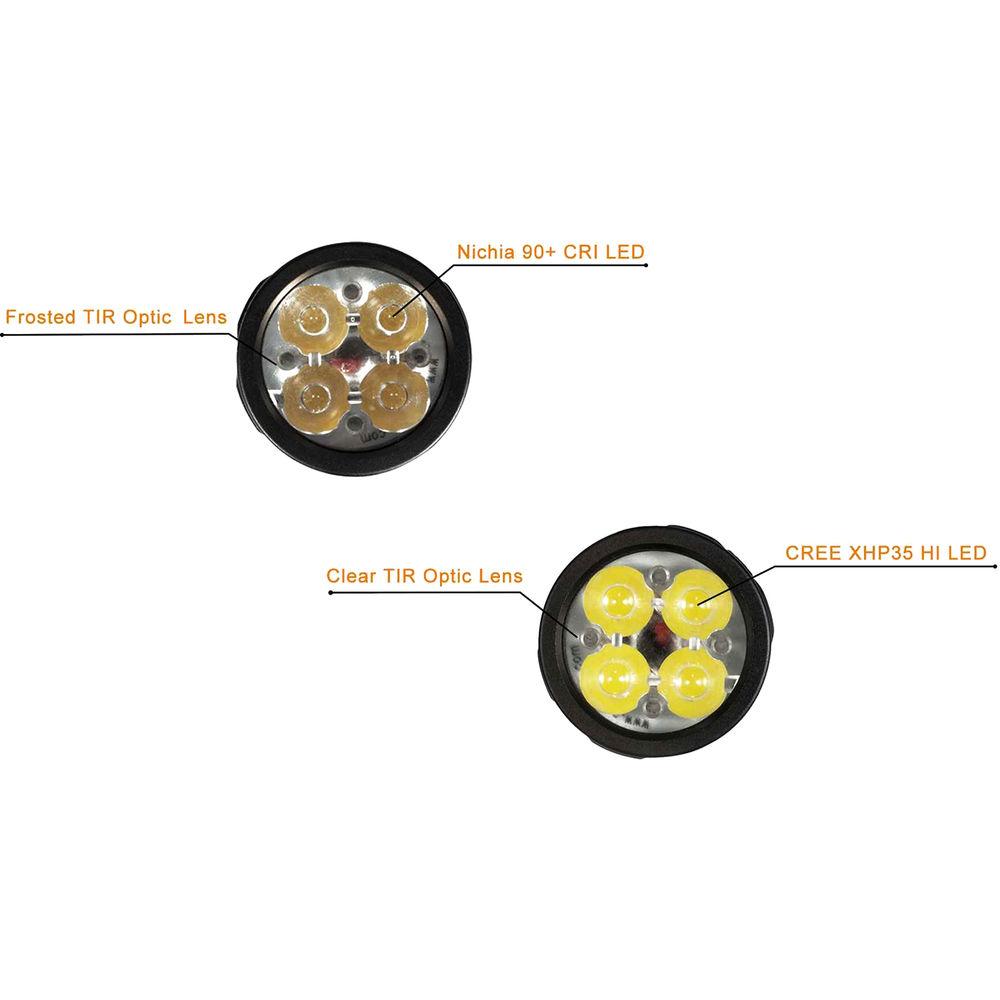

- Four Cree XHP35 LEDs
- Carlco TIR Lens & anti-reflective coated glass window
- 900-lumen strobe for self-defense or signaling
- Switching
-
- Location: side
- Type: Push button
- Turns on/off, cycles through brightness settings & strobe
- Construction Details
-

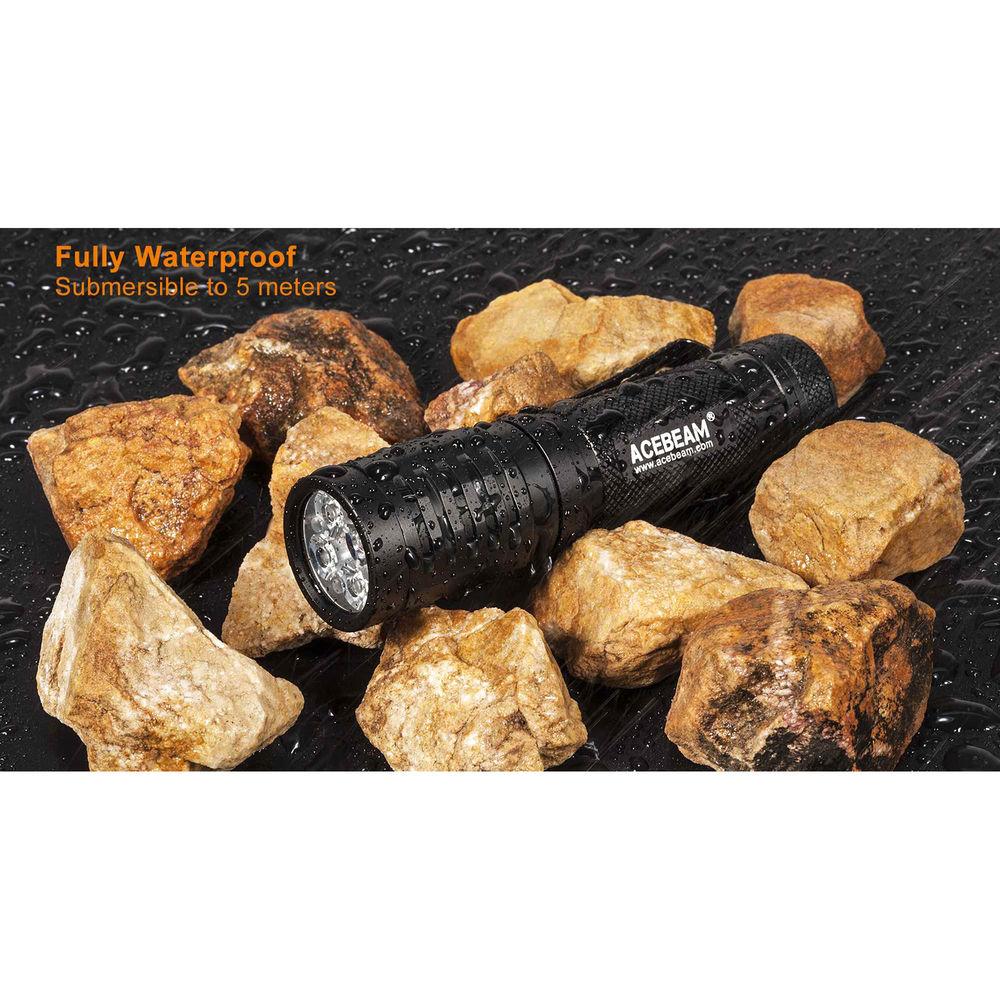

- Type II hard anodized-aluminum housing, submersible to 16'
- Impact resistant to 3.9'

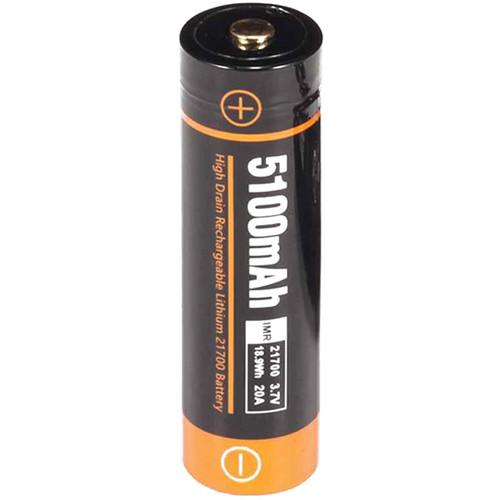

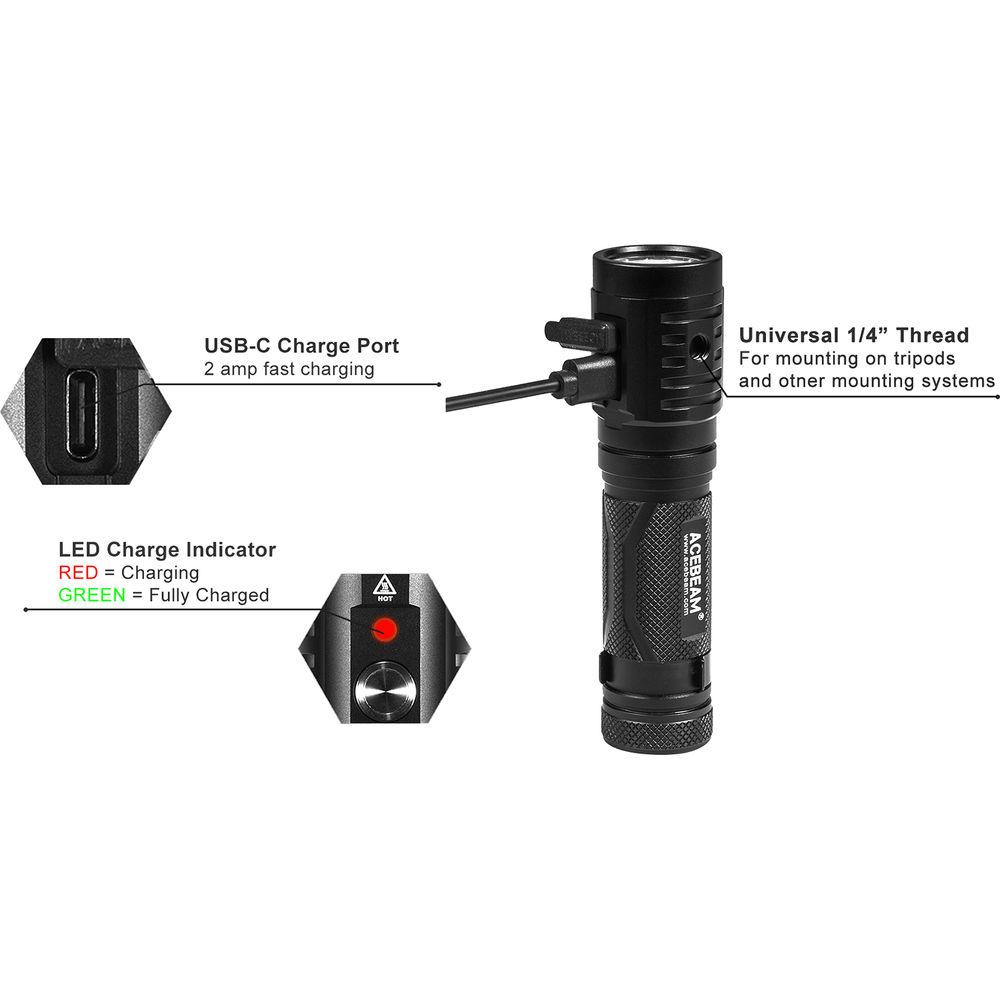

- 5100mAh 21700 li-ion battery recharges inside light via Type-C USB

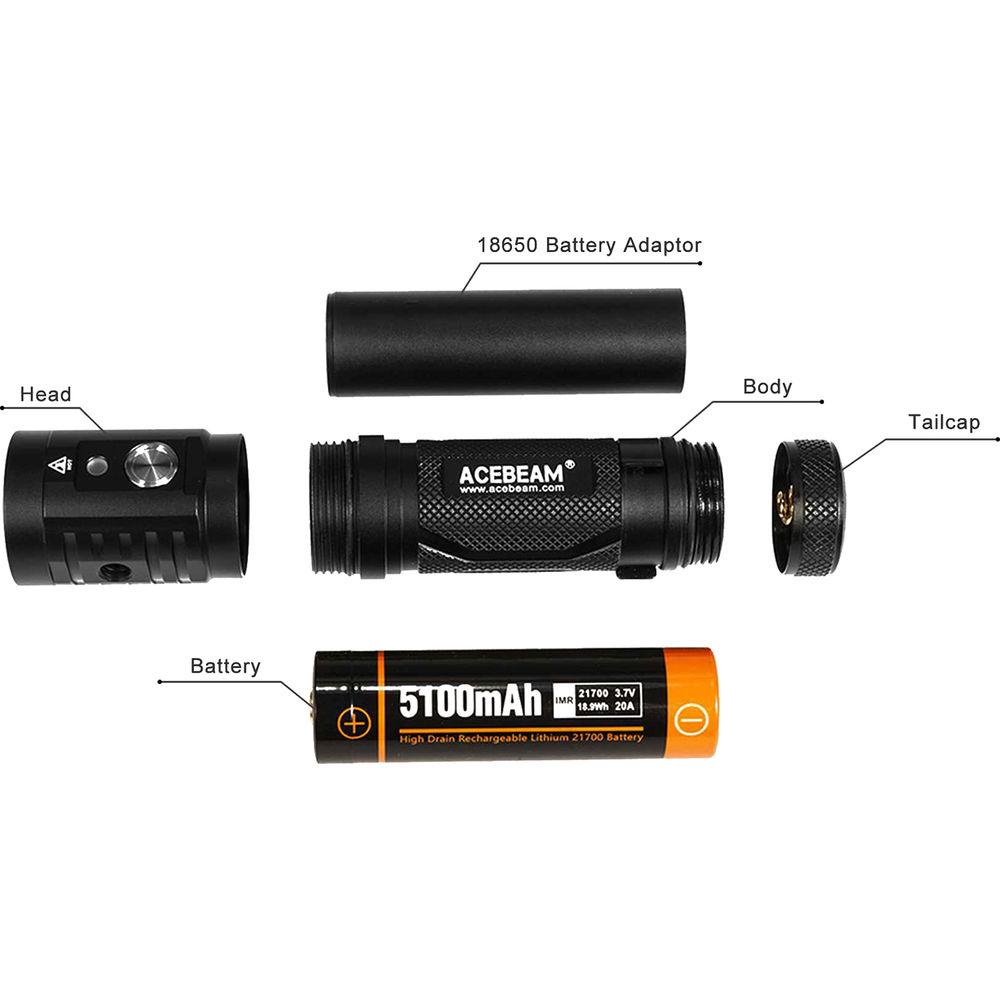

- Can run on 18650 or two CR123A batteries
- Digital output regulation
- Overheat protection

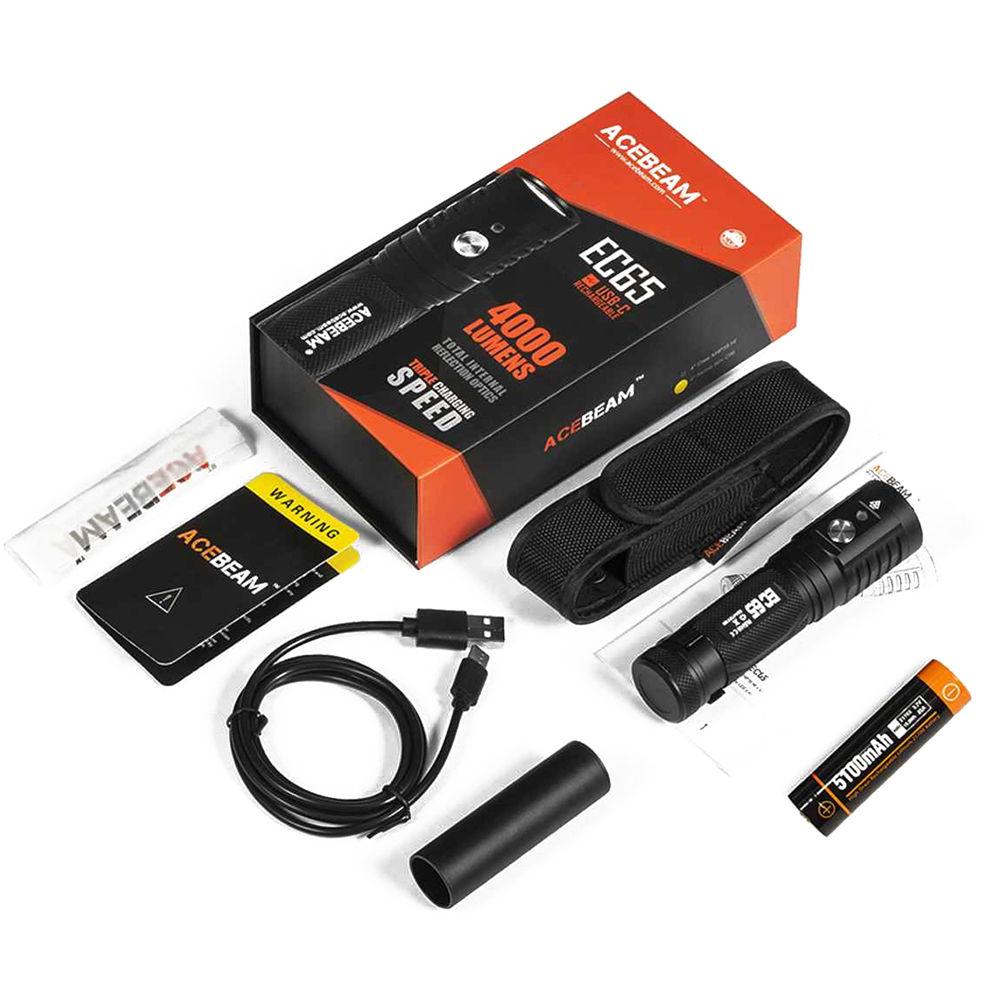

In the Box Acebeam EC65 LED Rechargeable Flashlight (Cree XHP35 LED Version) 2 x Spare O-Ring Removable Clip Holster USB-C Charge Cable 5100mAh 21700 Battery 18650 Battery Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam EC65 LED Rechargeable Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

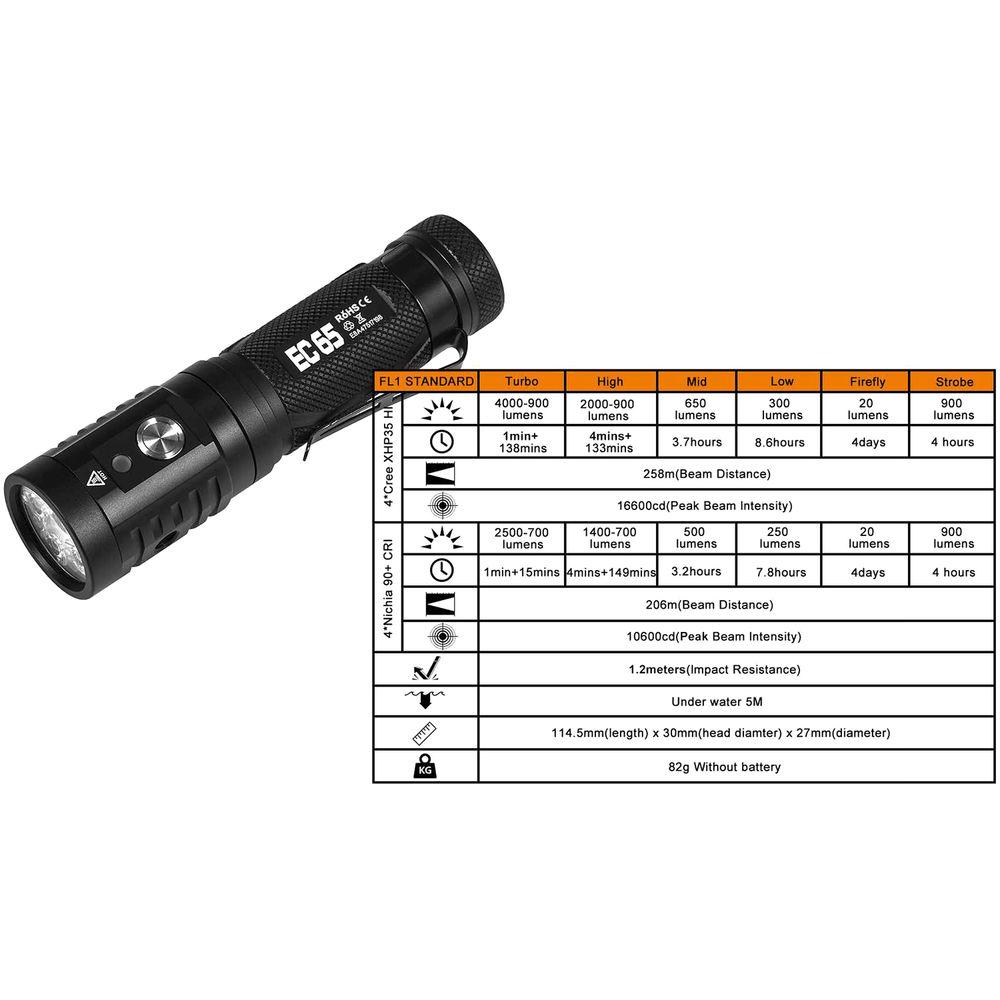

Technical parametersAcebeam EC65 OPTION 1 XHP35 Specs | | | Lumen Output | High: 900 Lumens
Medium: 650 Lumens
Low: 300 Lumens
Turbo: 4000 Lumens
Minimum: 20 Lumens | | Illumination Source | 4 x LED | | | | Estimated Runtime | High: 2.2 Hours
Medium: 3.7 Hours
Low: 8.6 Hours
Minimum: 4 Days

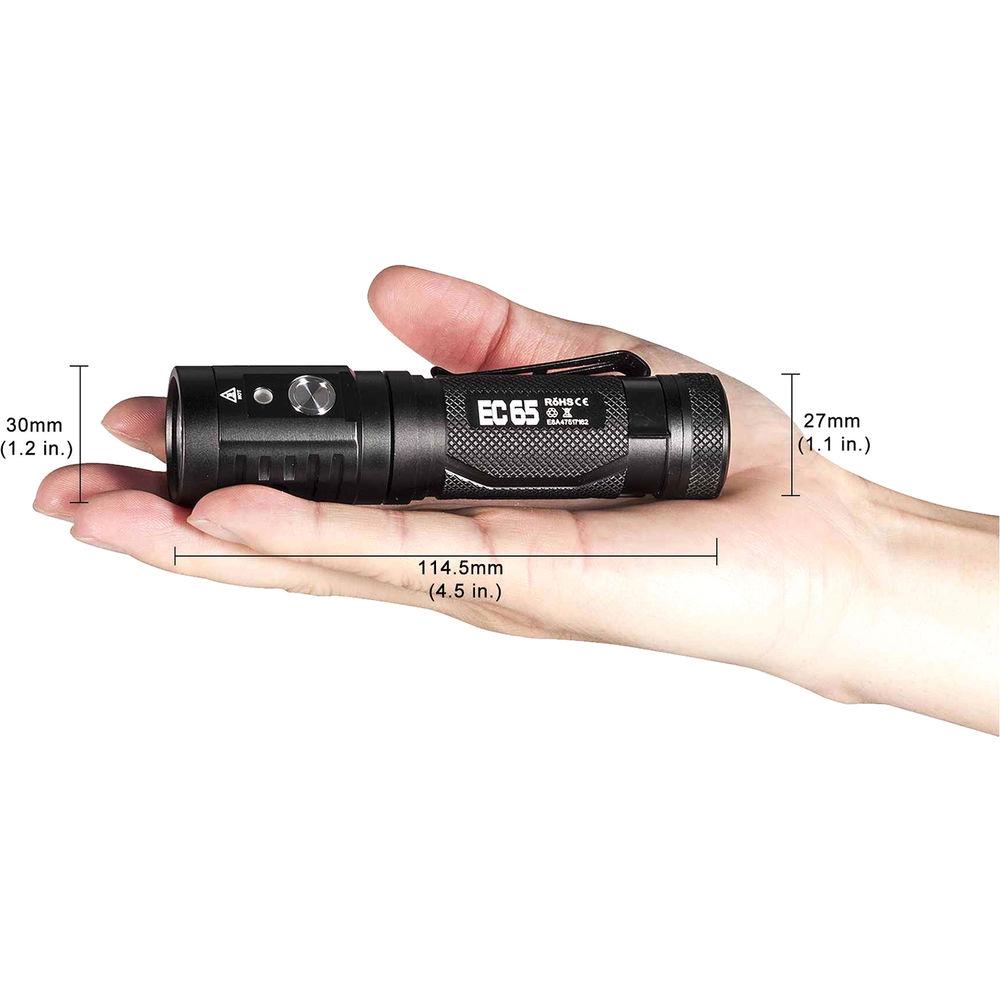

Turbo: 1 Minutes | | Battery Type | 1 x 21700 Lithium-Ion | | Internal Battery Capacity | 5100 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 16.4' / 5 m | | Bezel Diameter | 1.2" / 3.0 cm | | Dimensions |
