User Manual for Acebeam EC65 LED Rechargeable Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam EC65 LED Rechargeable Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam EC65 LED Rechargeable Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

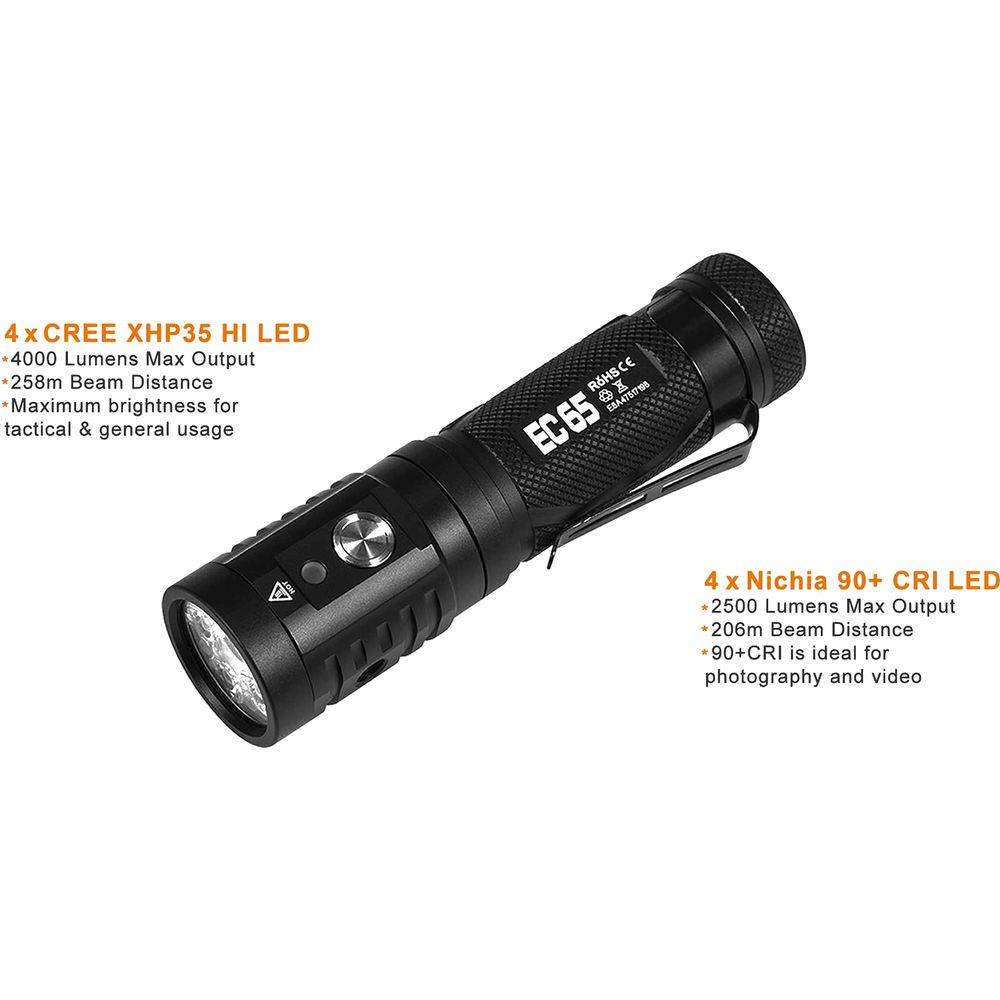

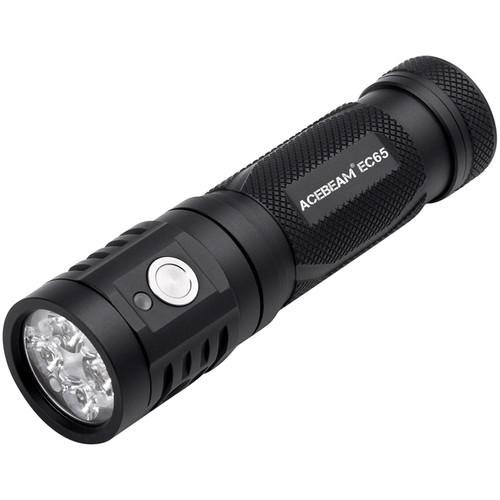

Product description With four Nichia 90+ CRI LEDs and a TIR lens throwing a powerful, even beam, the Acebeam EC65 LED Rechargeable Flashlight is a compact EDC torch bright enough for search-and-rescue, law enforcement, security and industrial applications, as well as recreational and home use. The EC65 has a maximum output of 2500 lumens, powered by a 5100mAh 21700 li-ion battery that recharges inside the light via Type-C USB. Maximum runtime is four days at the 20-lumen firefly setting.
A side switch cycles through five brightness levels and a strobe for signaling or self-defense. Anti-reflective coating on the glass window assures optimal light transmission. The aluminum housing is submersible to 16' and impact-resistant to 3.9'. Digital regulation allows consistent performance across the battery life. Overheat protection helps prevent the powerful LEDs from causing damage or injury, but Acebeam cautions against running the light on turbo for extended periods. - Light Performance
-
- Turbo: 2500 lumens (1 minute), 700 lumens (2.5 hours)
- High: 1400 lumens (4 minutes), 700 lumens (2.5 hours)
- Medium: 500 lumens
- Low: 250 lumens
- Firefly: 20 lumens

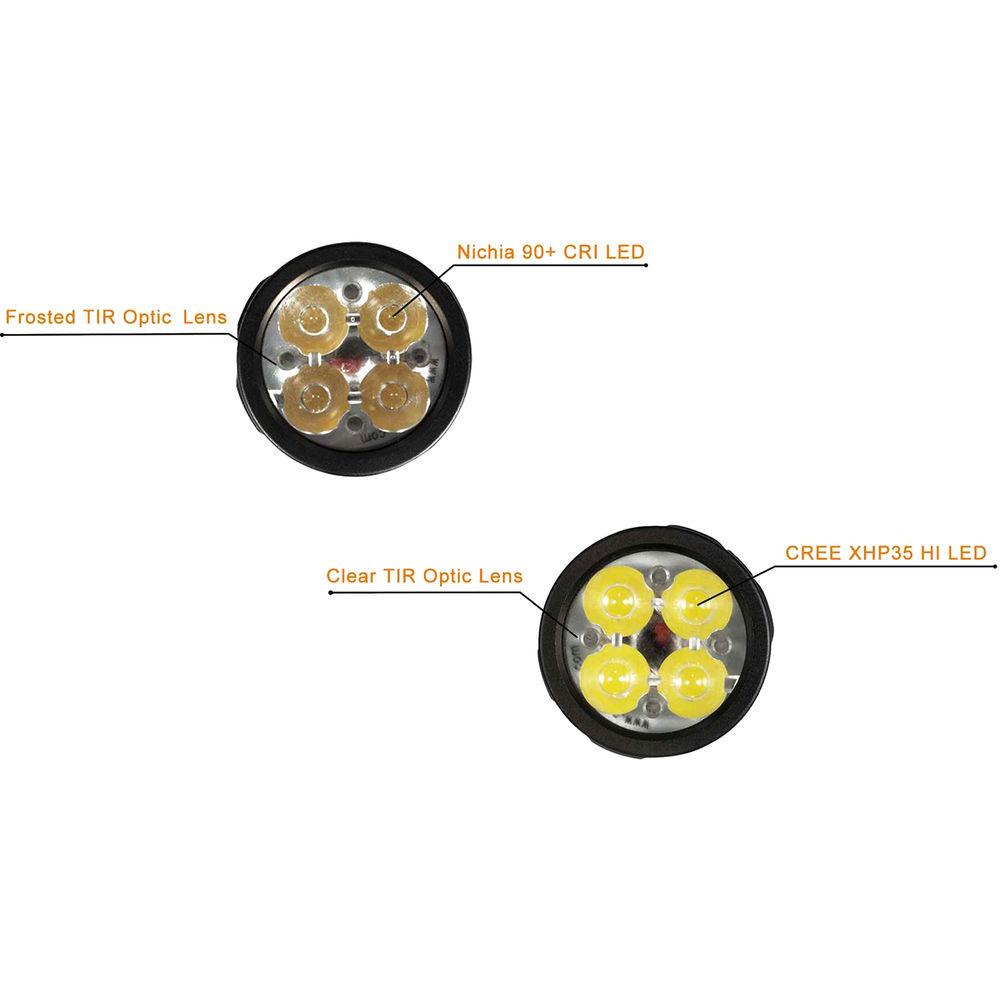

- Four Nichia 90+ CRI LEDs
- High (90+) Color Rendering Index, suitable for photo and video
- Carlco TIR Lens & anti-reflective coated glass window
- 900-lumen strobe for self-defense or signaling
- Switching
-
- Location: side
- Type: Push button
- Turns on/off, cycles through brightness settings & strobe
- Construction Details
-

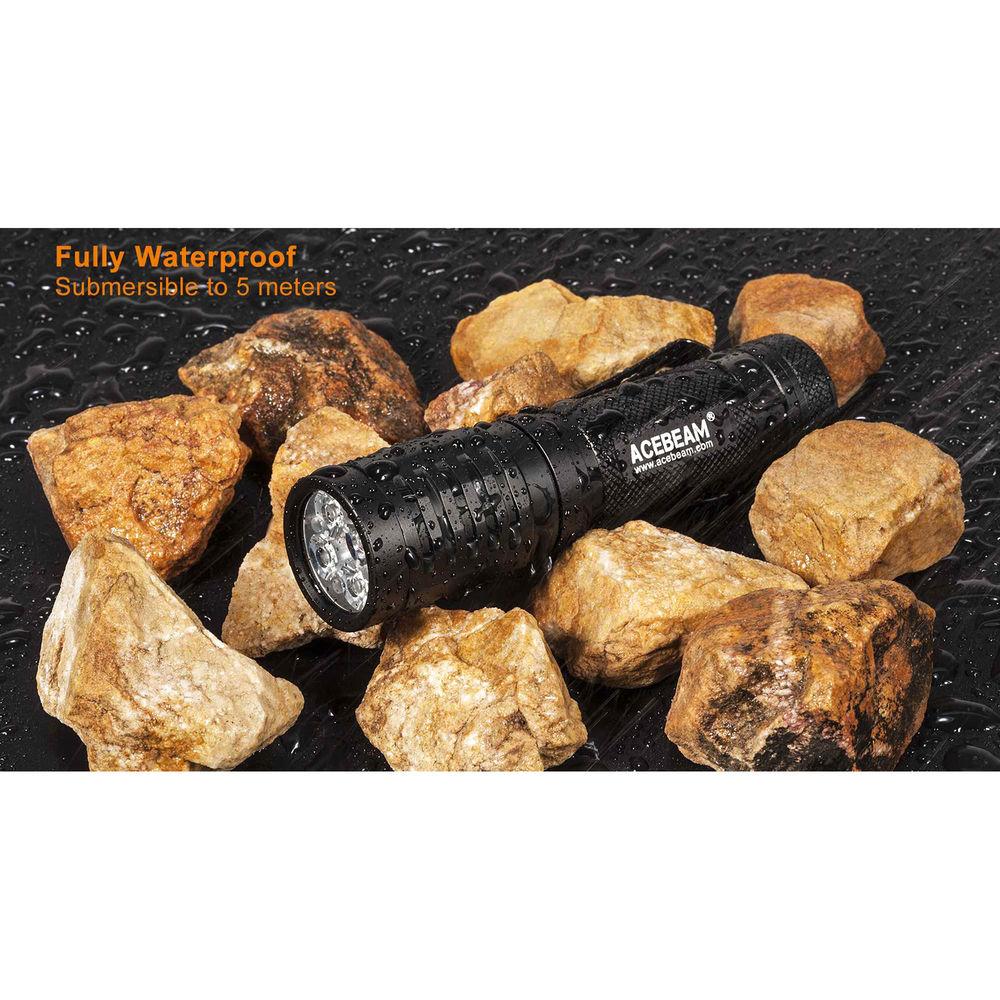

- Type II hard anodized-aluminum housing, submersible to 16'
- Impact resistant to 3.9'

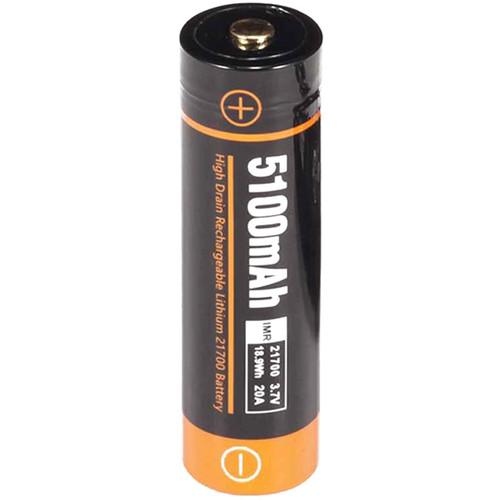

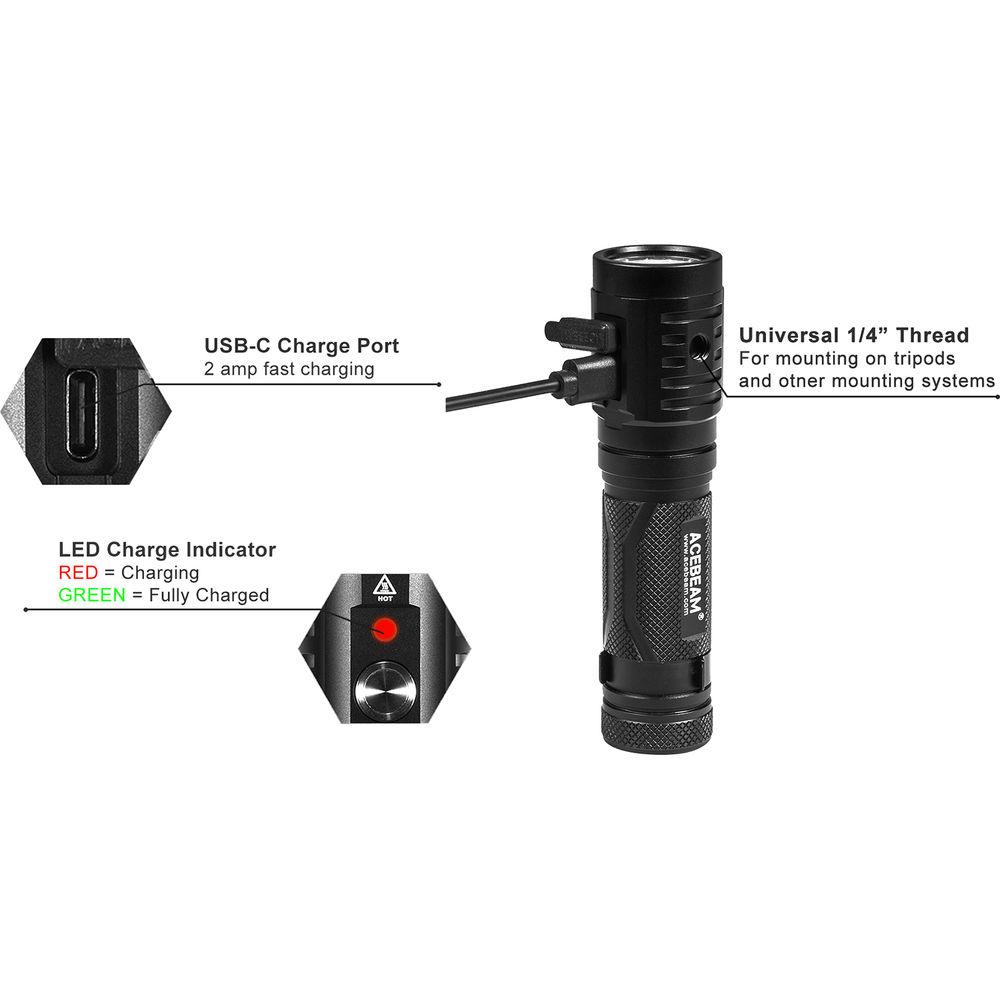

- 5100mAh 21700 li-ion battery recharges inside light via Type-C USB
- Can run on 18650 or two CR123A batteries
- Digital output regulation
- Overheat protection

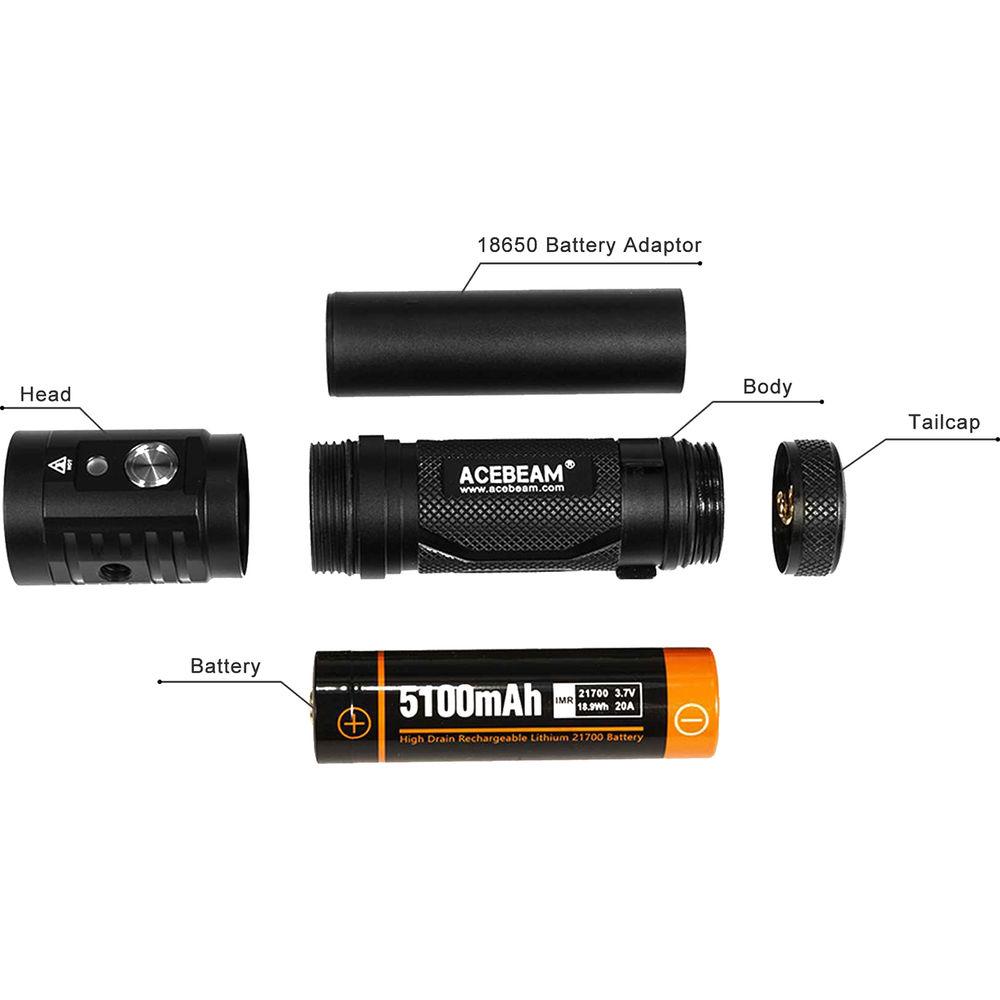

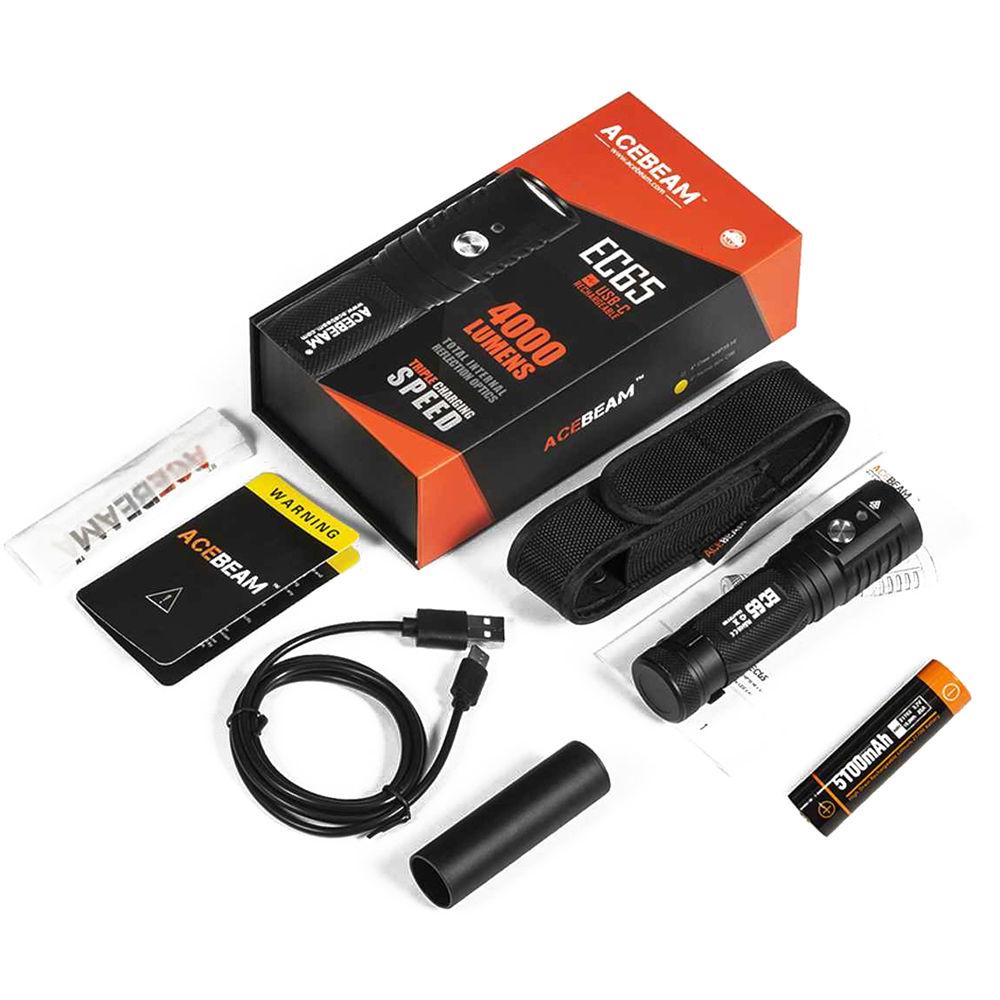

In the Box Acebeam EC65 LED Rechargeable Flashlight (Nichia 90+ CRI LED Version) 2 x Spare O-Ring Removable Clip Holster USB-C Charge Cable 5100mAh 21700 Battery 18650 Battery Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam EC65 LED Rechargeable Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Acebeam EC65 LED Rechargeable Flashlight can be downloaded in PDF format at the link stated below.

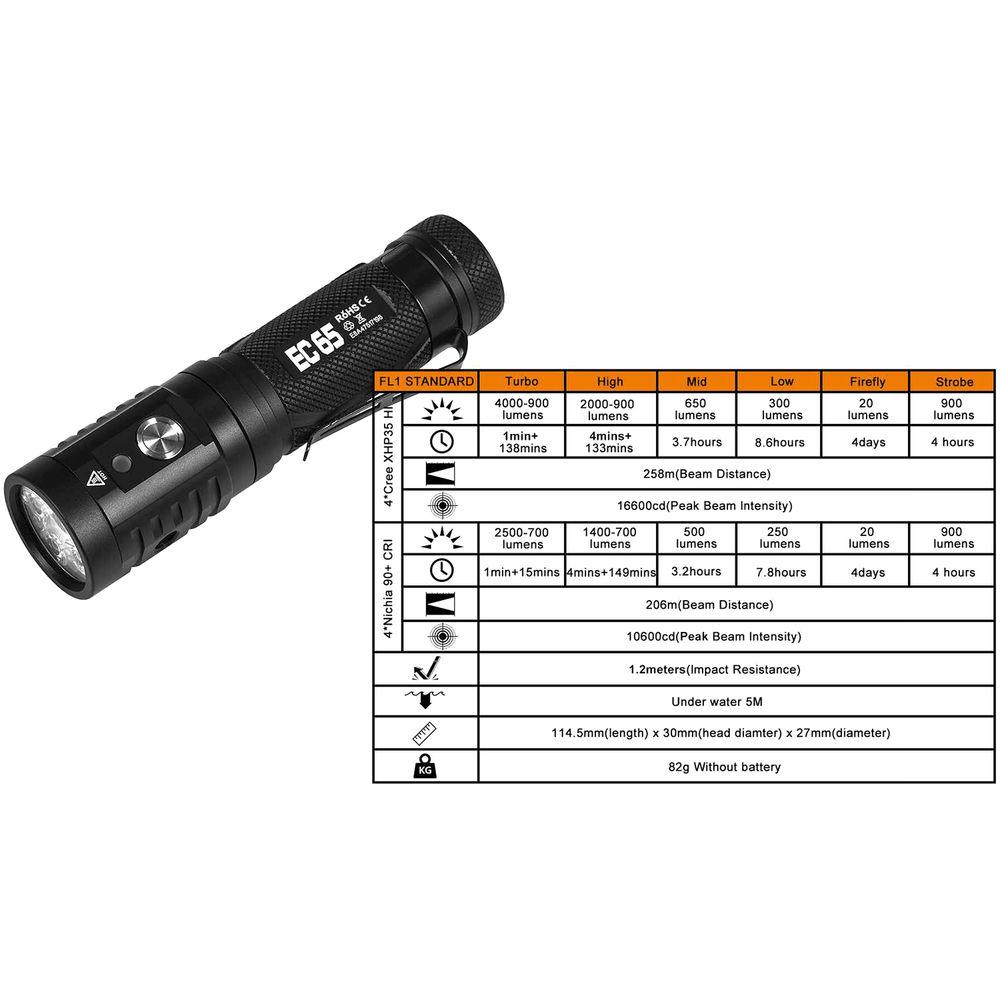

Technical parametersAcebeam EC65 OPTION 2 NICHIA 219C Specs | | | Lumen Output | High: 700 Lumens
Medium: 500 Lumens
Low: 250 Lumens
Turbo: 2500 Lumens
Minimum: 20 Lumens | | Illumination Source | 4 x LED | | | | Estimated Runtime | High: 2.5 Hours
Medium: 3.2 Hours
Low: 7.8 Hours
Minimum: 4 Days

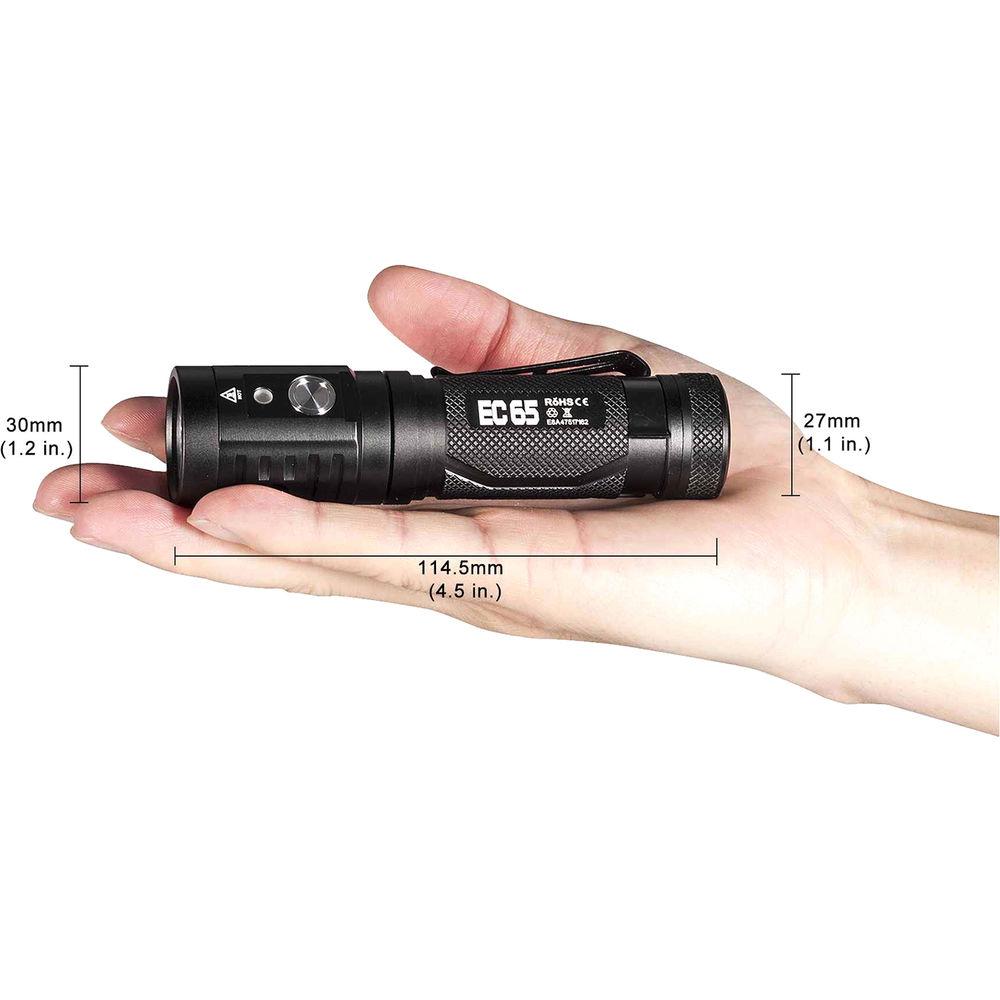

Turbo: 1 Minute | | Battery Type | 1 x 21700 Lithium-Ion | | Internal Battery Capacity | 5100 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 16.4' / 5 m | | Bezel Diameter | 1.2" / 3.0 cm | | Dimensions |
