User Manual for Acebeam H30 Multi-Color Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Acebeam H30 Multi-Color Rechargeable LED Headlamp
- Product category: Headlamps Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Headlamps
 |
User manual for the Acebeam H30 Multi-Color Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|
Product description Featuring output levels that rival those of premium handheld flashlights, the Acebeam H30 LED Headlamp is a versatile tool for work, recreation, and emergency use. Powered by a 5100mAh 21700 battery or an 18650 battery, the H30 offers six white-light brightness levels with a peak output of 4000 lumens, plus green, red, and red SOS modes. It charges quickly with its USB-C cable, and because the cable works both ways, can be used as a power bank for other devices.
Dual push-button switches on top of the lamp control power and brightness level selection. The H30 carries an IPX8 water-resistance rating and is impact resistant to 3.3'. Its housing is made of lightweight aluminum with a Type III anodized finish, and its smooth reflector enables a long beam distance. Automatic temperature regulation senses ambient temperature and governs the light's output to manage heat for optimal performance. - Light Performance
-
- Maximum: 4000 lumens (1000 lumens after 1.5 minutes)
- Turbo: 2200 lumens (1000 lumens after 5.5 minutes)
- High: 1100 lumens
- Medium: 380 lumens
- Low: 120 lumens
- Ultra-low: 3 lumens
- Green (70 lumens), red (50 lumens), and red SOS (50 lumens) modes

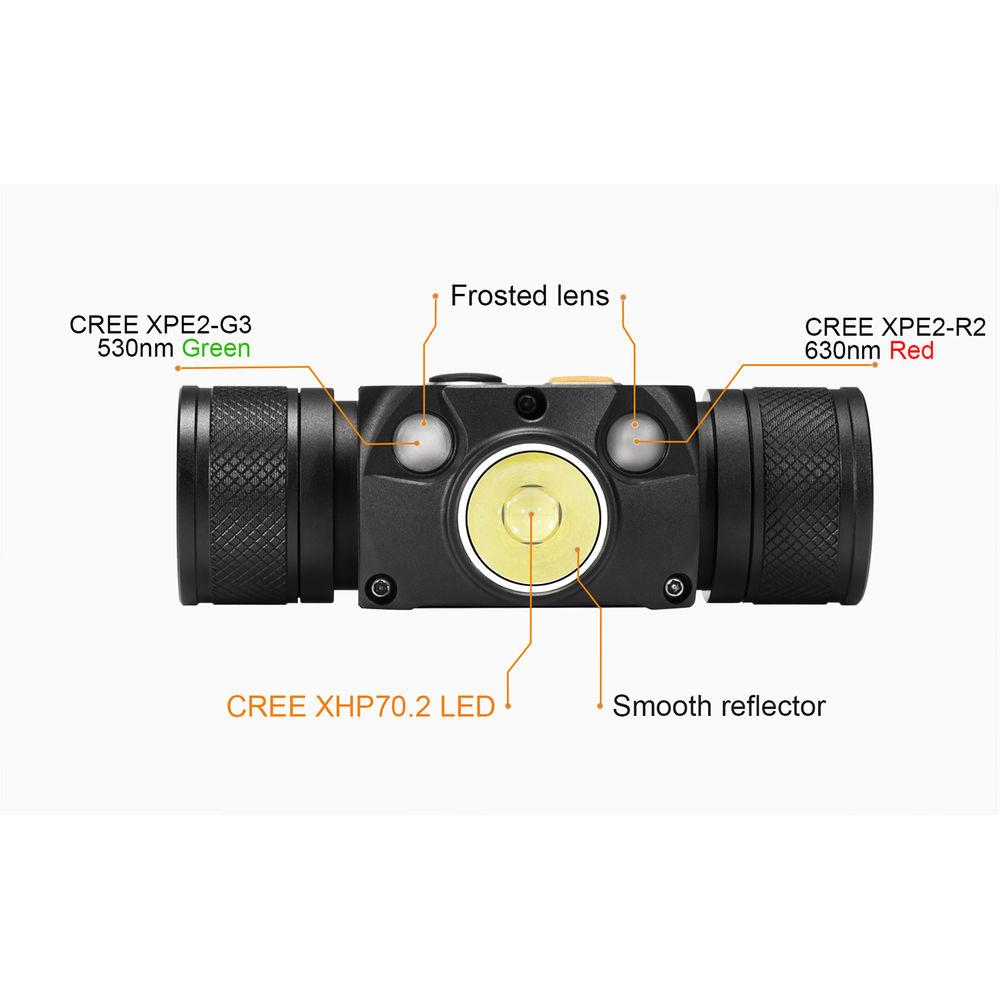

- White Cree XHP70.2 LED
- Red SOS has 72-hour runtime
- Smooth reflector for long throw
- Switching
-
- Dual push-button switches on lamp top
- Construction
-
- Type III anodized aluminum body
- Impact resistant to 3.3'

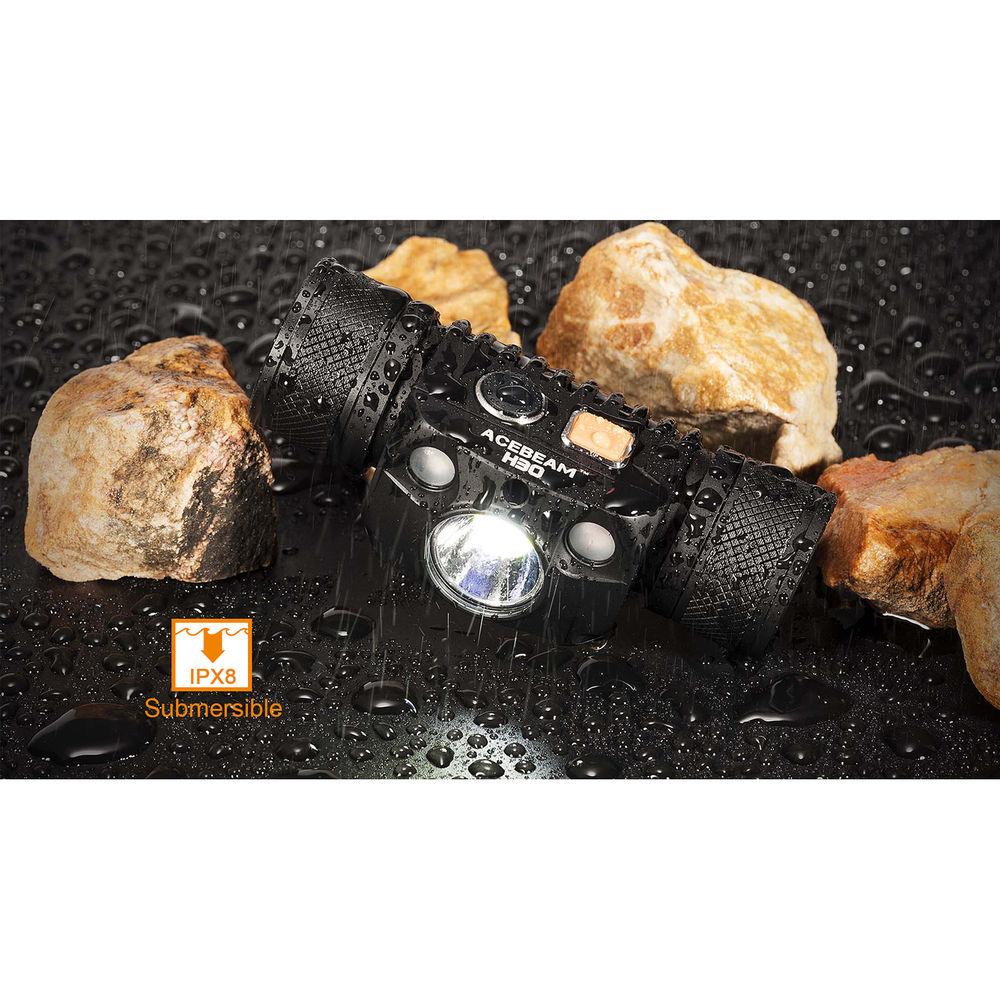

- IPX8-rated water resistant
- Automatic temperature regulation

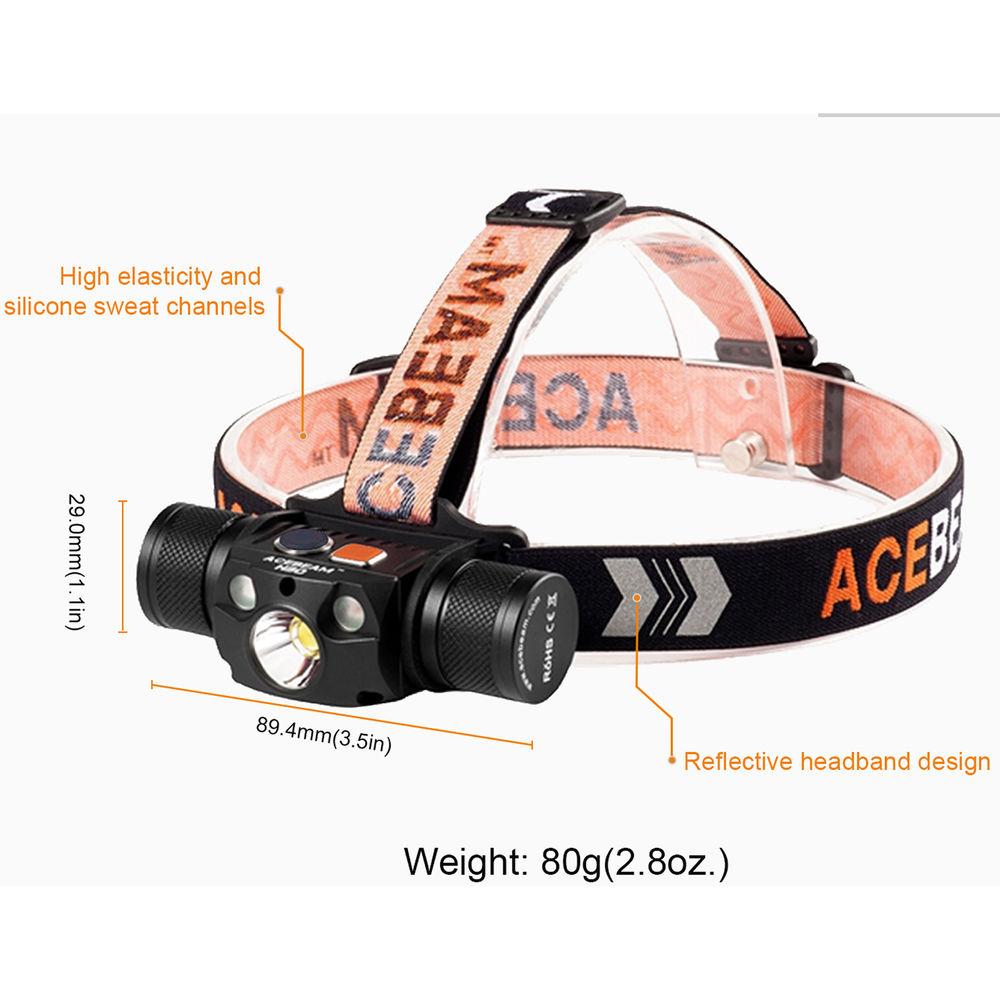

- Reflective headband with sweat channels

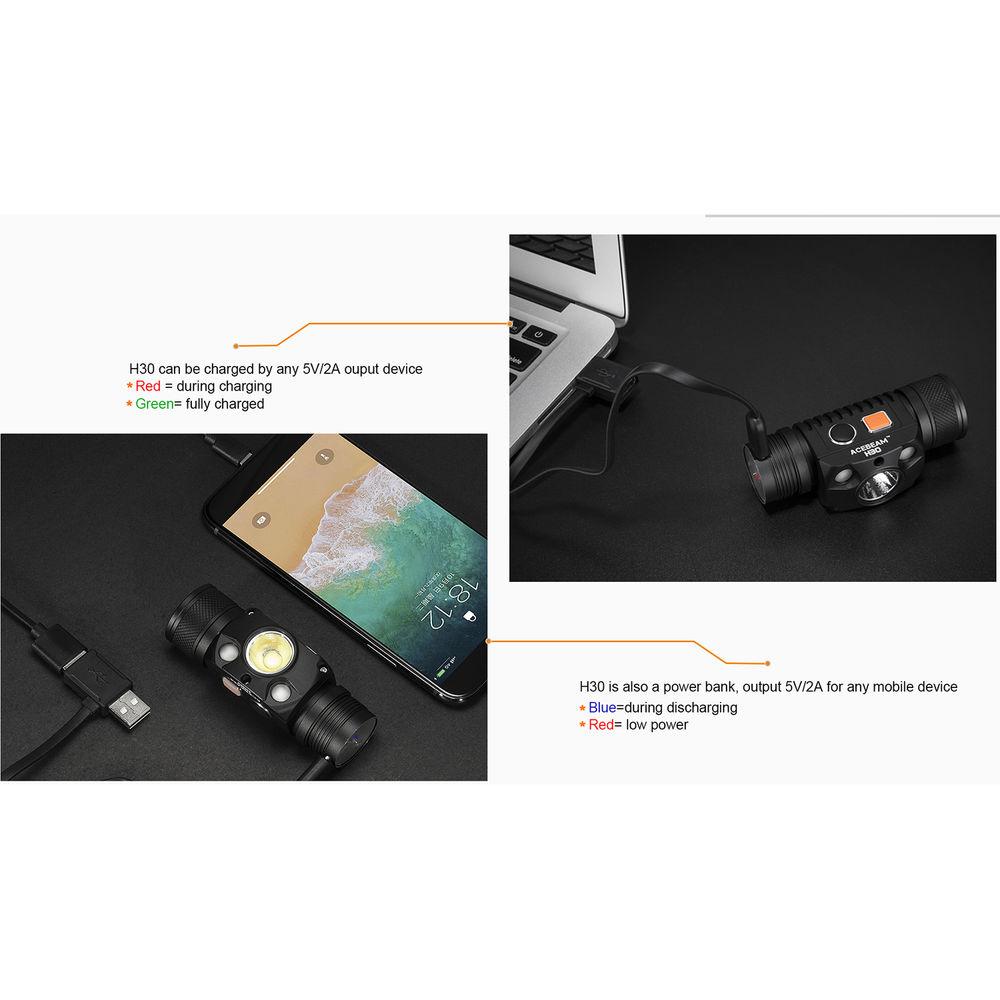

- Use as power bank with two-way USB-C charge cable
- Runs on one included 21700 battery or one 18650 battery

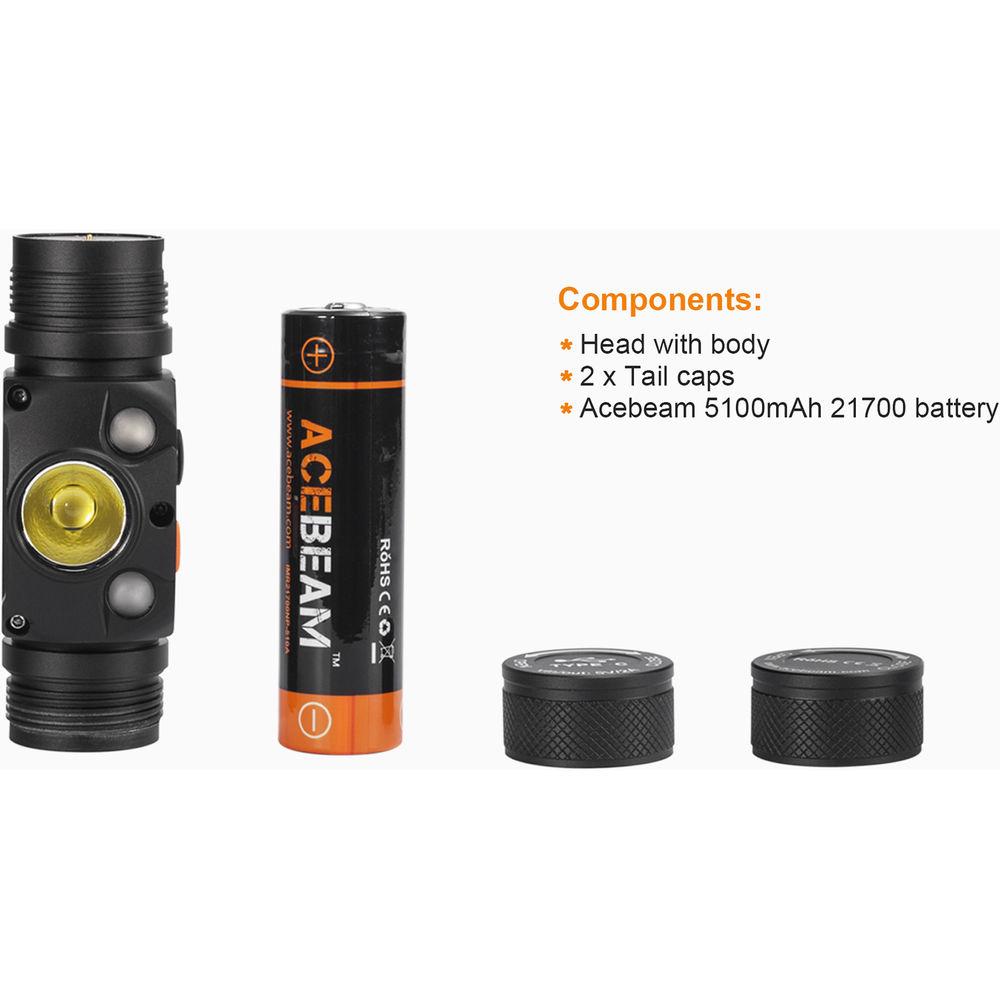

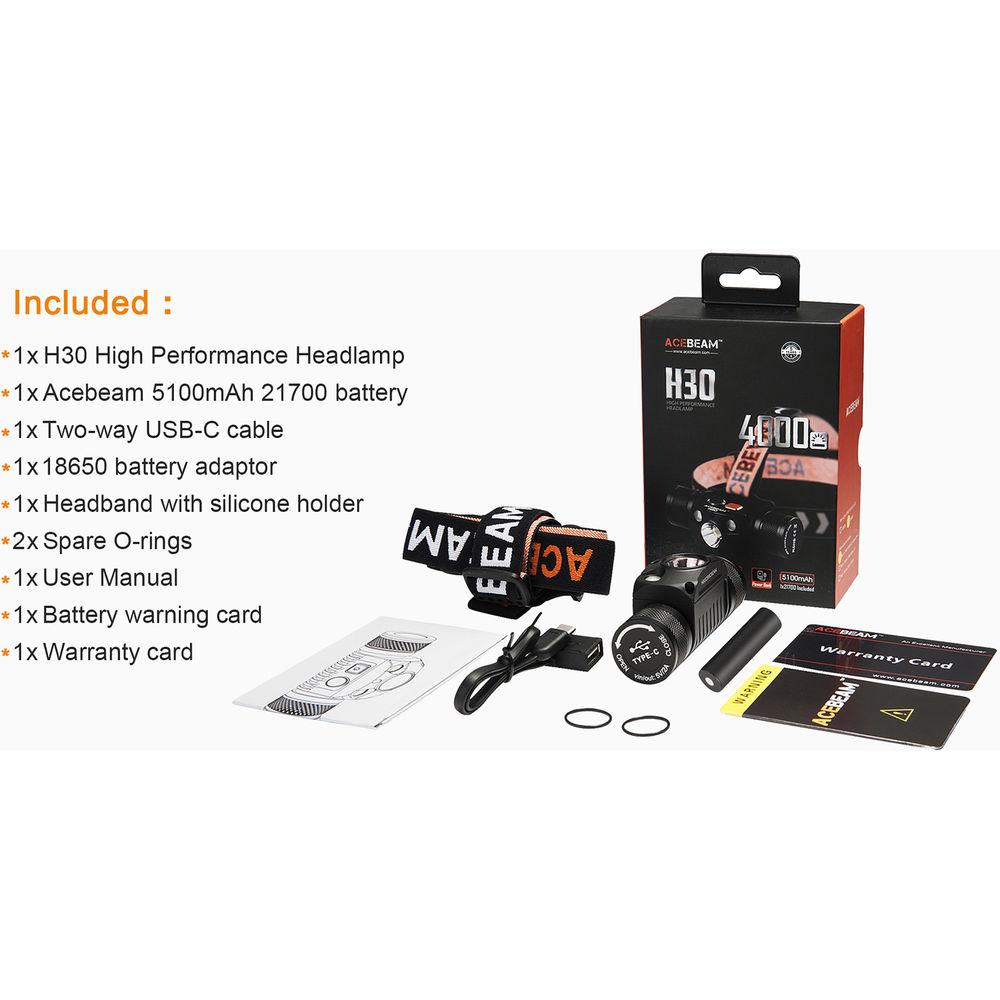

In the Box Acebeam H30 Multi-Color Rechargeable LED Headlamp 21700 Battery Elastic Headband USB-C Charge Cable 18650 Battery Adaptor 2 x Spare O-Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam H30 Multi-Color Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Acebeam H30 Multi-Color Rechargeable LED Headlamp can be downloaded in PDF format at the link stated below.

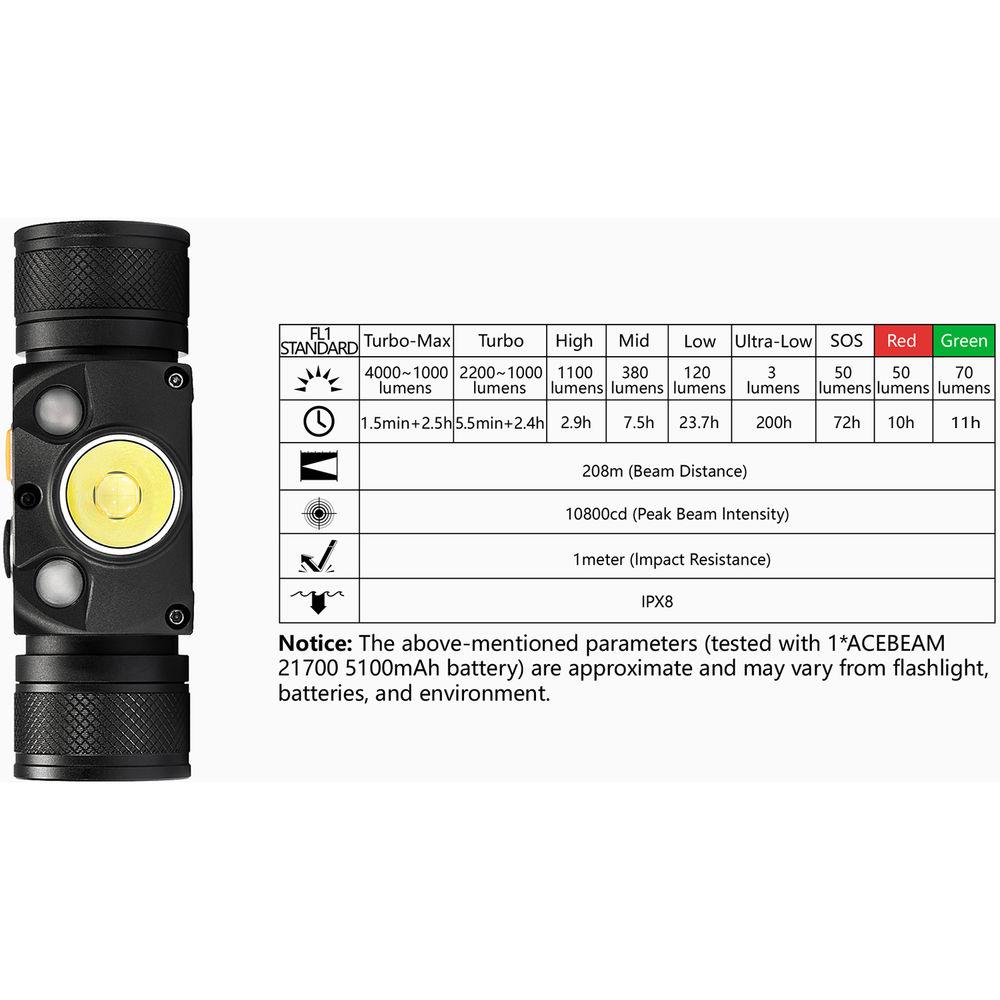

Technical parametersAcebeam H30 R+G Specs | | | Lumen Output | Ultra-Low: 3 Lumens
Low: 120 Lumens
Medium: 380 Lumens
High: 1100 Lumens
Turbo: 2200 Lumens
Maximum: 4000 Lumens | | Illumination Source | 1 x White LED
1 x Green LED
1 x Red LED | | Estimated Runtime | Ultra-Low: 200 Hours
Low: 23.7 Hours
Medium: 7.5 Hours
High: 2.9 Hours
Turbo: 5.5 Minutes
Maximum: 1.5 Minutes | | Battery Type | 1 x 21700 Lithium-Ion | | Internal Battery Capacity | 5100 mAh | | Output Voltage | 8.4 VDC | | | | Material of Construction | Aluminum | | Water Resistance | IPX8 | | Impact Resistance | , 3.3' / 1.0 m | | Dimensions | W: 3.5 x H: 1.6 x D: 1.1" / W: 8.9 x H: 4.1 x D: 2.9 cm | | Weight | 2.82 oz / 80 g (Without Battery)
5.36 oz / 152 g (With Battery) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.25 x 3.75 x 2.0" |
