User Manual for Acebeam K30 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam K30 LED Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam K30 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

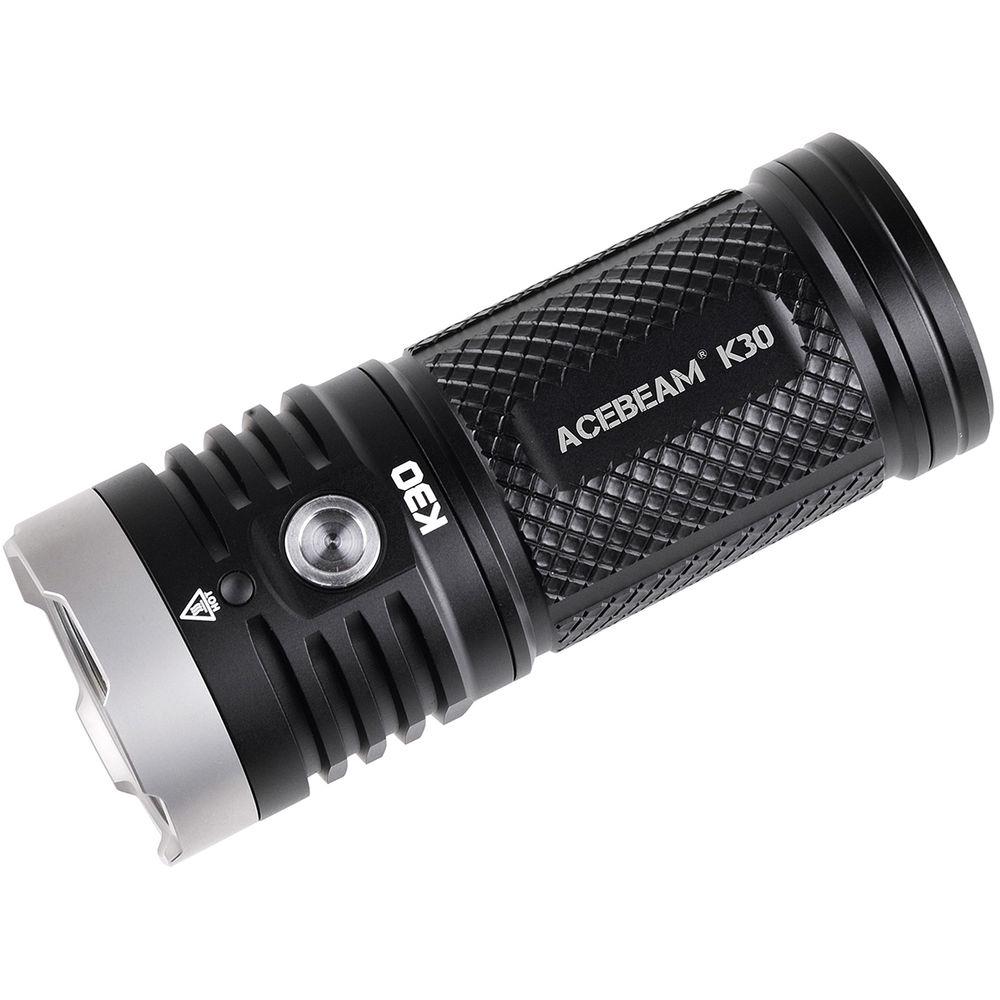

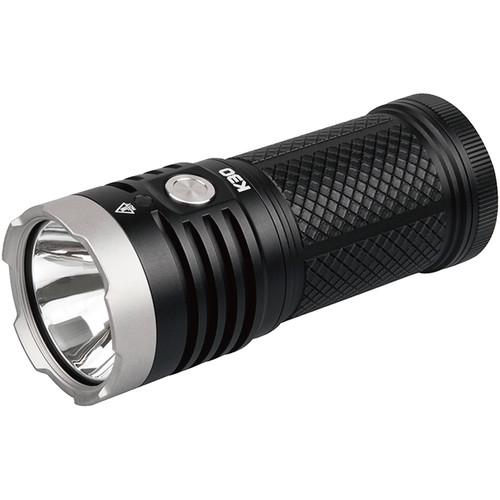

Product description With a powerful peak output of 5200 lumens, the K30 LED Flashlight from Acebeam is bright enough for professional work, light enough for outdoor recreation and compact enough for general home use and emergency preparedness. This "fistful of light," as Acebeam describes it, offers six brightness levels plus a strobe that can disorient an attacker or signal for help. Runtimes range from 110 hours on the two-lumen firefly setting to two minutes on turbo max. The light is powered by three user-supplied 18650 batteries, and there's a battery level indicator to avoid surprises.
A side-mounted push button turns the light on and off and cycles through the brightness levels and the strobe. The aluminum housing is submersible to 16', and impact resistant to 3.9'. - Light Performance
-

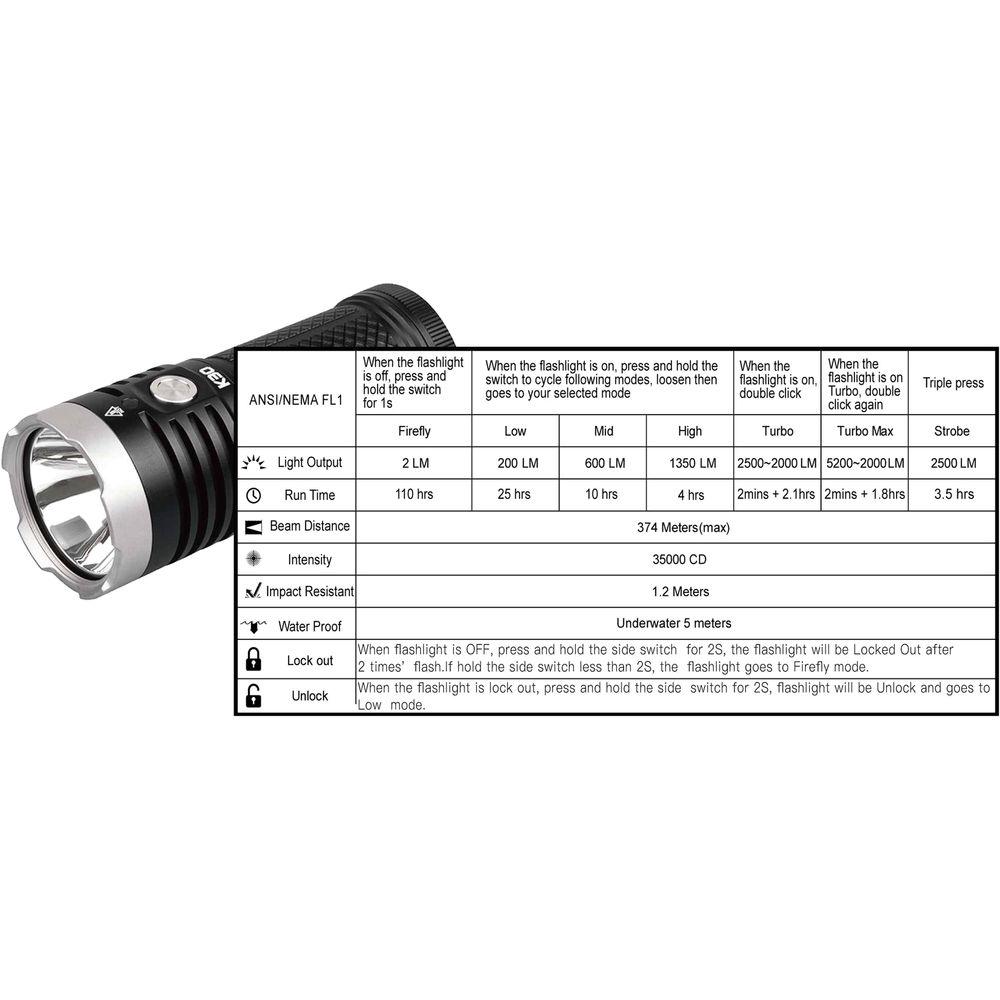

- Turbo Max: 5200 lumens (2 minutes), 2000 lumens (1.8 hours)
- Turbo: 2500 lumens (2 minutes), 2000 lumens 2.1 hours
- High: 1350 lumens
- Medium: 600 lumens
- Low: 200 lumens
- Firefly: 2 lumens
- Strobe: 2500 lumens
- Runtime: 2 minutes-110 hours
- Strobe runtime: 3.5 hours

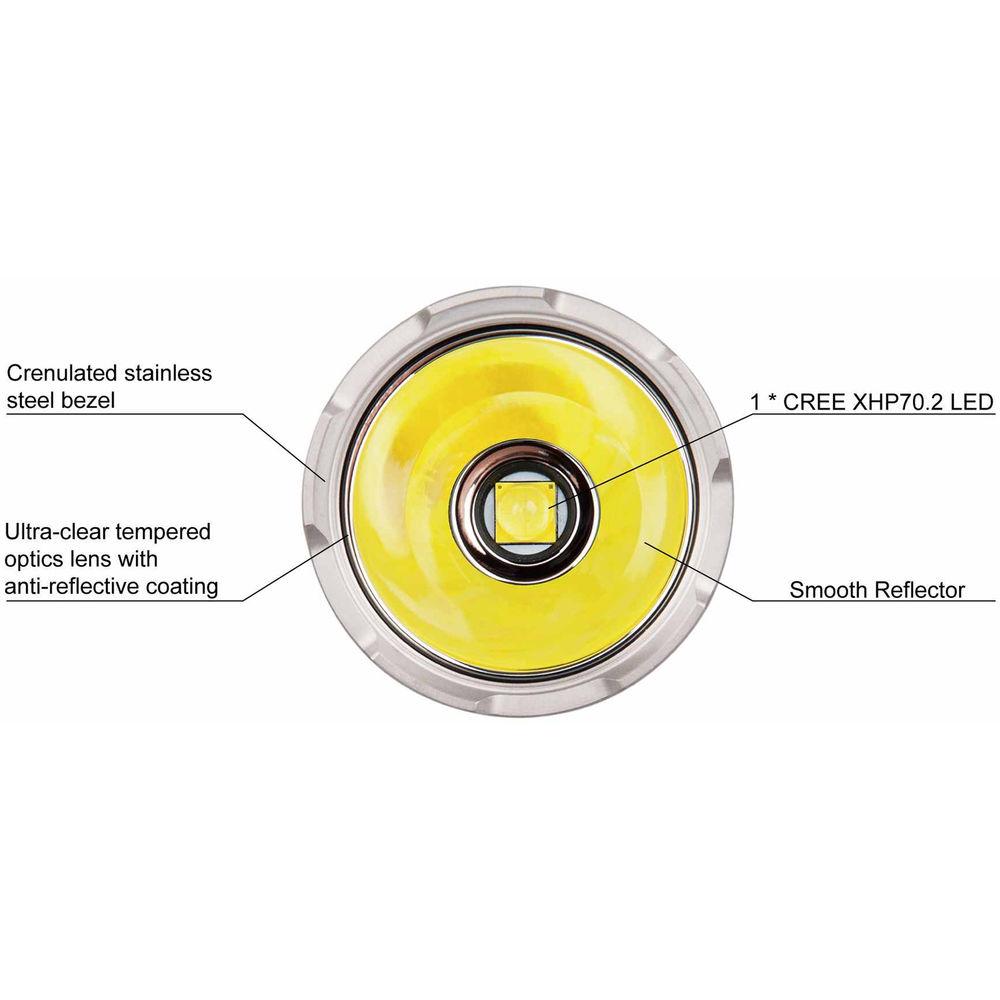

- Cree XHP 70.2 LED
- Smooth reflector
- Switching
-
- Location: side
- Type: push button
- Turn on/off, cycle through brightness settings & strobe
- Construction Details
-
- Aluminum housing with Type III anodized finish
- Submersible to 16'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating
- Runs on three user-supplied 18650 batteries

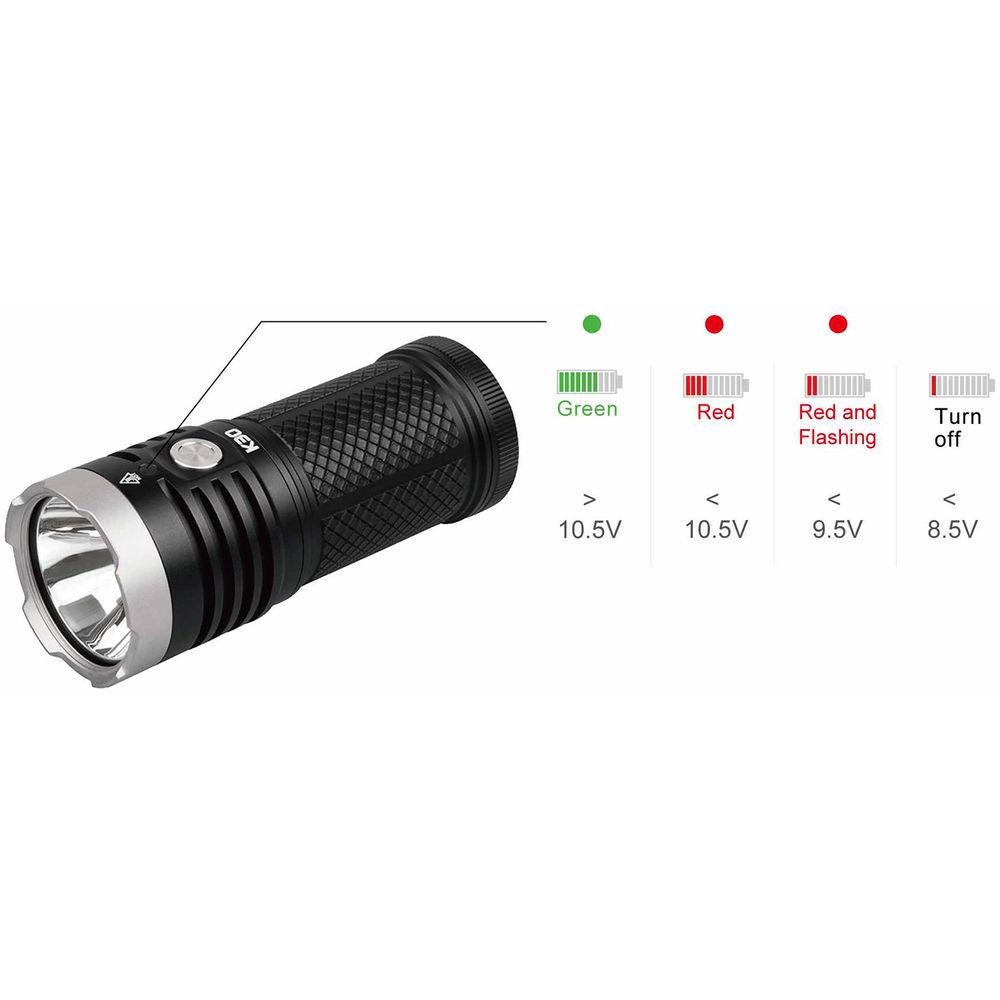

- Low battery indicator

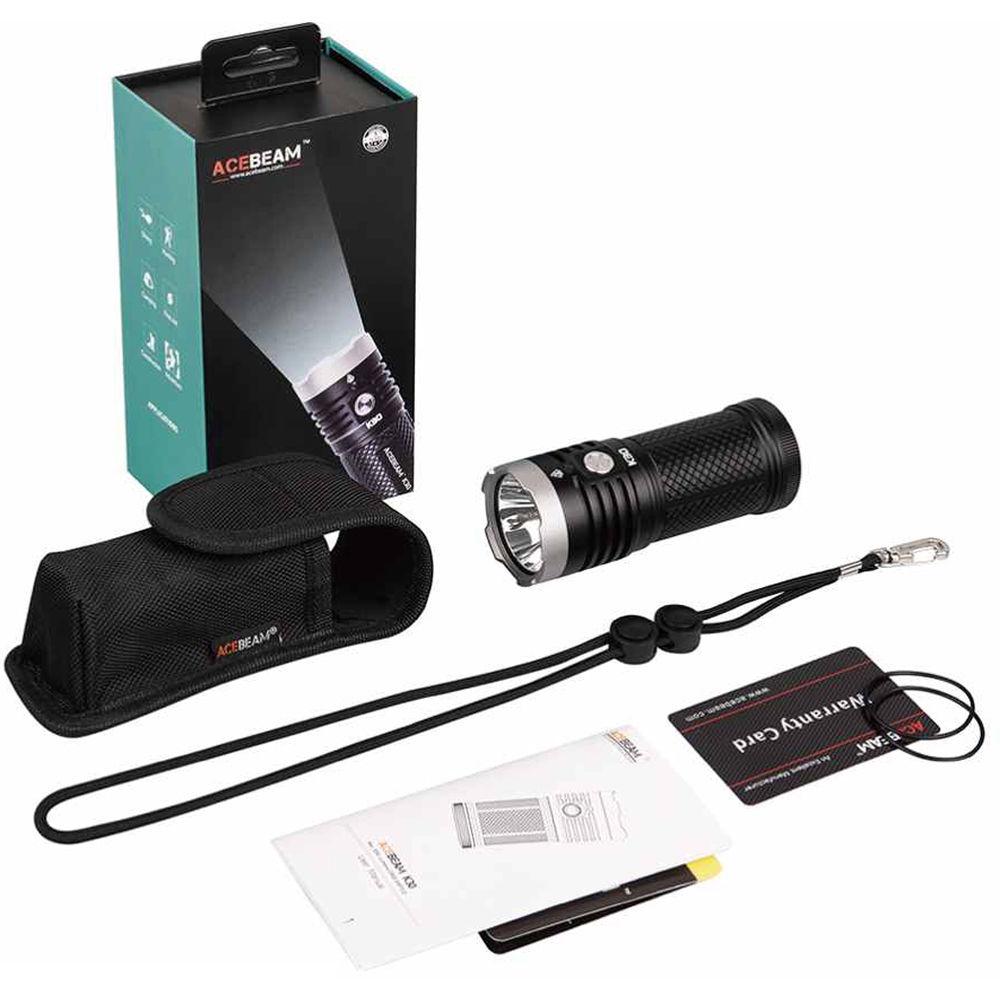

In the Box Acebeam K30 LED Flashlight Holster Lanyard 2 x Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam K30 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam K30 Specs | | | Lumen Output | High: 1350 Lumens
Medium: 600 Lumens
Low: 200 Lumens
Turbo: 5200 Lumens
Strobe: 2500 Lumens
Minimum: 2 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 4 Hours
Medium: 10 Hours
Low: 25 Hours
Turbo: 2 Minutes
Minimum: 110 Hours

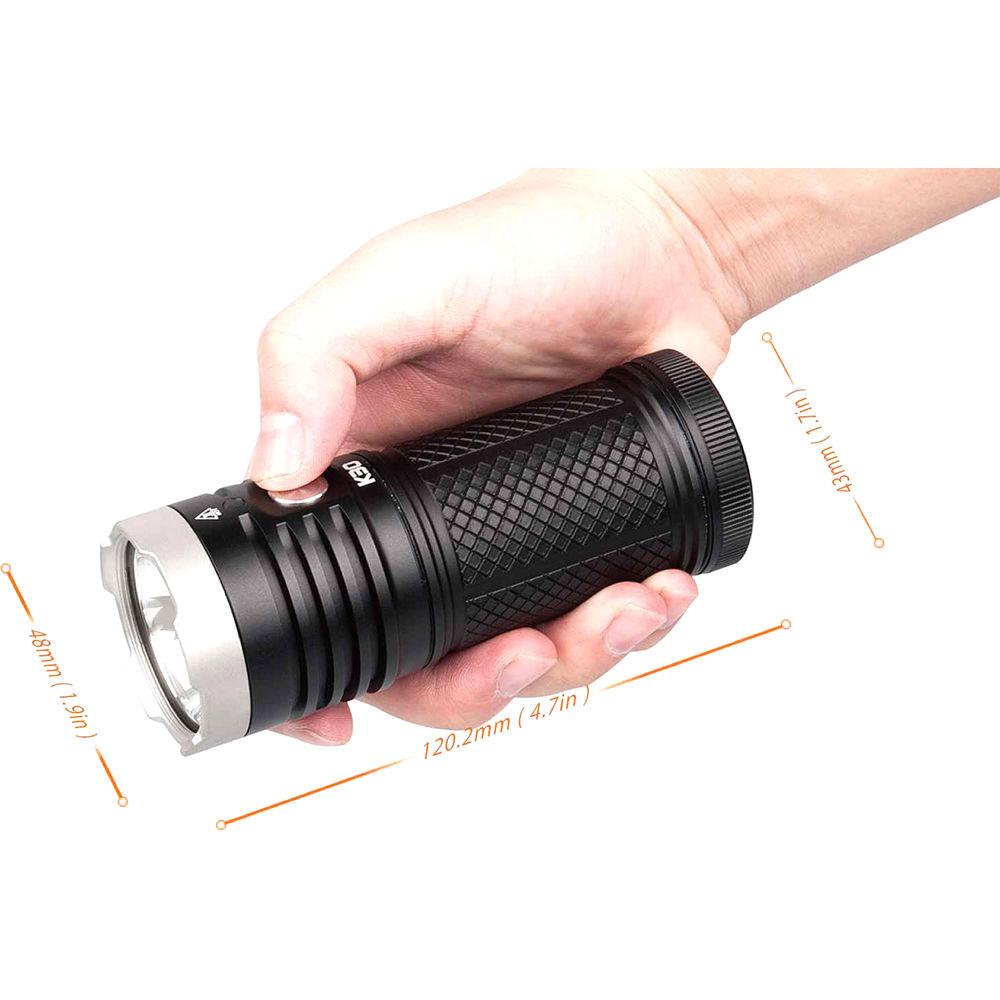

Strobe: 3.5 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 16.4' / 5 m | | Bezel Diameter | 1.9" / 48.3 mm | | Dimensions |
