User Manual for Acebeam K40M LED Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam K40M LED Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
|
User manual for the Acebeam K40M LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

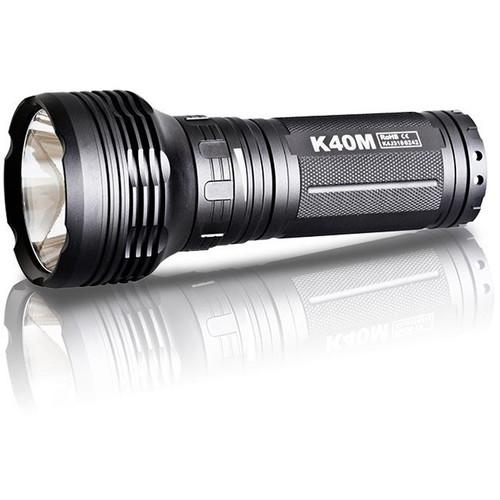

Product description With a blazing maximum output of 3000 lumens—and an equally powerful strobe for self-defense or signaling—the K40M LED Flashlight from Acebeam is suited to a wide range of military, law enforcement, search and rescue, hunting, outdoor recreation, and home uses. A push-button tailcap switch turns the light on and off, while a magnetic selector ring at the base of the head controls six brightness levels and the strobe. The K40M's Type III hard-anodized aluminum housing is rated IPX8 water resistant and tested impact resistant to 3.9'. Its tempered glass lens delivers 98.3% light transmission. This 7.3" torch weighs 15.9 ounces and runs on three user-supplied 18650 batteries with at least 2600mAh capacity. - Performance
-
- Minimum: 0.9 lumen
- Ultra-Low: 42 lumens
- Low: 430 lumens
- Medium: 1150 lumens
- High: 1900 lumens
- Turbo: 3000 lumens
- Strobe: 3000 lumens Strobe mode
- Cree XLamp MT-G2 q0 LED
- Tempered glass lens with anti-reflective coating, 98.3% light transmission
- Switching
-
- Tailcap push button controls on/off
- Magnetic selector ring for brightness levels
- Construction
-
- Type III hard anodized aluminum
- Heat-dissipating fins and internal copper heat sink plate
- Waterproofing: IPX8-rated
- Knurled handle provides slip-resistant grip
- Runs on three user-provided 2600mAh 18650 batteries
In the Box Acebeam K40M LED Flashlight Replacement O-Ring Replacement Tailcap Rubber Boot Lanyard Holster Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam K40M LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam K40M Specs | | | Lumen Output | Minimum: 0.9 Lumens
Ultra-Low: 42 Lumens
Low: 430 Lumens
Medium: 1150 Lumens
High: 1900 Lumens
Turbo: 3000 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Minimum: 1000 Hours
Ultra-Low: 70 Hours
Low: 11 Hours
Medium: 4.5 Hours
High: 1.5 Hours
Turbo: 0.9 Hours | | Battery Type | 3 x 18650 Lithium | | Internal Battery Capacity | 2600 mAh | | Output Voltage | 13 VDC | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Bezel Diameter | 3.0" / 76.2 mm | | Dimensions | W: 1.9 x L: 7.3" / W: 4.9 x L: 18.6 cm | | Weight | 15.94 oz / 452 g (Without Batteries) |
