User Manual for Acebeam K65 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam K65 LED Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam K65 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

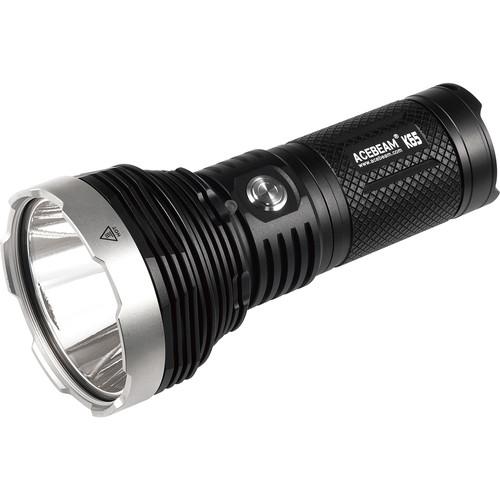

Product description With a powerful peak output of 6200 lumens, the K65 LED Flashlight from Acebeam is suited to search and rescue, law enforcement, security, industrial, recreational and emergency preparedness use. This substantial torch offers six brightness levels plus a strobe and an SOS beacon. Runtimes range from 60 hours on the 5-lumen eco setting to 3 minutes on turbo. The light is powered by four user-supplied 18650 batteries, and there's a battery level indicator to avoid surprises.

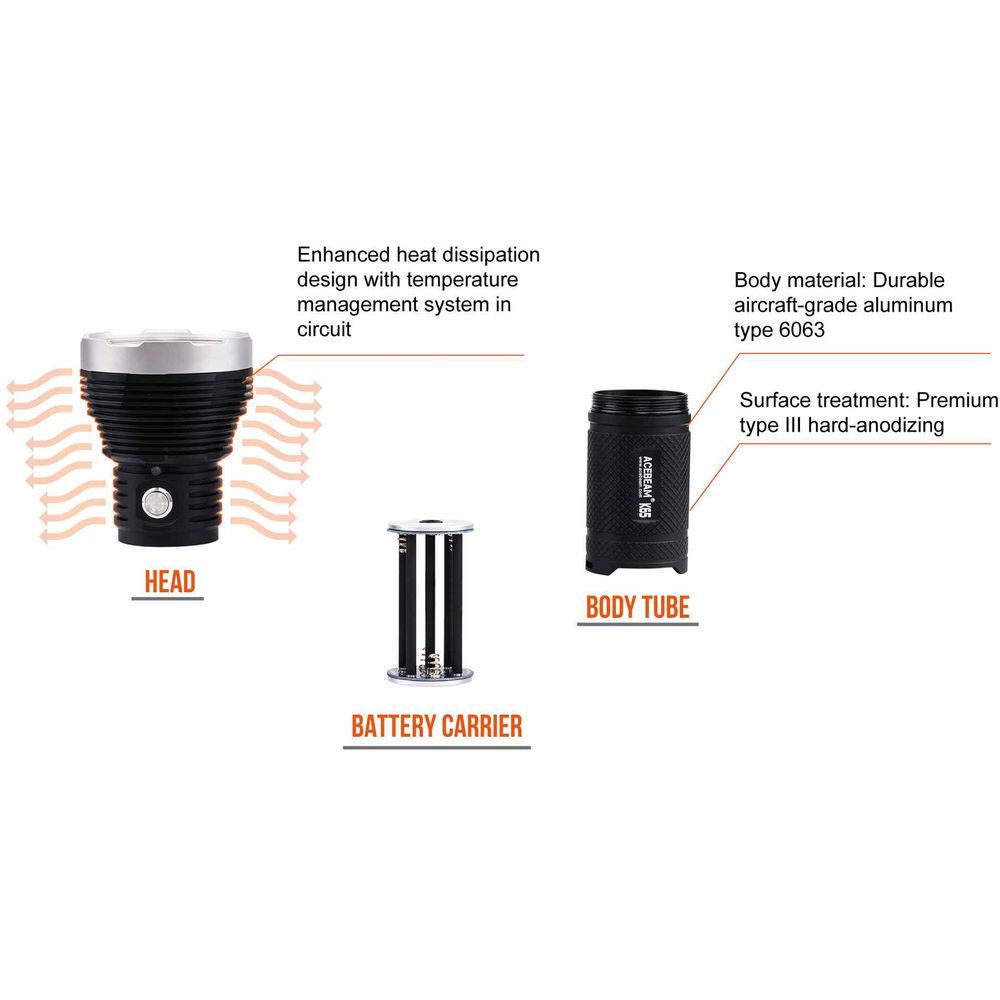

A side-mounted push-button turns the light on and off and cycles through the brightness levels and the strobe. The aluminum housing is IPX8-rated, submersible to 6.6', and impact resistant to 3.9'. The stainless-steel bezel is aggressively crenelated for self-defense or emergency window-breaking, and the glass lens of the light bears anti-reflective coating for maximum light transmission. Heat-sink construction in the head and upper handle help dissipate energy from the powerful Cree XHP70.2 LED. - Light Performance
-
- Turbo: 6200 lumens (3 minutes), 4000 lumens (1.2 hours)
- High: 3500 lumens
- Medium: 1700 lumens
- Low: 700 lumens
- Ultralow: 250 lumens
- Eco: 5 lumens
- Strobe & SOS: 1700 lumens
- Runtime: 3 minutes-60 hours
- Cree XHP 70.2 LED
- Smooth reflector
- Switching
-
- Location: side
- Type: push button
- Turn on/off, cycle through brightness settings, strobe & SOS
- Construction Details
-
- Aluminum housing with Type III anodized finish

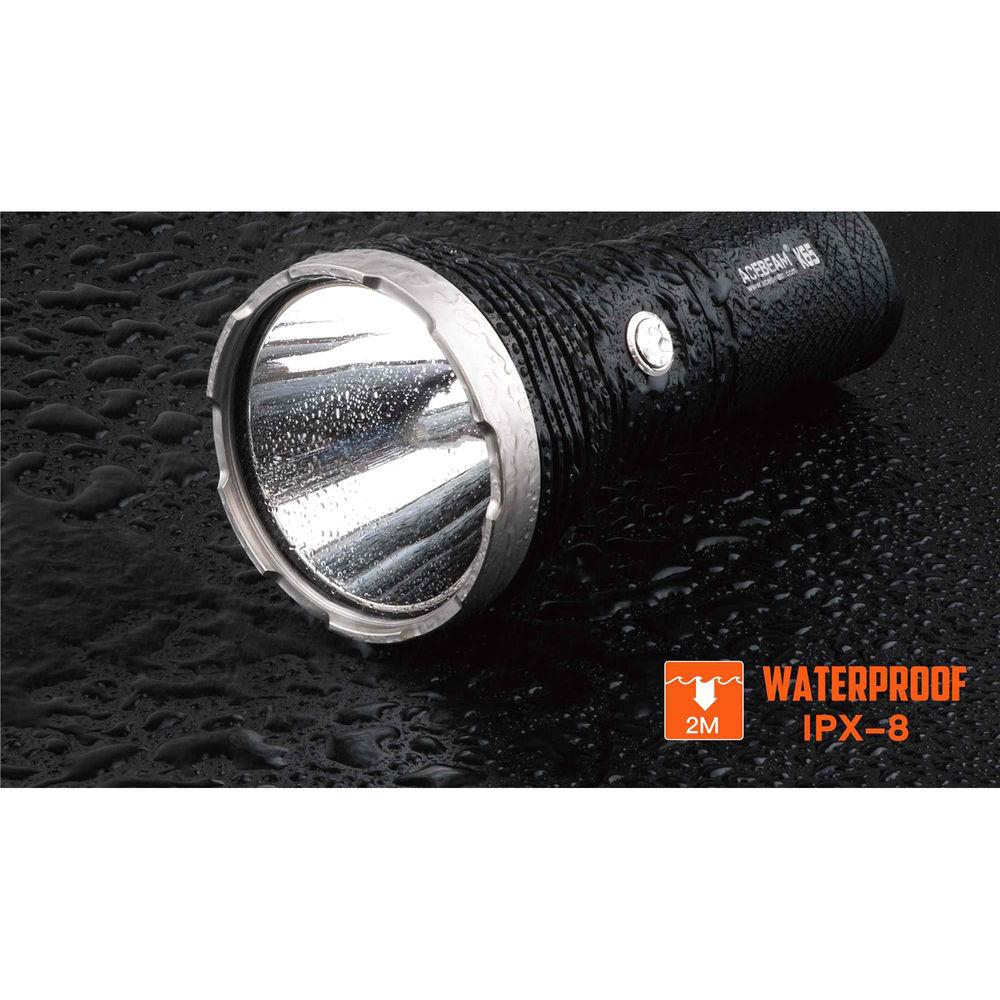

- IPX8-rated, submersible to 6.6'
- Impact resistant to 3.9'

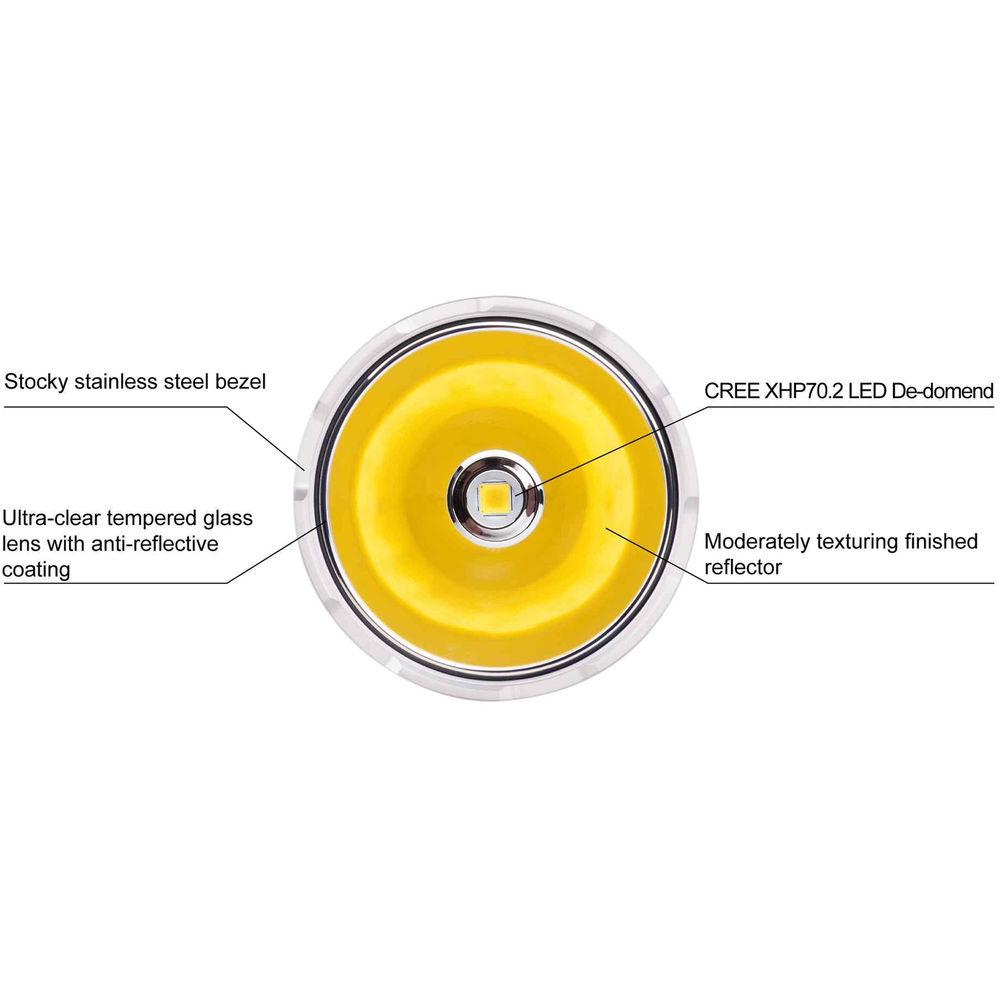

- Toughened glass lens with anti-reflective coating
- Runs on four user-supplied 18650 batteries

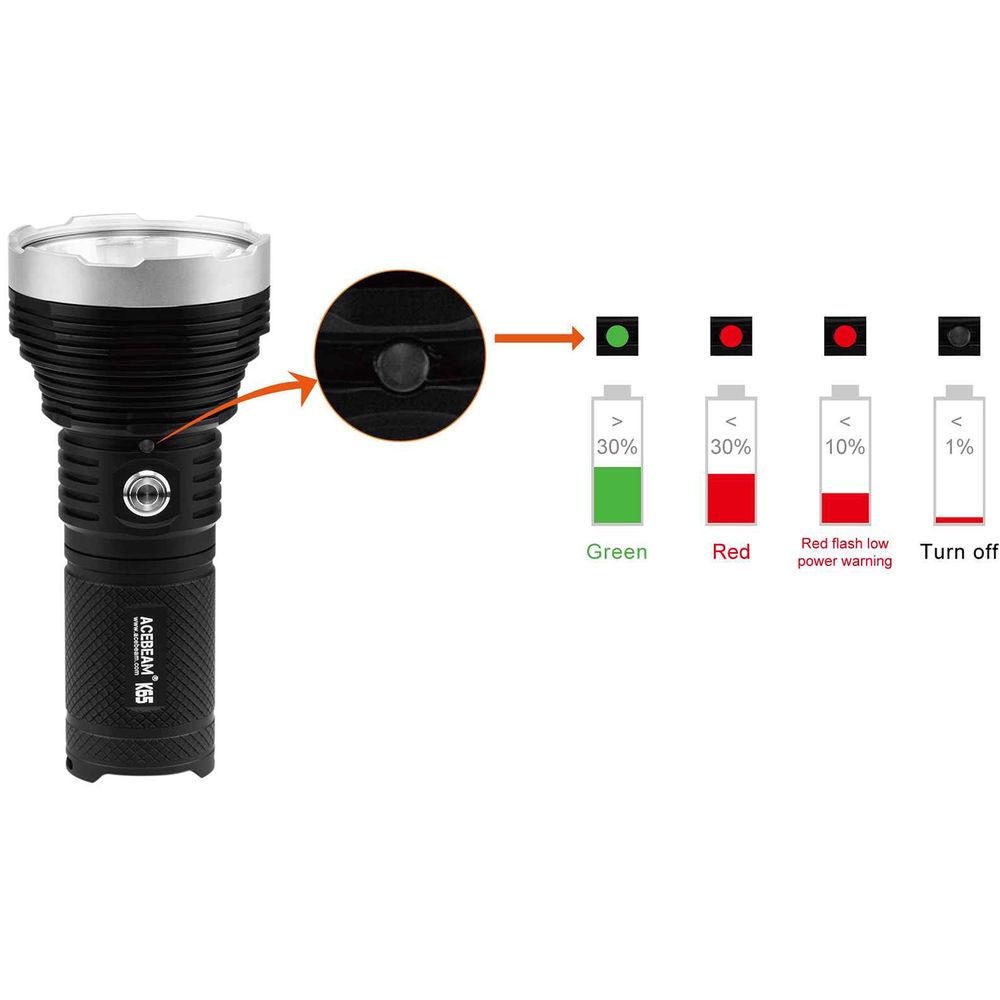

- Low battery indicator

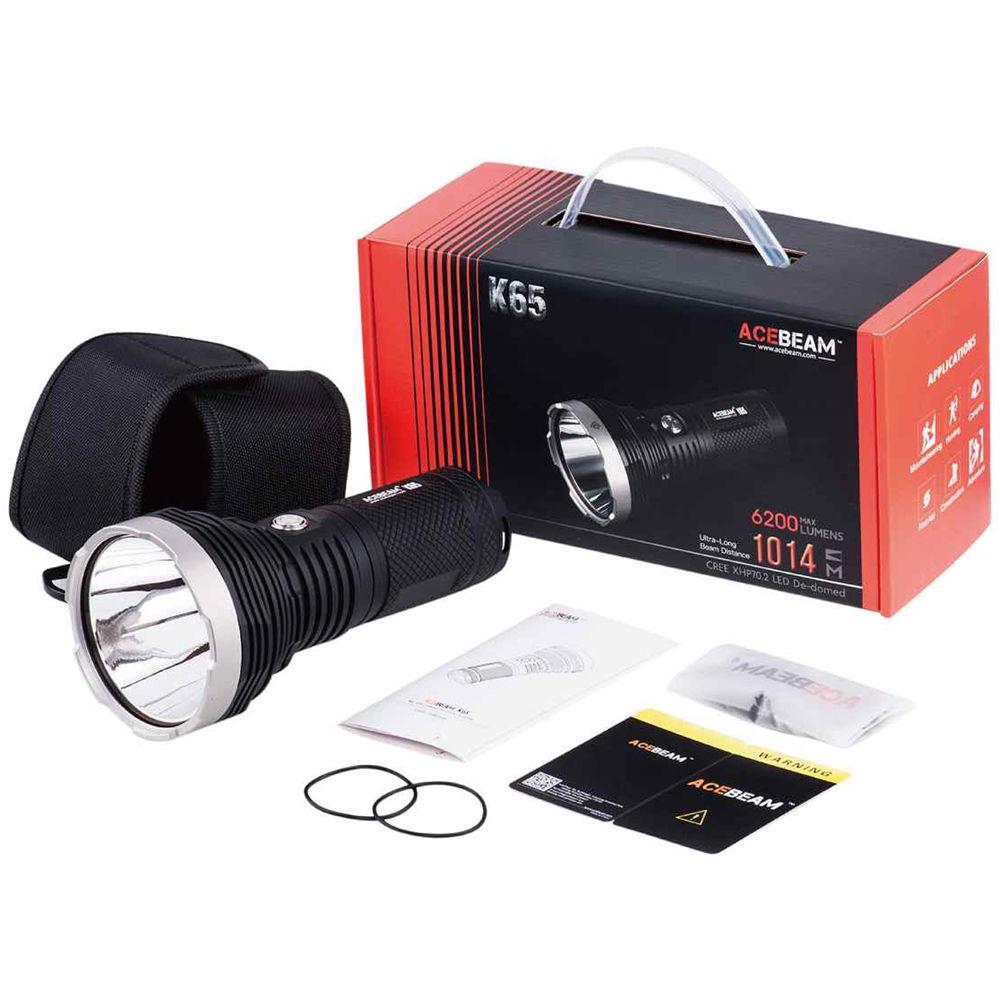

In the Box Acebeam K65 LED Flashlight (Black) Holster Lanyard 2 x Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam K65 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

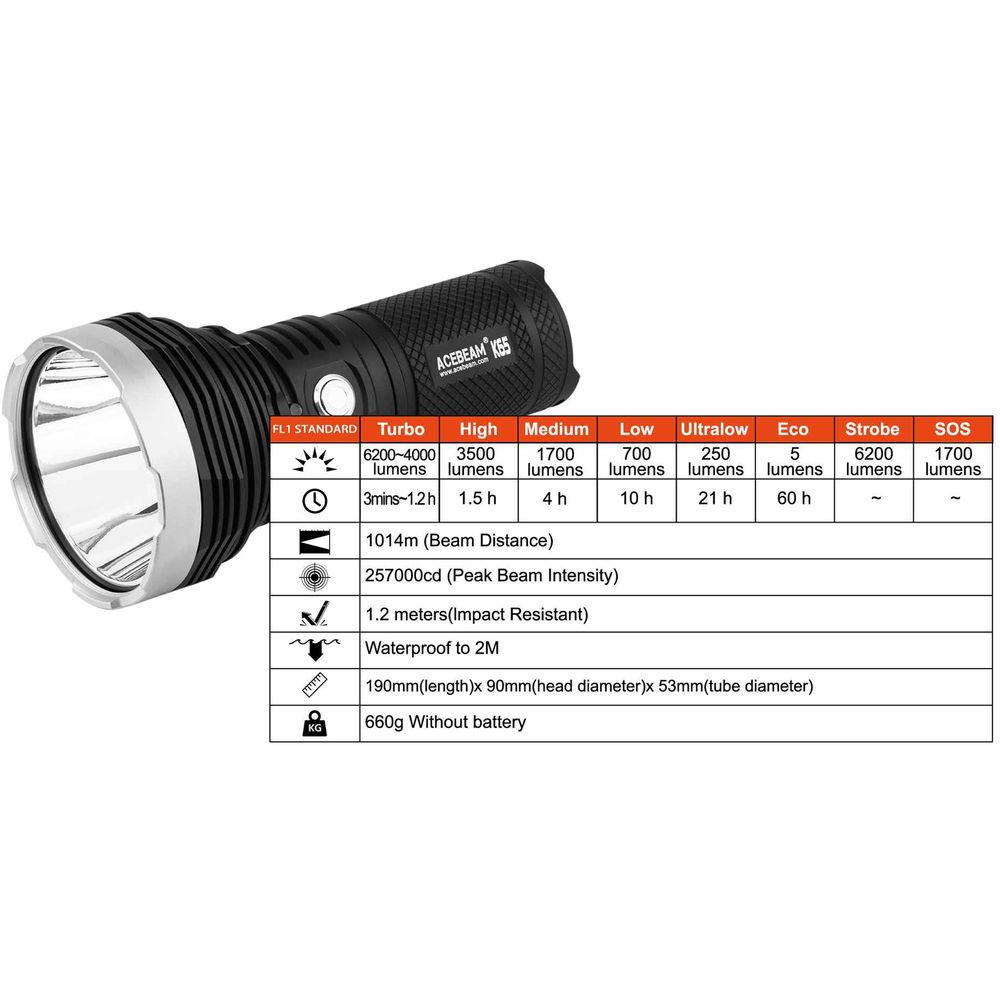

Technical parametersAcebeam K65 Specs | | | Lumen Output | High: 3500 Lumens
Medium: 1700 Lumens
Low: 700 Lumens
Turbo: 6200 Lumens
Minimum: 5 Lumens
Strobe: 1700 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.5 Hours
Medium: 4 Hours
Low: 10 Hours
Turbo: 3 Minutes
Minimum: 60 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Bezel Diameter | 3.5" / 8.9 cm | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
