Product description Combining the convenience of micro-USB recharging with a 2000-lumen maximum output, the Acebeam L16 Rechargeable LED Flashlight is a versatile torch for law enforcement, search and rescue, military and similar applications. Dual push-button switches control operation of the light: one on the side, for cycling through the settings, and a tailcap switch for momentary activation and direct access to the turbo setting. Runtimes range from 500 hours on the one-lumen firefly setting to over an hour at peak output. The L16's 18650 li-ion battery recharges inside the light via micro-USB, but the light can also run on two CR123A batteries if necessary.
The aluminum housing is Type II anodized and IPX8-rated, submersible to 6.6', and impact resistant to 3.9'. The glass lens of the light bears anti-reflective coating for maximum light transmission. Heat-sink construction helps dissipate energy from the hot LED. - Light Performance
-
- Turbo: 2000 lumens
- High: 1000 lumens
- Medium: 500 lumens
- Low: 150 lumens
- Firefly: 1 lumen
- Strobe: 2000 lumens
- Runtime: 2.2-500 hours

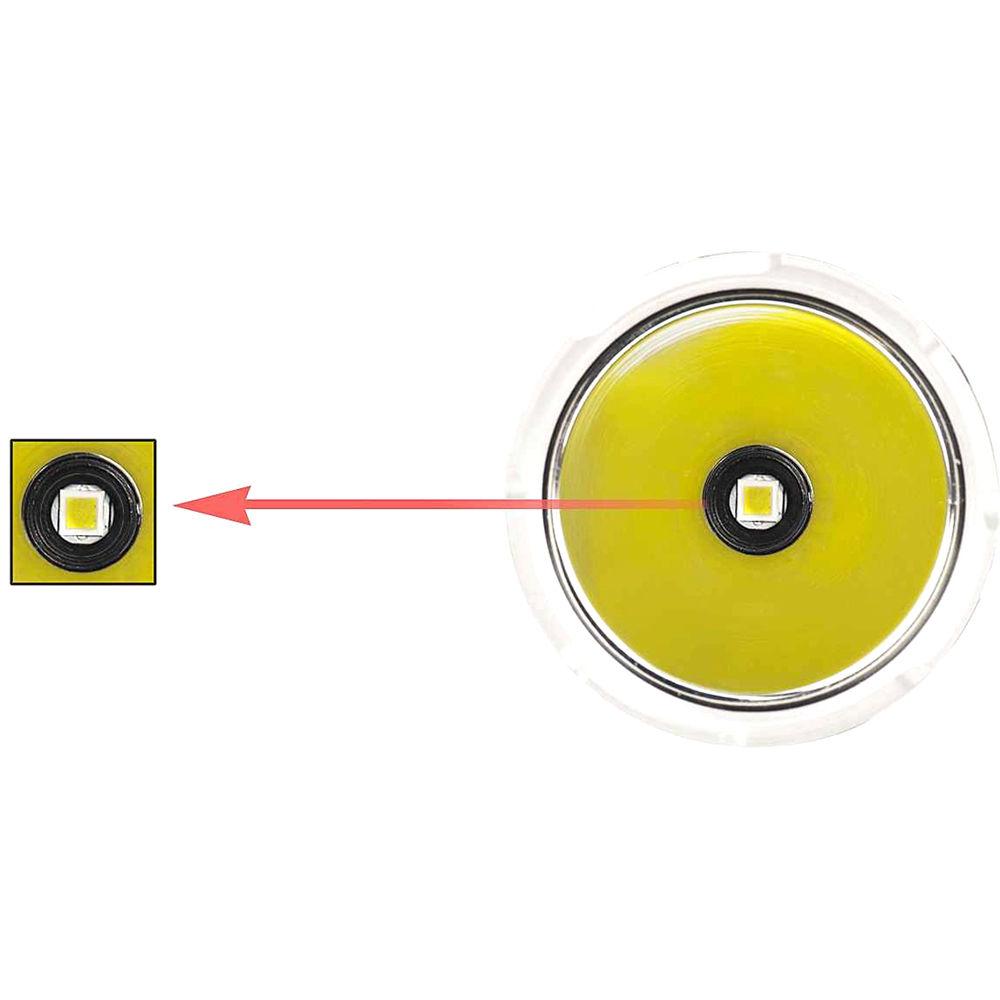

- Cree XHP35 HI LED
- Smooth reflector

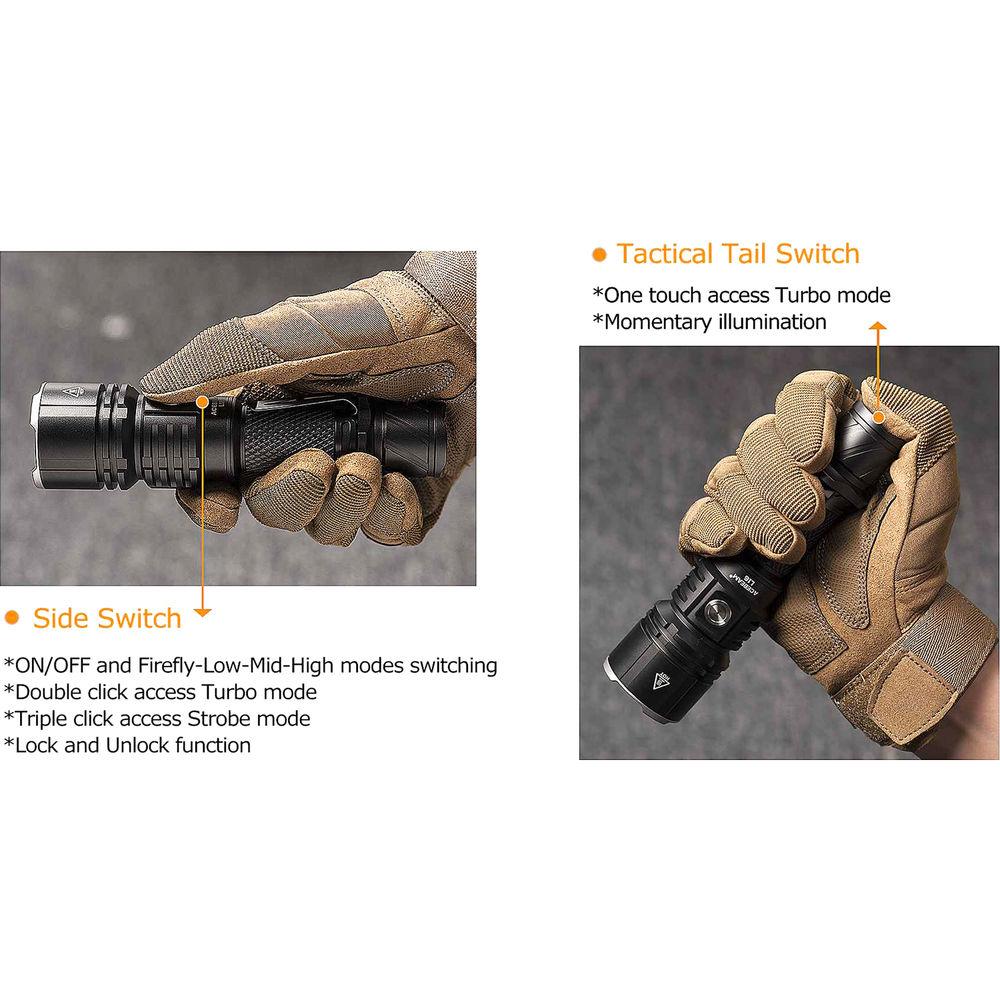

- Switching
-
- Location: side, tailcap
- Side switch for output selection
- Tailcap switch for momentary operation & direct access to turbo
- Construction Details
-
- Aluminum housing with Type III anodized finish
- IPX8-rated, submersible to 6.6'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating

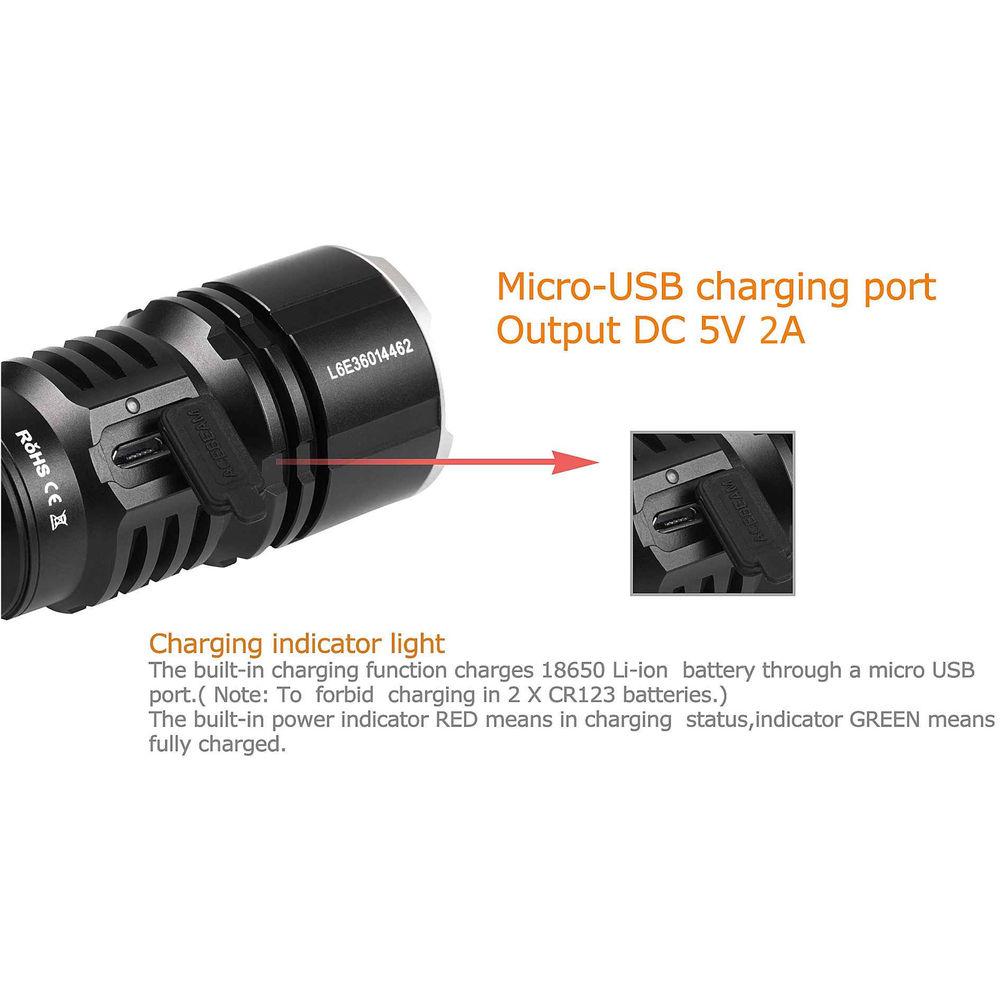

- Micro-USB charging port

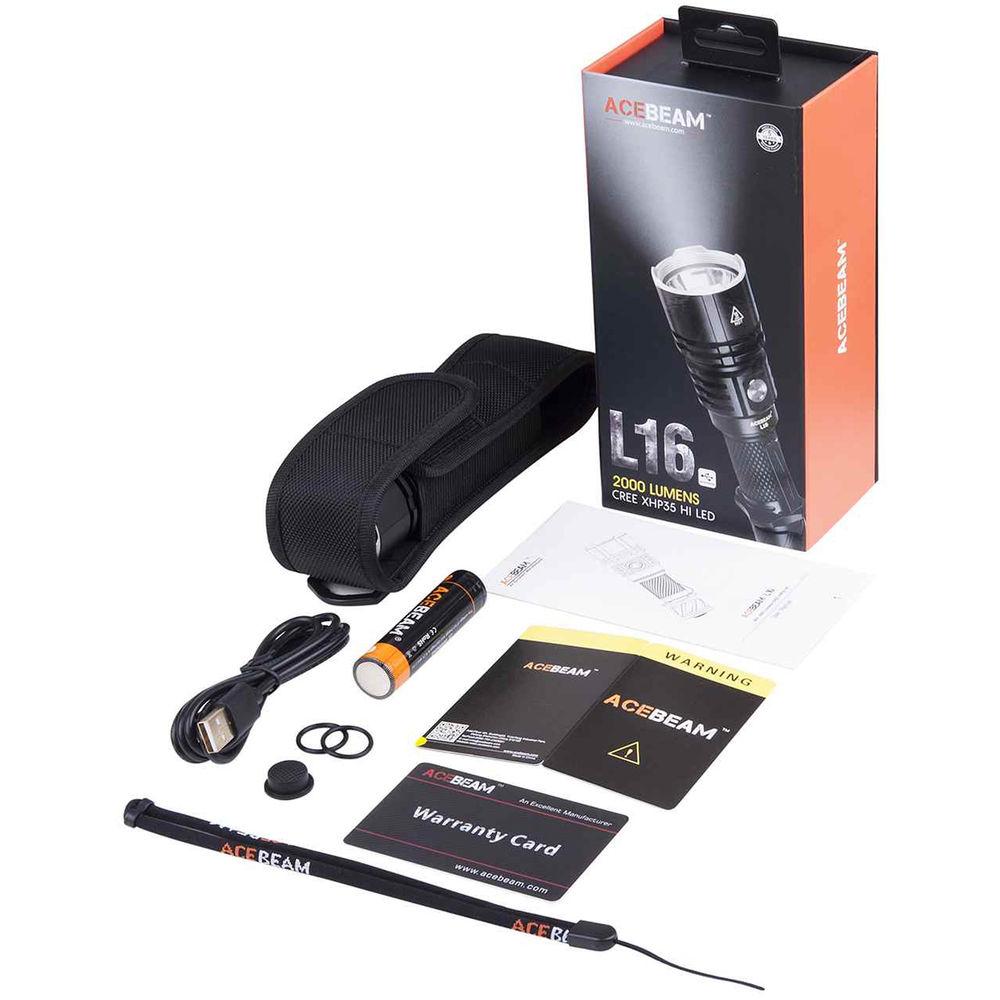

In the Box Acebeam L16 Rechargeable LED Flashlight (Black) Holster Lanyard 2 x Spare O-Ring Rubber Button Cap 18650 Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam L16 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

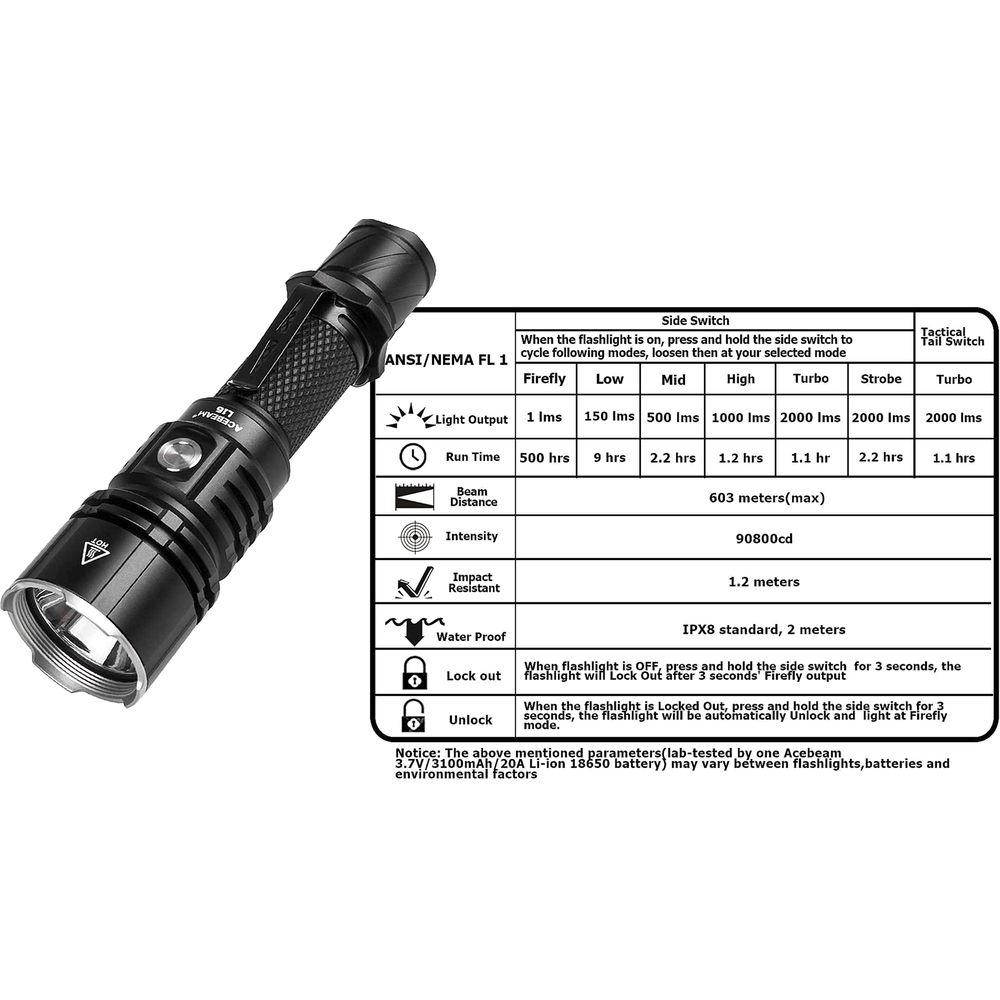

Technical parametersAcebeam L16 Specs | | | Lumen Output | Turbo: 2000 Lumens
High: 1000 Lumens
Medium: 500 Lumens
Low: 150 Lumens
Minimum: 1 Lumen
Strobe: 2000 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.2 Hours
Medium: 2.2 Hours
Low: 9 Hours
Turbo: 1.1 Hours
Minimum: 500 Hours

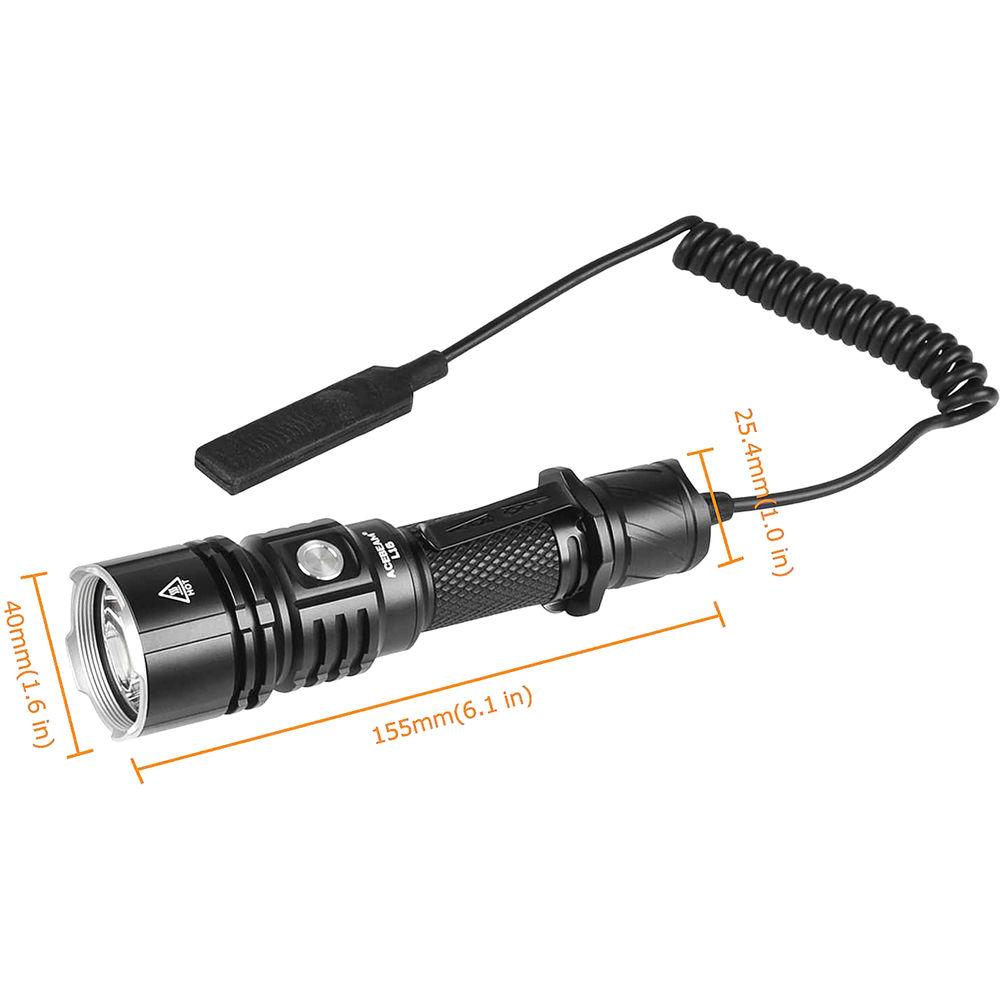

Strobe: 2.2 Hours | | Battery Type | 1 x Rechargeable Pack Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions |
