User Manual for Acebeam L30 GEN II Rechargeable LED Flashlight Hunting Kit Click to enlarge the picture
Contents of the user manual for the Acebeam L30 GEN II Rechargeable LED
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam L30 GEN II Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

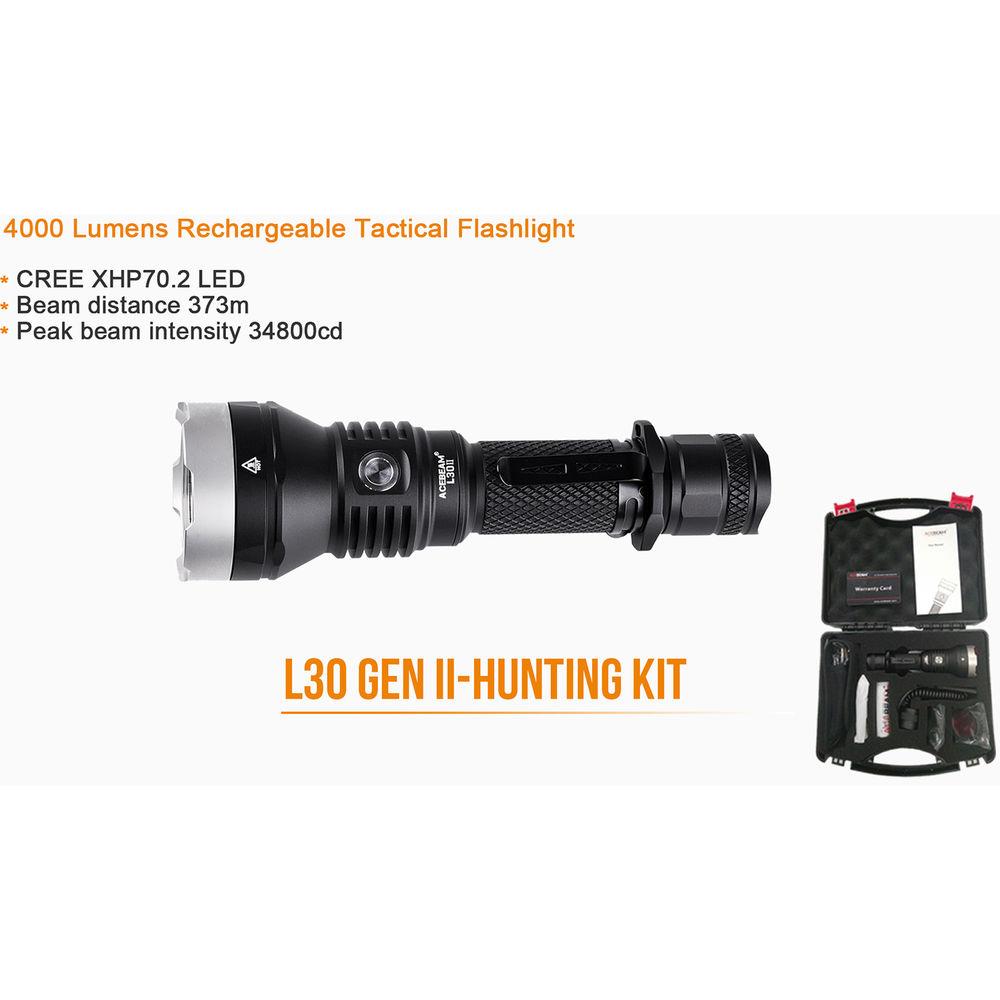

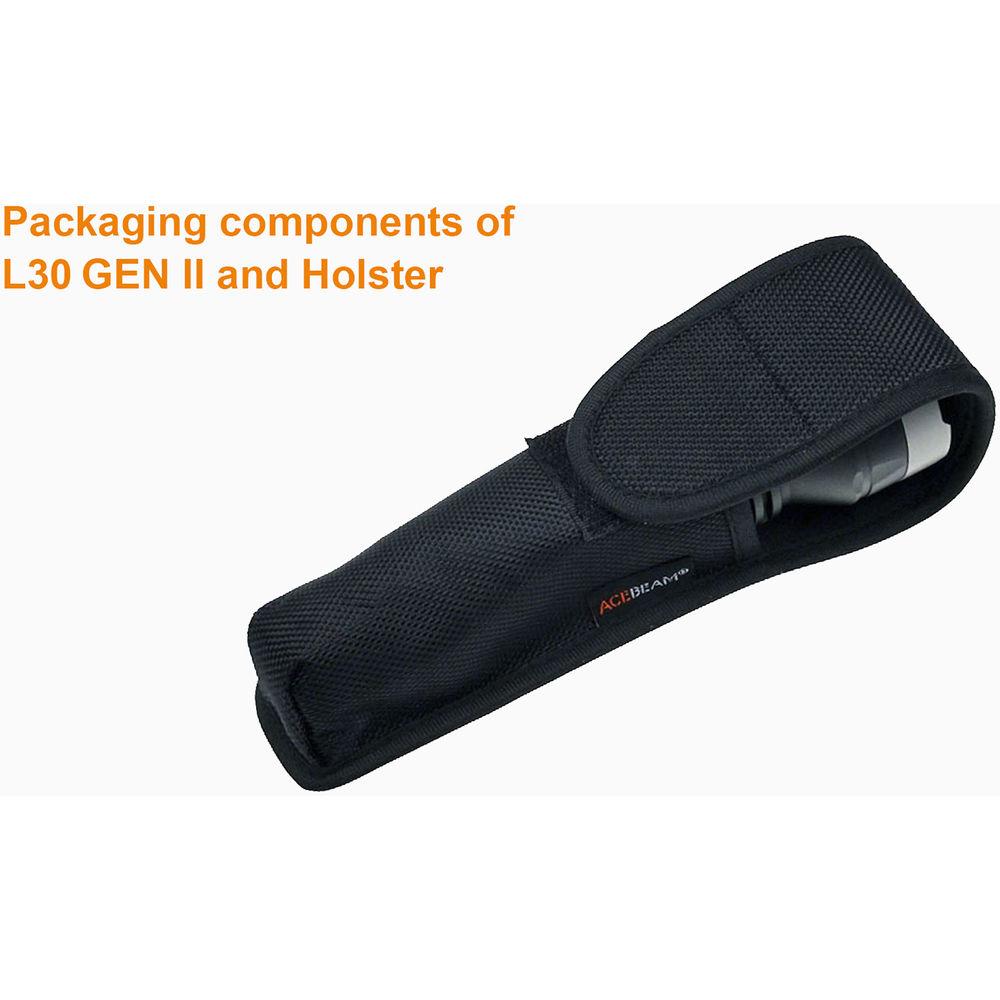

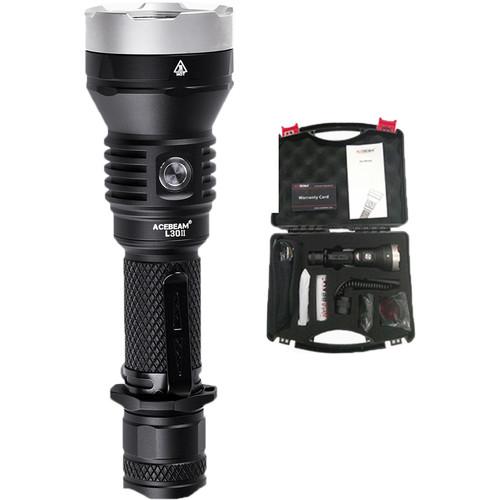

Product description Take to the field with the illumination gear you'll need for a successful hunt in the L30 Gen II Rechargeable LED Flashlight Hunting Kit from Acebeam. The kit includes the 4000-lumen maximum output L30 Gen II flashlight, a high-drain rechargeable battery, a remote pressure switch, a charging cable, red and green filters, a tactical ring, a pocket clip, a holster, and a lanyard. The set comes in a sturdy carry case with integrated handle and foam-lined interior. - L30 GEN II Rechargeable LED Flashlight With a maximum output of 4000 lumens, the L30 Rechargeable LED Flashlight from Acebeam is a powerful torch suited to professional uses, outdoor adventure, general home use, and emergency preparedness. Choose from five brightness levels plus a strobe that can disorient an attacker or signal for help. Runtimes range from 65 days on the one-lumen Firefly setting to 1.4 hours on Turbo (three minutes at 4000 lumens, 2000 lumens thereafter). The light comes with a 5100mAh IMR 21700 battery that recharges inside the light via micro-USB, and it can also be powered by a rechargeable 18650 battery or two CR123A cells.

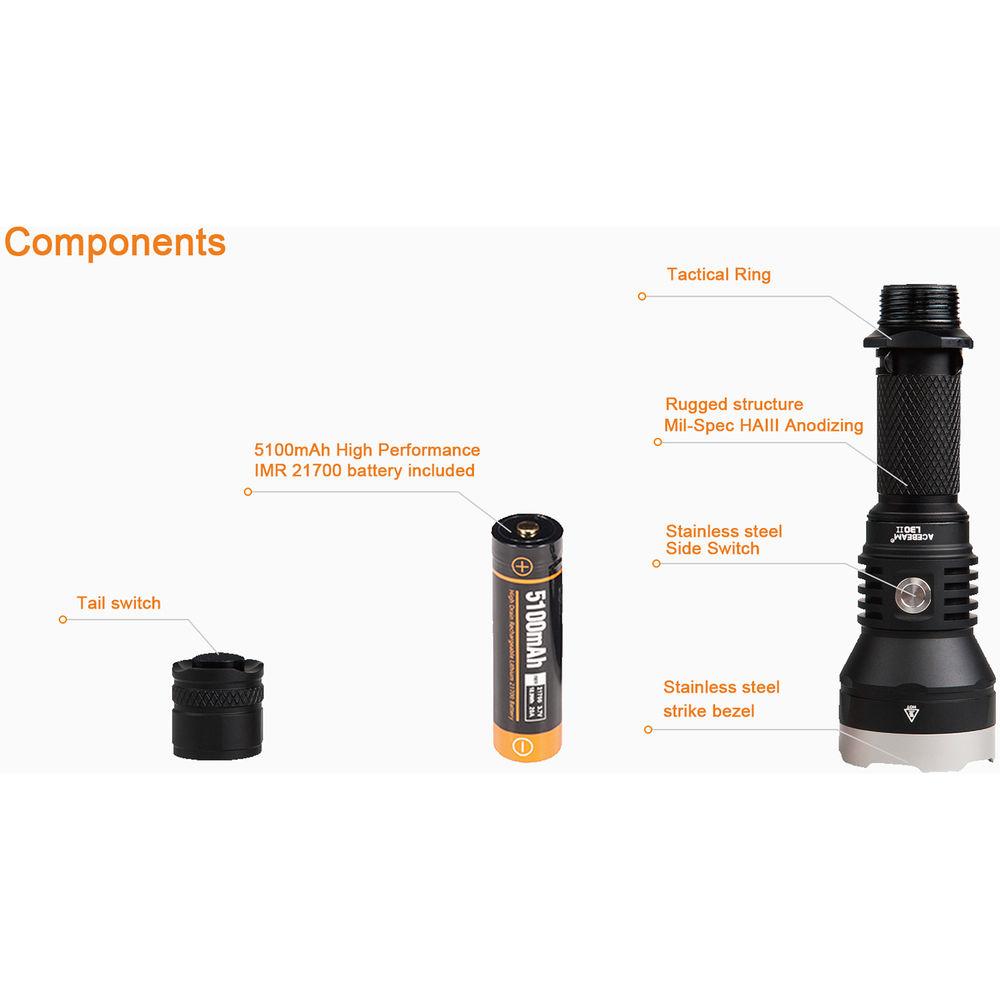

A side-mounted push button turns the light on and off, cycles through the brightness levels, and controls the lockout function that prevents inadvertent activation during transport, while the tailcap switch provides one-touch access to turbo. The aluminum housing is IPX8-rated, submersible to 16.4', and impact resistant to 3.9'. The tempered glass lens bears an anti-reflective coating that optimizes light transmission. - Light Performance
-
- Turbo: 4000 to 2000 lumens
- High: 2000 lumens
- Medium: 1000 lumens
- Low: 200 lumens
- Firefly (ultra-low): 1 lumen
- Runtime: 1.4 hours-65 days
- Cree XHP70.2 LED
- Smooth reflector
- 2000-lumen strobe for self-defense or signaling
- Switching
-
- Location: side and tailcap
- Type: push button
- Side switch controls on/off and brightness levels
- Tailcap switch provides instant access to turbo
- Lockout mode prevents unintentional activation
- Construction Details
-
- Aluminum housing with IPX8 rating
- Submersible to 16.4'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating
- Crenellated bezel

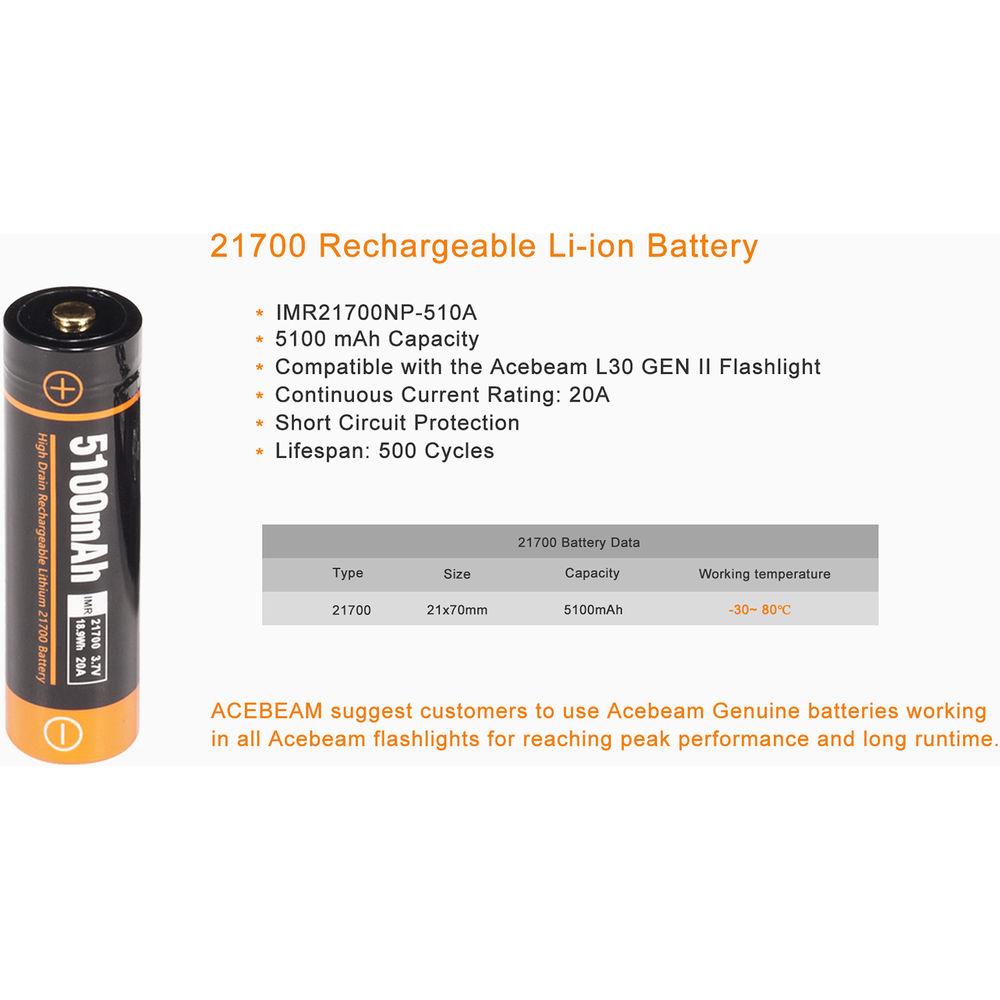

- 5100mAh IMR 21700 li-ion battery recharges inside light via micro-USB
- Light can also run on 18650 or two CR123A batteries

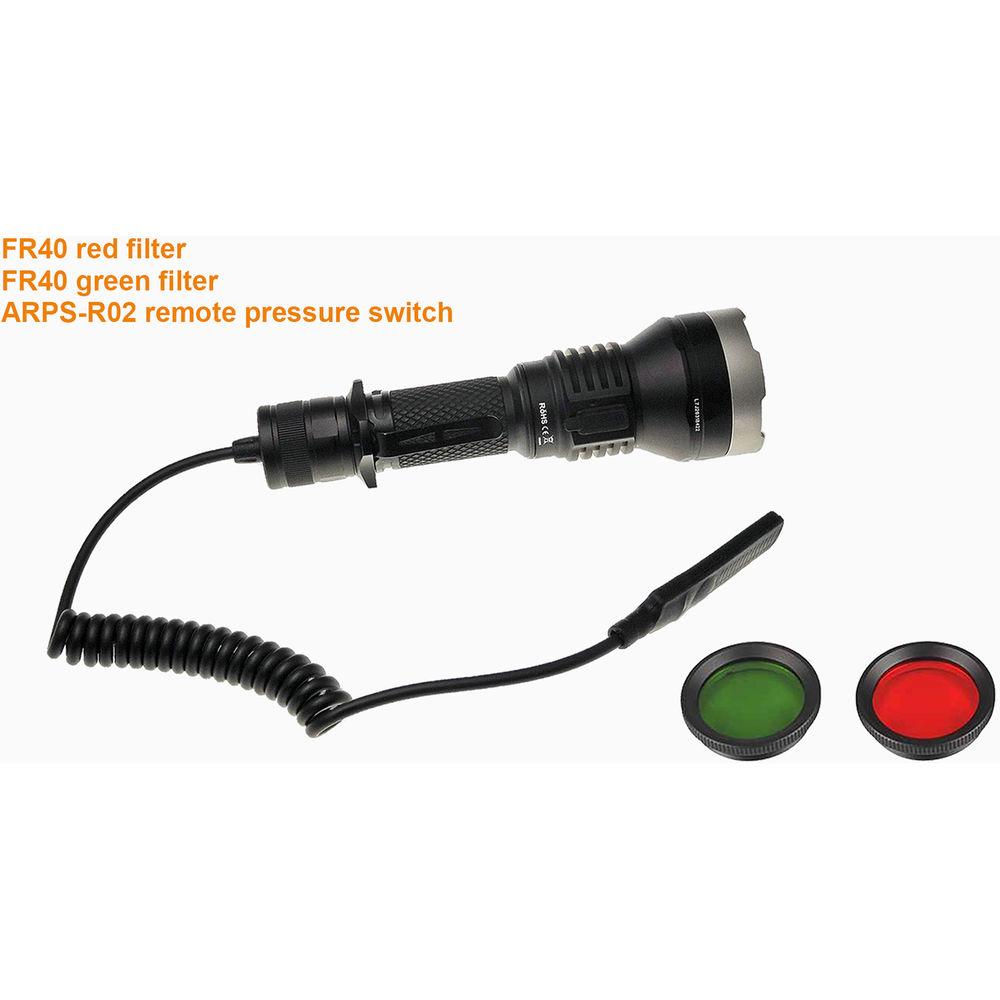

- Remote Pressure Switch for L30 GEN II & T36 Flashlights This Remote Pressure Switch allows you to operate select Acebeam weapon-mounted flashlights without having to move your hands. It is compatible with the L30 Gen II and T36.
- FR40 Colored Filter Set for L30 & K30 Flashlights The FR40 Colored Filter Set includes red and green filters for Acebeam L30 and K30 flashlights. Customize your light with the right filter for your nighttime activity.

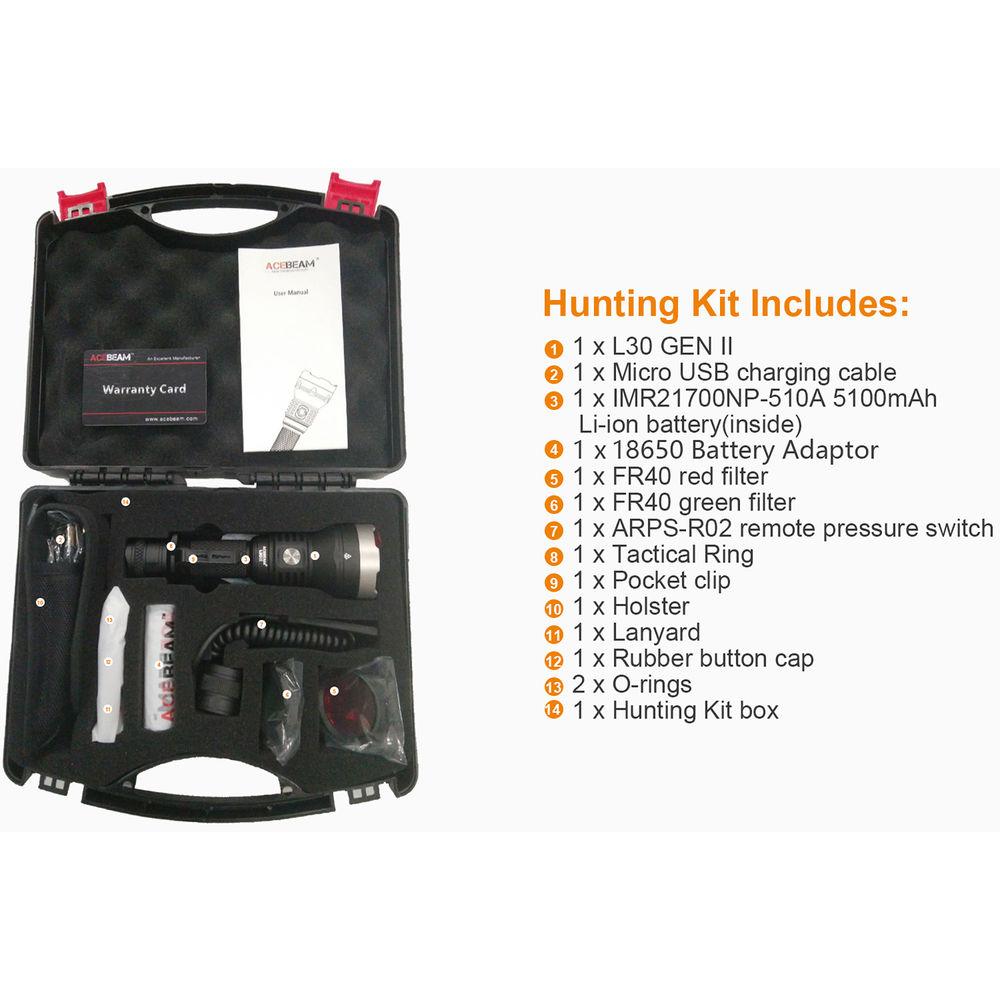

In the Box Bundle Items L30 GEN II Rechargeable LED Flashlight rxtdrszfxfrsxwcabxtcbxecrtxzc Remote Pressure Switch for L30 GEN II & T36 Flashlights FR40 Colored Filter Set for L30 & K30 Flashlights
Also Includes - Tactical Ring

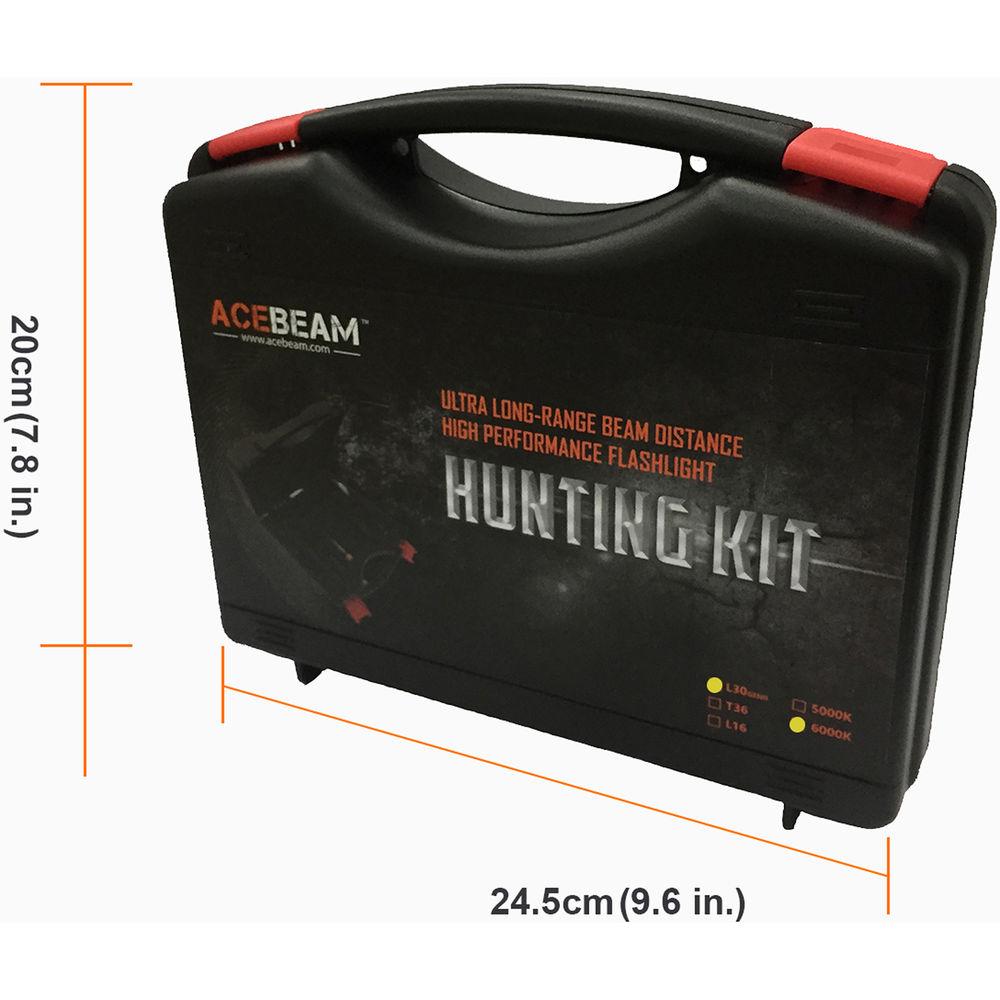

- Carrying Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam L30 GEN II Rechargeable LED Flashlight Hunting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

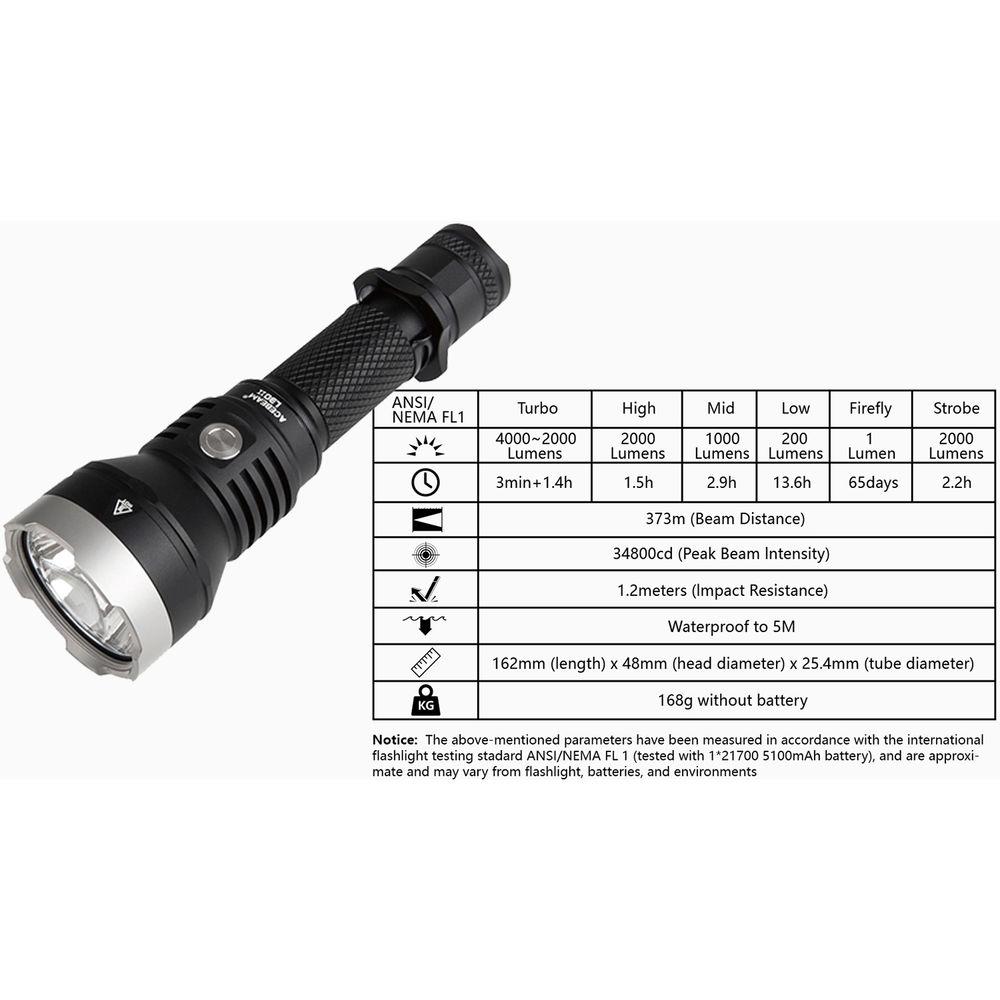

Technical parameters - L30 GEN II Rechargeable LED Flashlight
| | | Lumen Output | Ultra-Low: 1 Lumen
Low: 200 Lumens
Medium: 1000 Lumens
High: 2000 Lumens
Turbo: 4000 Lumens | | Illumination Source | 1 x White LED | | Input Charging Port | Micro-USB | | | | Estimated Runtime | Ultra-Low: 65 Days
Low: 13.6 Hours
Medium: 2.9 Hours
High: 1.5 Hours
Turbo: 3 Minutes | | Battery Type | 1 x 21700 Lithium | | Internal Battery Capacity | 5100 mAh | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 16.4' / 5 m, IPX8 | | Bezel Diameter | 1.9" / 48.0 mm | | Dimensions | W: 1.0 x L: 6.4" / W: 2.5 x L: 16.3 cm | | Weight | 5.93 oz / 168 g (Without Battery) | - Remote Pressure Switch for L30 GEN II & T36 Flashlights
| Compatibility | Acebeam L30 Gen II & T36 | - FR40 Colored Filter Set for L30 & K30 Flashlights
| Compatibility | Acebeam L30 & K30 flashlights |
