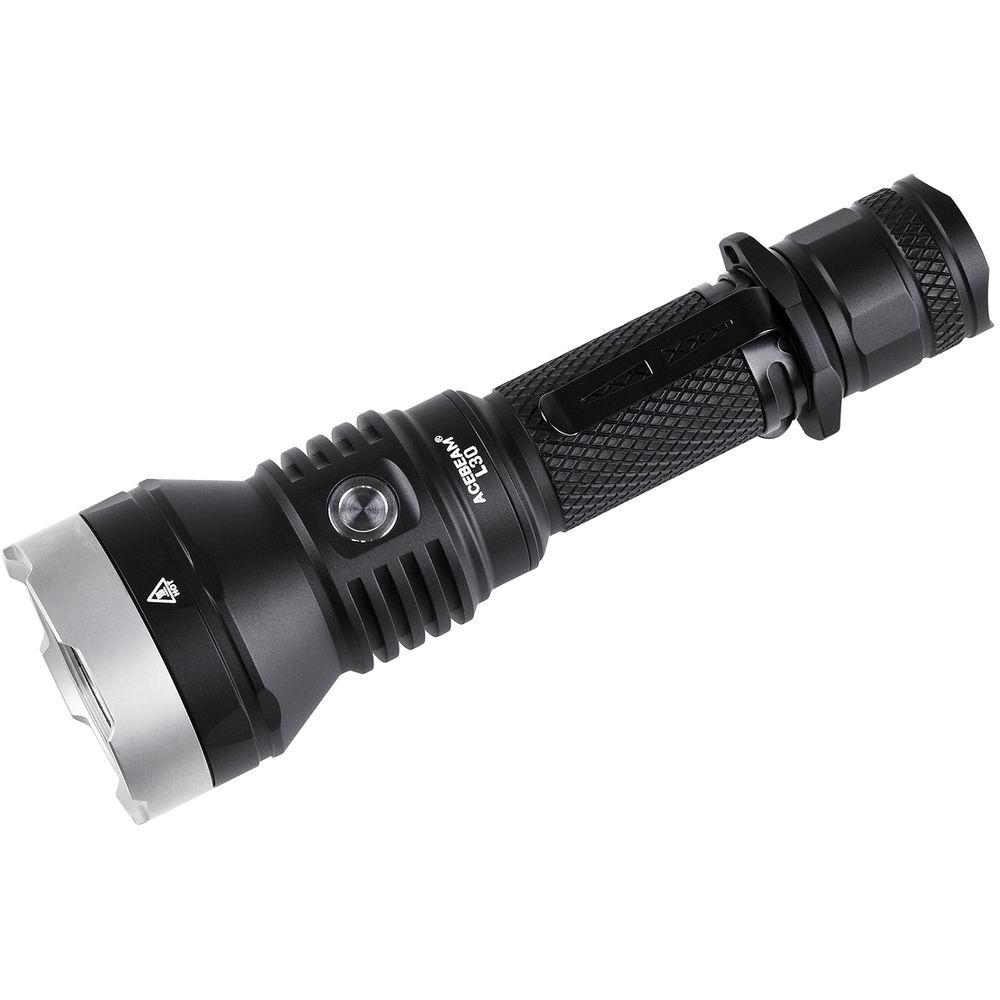

Product description With a maximum output of 4000 lumens, the L30 Rechargeable LED Flashlight from Acebeam is a powerful torch suited to professional uses, outdoor adventure, general home use and emergency preparedness. Choose from five brightness levels plus a strobe that can disorient an attacker or signal for help. Runtimes range from 59 days on the one-lumen Firefly setting to 62 minutes on Turbo. The light comes with a 4250mAh 20700 battery that recharges inside the light via micro-USB, and it can also be powered by a rechargeable 18650 battery or two CR123A cells.
A side-mounted push button turns the light on and off, cycles through the brightness levels, and controls the lockout function that prevents inadvertent activation during transport, while the tailcap switch provides one-touch access to turbo. The aluminum housing is IPX8-rated, submersible to 16', and impact resistant to 3.9'. The tempered glass lens bears anti-reflective coating that optimizes light transmission. - Light Performance
-
- Turbo: 4000 lumens
- High: 2000 lumens
- Medium: 1000 lumens
- Low: 200 lumens
- Firefly: 1 lumen
- Runtime: 62 minutes-59 days
- Cree XHP70.2 LED
- Smooth reflector
- 2000-lumen strobe for self-defense or signaling

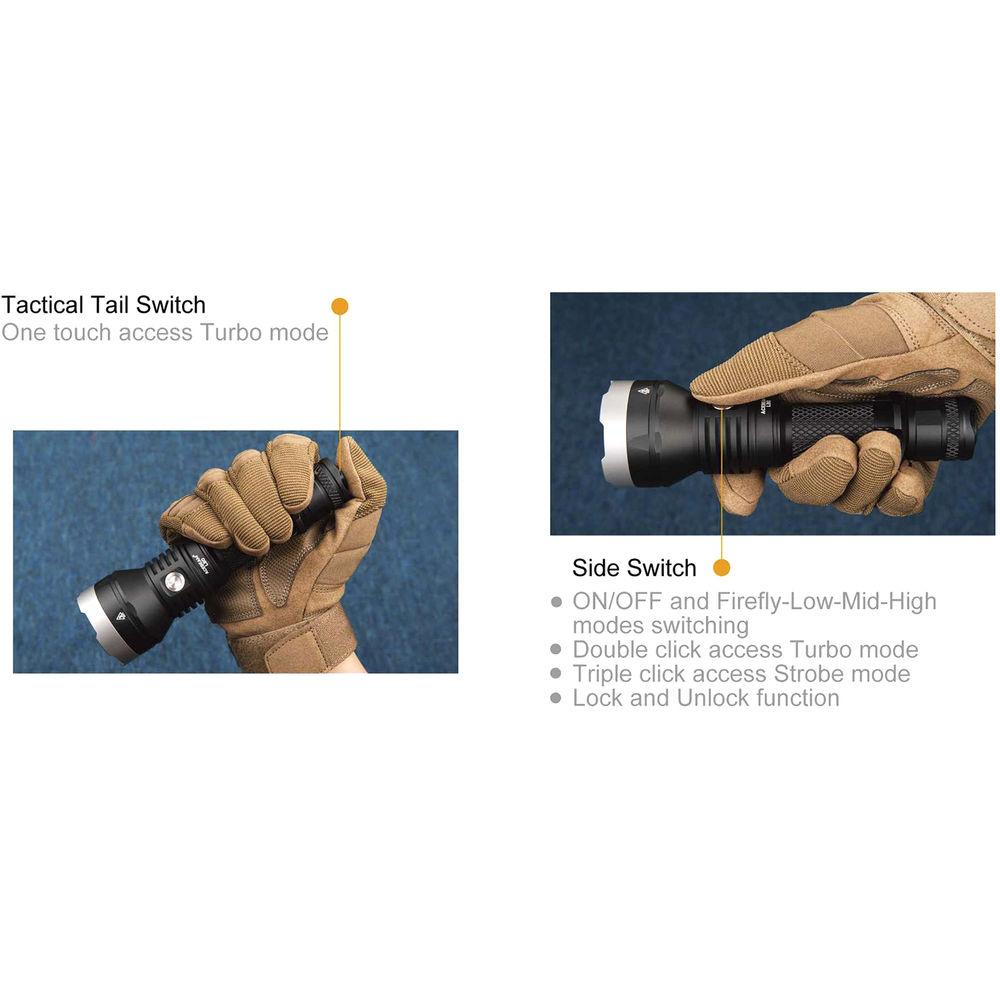

- Switching
-
- Location: side and tailcap
- Type: push button
- Side switch controls on/off and brightness levels
- Tailcap switch provides instant access to turbo
- Lockout mode prevents unintentional activation
- Construction Details
-
- Aluminum housing with IPX8 rating
- Submersible to 16'
- Impact resistant to 3.9'

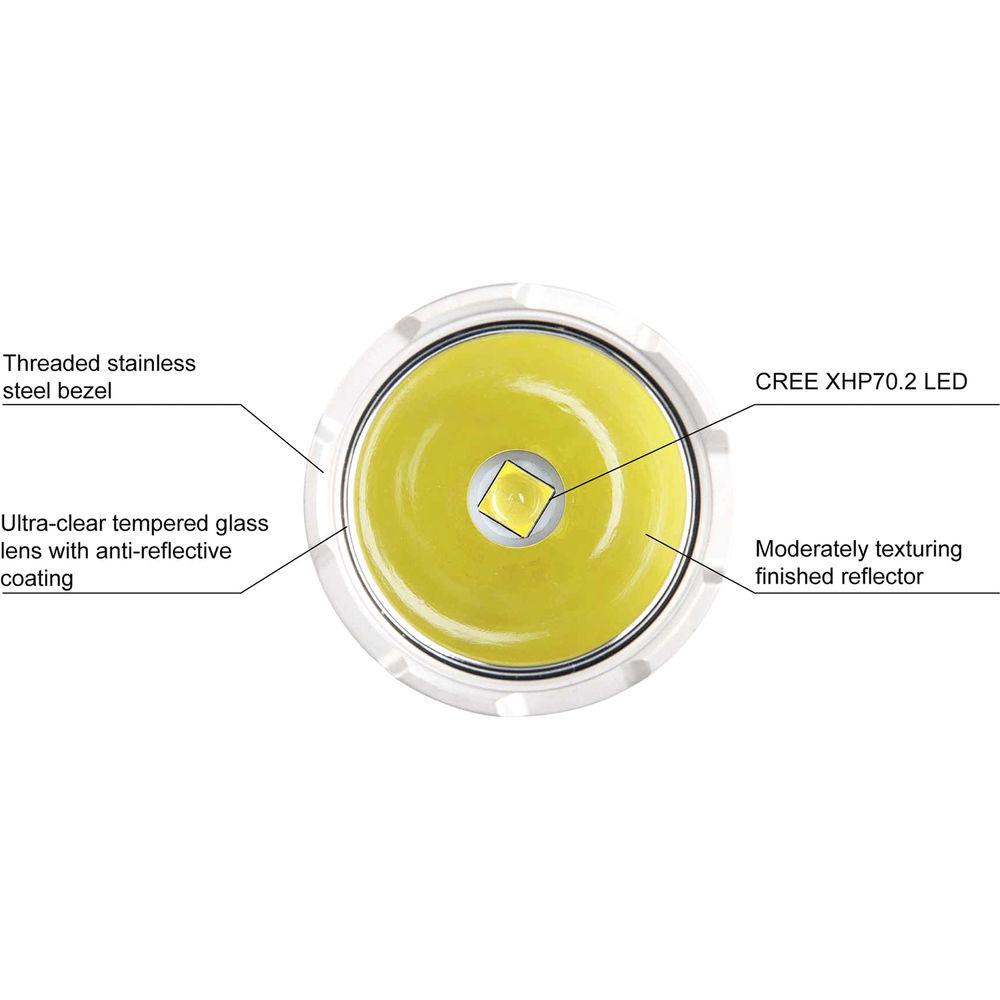

- Toughened glass lens with anti-reflective coating
- Crenellated bezel

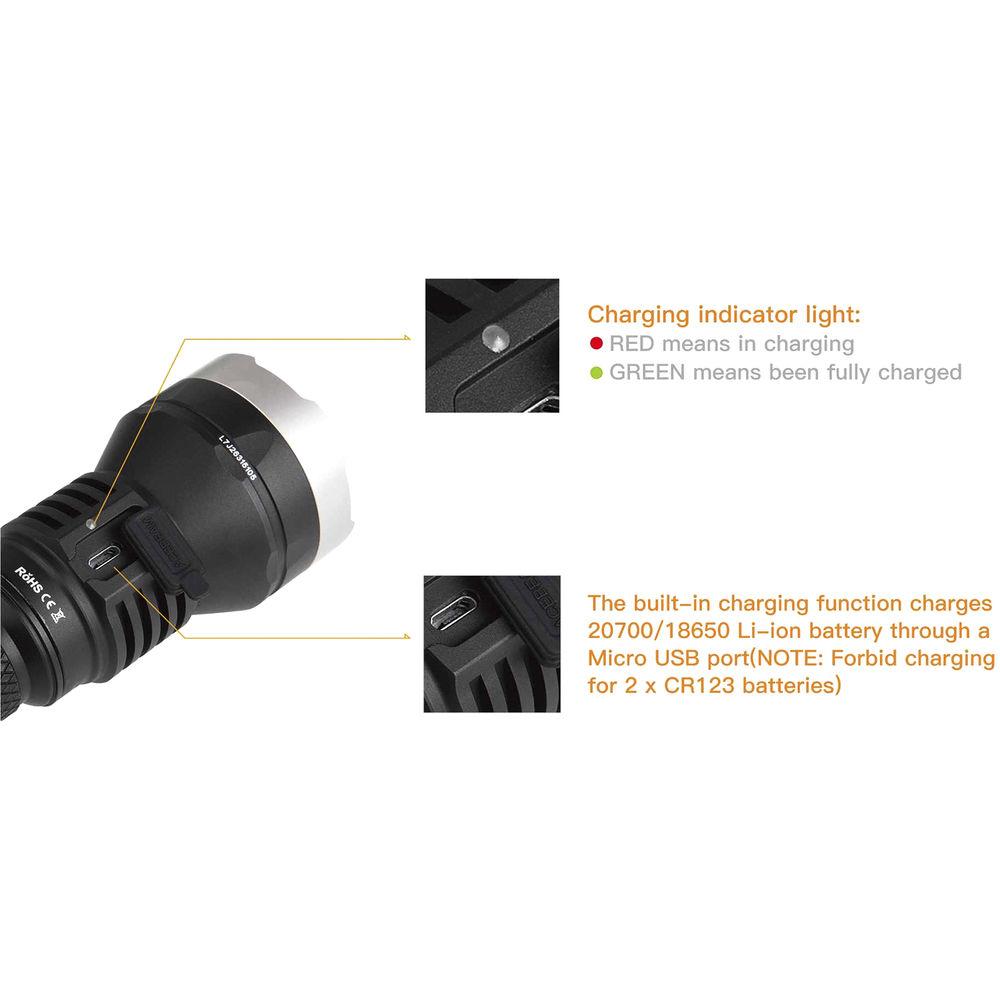

- 4250mAh 20700 li-ion battery recharges inside light via micro-USB
- Light can also run on 18650 or two CR123A batteries

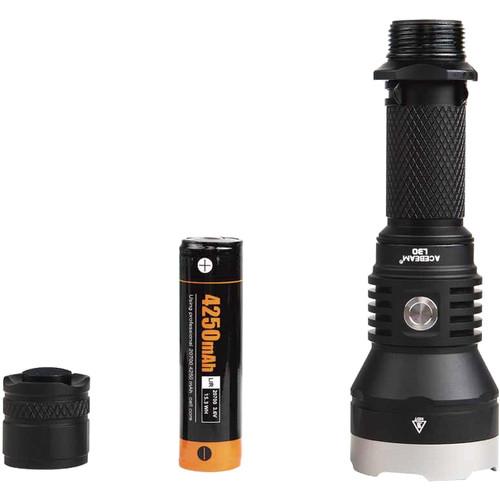

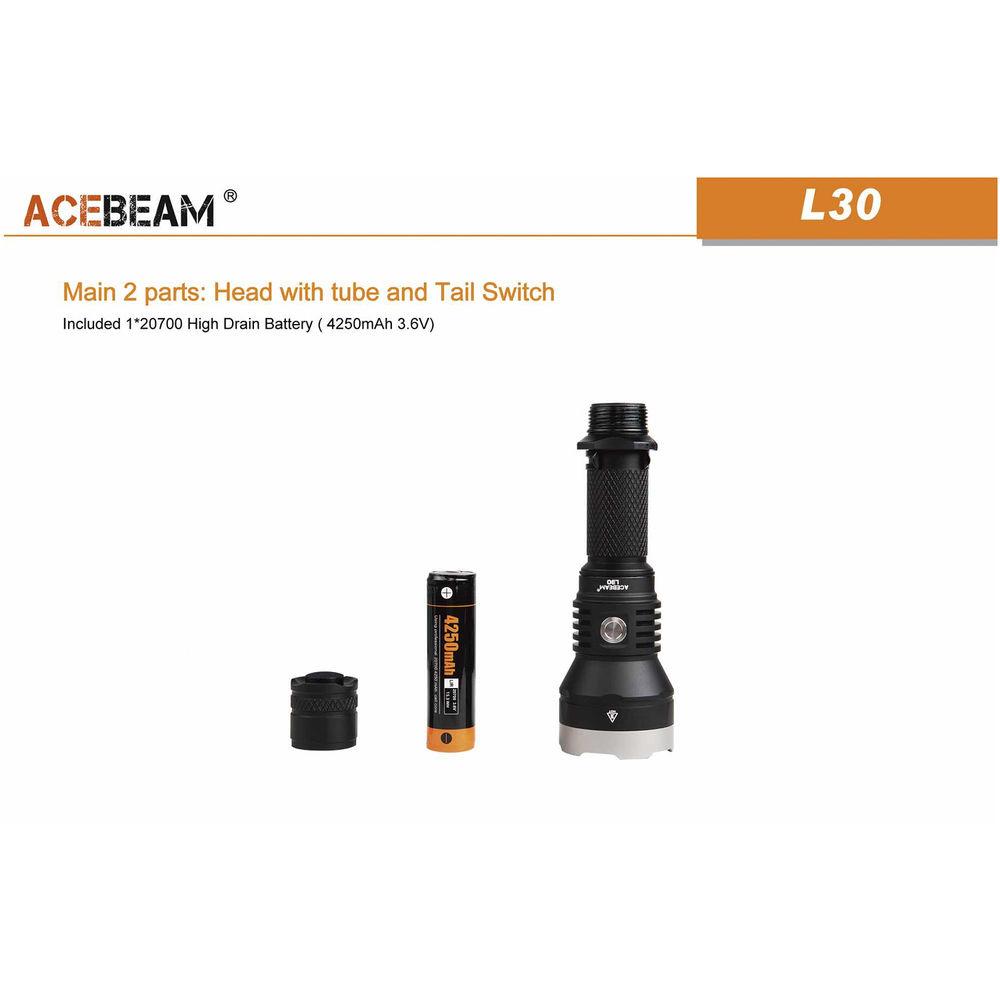

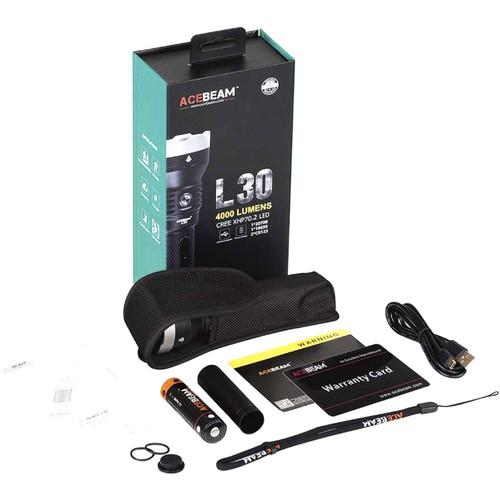

In the Box Acebeam L30 Rechargeable LED Flashlight (Black) 20700 Battery Micro-USB Cable Lanyard Holster Rubber Button Cap 2 x Spare O-Ring Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam L30 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

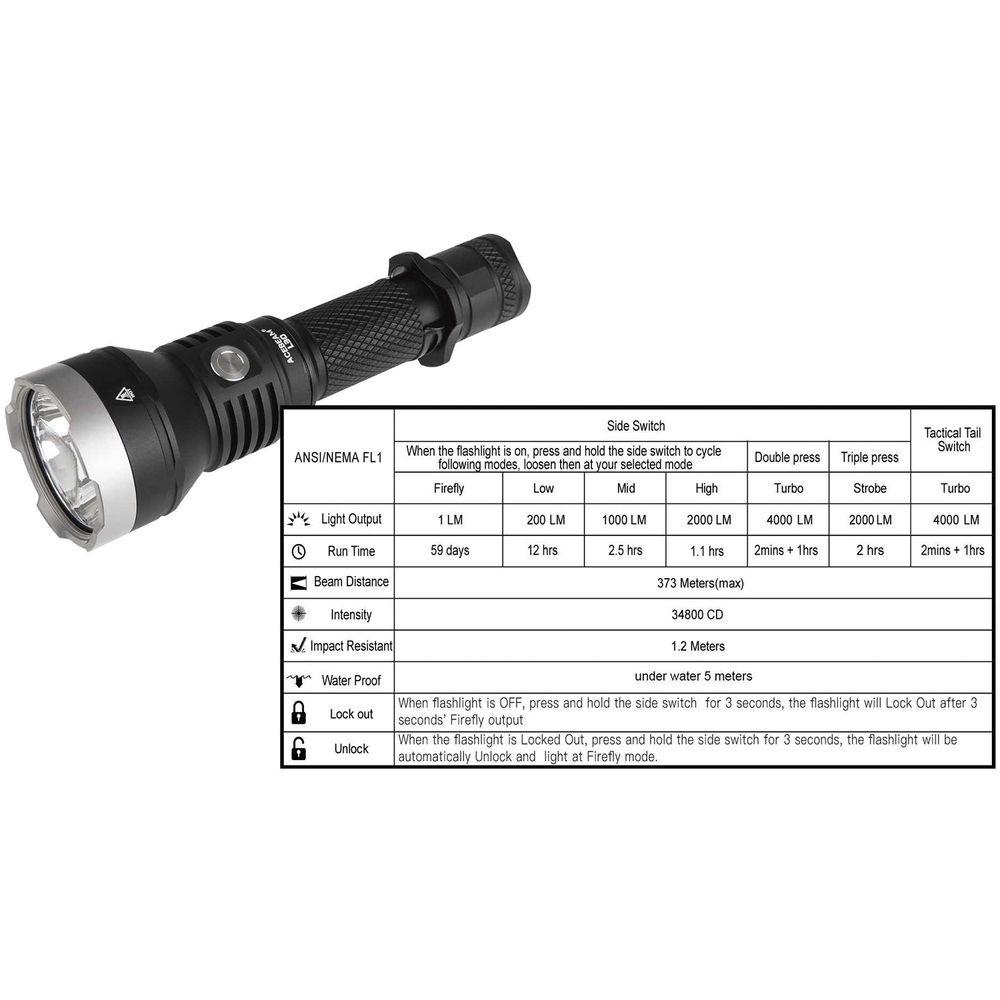

Technical parametersAcebeam L30 Specs | | | Lumen Output | High: 2000 Lumens
Medium: 1000 Lumens
Low: 200 Lumens
Turbo: 4000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1.1 Hours
Medium: 2.5 Hours
Low: 12 Hours
Turbo: 62 Minutes
Minimum: 59 Days | | Battery Type | 1 x 20700 Lithium-Ion | | Internal Battery Capacity | 4250 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Bezel Diameter | 1.9" / 48.3 mm | | Dimensions |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
