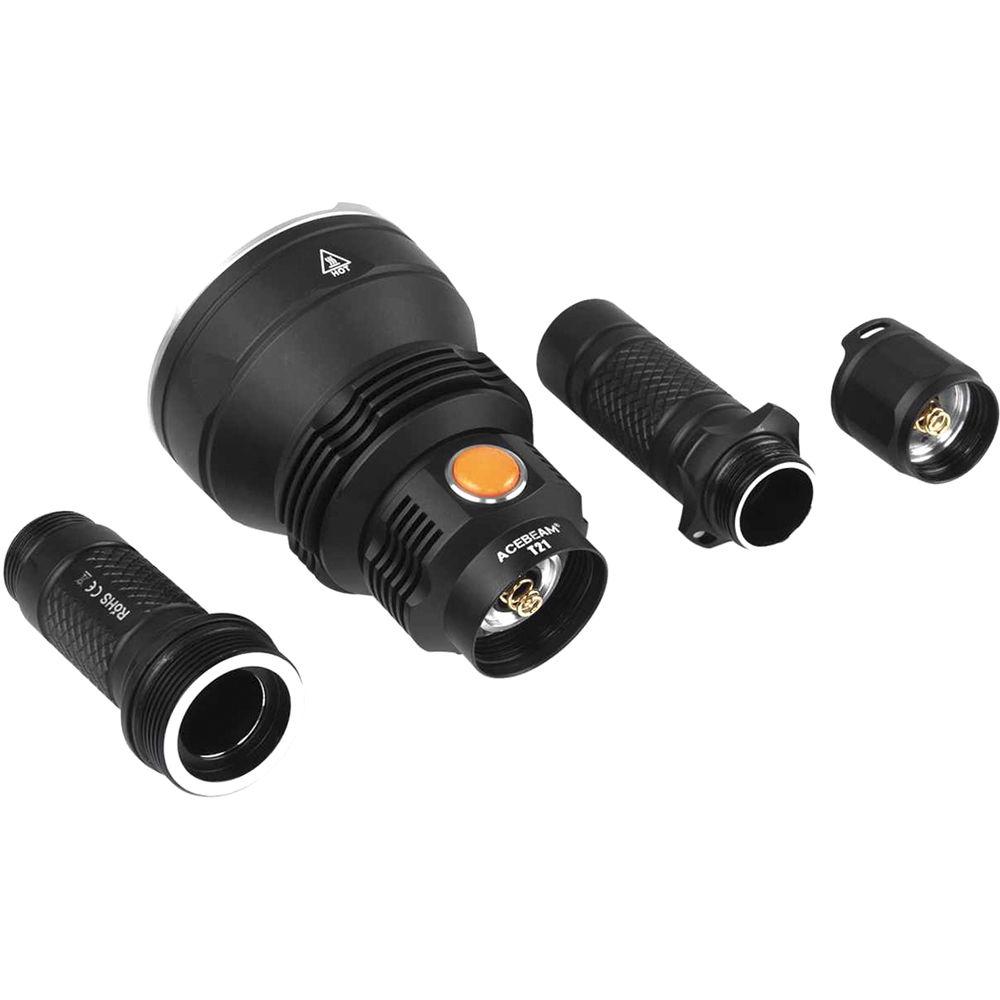

Product description With a peak output of 1500 lumens, the T21 Tactical LED Flashlight from Acebeam is suited to search and rescue, law enforcement, security, industrial, recreational and emergency preparedness use. This substantial torch offers five brightness levels plus a strobe for self-defense or signaling. It can be used in two configurations—run it on one 18650 battery or two CR123As, with a maximum brightness level of 1000 lumens, or attach the included extender and use two 18650s for the 1500-lumen output. Maximum runtime for the 0.5-lumen ultra-low setting is an impressive 1200 hours. A side-mounted push button turns the light on and off and cycles through the brightness levels and the strobe. The aluminum housing is IPX8-rated, submersible to 6.6', and impact resistant to 3.9'. The bezel is threaded to accept color filters for specialty work, and the glass lens of the light bears anti-reflective coating for maximum light transmission. - Light Performance
-
- Runs on two 18650 li-ion batteries
- Turbo: 1500 lumens
- High: 700 lumens
- Medium: 300 lumens
- Low: 50 lumens
- Firefly: 0.5 lumen
- Strobe: 1500 lumens
- Runtime: 1-1200 hours
- Can also run on one 18650 or two CR123A batteries, with maximum output 1000 lumens
- Cree XP-L High Intensity LED
- Smooth reflector
- Switching
-
- Location: side
- Type: push button
- Turn on/off, cycle through brightness settings & strobe
- Construction Details
-
- Aluminum housing with Type III anodized finish
- IPX8-rated, submersible to 6.6'
- Impact resistant to 3.9'
- Tempered glass lens with anti-reflective coating
- Low battery indicator

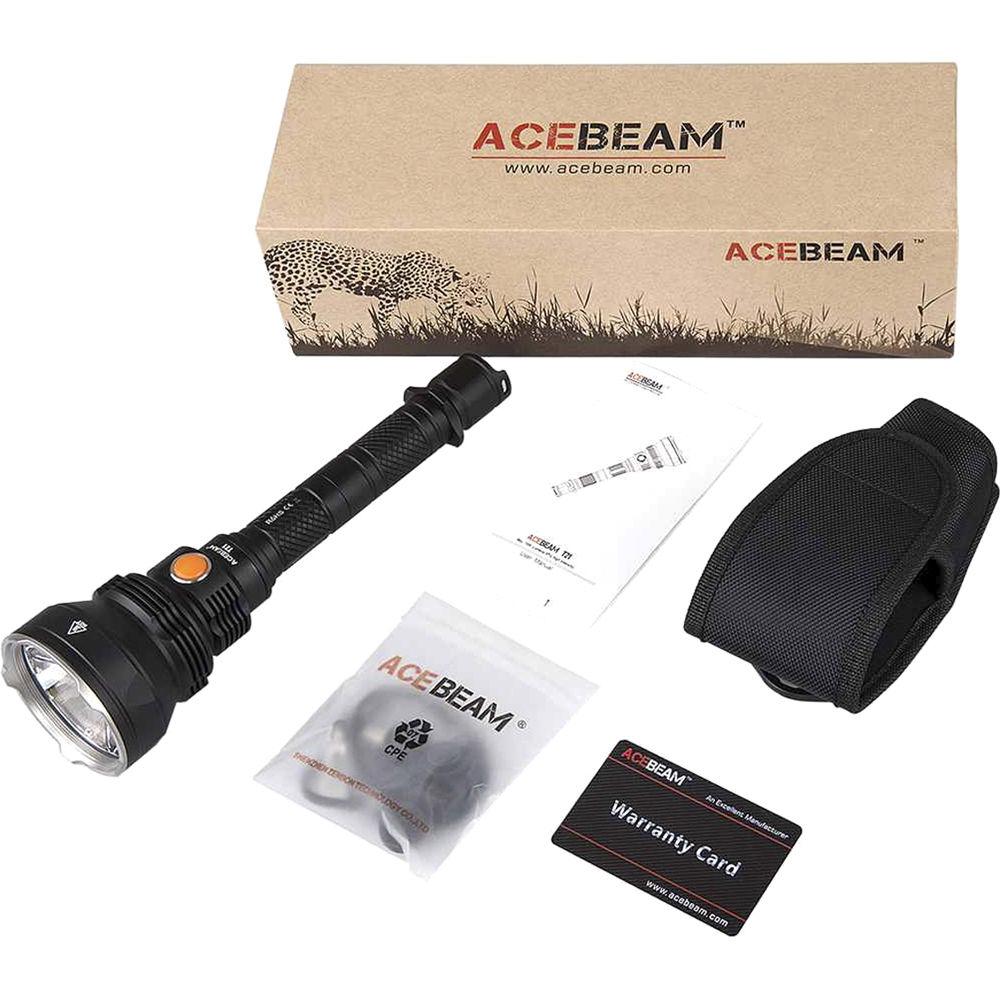

In the Box Acebeam T21 Tactical LED Flashlight (Black) Holster Lanyard 2 x Spare O-Ring Rubber Button Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam T21 Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

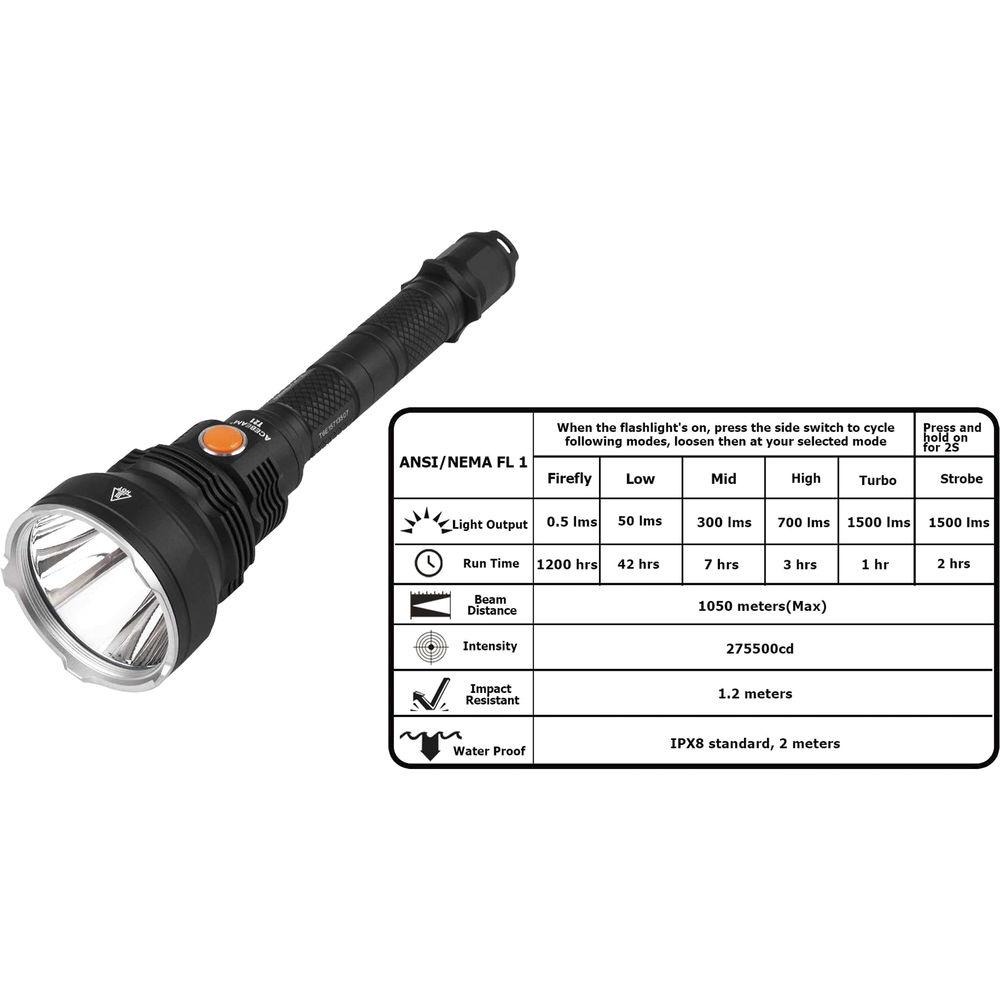

Technical parametersAcebeam T21 Specs | Lumen Output | Turbo: 1500 Lumens High: 700 Lumens Medium: 300 Lumens Low: 50 Lumens Minimum: 0.5 Lumen Strobe: 1500 Lumens | Illumination Source | 1 x LED | | Estimated Runtime | High: 3 Hours Medium: 7 Hours Low: 42 Hours Turbo: 1 Hour Strobe: 2 Hours Minimum: 1200 Hours | Battery Type | 2 x 18650 Lithium-Ion | | Material of Construction | Aluminum | Water Resistance | Waterproof, IPX8 | Bezel Diameter | 2.8" / 7.0 cm | Dimensions |
