User Manual for Acebeam T36 Rechargeable LED Flashlight Hunting Kit Click to enlarge the picture
Contents of the user manual for the Acebeam T36 Rechargeable LED Flashlight Hunting
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam T36 Rechargeable LED Flashlight Hunting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

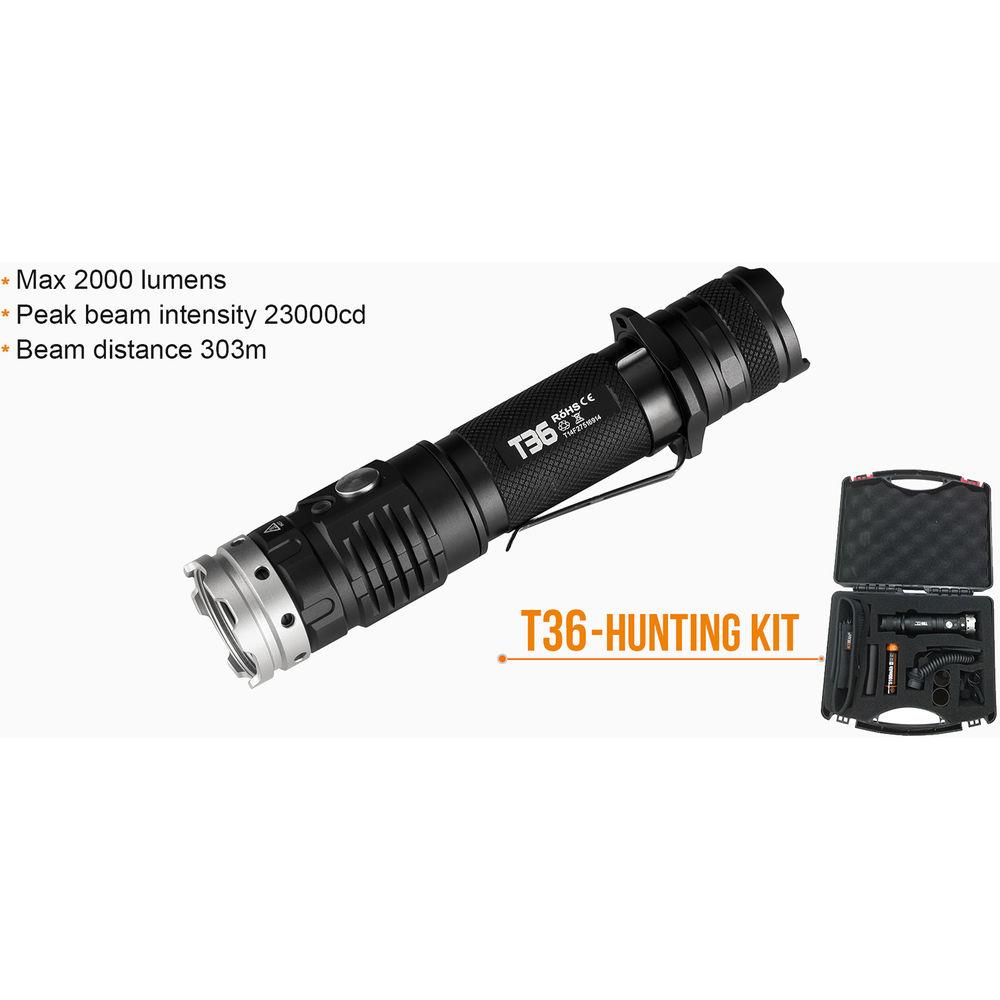

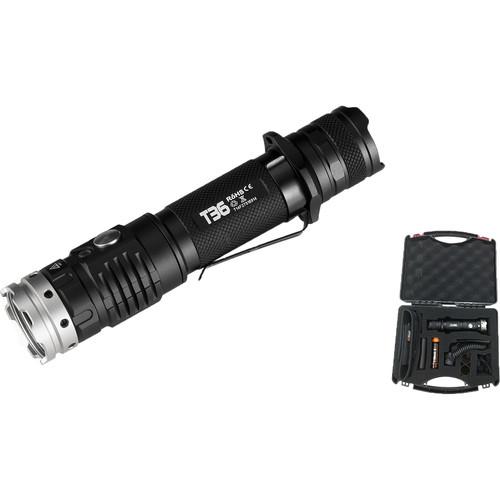

Product description Take to the field with the illumination gear you'll need for a successful hunt in the T36 Rechargeable LED Flashlight Hunting Kit from Acebeam. The kit includes the 2000-lumen maximum output T36 flashlight, a high-drain rechargeable battery, a remote pressure switch, a charging cable, a tactical ring, red and green filters, a pocket clip, a holster, and a lanyard. The set comes in a sturdy carry case with integrated handle and foam-lined interior. - T36 Rechargeable Tactical LED Flashlight Compact in size but packing a 2000-lumen maximum output and tactical features, the T36 Rechargeable Tactical LED Flashlight from Acebeam is suited to law enforcement and security as well as recreational and home use. This 5.7 x 1" light offers five brightness levels, a strobe for self-defense or signaling, and an aggressively crenelated stainless-steel strike bezel. Its knurled handle affords a good grip, a tactical ring is provided for use in conjunction with a sidearm, and the housing can withstand submersion to 16.4' and drops from 3.9'.

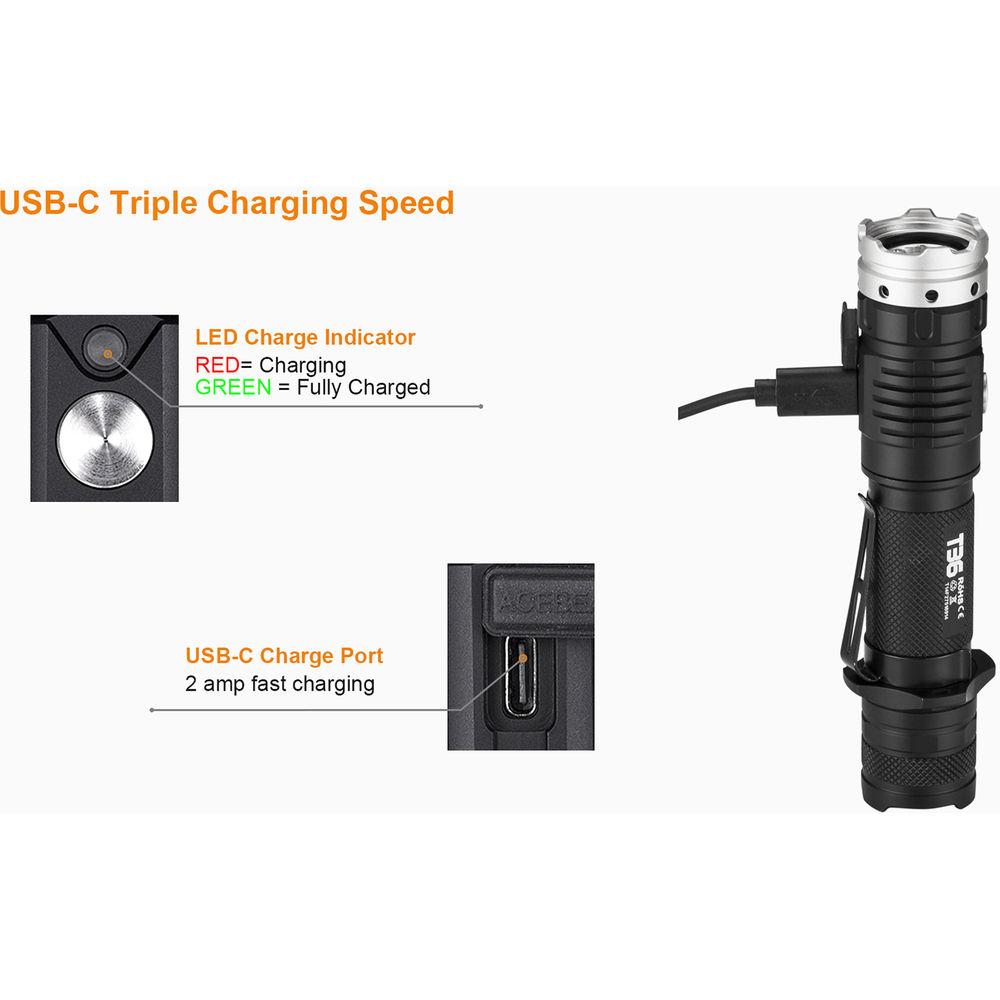

Runtime with a fully charged 21700 battery ranges from 2.5 hours on turbo (1.5 minutes at 2000 lumens, 800 lumens thereafter) to 28 days at the 2-lumen ultra-low setting. The battery recharges inside the light via a USB-C charge cable. A side-mounted push button turns the light on and off, cycles through the brightness levels, and controls the lockout function that prevents inadvertent activation during transport, while the tailcap switch controls momentary operation and one-touch access to turbo. - Light Performance
-
- Turbo: 2000 lumens
- High: 1350 lumens
- Medium: 500 lumens
- Low: 200 lumens
- Ultra-low: 2 lumens
- Runtime: 2.5 hours-28 days
- Cree XHP35 HI LED
- Moderately textured reflector
- 1350-lumen strobe for self-defense or signaling
- Switching
-
- Location: side and tailcap
- Type: push button
- Side switch controls on/off, brightness levels, strobe, and lockout
- Tailcap switch provides instant access to turbo and momentary operation
- Lockout mode prevents unintentional activation
- Construction Details
-
- Aluminum housing with IPX8 rating
- Submersible to 16.4'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating
- Crenelated stainless-steel strike bezel
- 5100mAh IMR 21700 li-ion battery recharges inside light via USB-C charging cable
- Light can also run on 18650 or two CR123A batteries
- Red/green LED battery level indicator

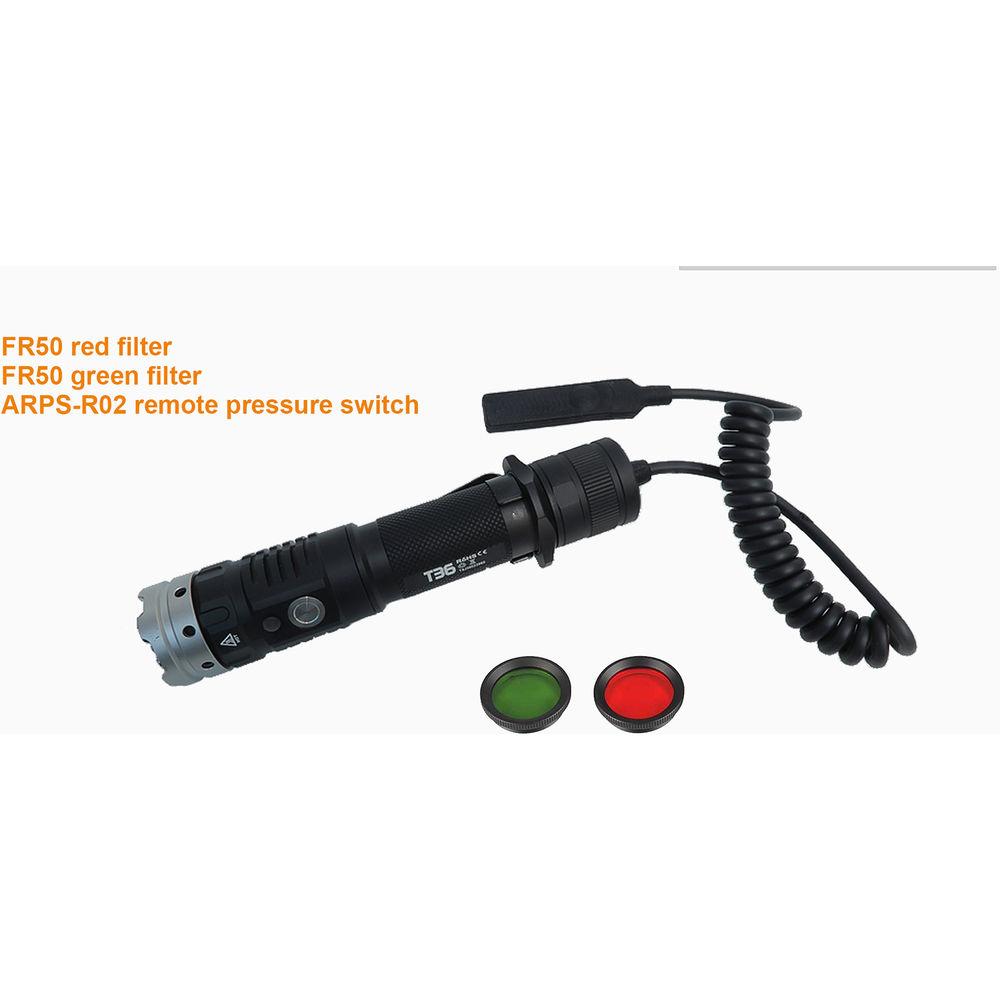

- Remote Pressure Switch for L30 GEN II & T36 Flashlights This Remote Pressure Switch allows you to operate select Acebeam weapon-mounted flashlights without having to move your hands. It is compatible with the L30 Gen II and T36.
- FR50 Colored Filter Set for T36 Flashlight The FR50 Colored Filter Set includes red and green filters for Acebeam T36 flashlights. Customize your light with the right filter for your nighttime activity.

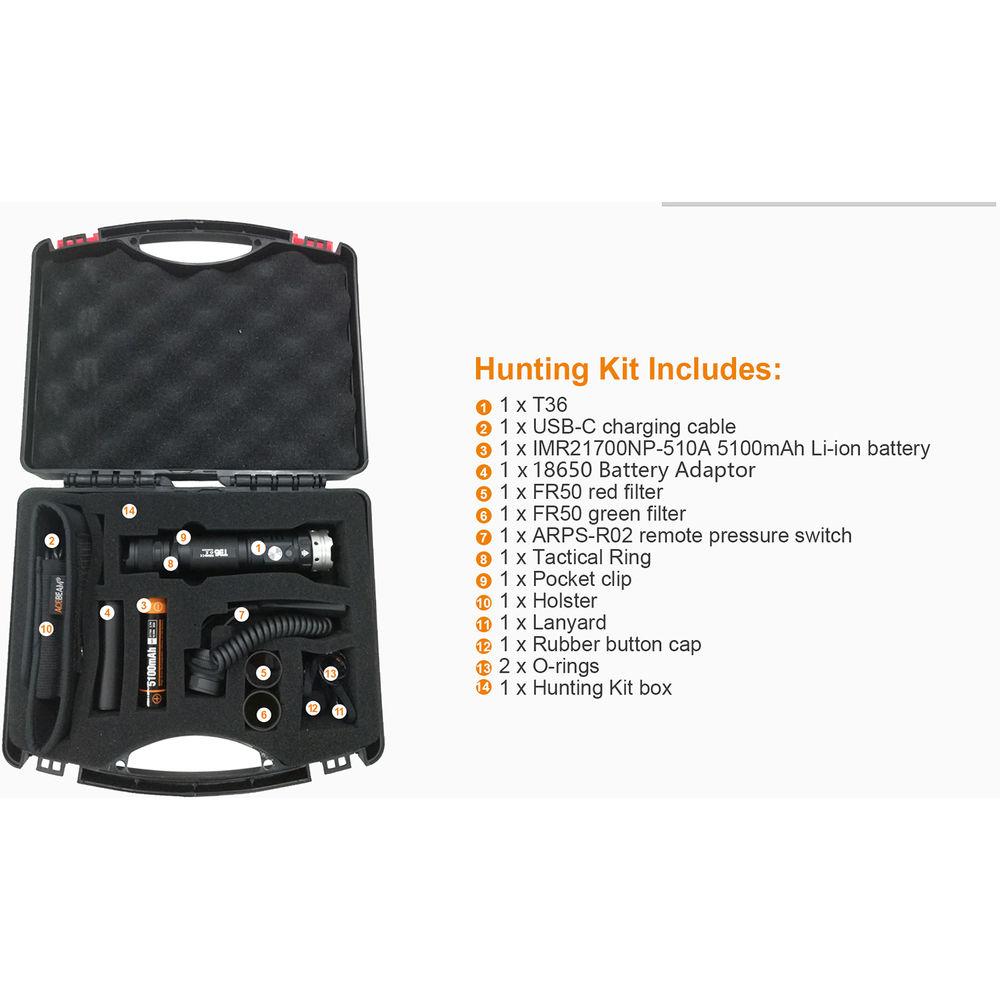

In the Box Bundle Items T36 Rechargeable Tactical LED Flashlight euezrerysasbebcfbateeqaqr Remote Pressure Switch for L30 GEN II & T36 Flashlights FR50 Colored Filter Set for T36 Flashlight
Also Includes - Tactical Ring
- Holster
- Lanyard
- 2 x Replacement O-Rings
- Rubber Button Cap

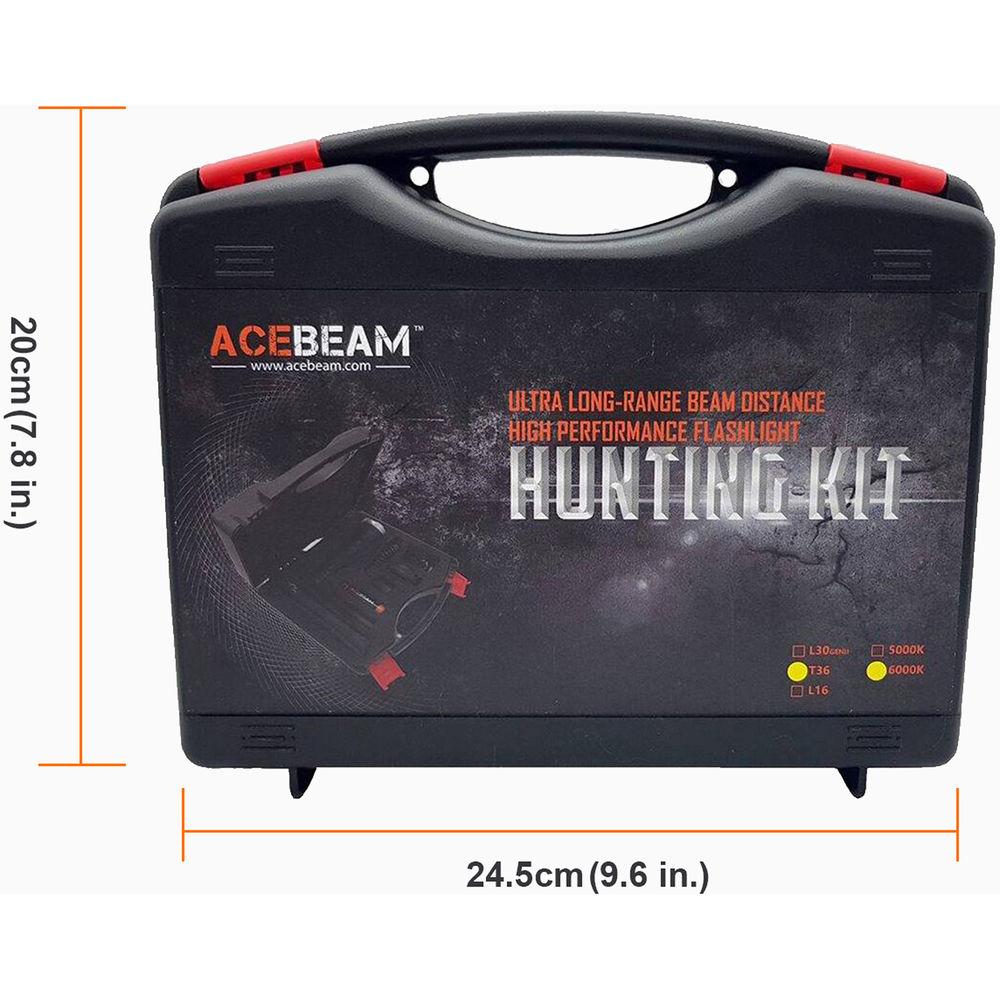

- Carrying Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam T36 Rechargeable LED Flashlight Hunting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - T36 Rechargeable Tactical LED Flashlight

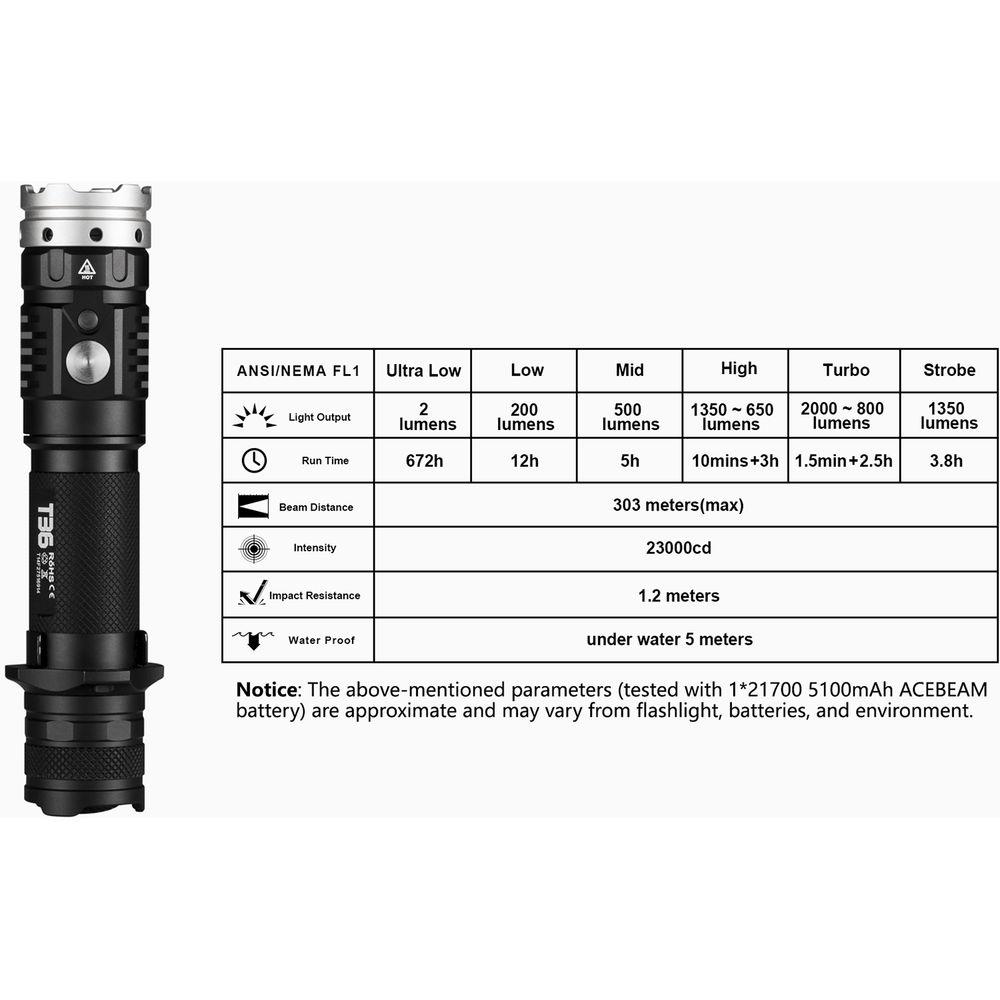

| | | Lumen Output | Ultra-Low: 2 Lumens
Low: 200 Lumens
Medium: 500 Lumens
High: 1350 Lumens
Turbo: 2000 Lumens | | Illumination Source | 1 x White LED | | Input Charging Port | USB Type-C | | | | Estimated Runtime | Ultra-Low: 28 Days
Low: 12 Hours
Medium: 5 Hours
High: 10 Minutes

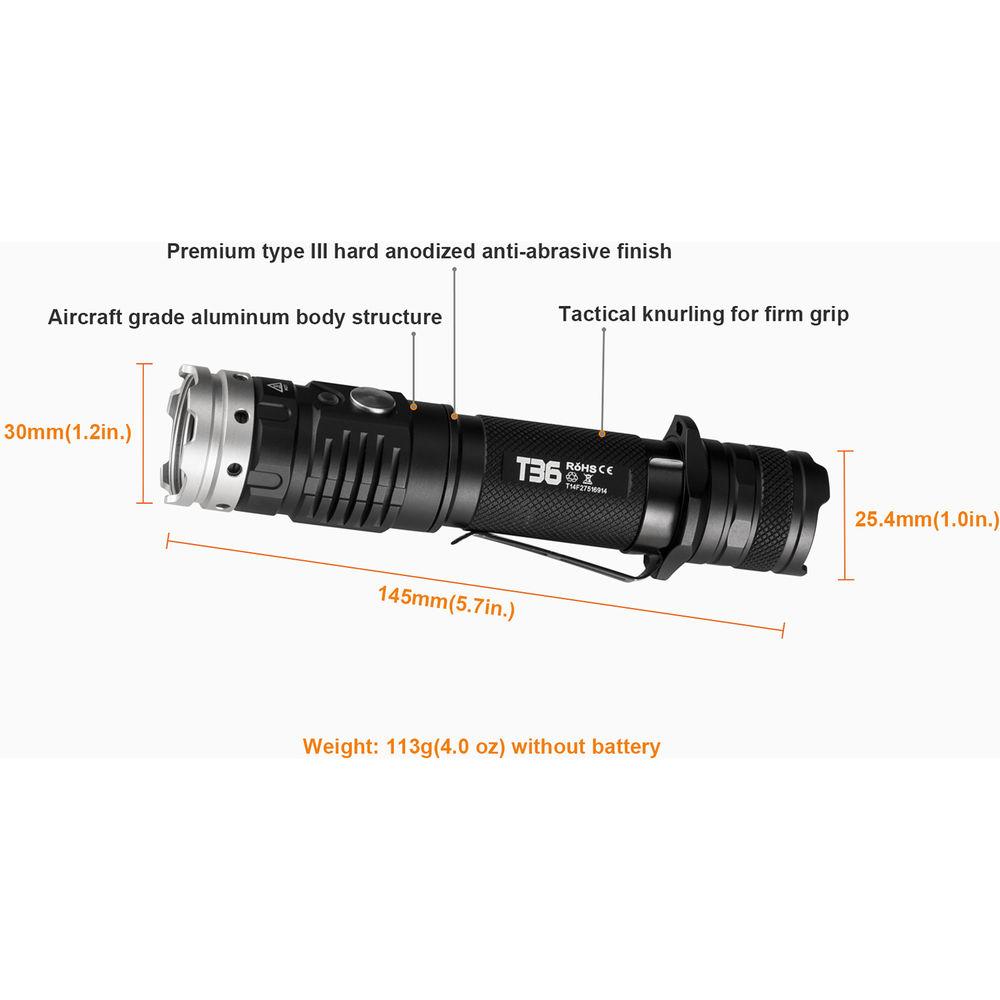

Turbo: 1.5 Minutes | | Battery Type | 1 x 21700 Lithium-Ion | | Internal Battery Capacity | 5100 mAh | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 16.4' / 5 m, IPX8 | | Bezel Diameter | 1.2" / 30.0 mm | | Dimensions | W: 1.0 x L: 5.7" / W: 25.4 x L: 145.0 mm | | Weight | 3.99 oz / 113 g (Without Battery) | - Remote Pressure Switch for L30 GEN II & T36 Flashlights
| Compatibility | Acebeam L30 Gen II & T36 | - FR50 Colored Filter Set for T36 Flashlight
| Compatibility | Acebeam T36 flashlight |
