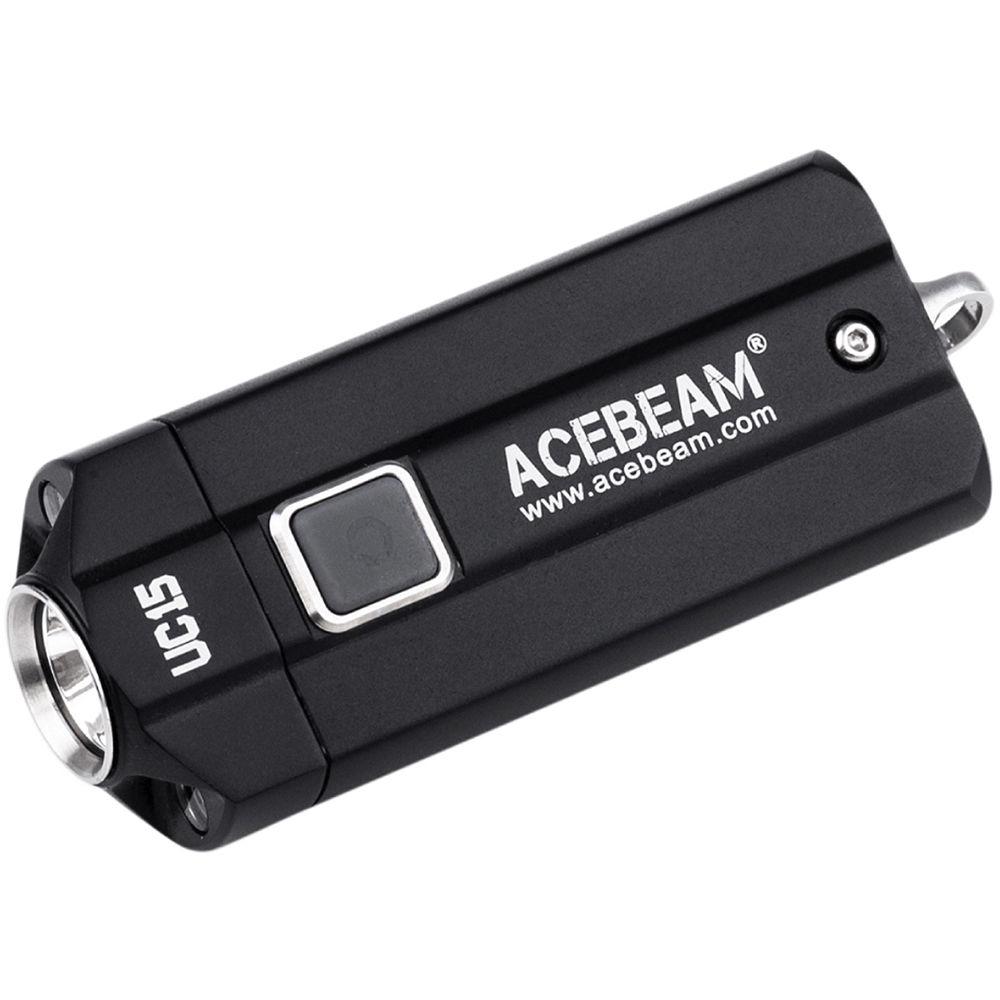

Product description Considering its 1000-lumen peak output, it seems strange to call the Acebeam UC15 a key chain flashlight, but at just 2.6" long and 1.4 ounces, that's what it is. The UC15 is a dual-fuel light—it can run on size 10440 lithium-ion batteries, which yield brightness levels of 10, 200, and 1000 lumens, or on two standard AAA alkaline batteries, which produce outputs of 10, 82, and 250 lumens. Along with the three levels of white light, the UC15 can also shine red light, which can help preserve night-acclimated vision during activities like stargazing, and UV light for document examination, auto repair, or forensic science.A single push-button switch controls on/off, light color and brightness level. The housing is made of 6063 aluminum with a Type III hard anodized finish and features a glass lens with anti-reflective coating for optimal light transmission. It can be clipped to a pocket or cap brim, or hung on a key chain via the stainless-steel loop provided for the purpose. It's rated IP54, dust and water resistant, and is impact resistant up to 3.3'. - Light Performance
-
- With 10440 Li-ion batteries: 10/200/1000 lumens
- With AAA alkaline batteries: 10/82/250 lumens
- Runtime: 47 minutes - 19 hours (10440), 1.1 - 14 hours (AAA)

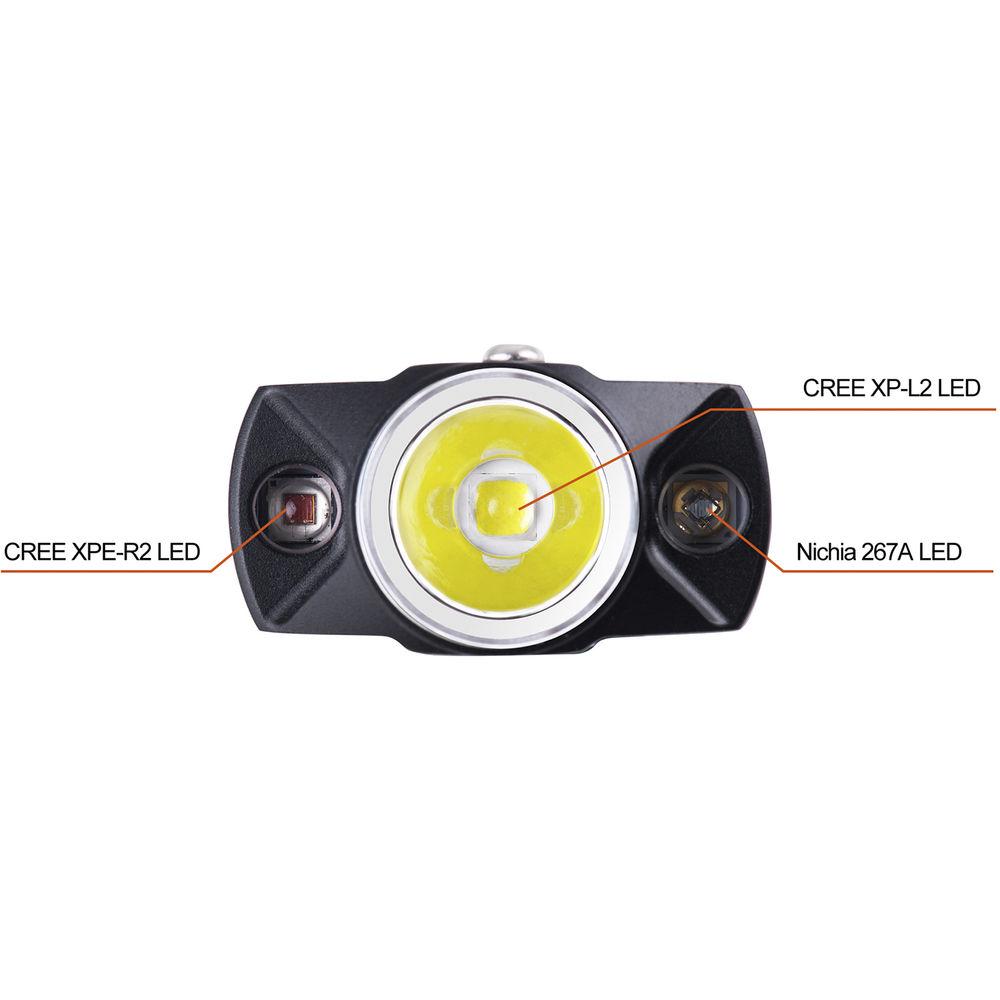

- Cree XP-L2 high-density white LED
- Cree XPE-R2 630nm red LED
- Nichia 276A 365nm UV LED
- Anti-reflective coated glass
- Switching
-
- Location: side
- Type: push button
- Click for on/off and to select setting
- Construction Details
-
- Battery level indicator
- Aluminum housing with Type III hard anodized finish

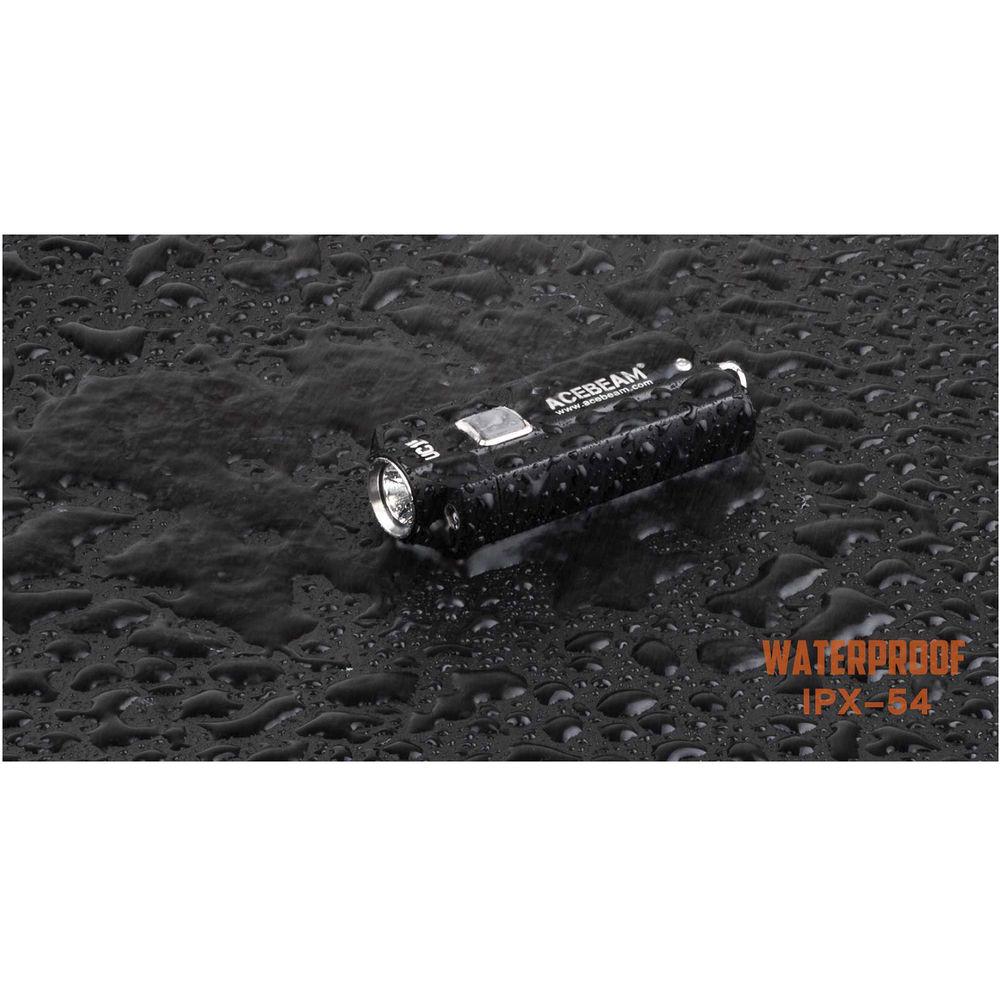

- IP54-rated, dust and spray resistant

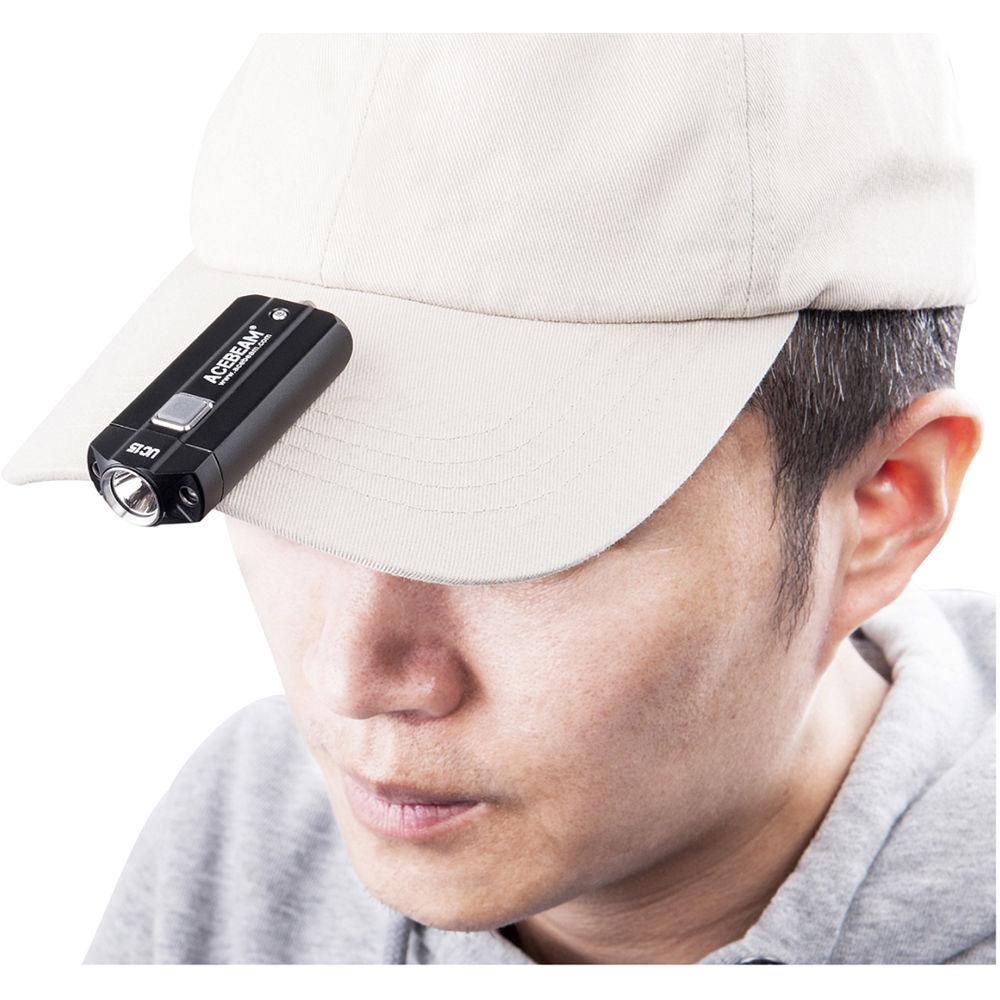

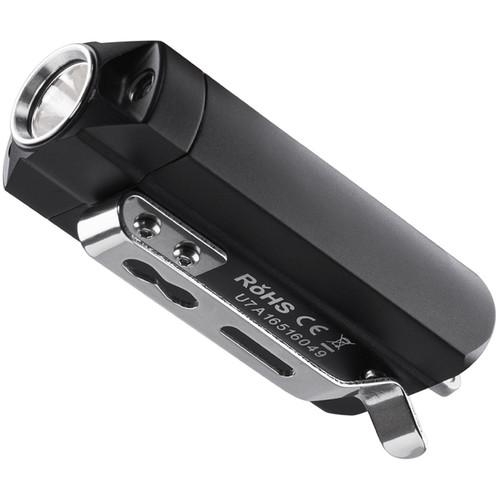

- Clip for pocket or cap brim

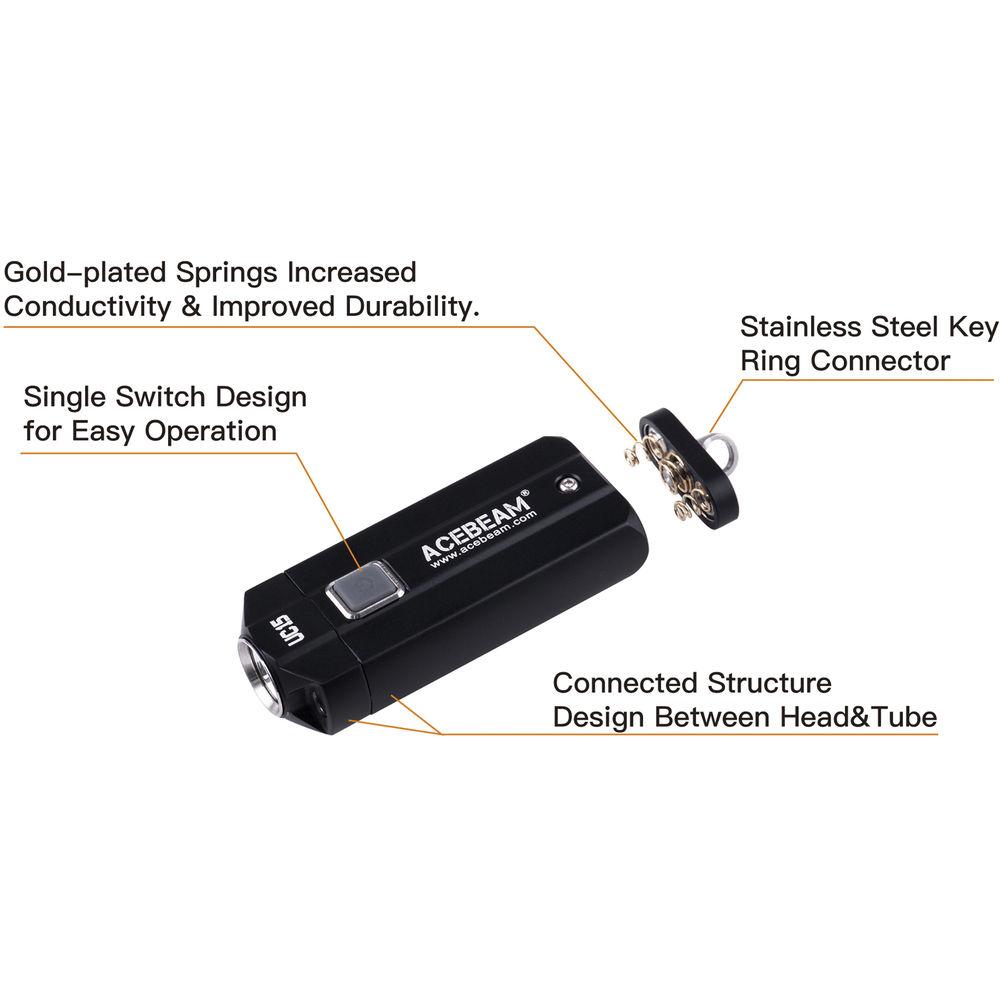

- Stainless-steel key ring loop
- Runs on two 10440 Li-ion or two AAA alkaline batteries
- Measures 2.6 x 1.1 x 0.6"
- Weighs 1.4 ounces

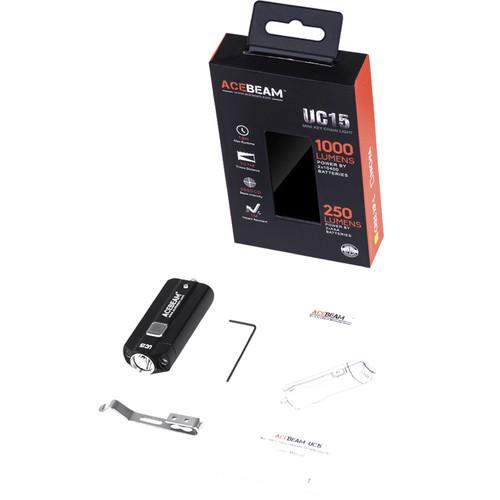

In the Box Acebeam UC15 LED Key Chain Flashlight Removable Pocket Clip Hex Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam UC15 LED Key Chain Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

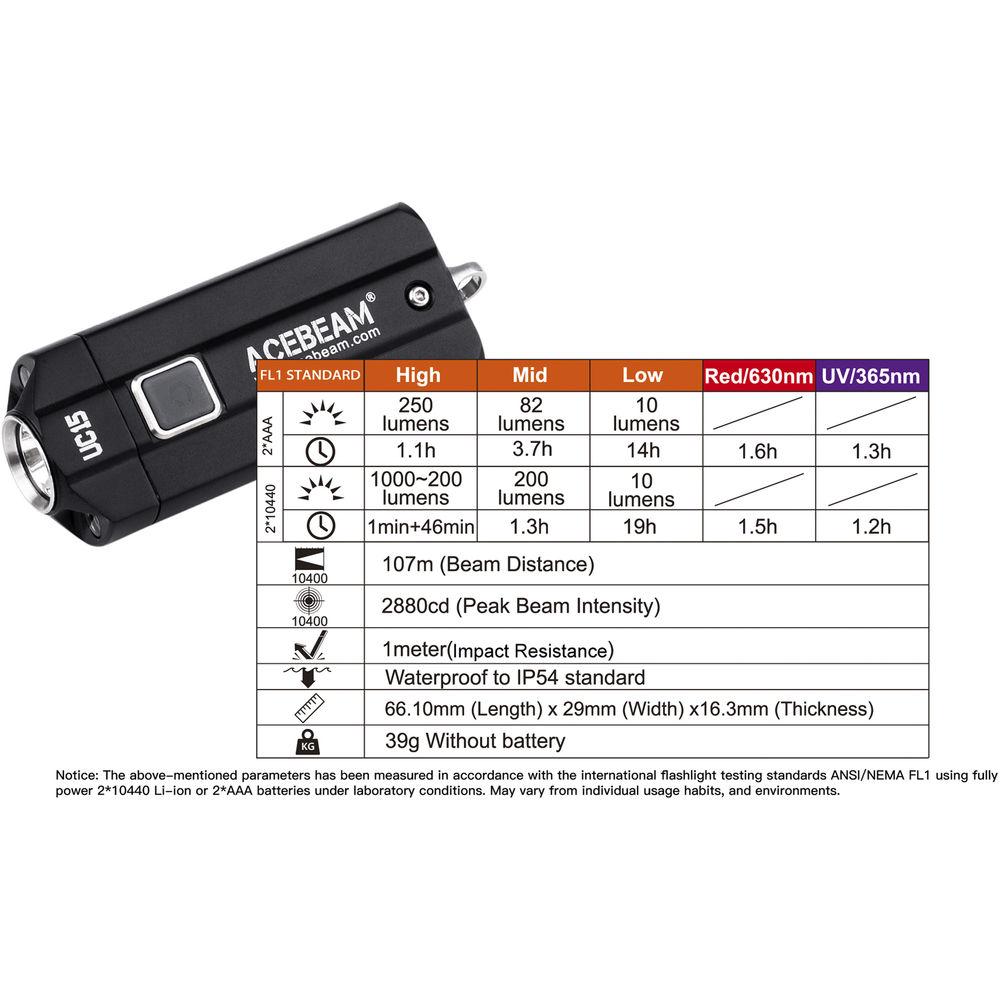

Technical parametersAcebeam UC15 Specs | Illumination Source | 1 x White LED
1 x Red LED
1 x UV LED | | White Light Output | Low: 10 Lumens
Medium: 200 Lumens
High: 1000 Lumens | | Colored Output | Red: 630 nm
UV: 365 nm | | Battery Type | 2 x 10440 Lithium-Ion
2 x AAA Alkaline | | Estimated Runtime | Minimum: 46 Hours
Low: 2.4 Hours
Medium: 1.1 Hours
High: 34 Minutes
Turbo: 47 Minutes Runtime is for 10440 li-ion batteries; AAA cell runtime will be lower | | Material of Construction | Aluminum | | IP Rating | IP54 | | Dimensions | H: 2.6 x W: 1.1 x L: 0.6" / H: 6.6 x W: 2.9 x L: 1.6 cm | | Weight | 1.38 oz / 39 g (Without Battery) | | | | Package Weight | 0.265 lb | | Box Dimensions (LxWxH) | 6.15 x 3.2 x 1.05" |
